DTC Always ON MALFUNCTION IN ABS ECU
CIRCUIT DESCRIPTION

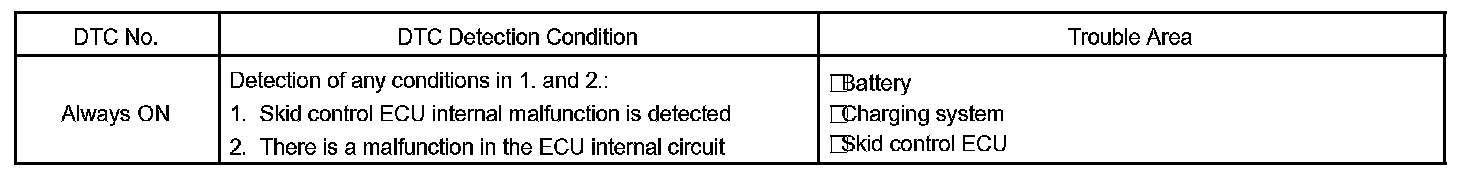

DTC Detection Condition:

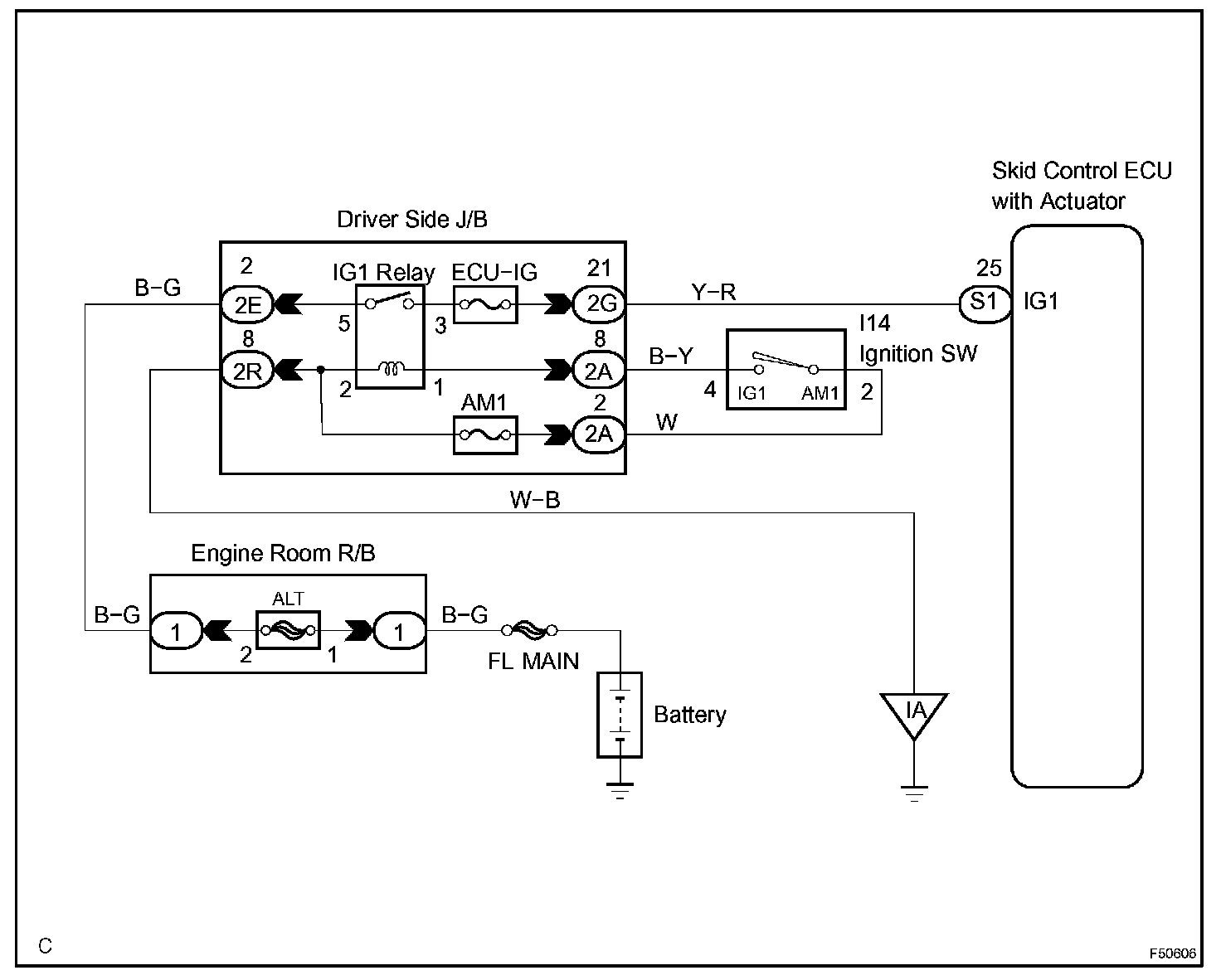

Wiring Diagram:

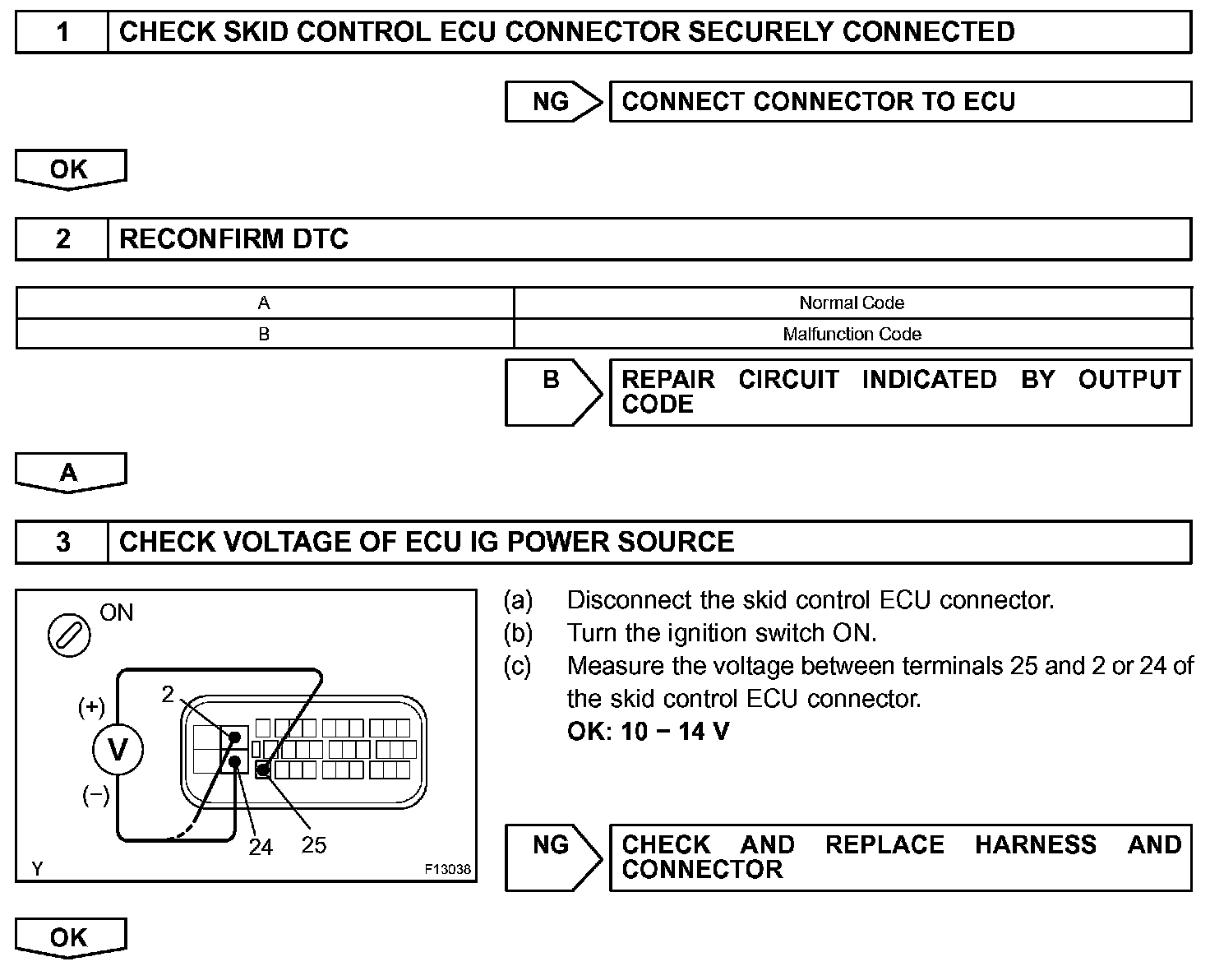

Step 1-3:

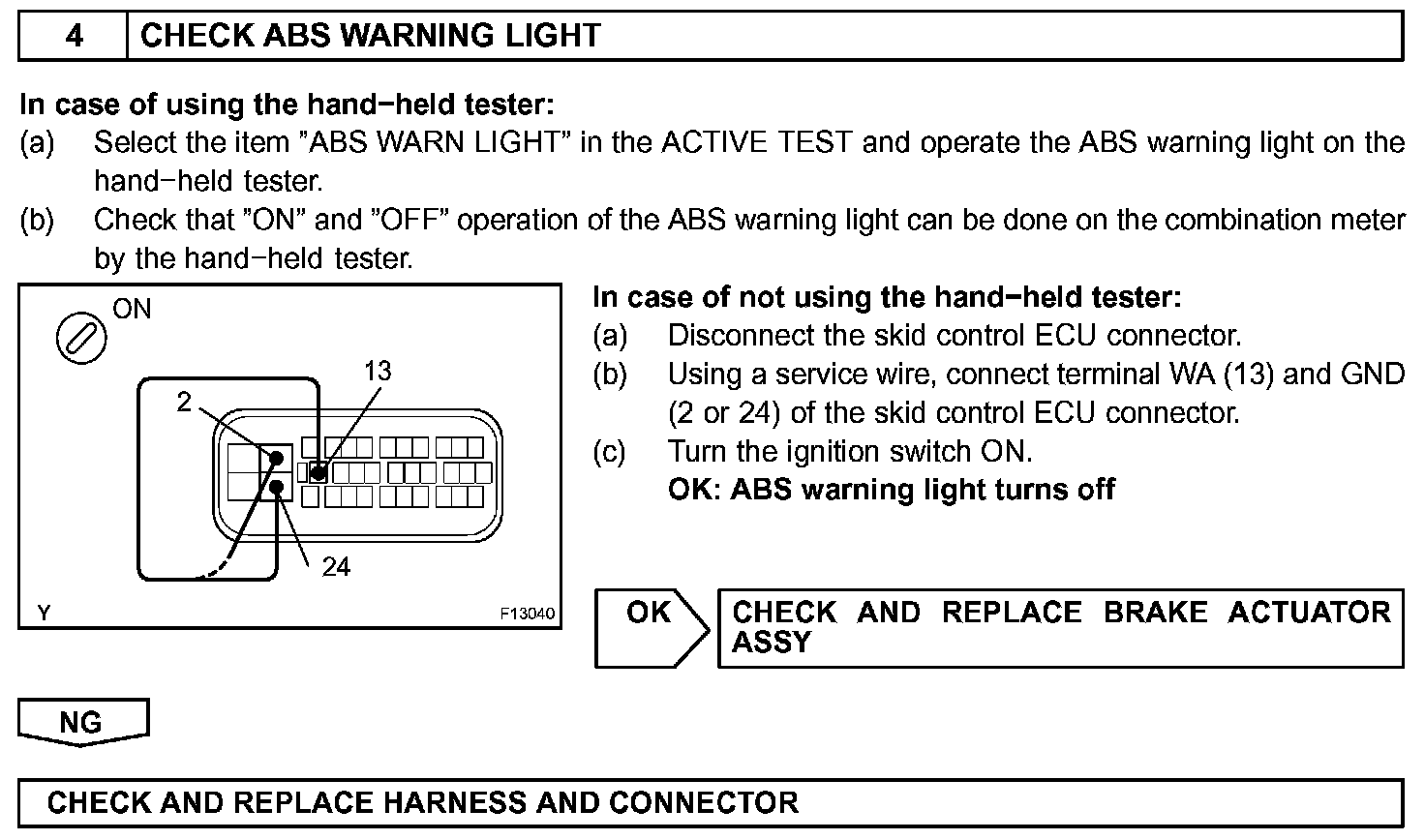

Step 4:
INSPECTION PROCEDURE
