Without Scan Tool
CHECK THE DTCIn case of not using hand-held tester:
Check the DTC.

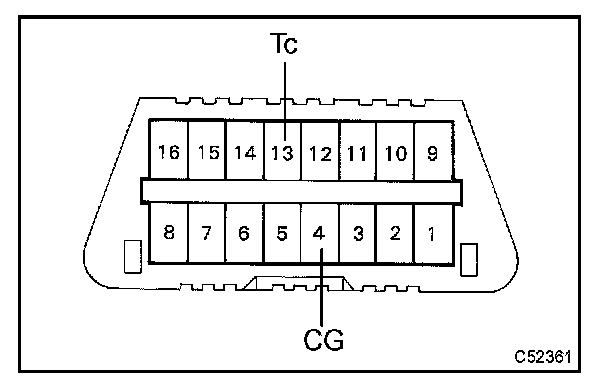

1. Using SST, connect terminals Tc and CG of DLC3.
SST 09843-18040
2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light on the combination meter.
HINT:
- If a code does not appear, inspect the diagnostic circuit or ABS warning light circuit.

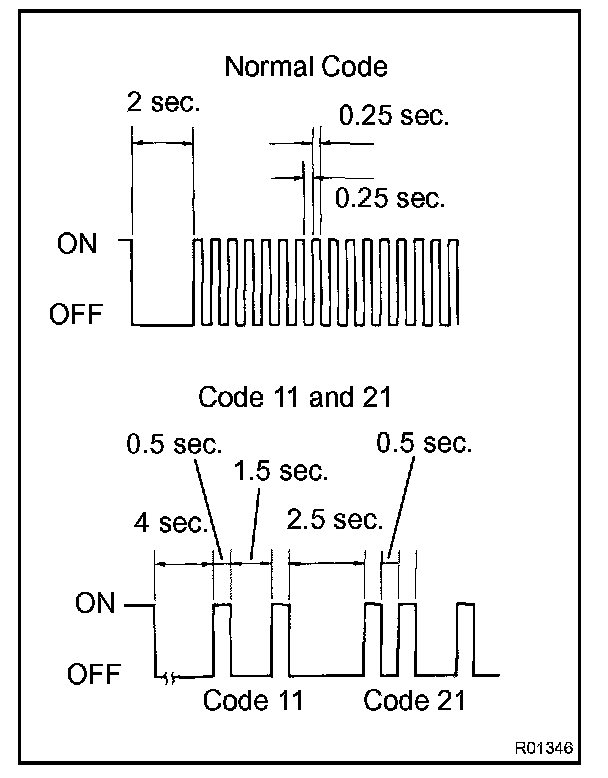

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown.
4. Codes are explained in the code table.
If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.
5. After completing the check, remove the SST from the DLC3.
SST 09843-18040
