Without Scan Tool

DTC CHECK/CLEAR (USING SST CHECK WIRE)

Check DTCs

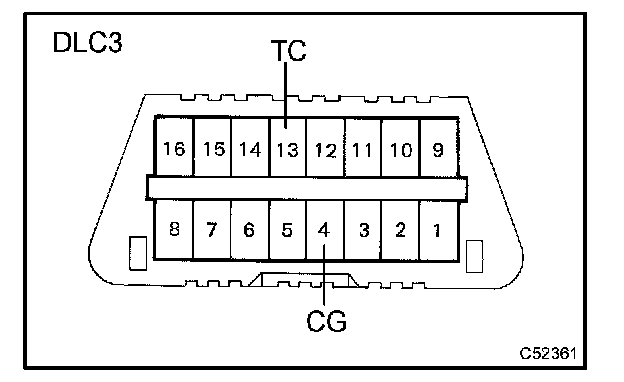

1. Using SST, connect terminals TC and CG of the DLC3.

SST 09843-18040

2. Turn the ignition switch to the ON position.
3. Read the DTC from the ABS warning light or VSC warning light on the combination meter.

HINT:
- If 2 or more malfunctions are detected at the same time, the lowest numbered code will be displayed first.
- If no code appears, inspect the diagnostic circuit, ABS warning light circuit or VSC warning light circuit.

Trouble Area
TC and CG terminal circuit
ABS warning light circuit
VSC warning light circuit

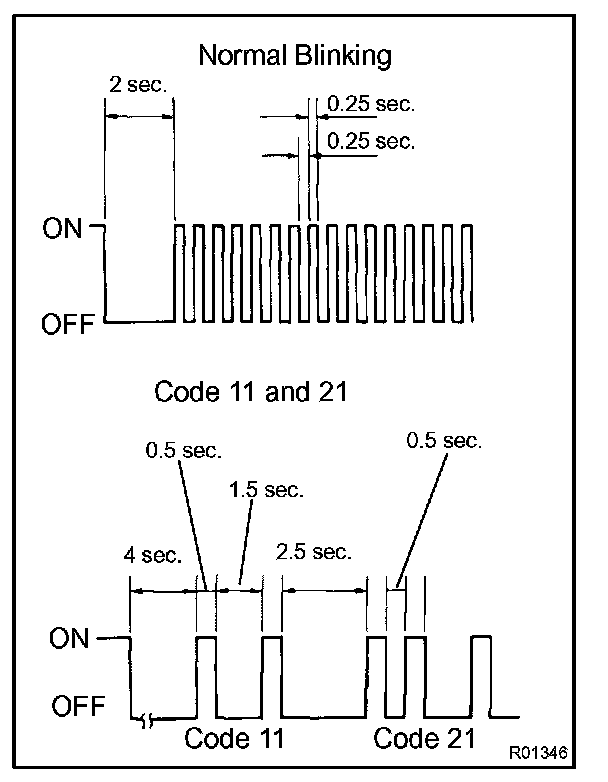

- As an example, the blinking patterns for a normal system code and codes 11 and 21 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display.
