Check the Warning Lights.

Check the warning lights




1. Release parking brake pedal.

NOTE: When releasing the parking brake, set the chocks to hold the vehicle for safety.

HINT: When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light comes on.

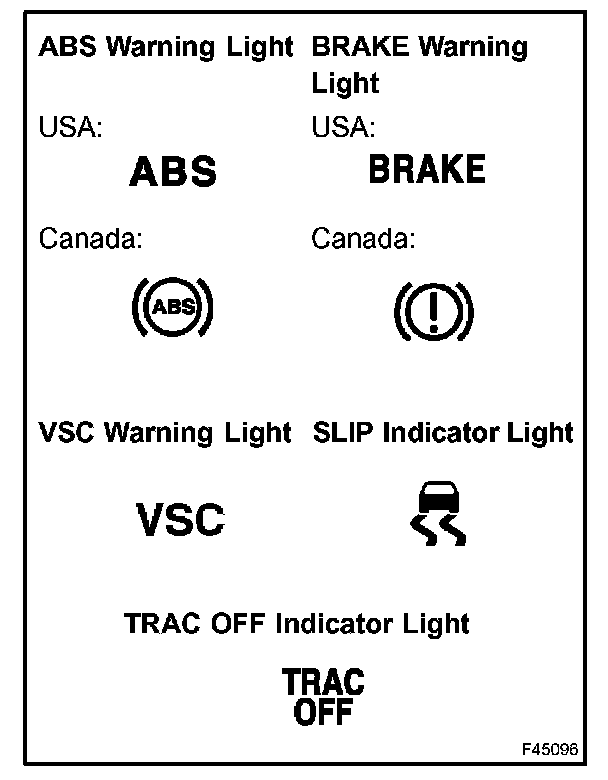

2. When the ignition switch is turned to the ON position, check that the ABS warning light, BRAKE warning light, VSC warning light, TRAC OFF indicator light and SLIP indicator light remain on for approx. 3 seconds.

HINT:
- If the ECU has any stored DTCs, the ABS warning light, VSC warning light and TRAC OFF indicator light come on.
- If the indicator does not come on, inspect if the bulb is blown out, and also the wire harness between the skid control ECU and the combination meter.
- If the indicator remains on, proceed to troubleshooting for the light circuit.

Trouble Area
ABS warning light circuit
VSC warning light circuit
BRAKE warning light circuit
TRAC OFF indicator light circuit
SLIP indicator light circuit
