TS Terminal Circuit

TS TERMINAL CIRCUIT

CIRCUIT DESCRIPTION

In the sensor check mode, a malfunction of the speed sensor that cannot be determined when the vehicle is stopped is determined while driving.

Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the ignition switch from off to the ON position.

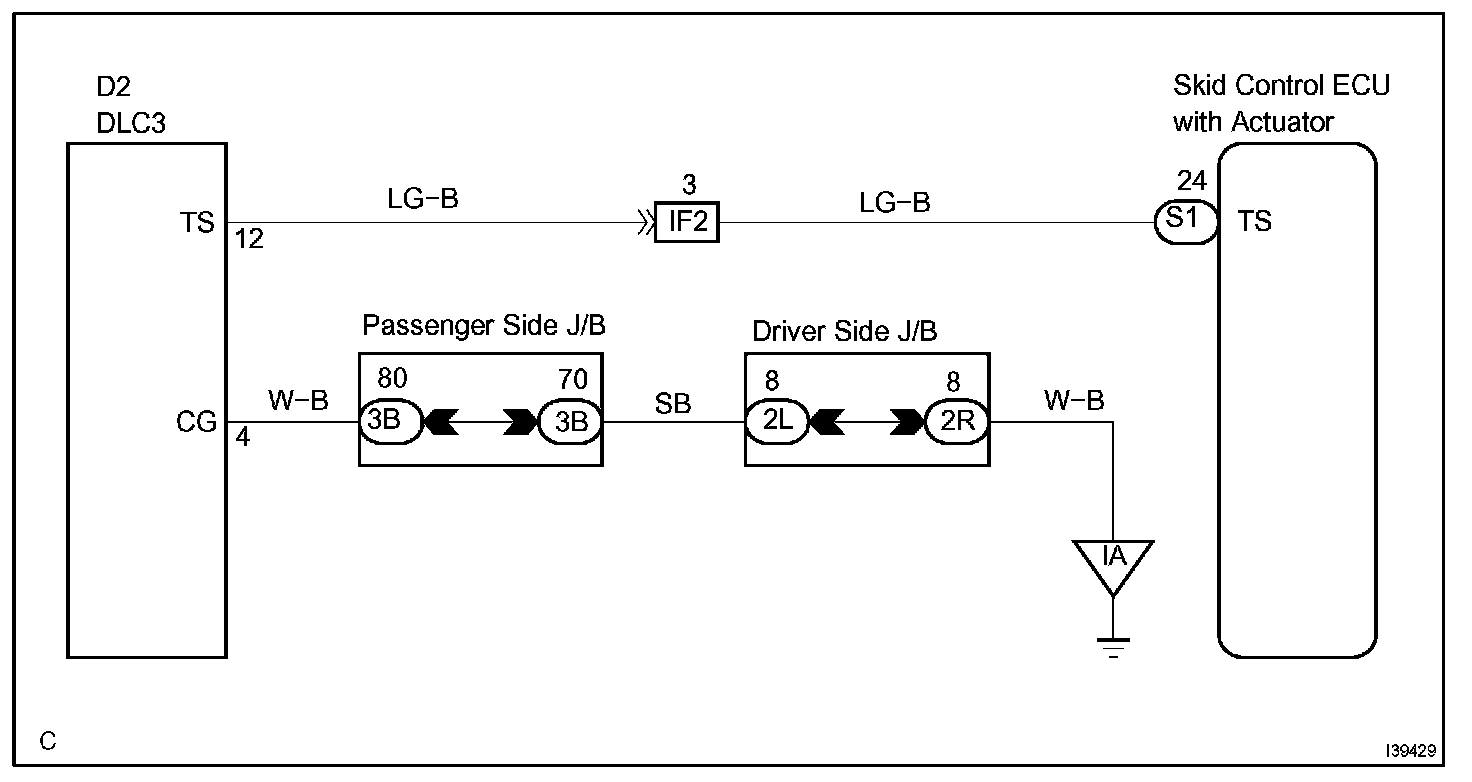

Wiring Diagram:

Step 1:

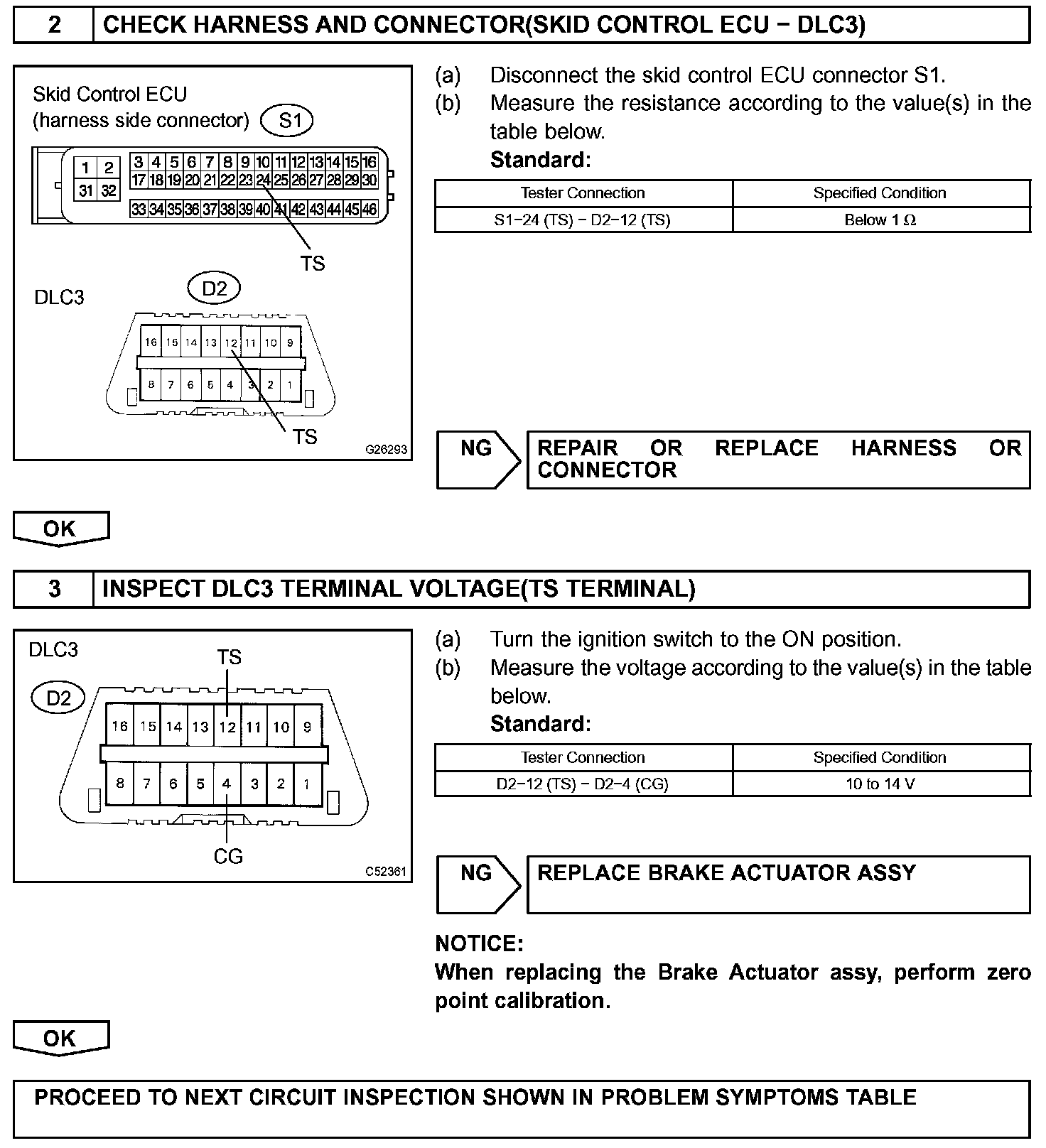

Step 2-3:

INSPECTION PROCEDURE
