Door Courtesy Switch Circuit
DOOR COURTESY SWITCH CIRCUITCIRCUIT DESCRIPTION
The front power seat switch (memory seat ECU and SW) detects the door's open/close condition through the front door courtesy lamp switch.

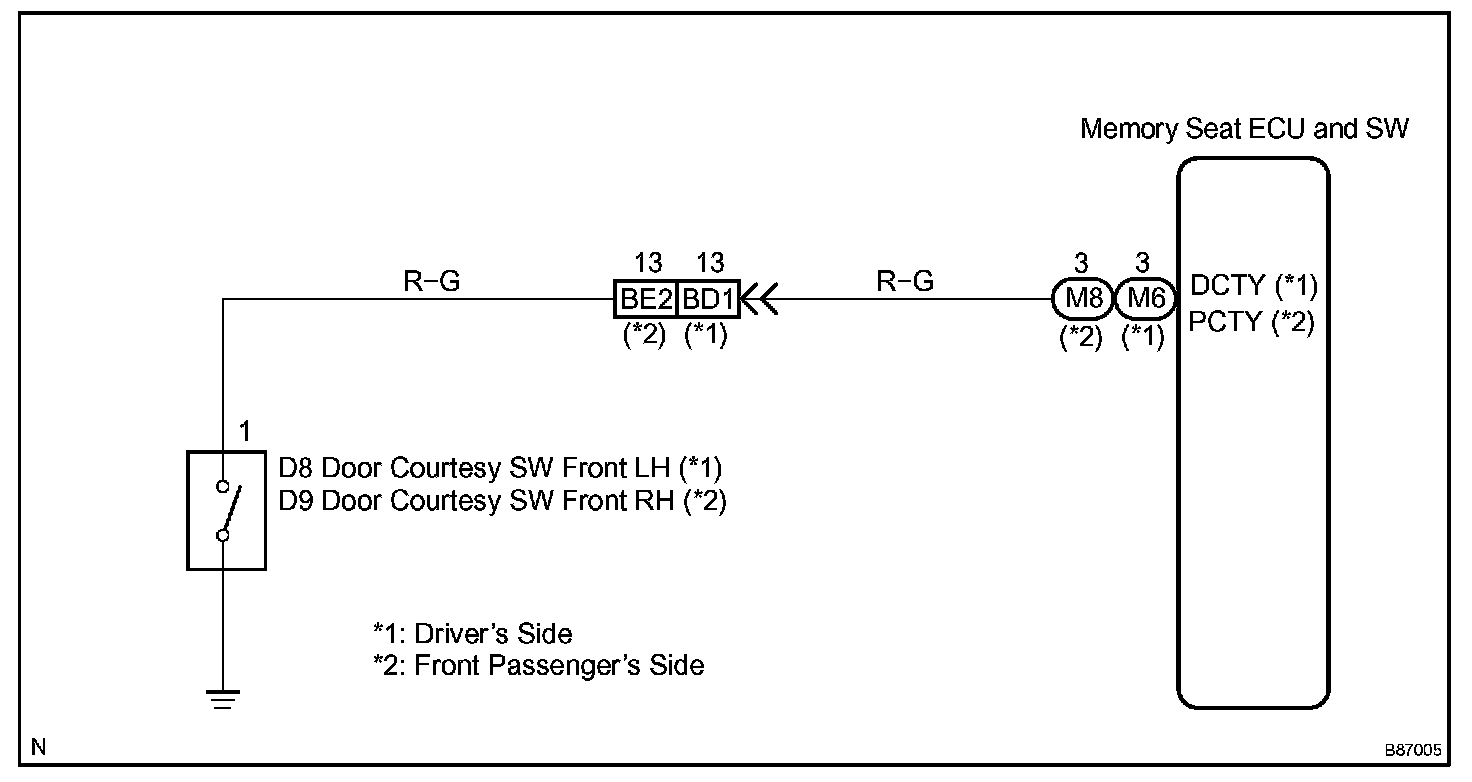

Wiring Diagram:

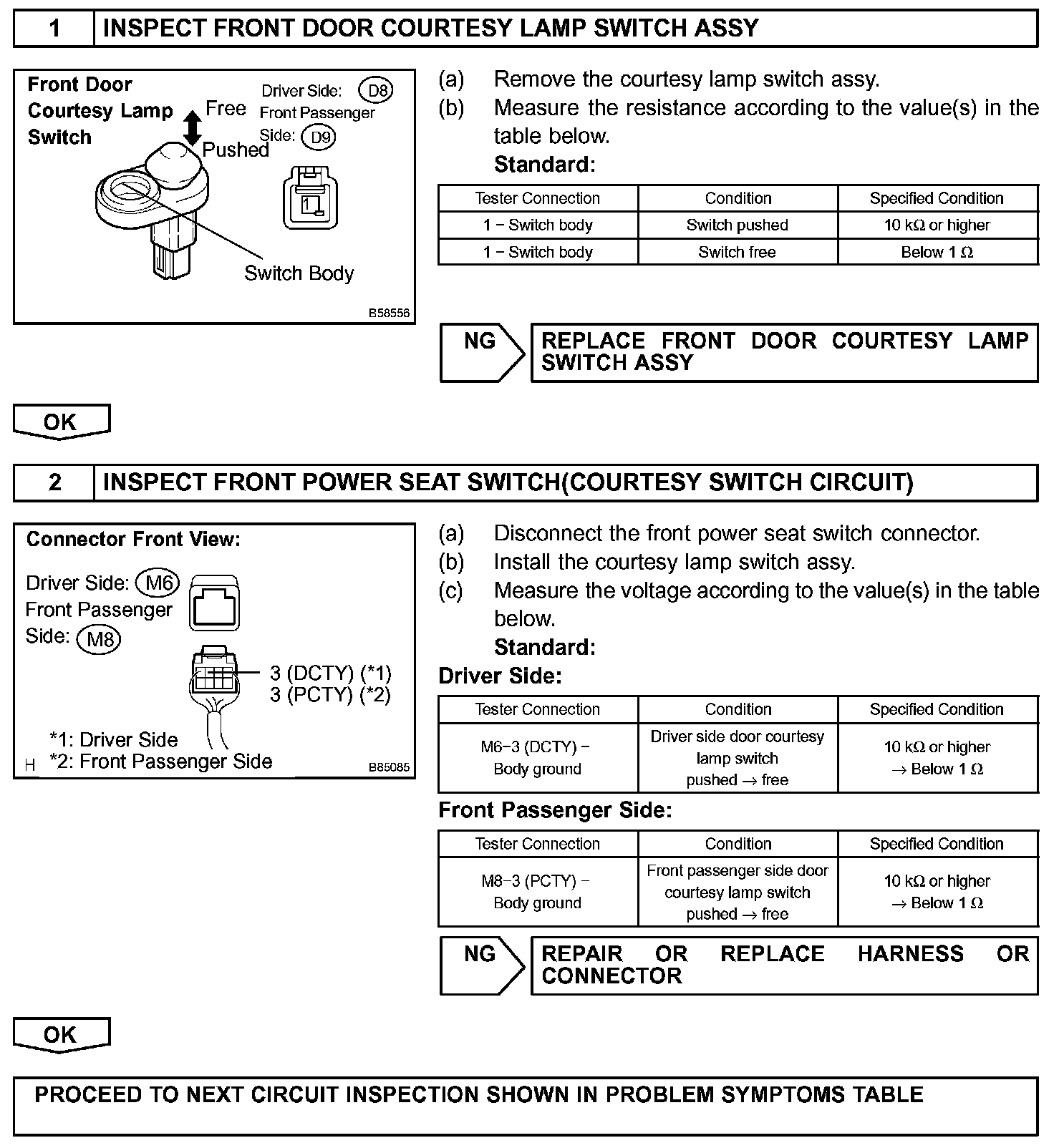

Step 1-2:
INSPECTION PROCEDURE
