ON-VEHICLE INSPECTION




1. INSPECT SEAT VENTILATOR CIRCUIT

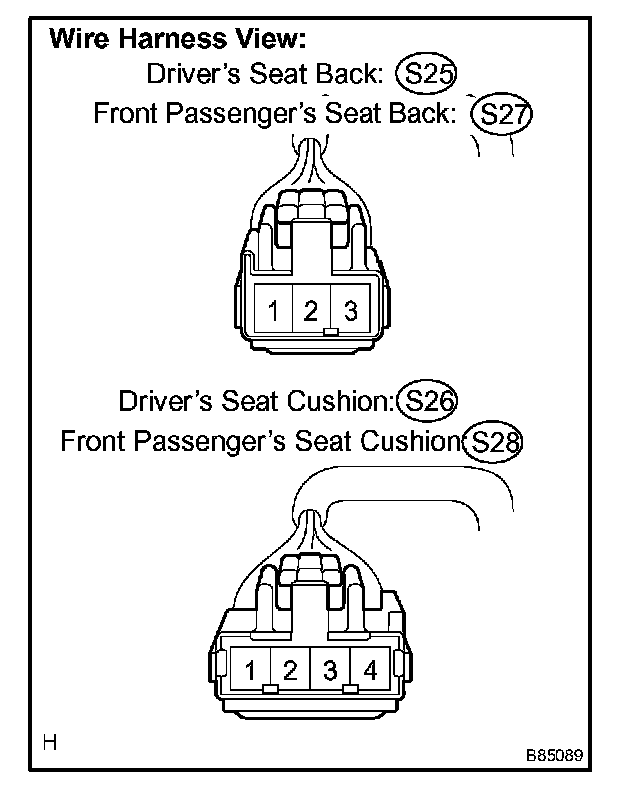

a. Disconnect the seat ventilator connectors.

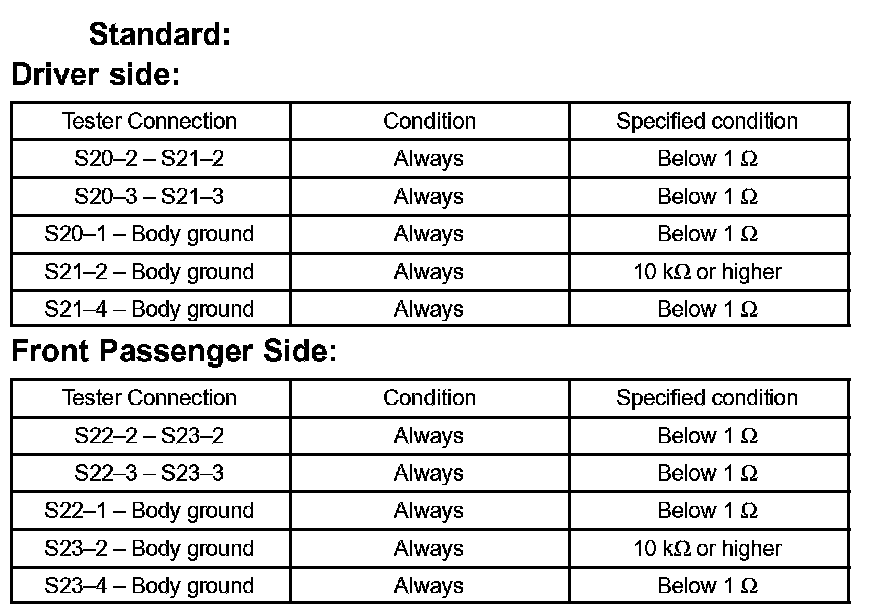

b. Measure the resistance according to the value(s) in the table.
If continuity is not as specified, repair or replace wire harness or connector.

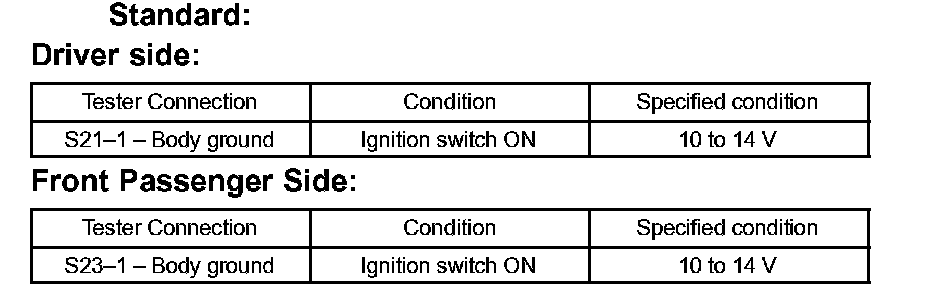

c. Measure the voltage according to the value(s) in the table.
If voltage is not as specified, repair or replace wire harness or connector.

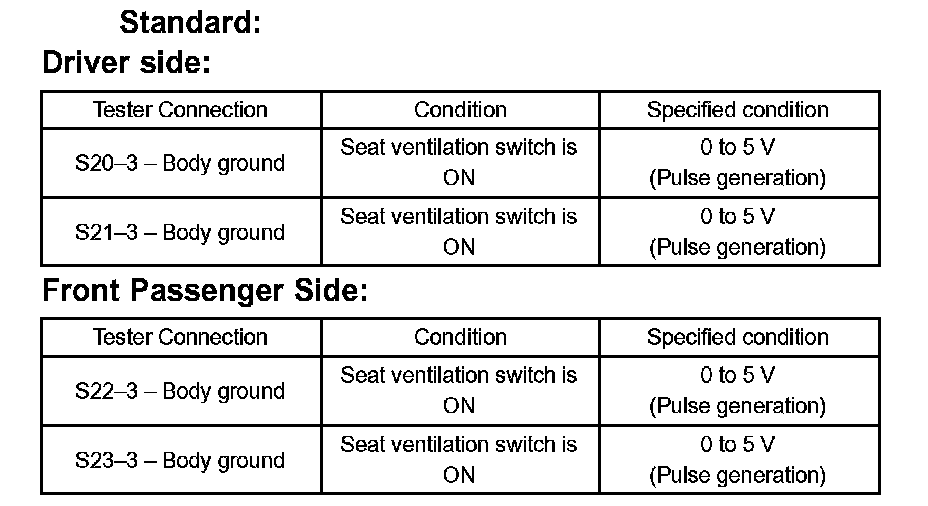

d. Measure the voltage according to the value(s) in the table.
If voltage is not as specified, inspect the seat ventilator/heater switch (heater control housing) and wire harness or connector according to the problem symptoms table.
