Mirror Motor Circuit

MIRROR MOTOR CIRCUIT

CIRCUIT DESCRIPTION

While a switch signal of the power mirrors is transmitted to the mirror ECU, the power mirrors face upward and downward or right and left.

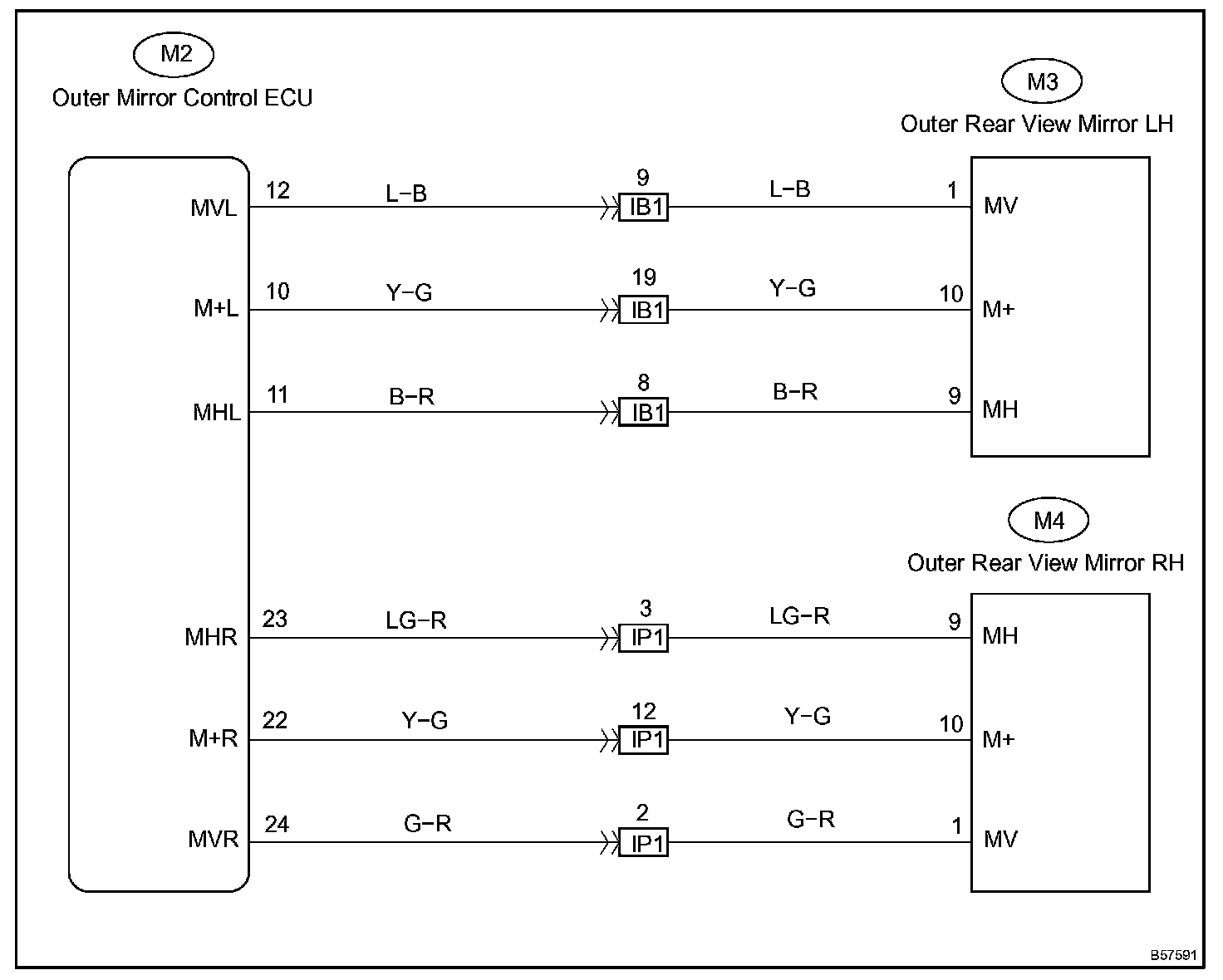

Wiring Diagram:

Step 1-2:

Step 3-4:

Step 5-6:

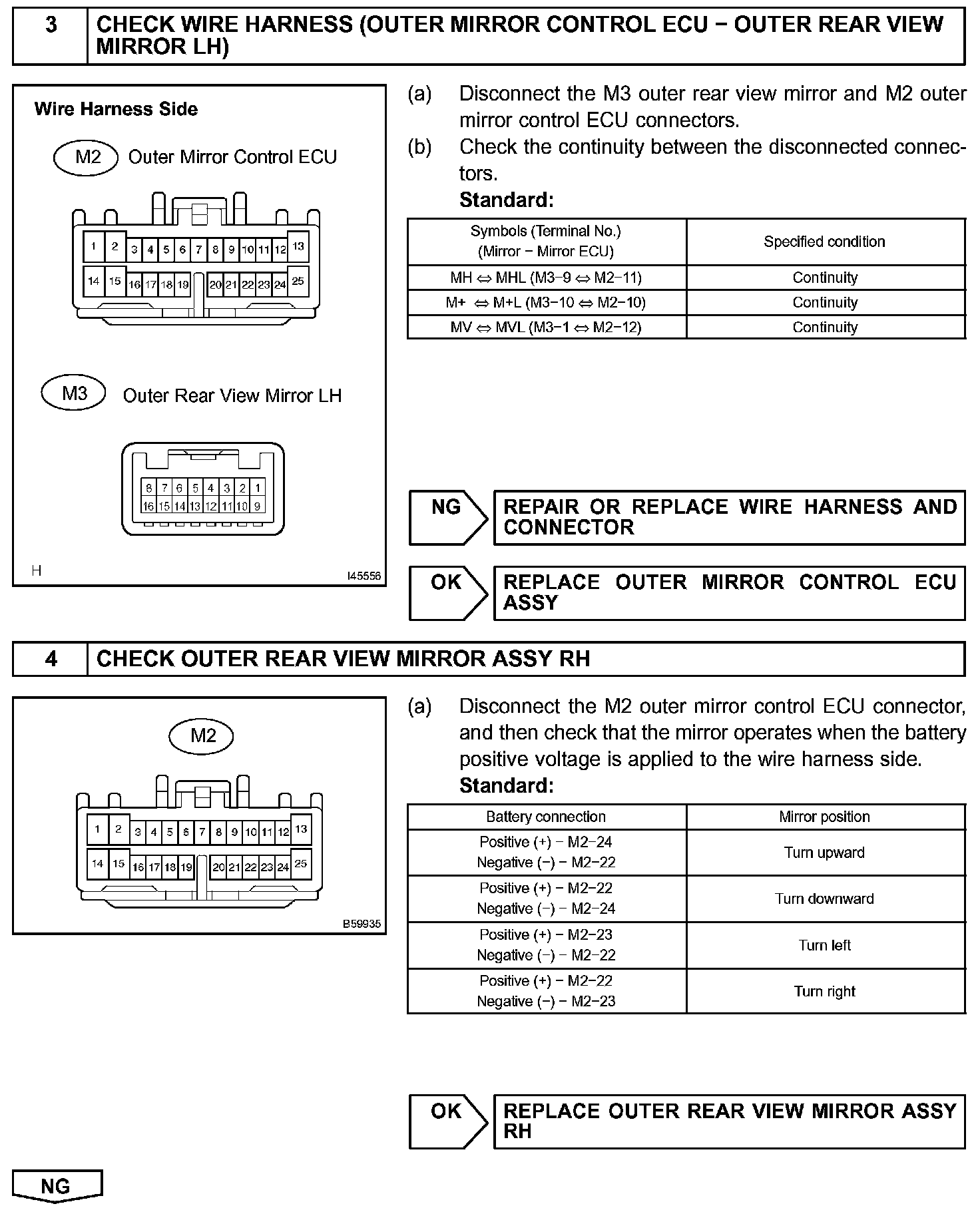

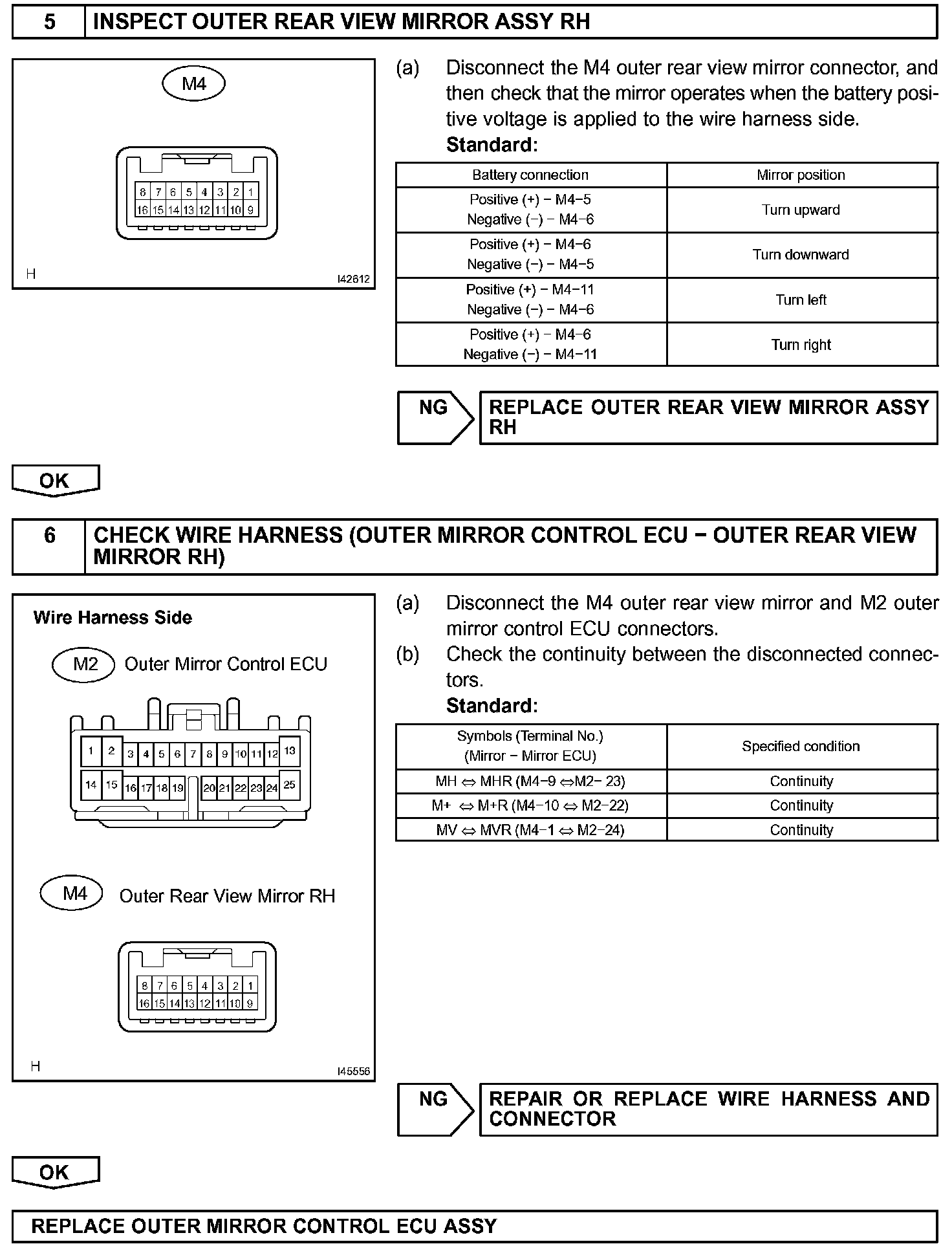

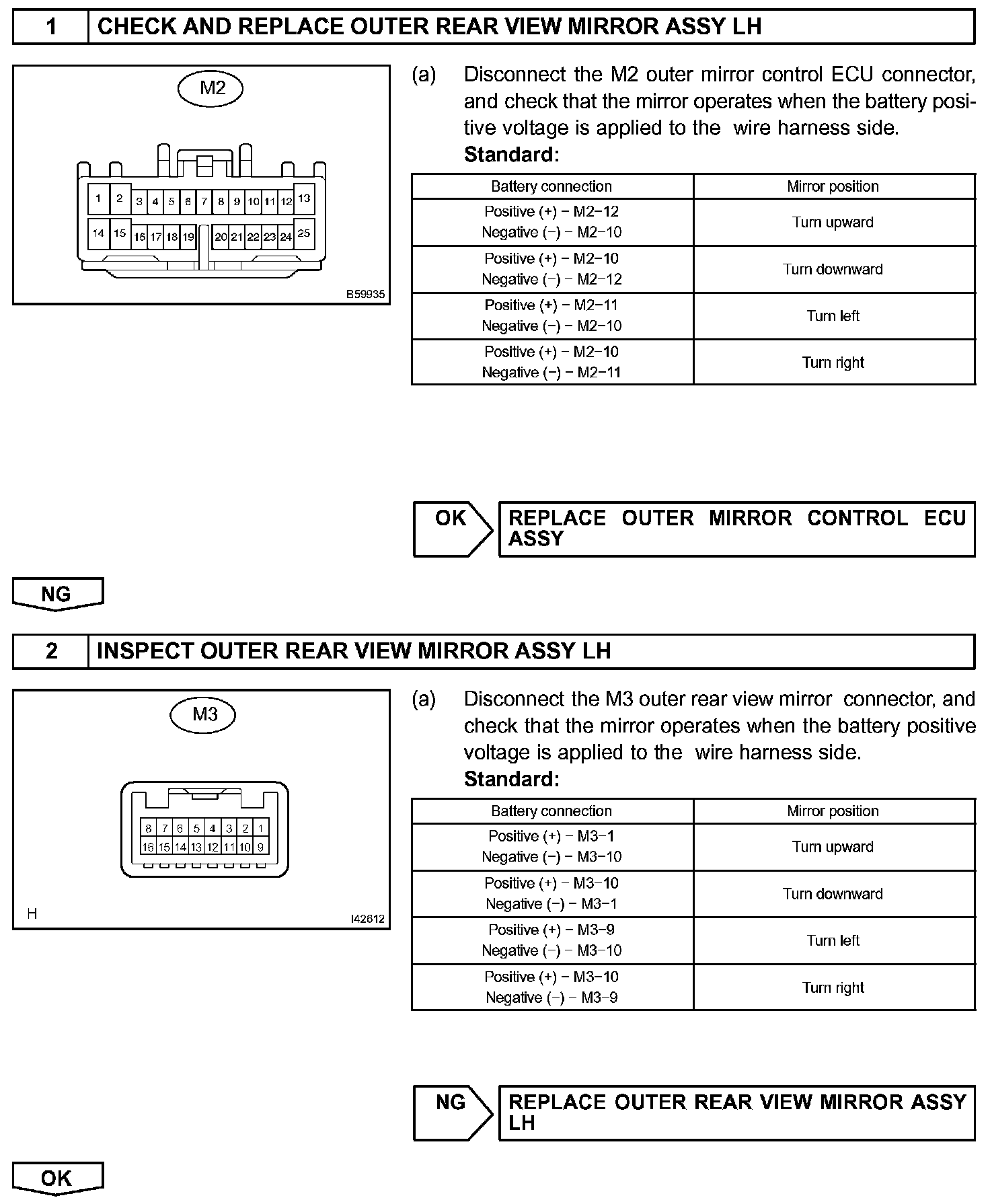

INSPECTION PROCEDURE
