Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

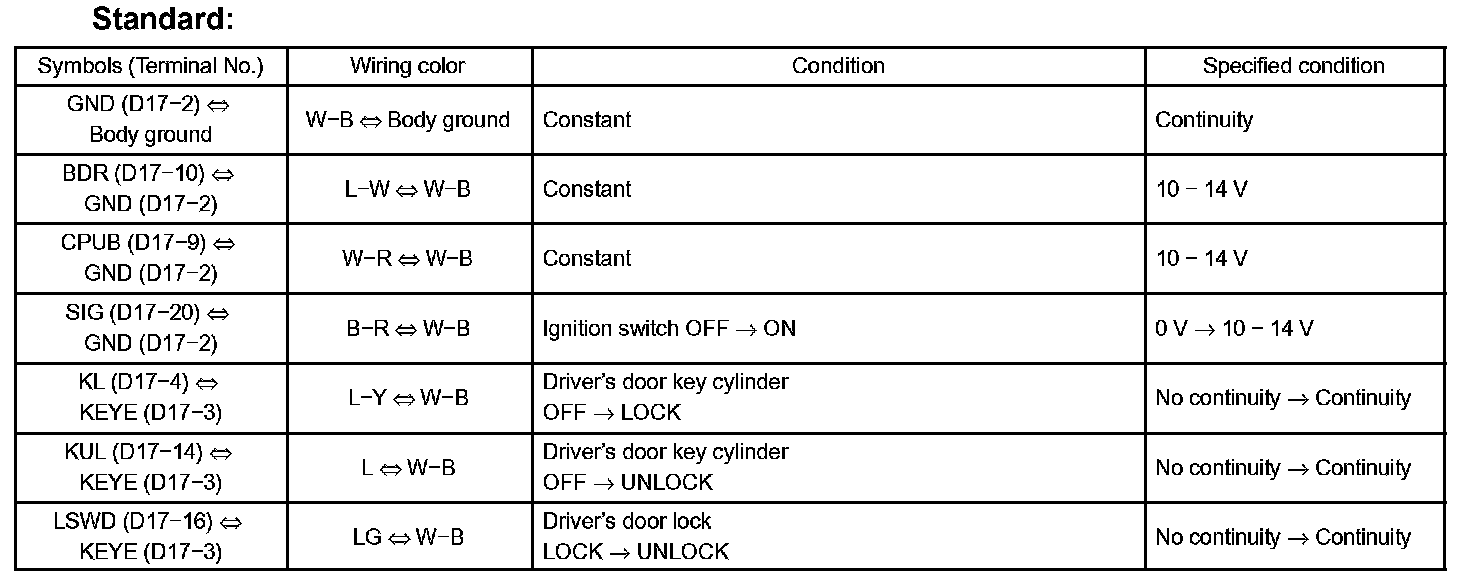

1. CHECK POWER WINDOW REGULATOR MASTER SWITCH (DRIVER S DOOR ECU)

Terminals Of Control Module/Pinouts:

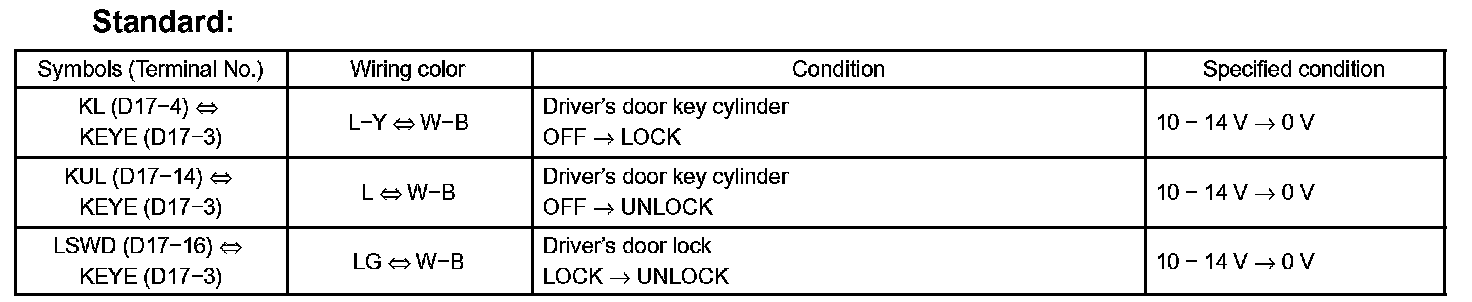

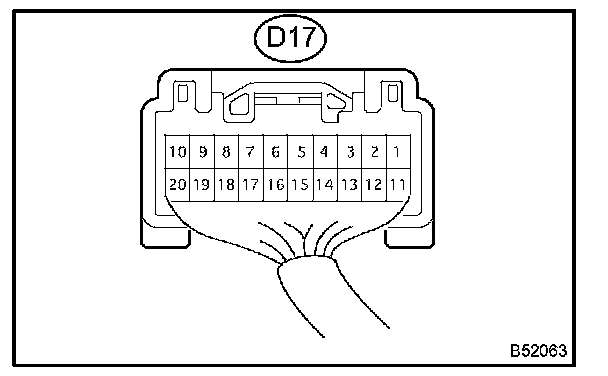

a. Disconnect the D17 master switch connector.




b. Check the continuity and voltage of each terminal of the disconnected connector.
c. Reconnect the master switch connector.




d. Check the voltage of each terminal of the connector.

2. CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (LEFT SIDE)

Terminals Of Control Module/Pinouts:

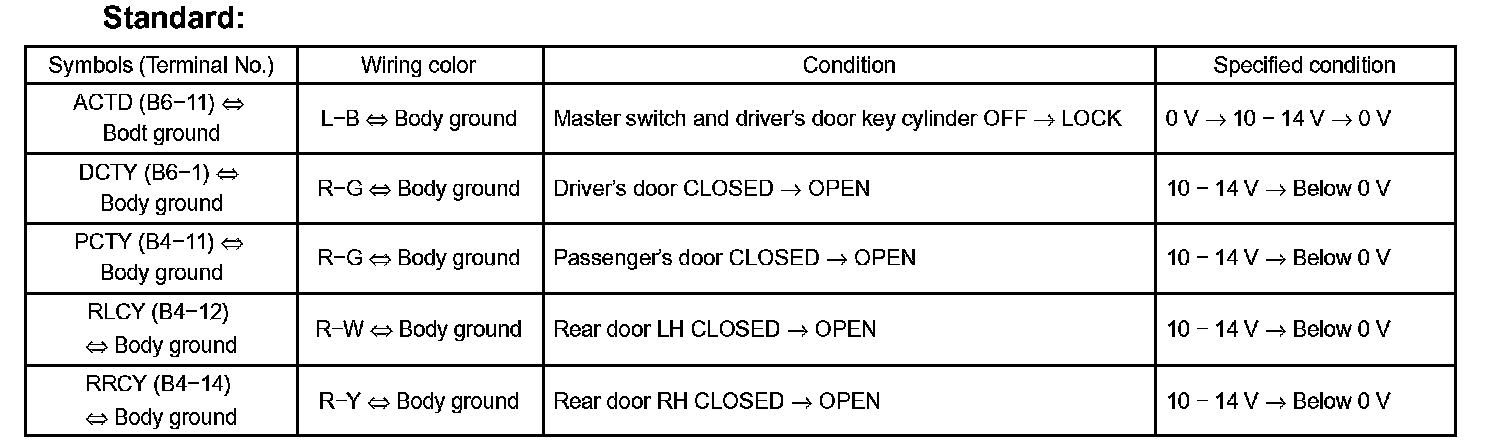

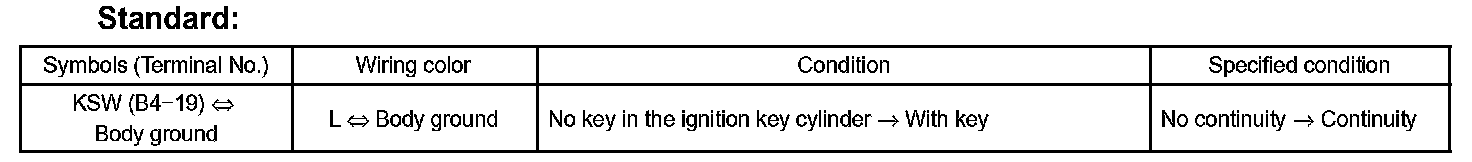

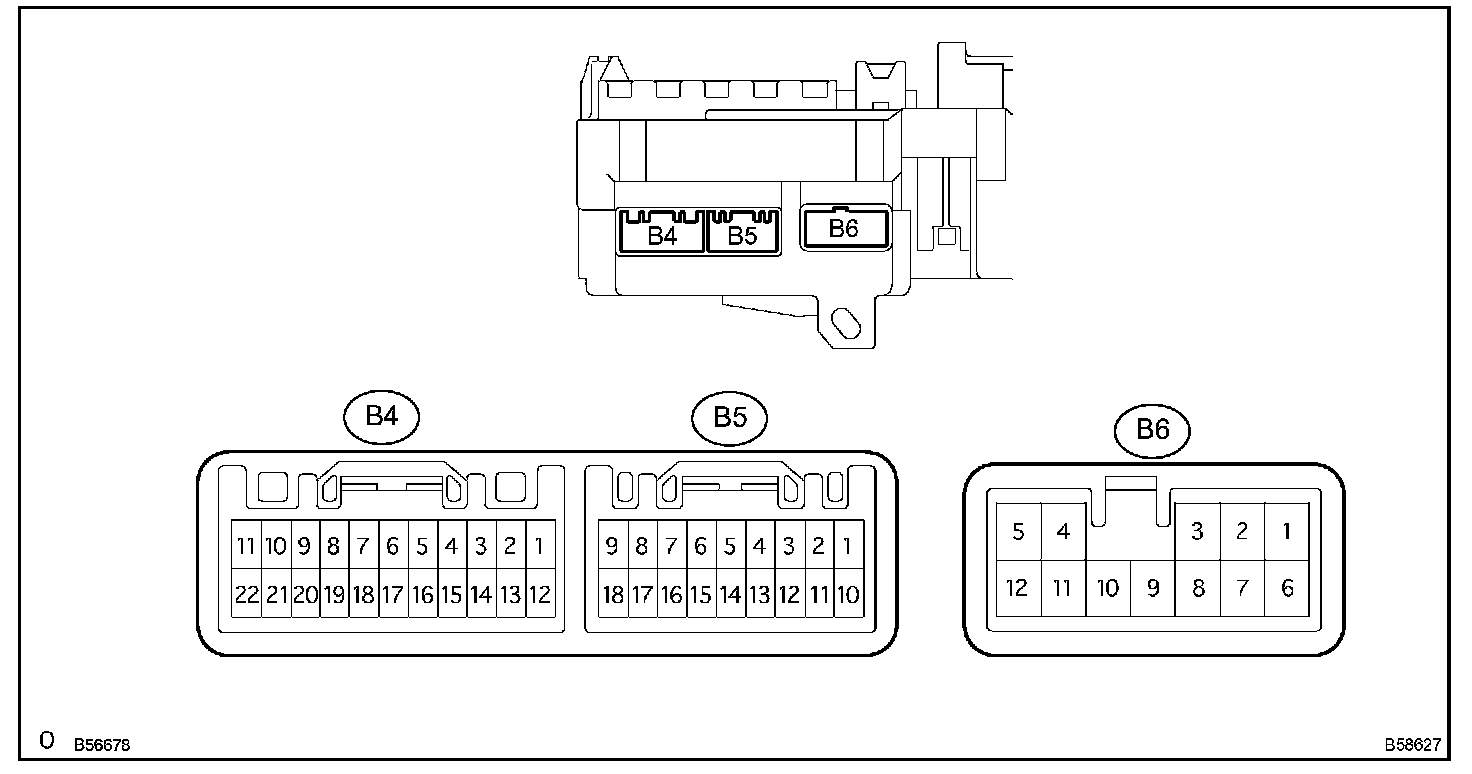

a. Disconnect the B4 body ECU connector.




b. Check the continuity of the terminal of the disconnected connector.
c. Reconnect the B4 body ECU connector.




d. Check the voltage of each terminal of the connector.

3. CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (REAR SIDE)

Terminals Of Control Module/Pinouts:

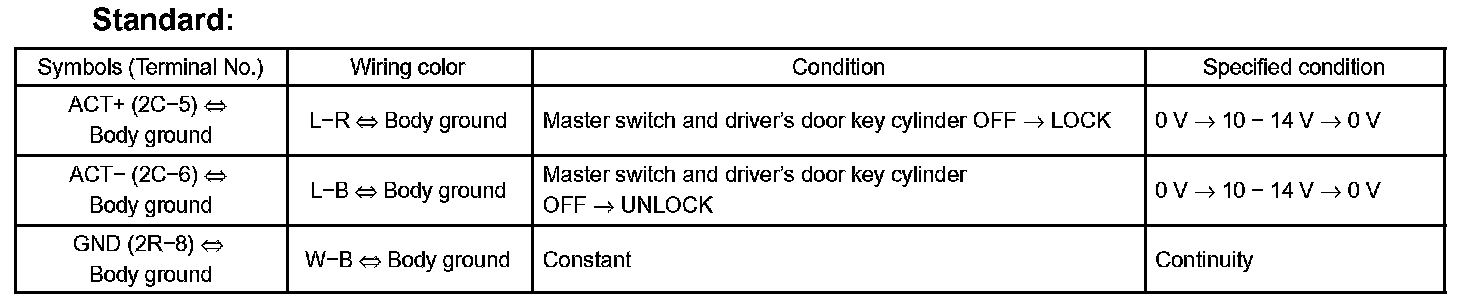

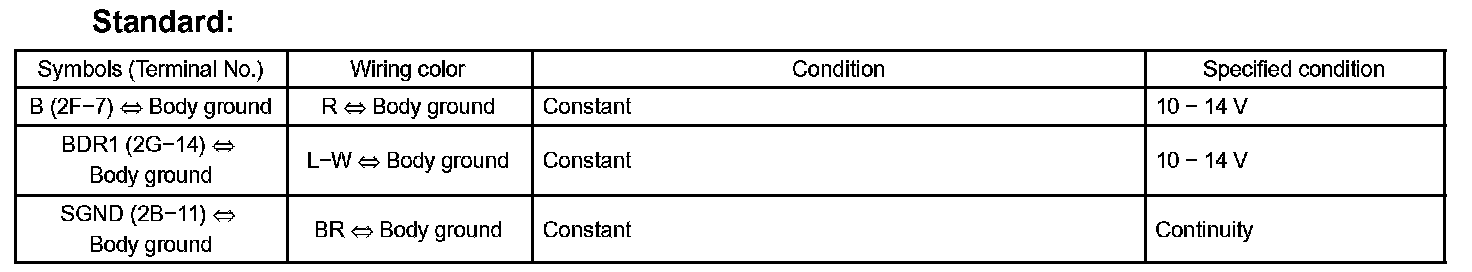

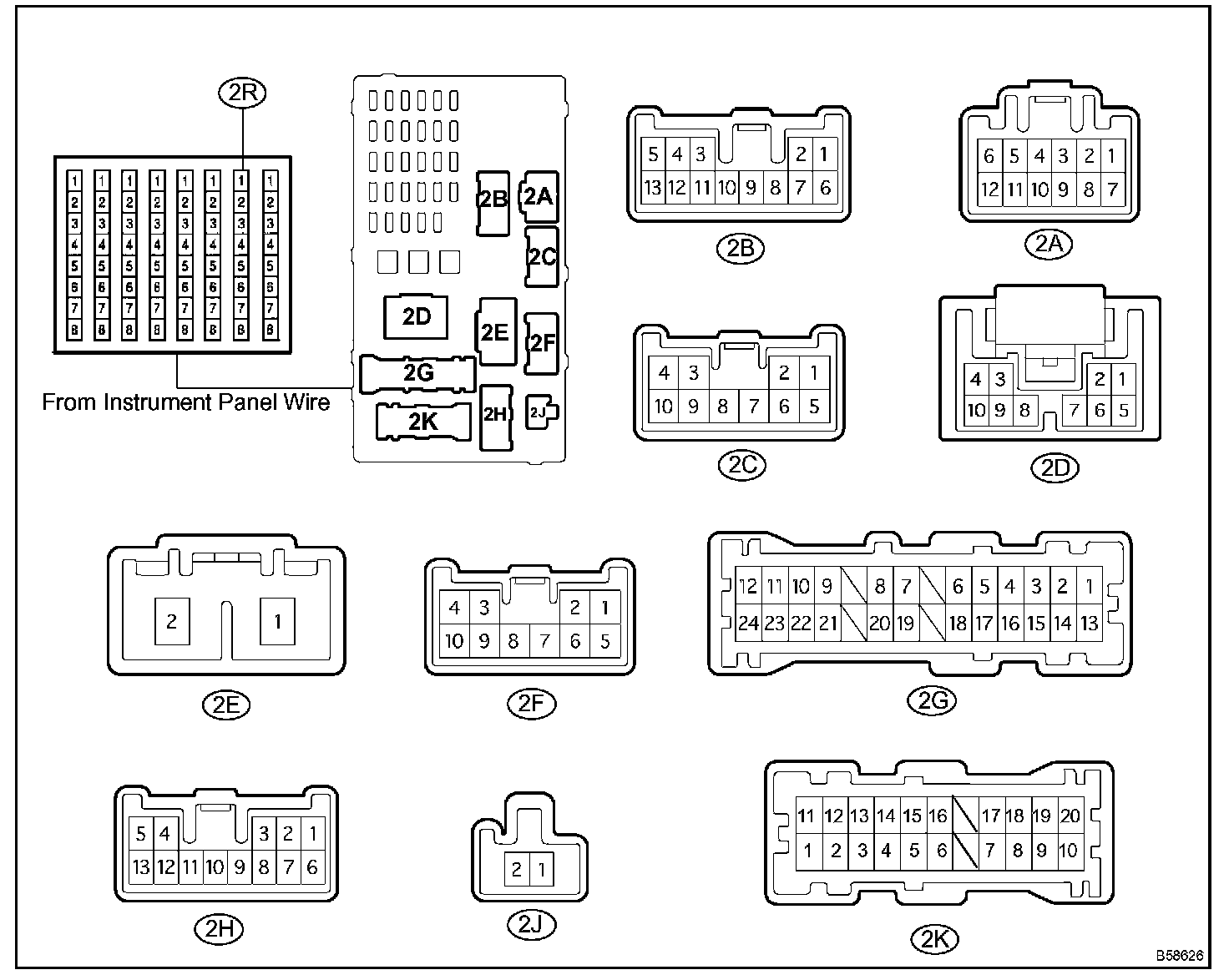

a. Disconnect the 2B, 2F and 2G driver side J/B connectors.




b. Check the continuity and voltage of each terminal of the disconnected connectors.




c. Reconnect the connectors, and check continuity and voltage of each terminal of the connectors.
