Luggage Door Opening Switch Circuit

LUGGAGE DOOR OPENING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

A switch signal via the luggage opening switch is transmitted from the body ECU inside the driver side J/B to the luggage compartment door lock, and then the motor is driven by that.

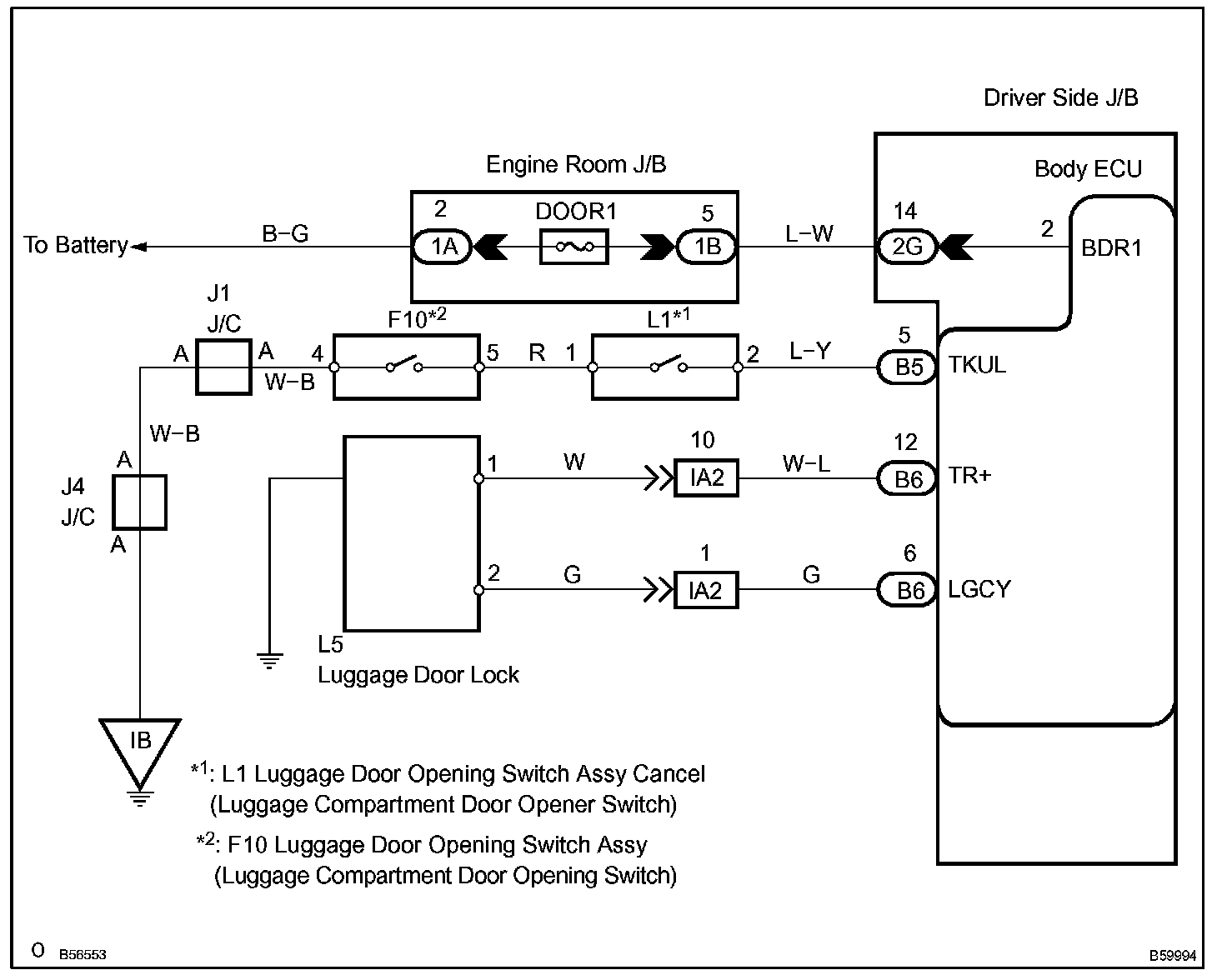

Wiring Diagram:

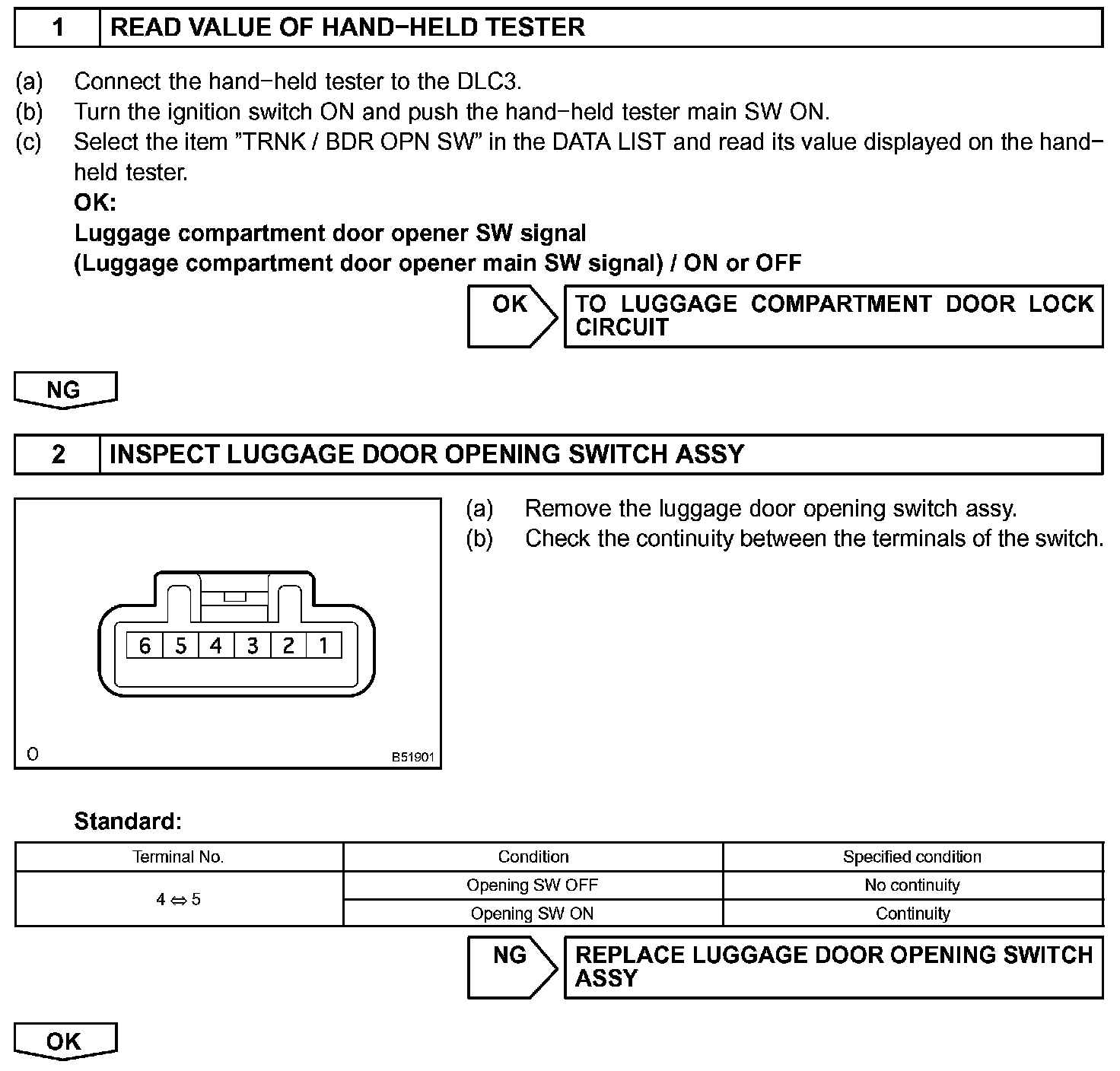

Step 1-2:

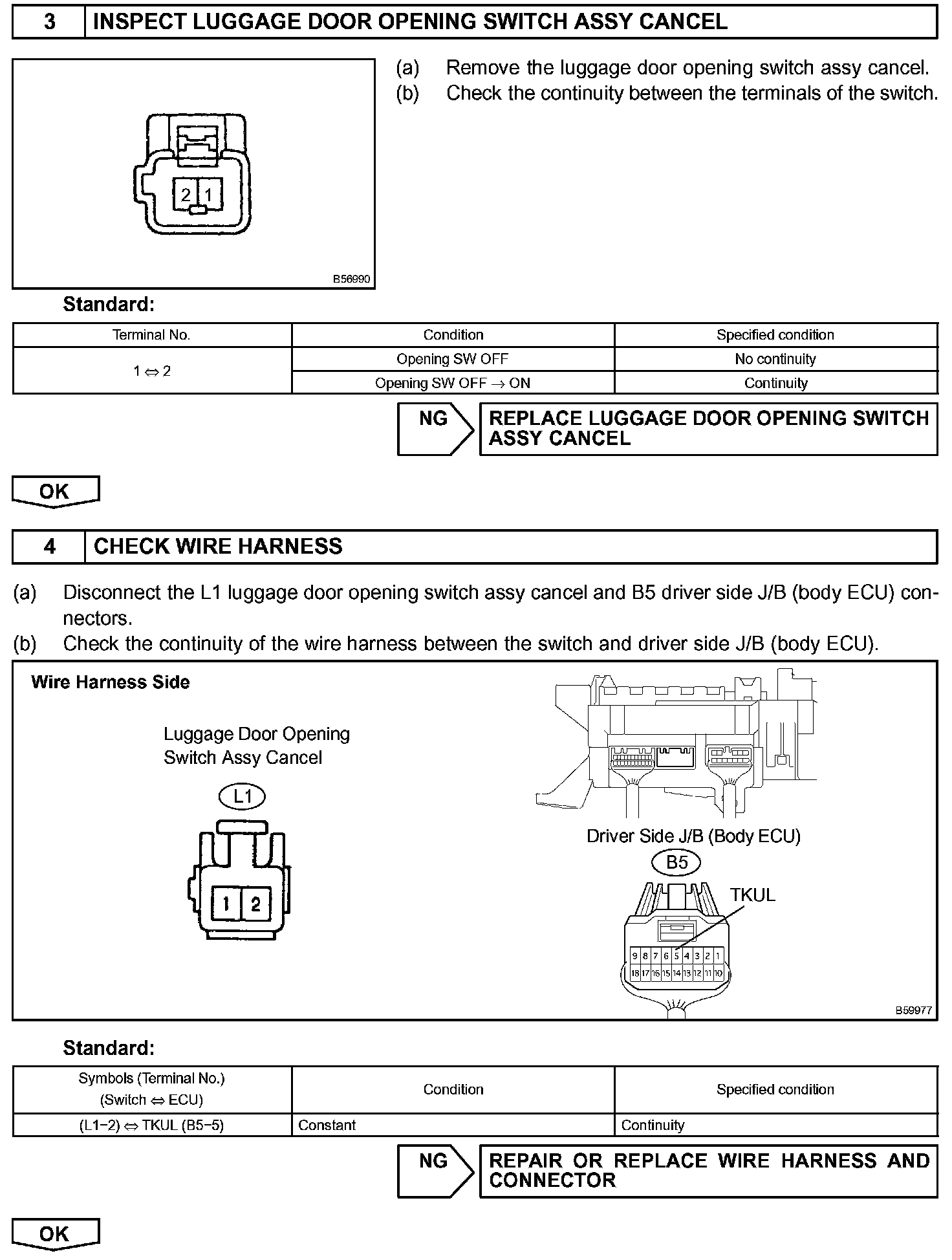

Step 3-4:

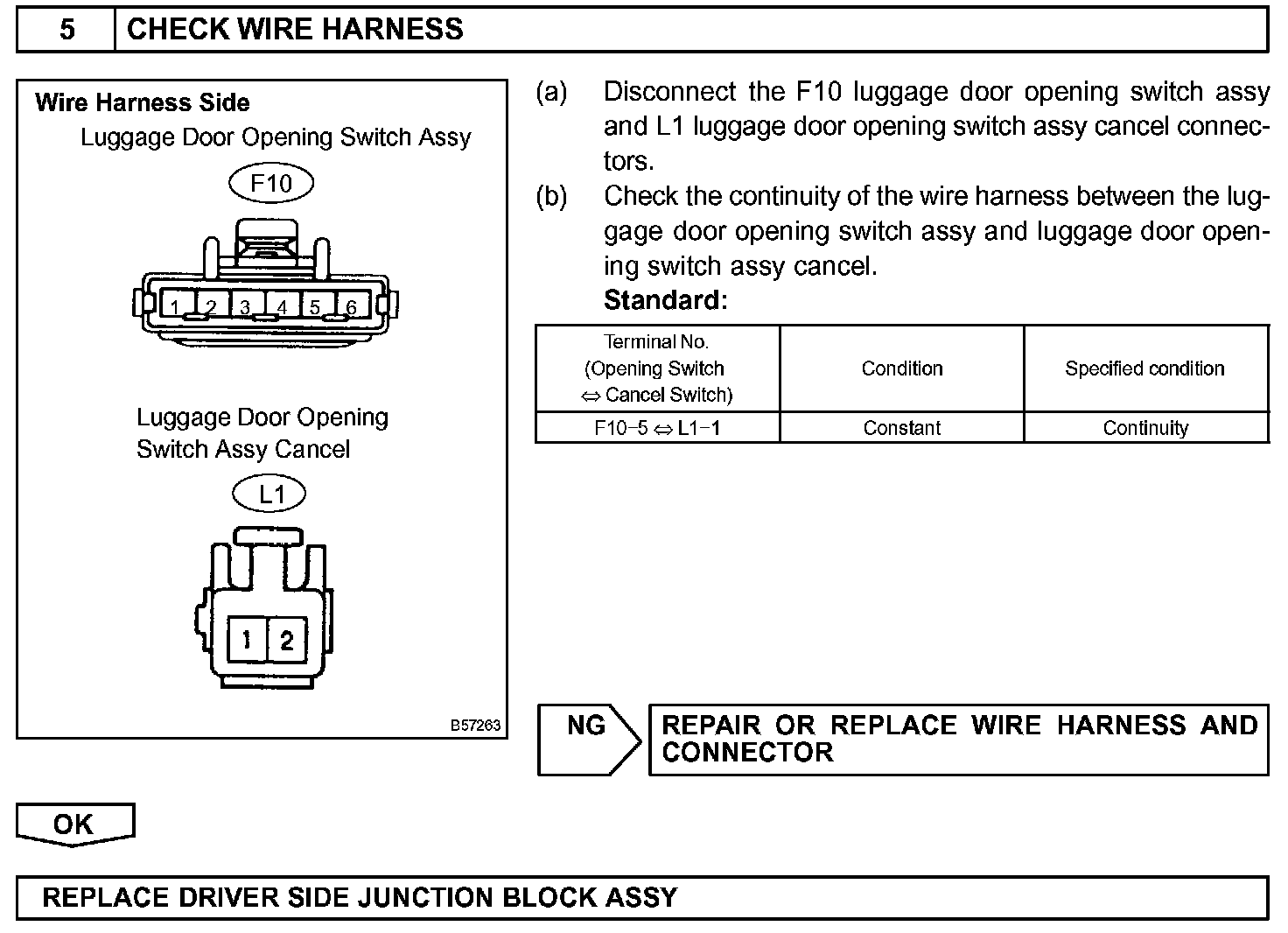

Step 5:

INSPECTION PROCEDURE
