Luggage Compartment Door Lock Circuit

LUGGAGE COMPARTMENT DOOR LOCK CIRCUIT

CIRCUIT DESCRIPTION

A switch signal via the luggage opening switch is transmitted from the body ECU inside the driver side J/B to the luggage compartment door lock, and then the motor is driven by that.

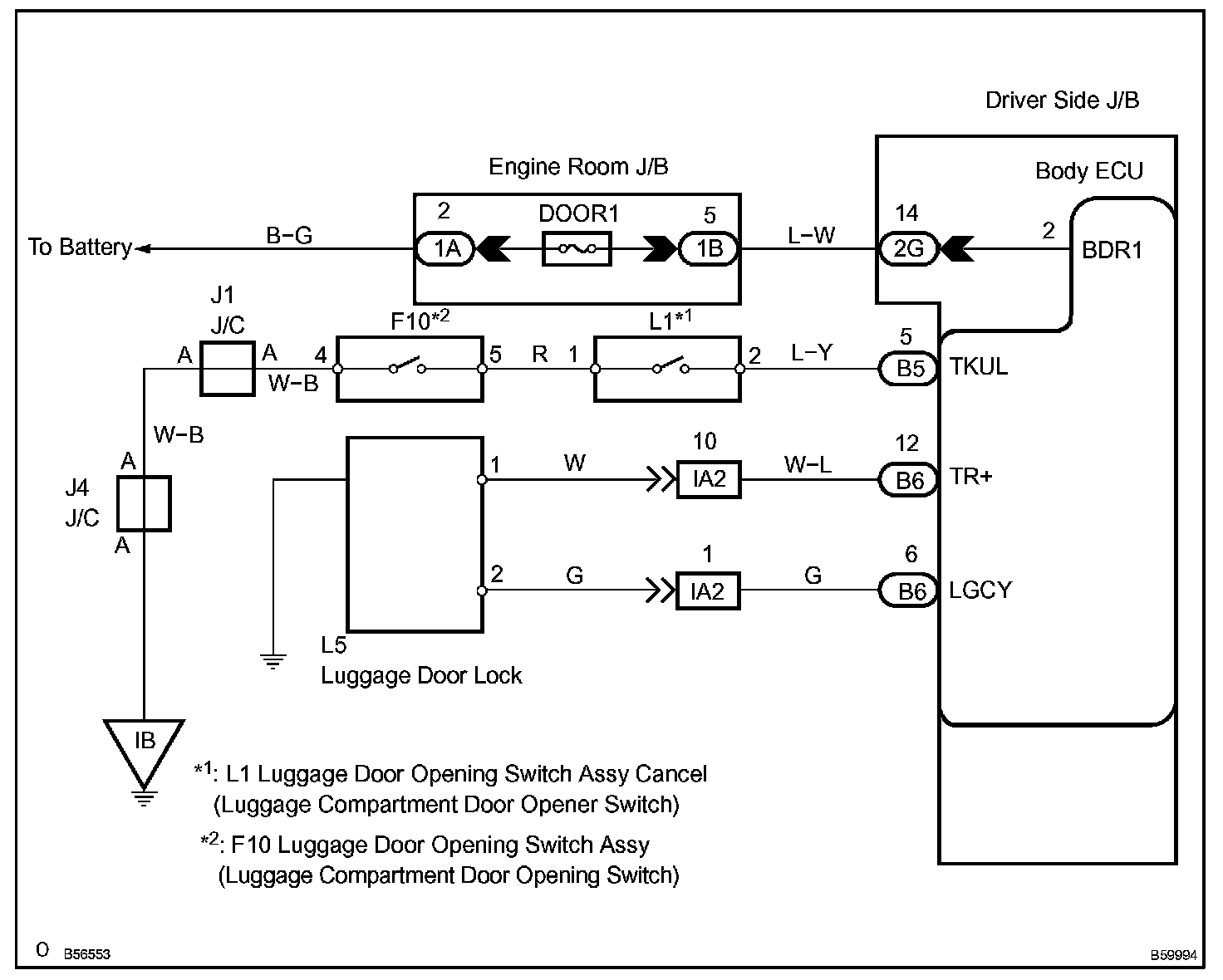

Wiring Diagram:

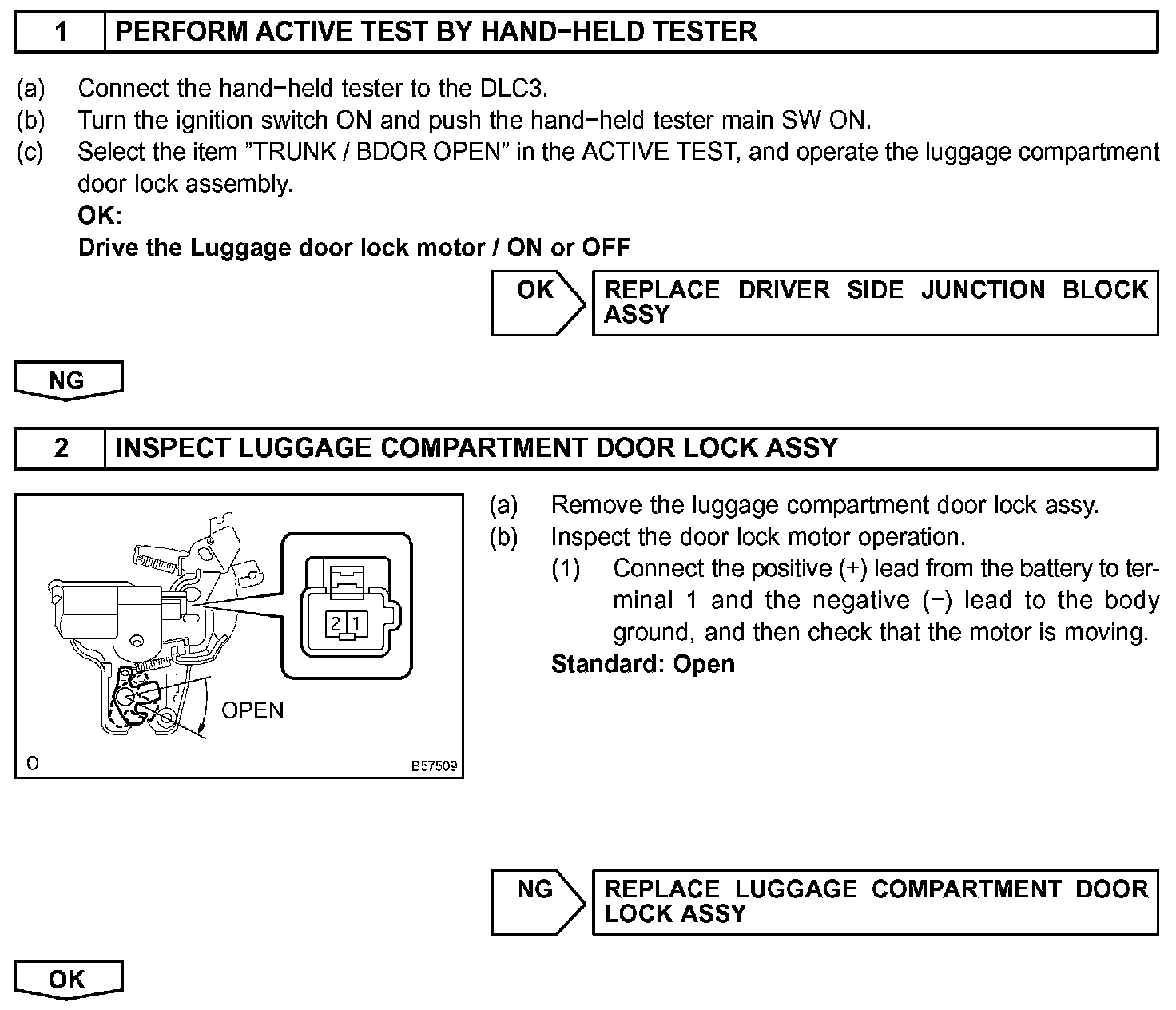

Step 1-2:

Step 3:

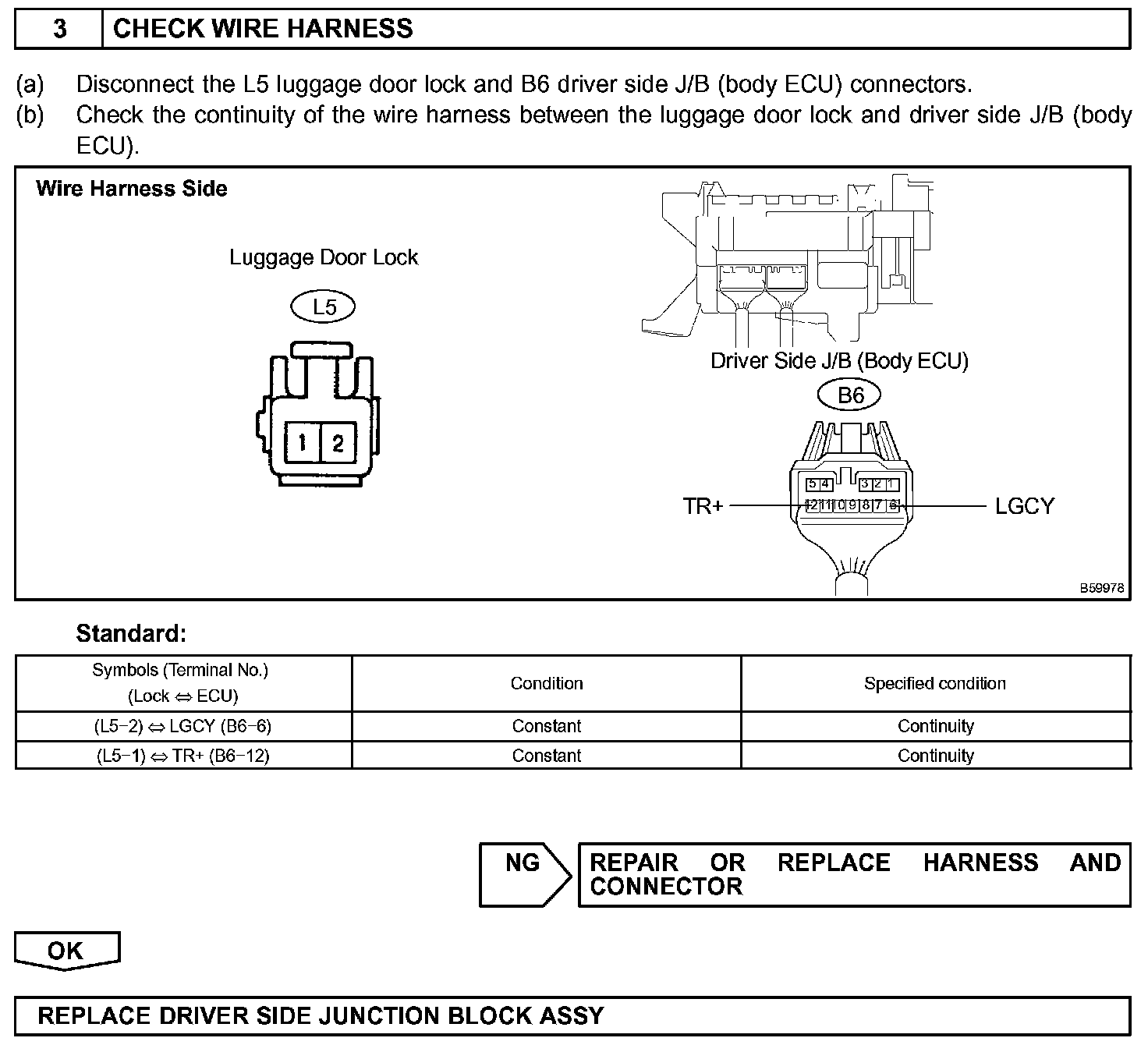

INSPECTION PROCEDURE
