Power Source Circuit (Radio Receiver Assy)

POWER SOURCE CIRCUIT (RADIO RECEIVER ASSY)

CIRCUIT DESCRIPTION

This circuit provides power to the radio receiver assy.

Wiring Diagram:

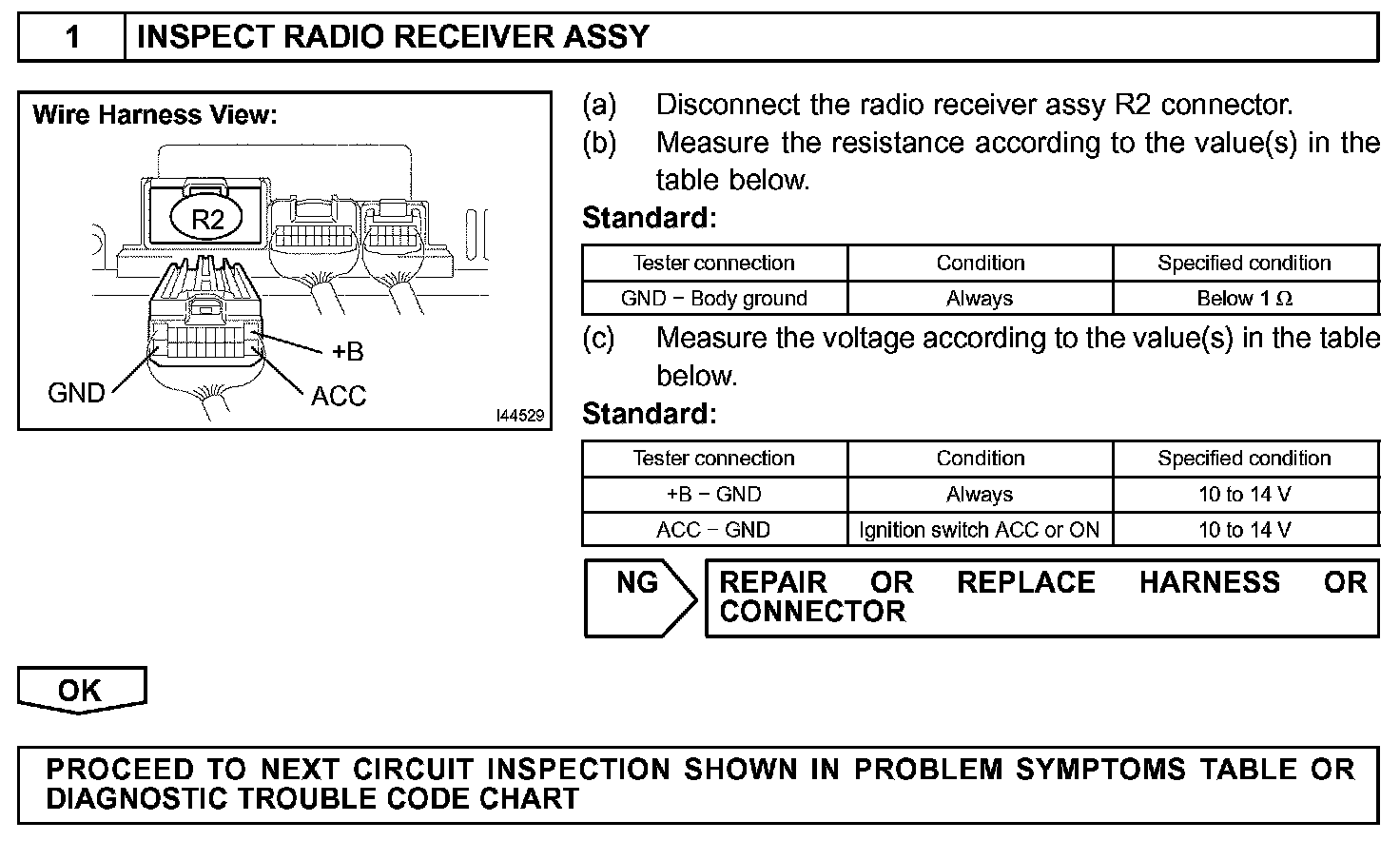

Step 1:




INSPECTION PROCEDURE
