Illumination Circuit

ILLUMINATION CIRCUIT

CIRCUIT DESCRIPTION

Power is supplied to the radio receiver panel and the steering pad switch illumination when the light control switch is in the TAIL or HEAD position.

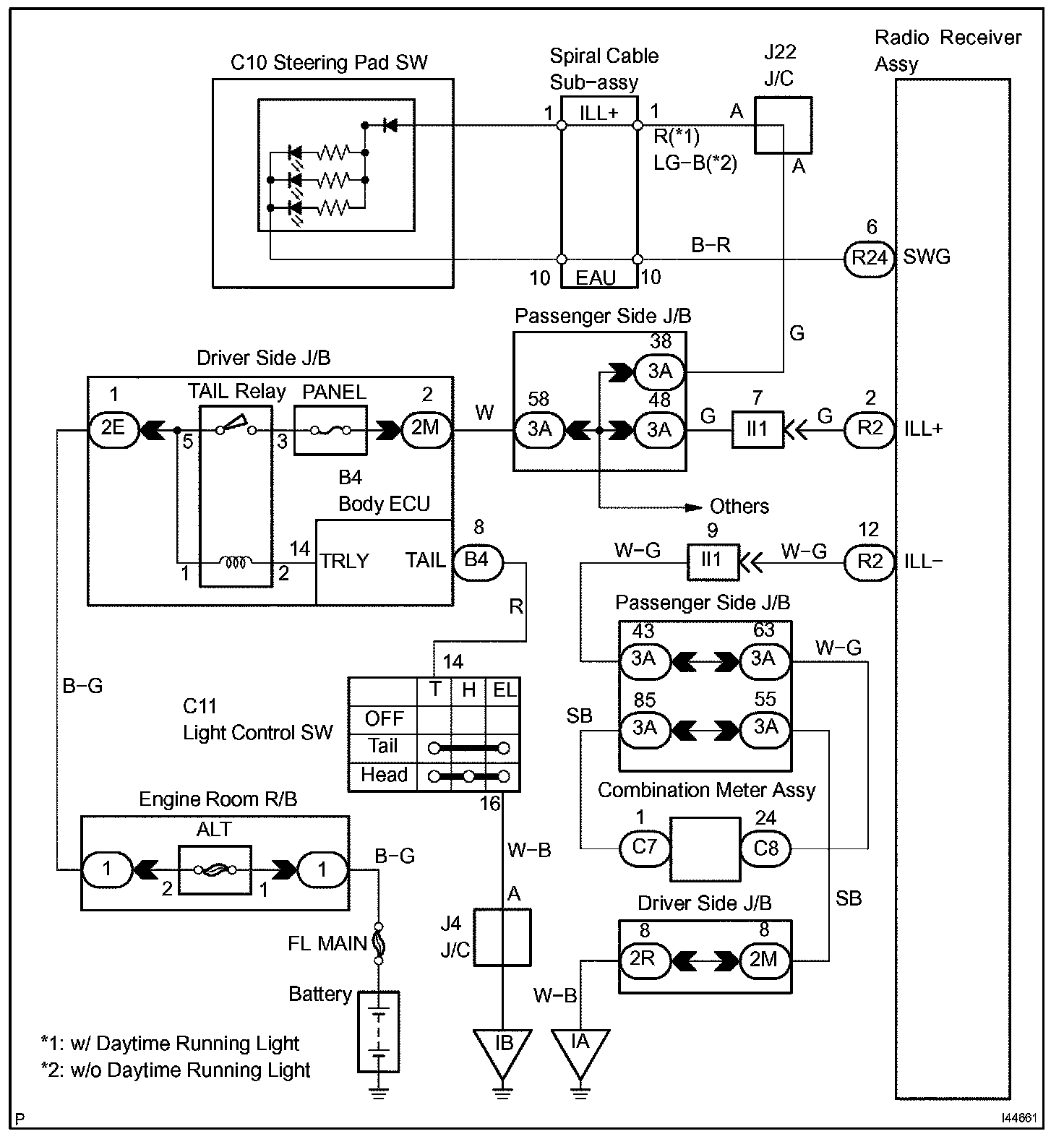

Wiring Diagram:

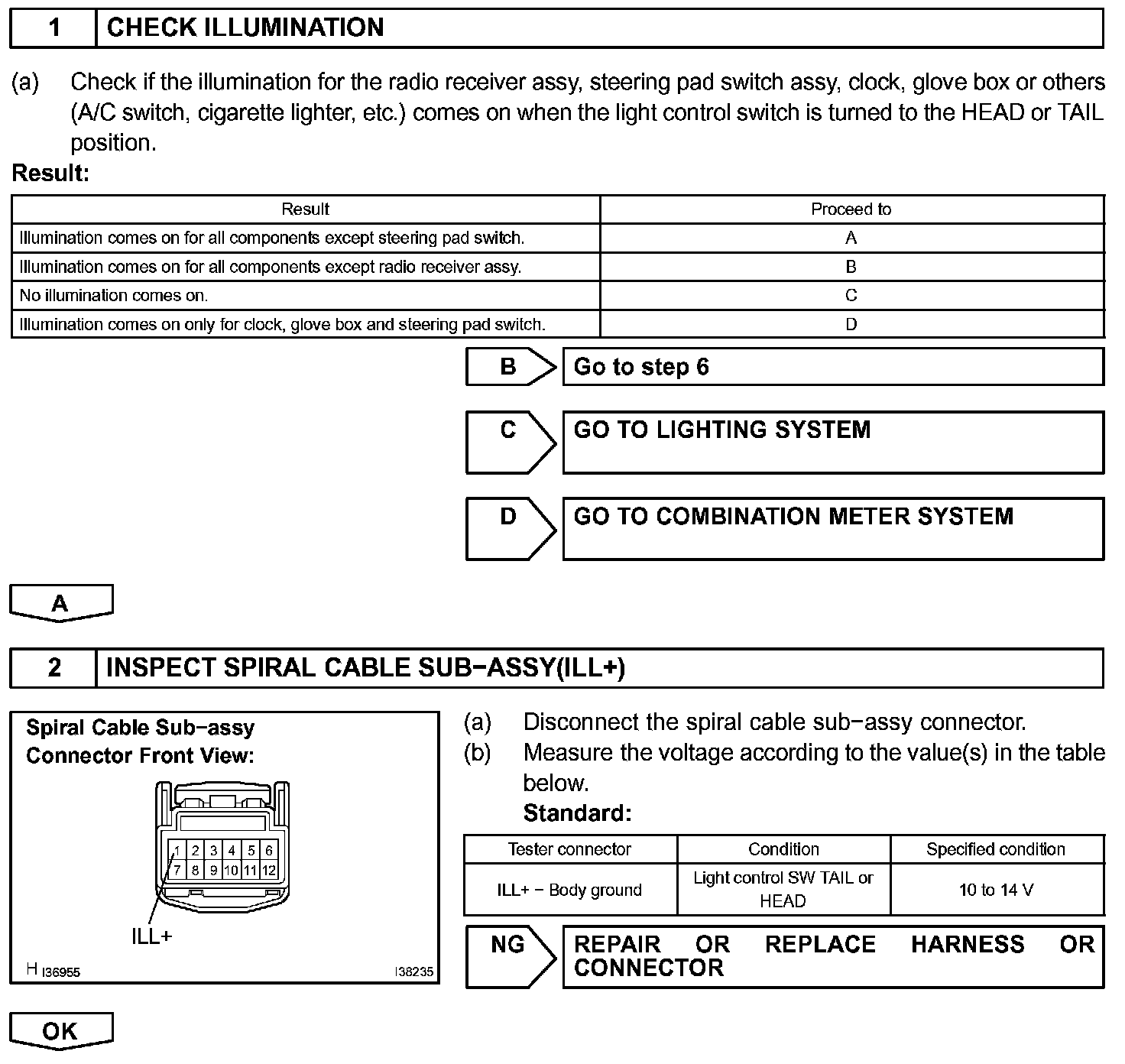

Step 1-2:

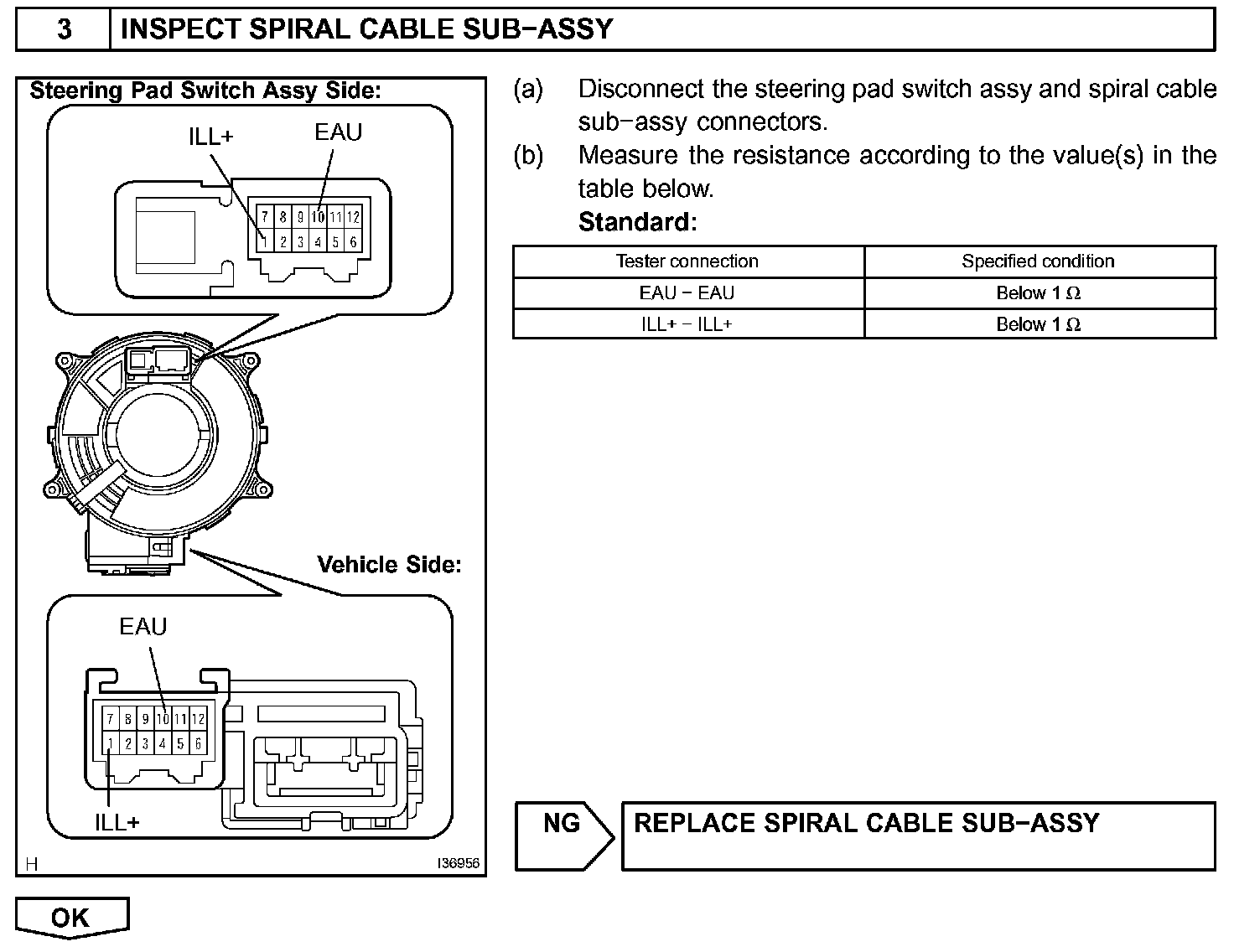

Step 3:

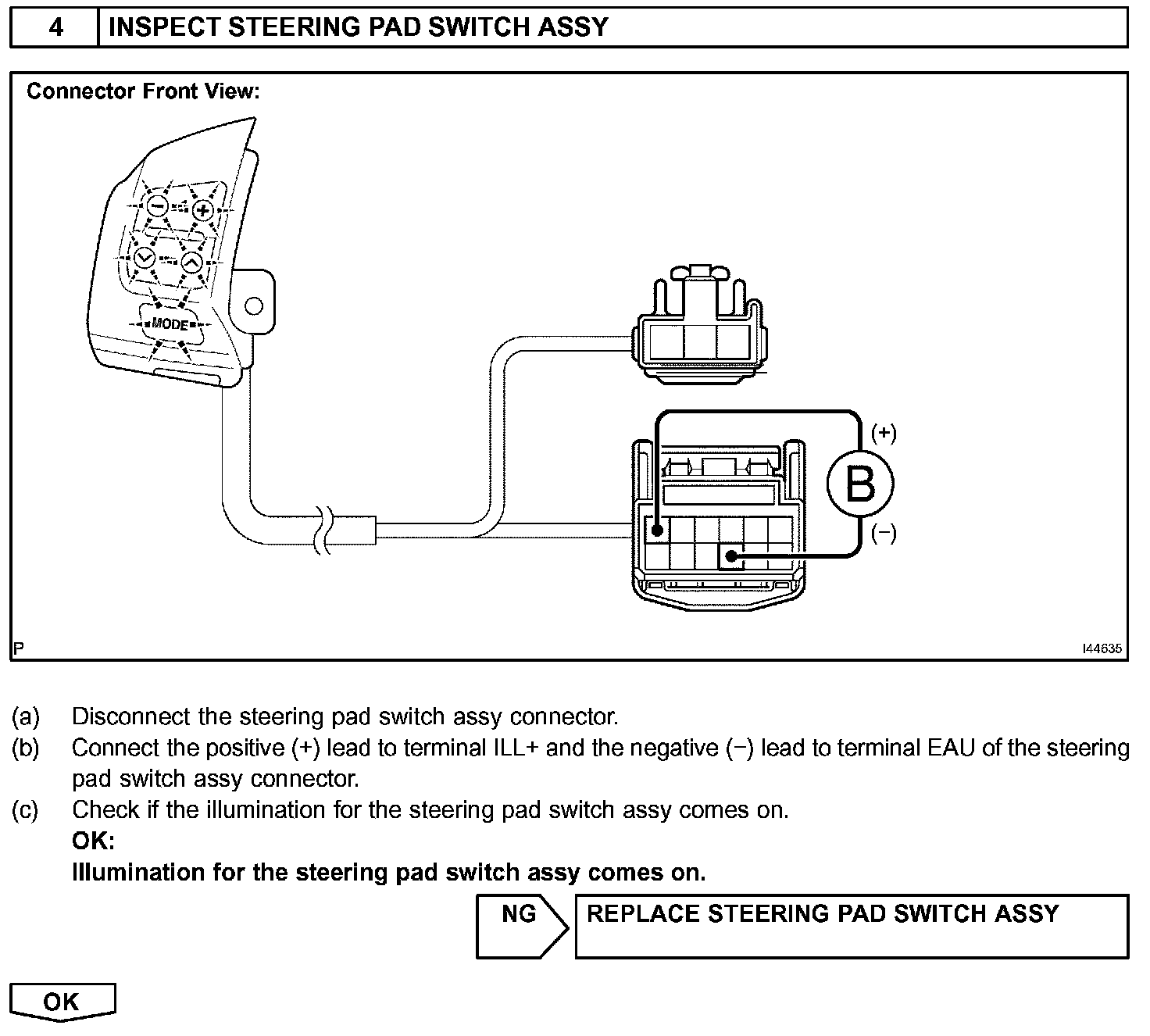

Step 4:

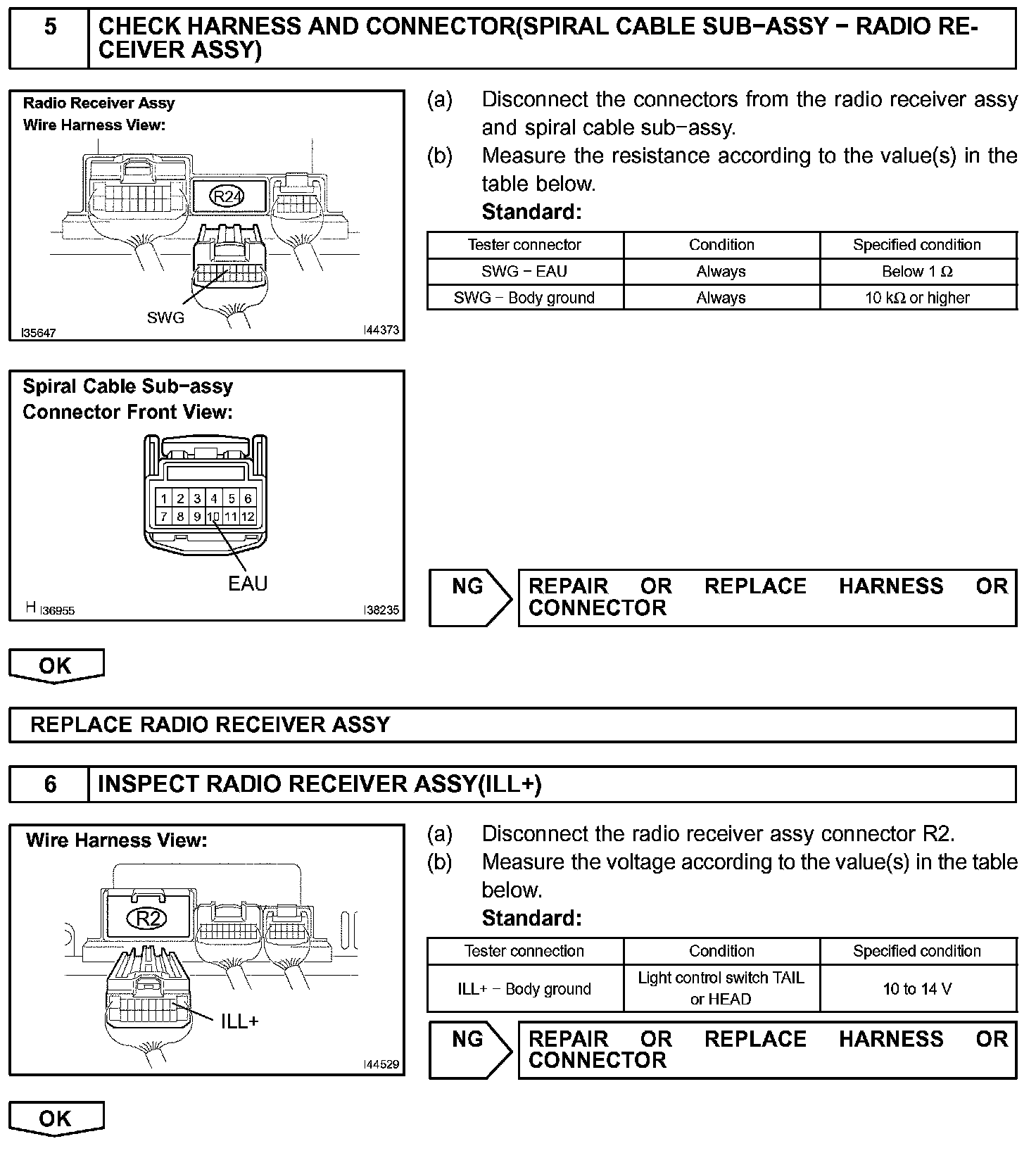

Step 5-6:

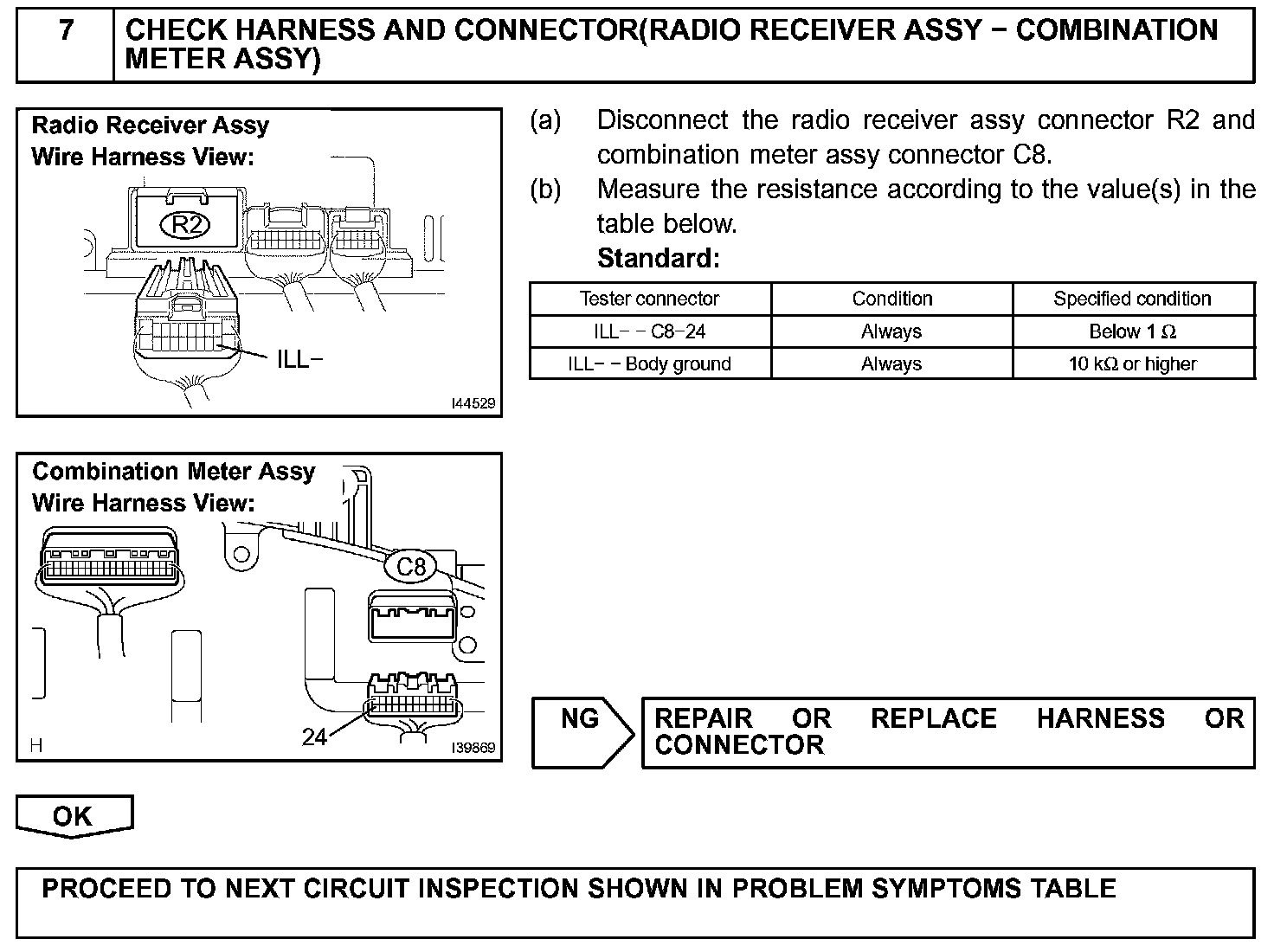

Step 7:

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with SRS (Supplemental Restraint System) such as the airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the supplemental restraint system.
