CD Cannot Be Inserted Or Is Ejected Right After Insertion
CD Cannot Be Inserted Or Is Ejected Right After Insertion
CD CANNOT BE INSERTED OR IS EJECTED RIGHT AFTER INSERTION

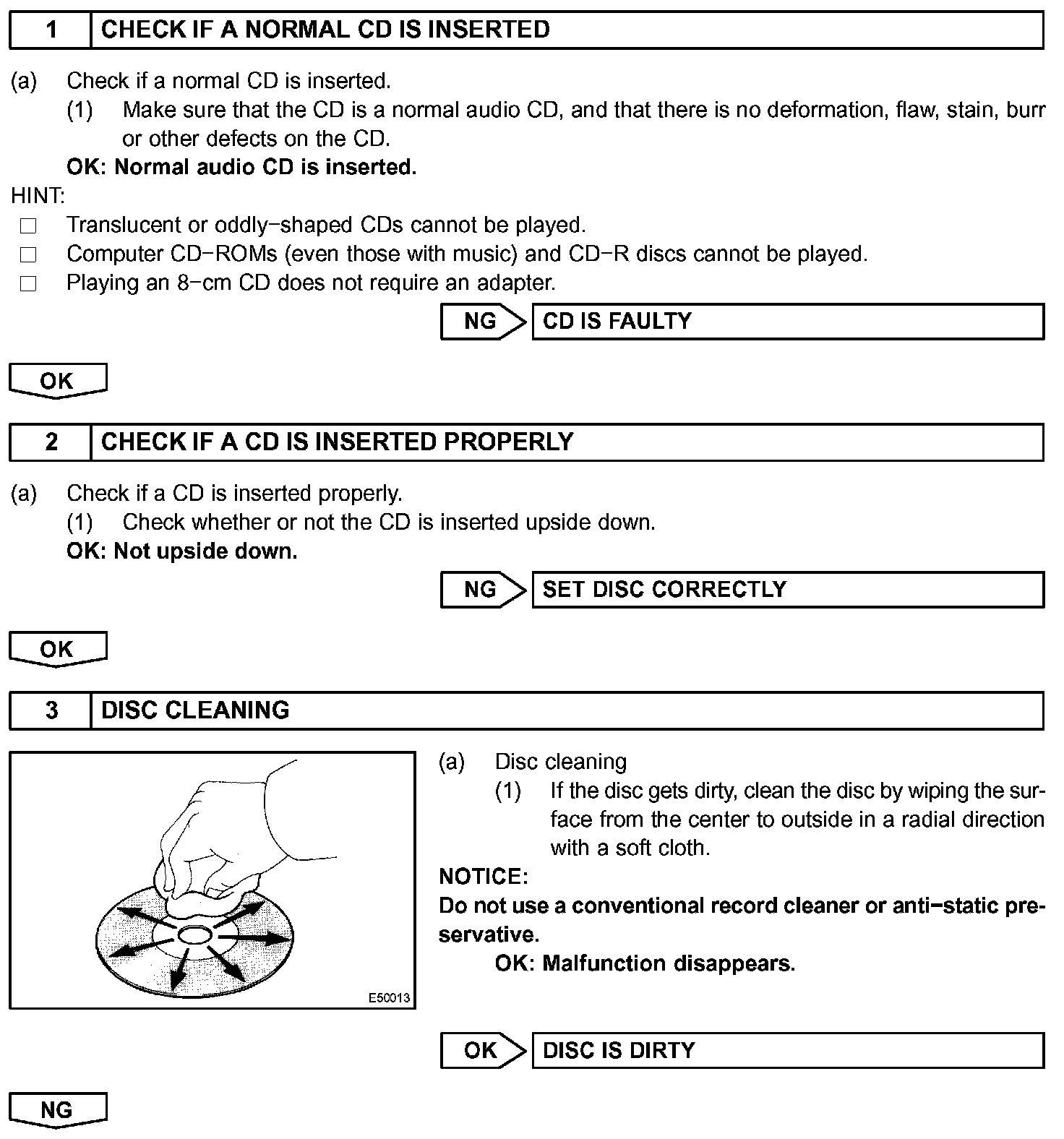

Step 1-3:

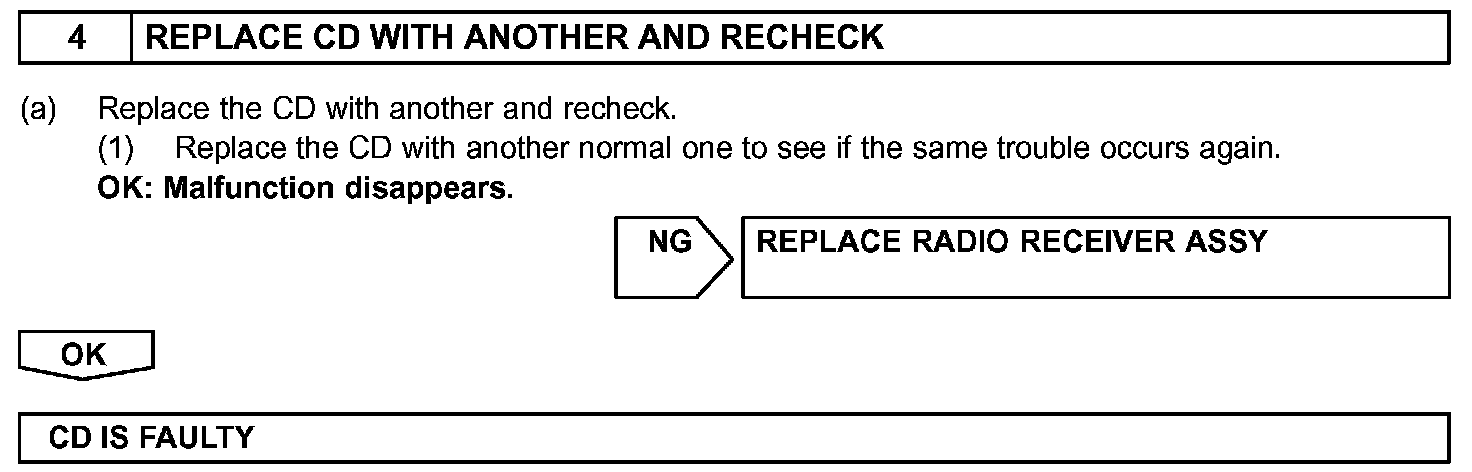

Step 4:
INSPECTION PROCEDURE
