Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Although System Is Powered, CD Cannot Be Played

Although System Is Powered, CD Cannot Be Played

ALTHOUGH SYSTEM IS POWERED, CD CANNOT BE PLAYED

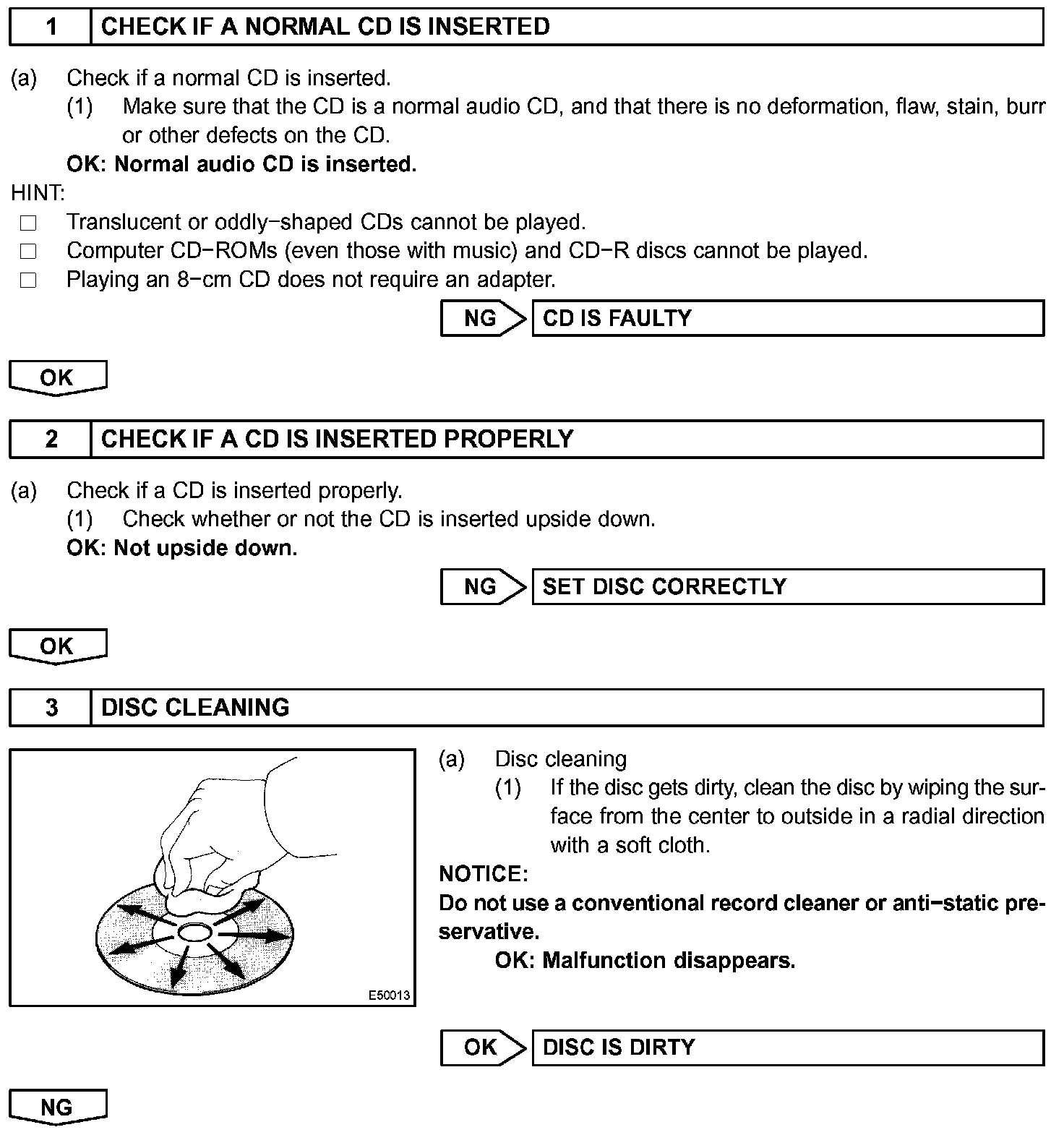

Step 1-3:

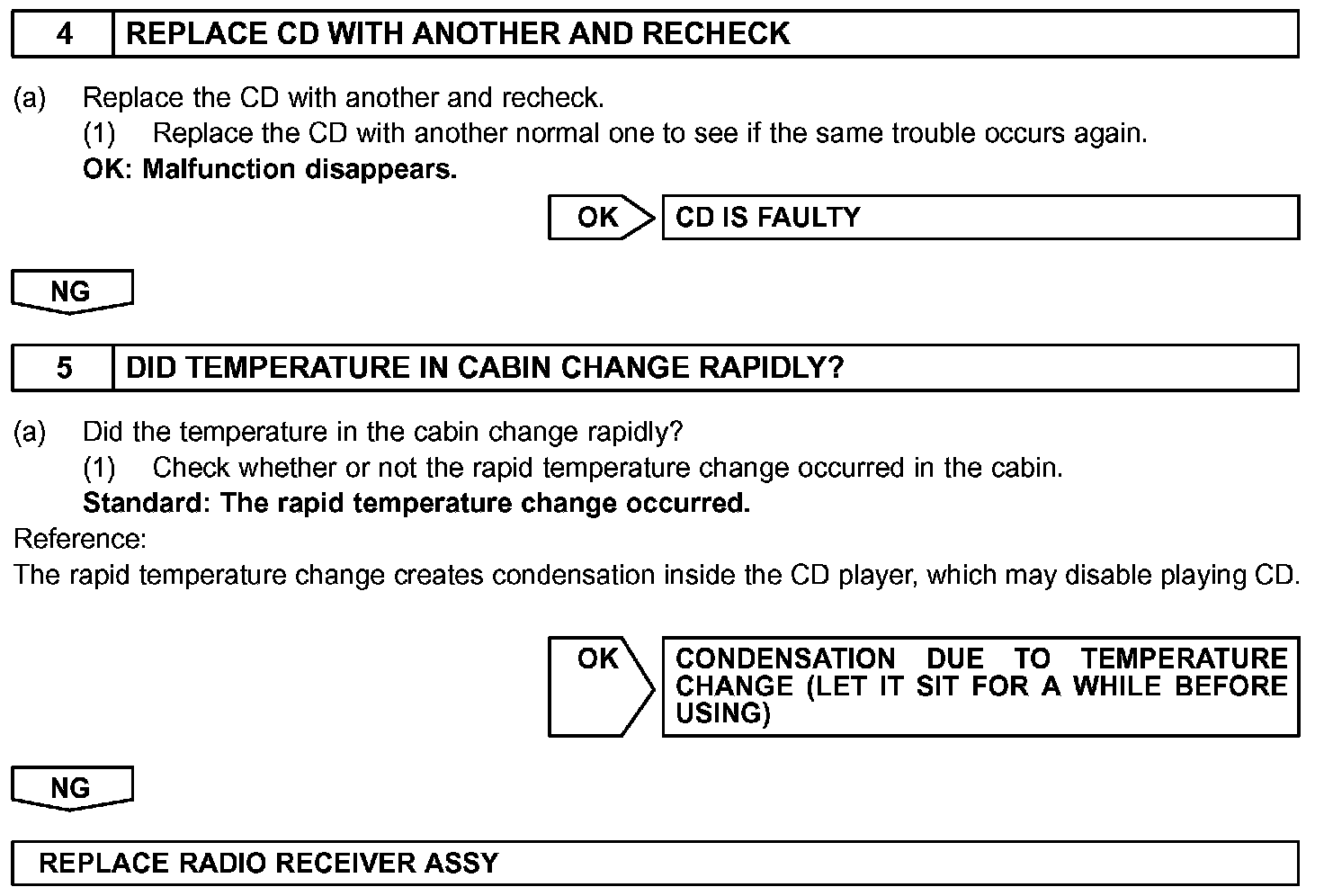

Step 4-5:




INSPECTION PROCEDURE
