Pinout Values and Diagnostic Parameters

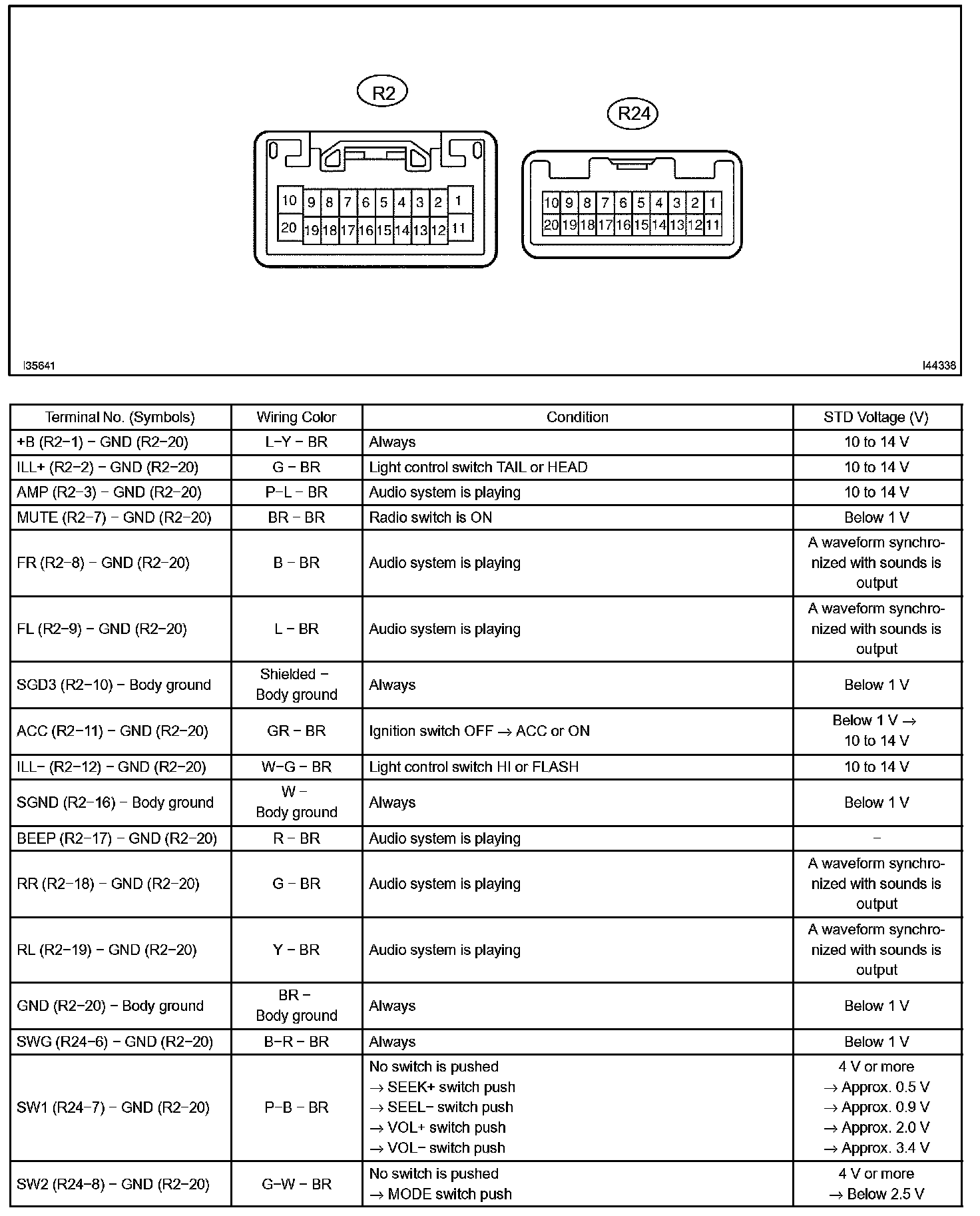

Terminals Of Control Module/Pinouts-Radio Receiver Assy (6CD Type):

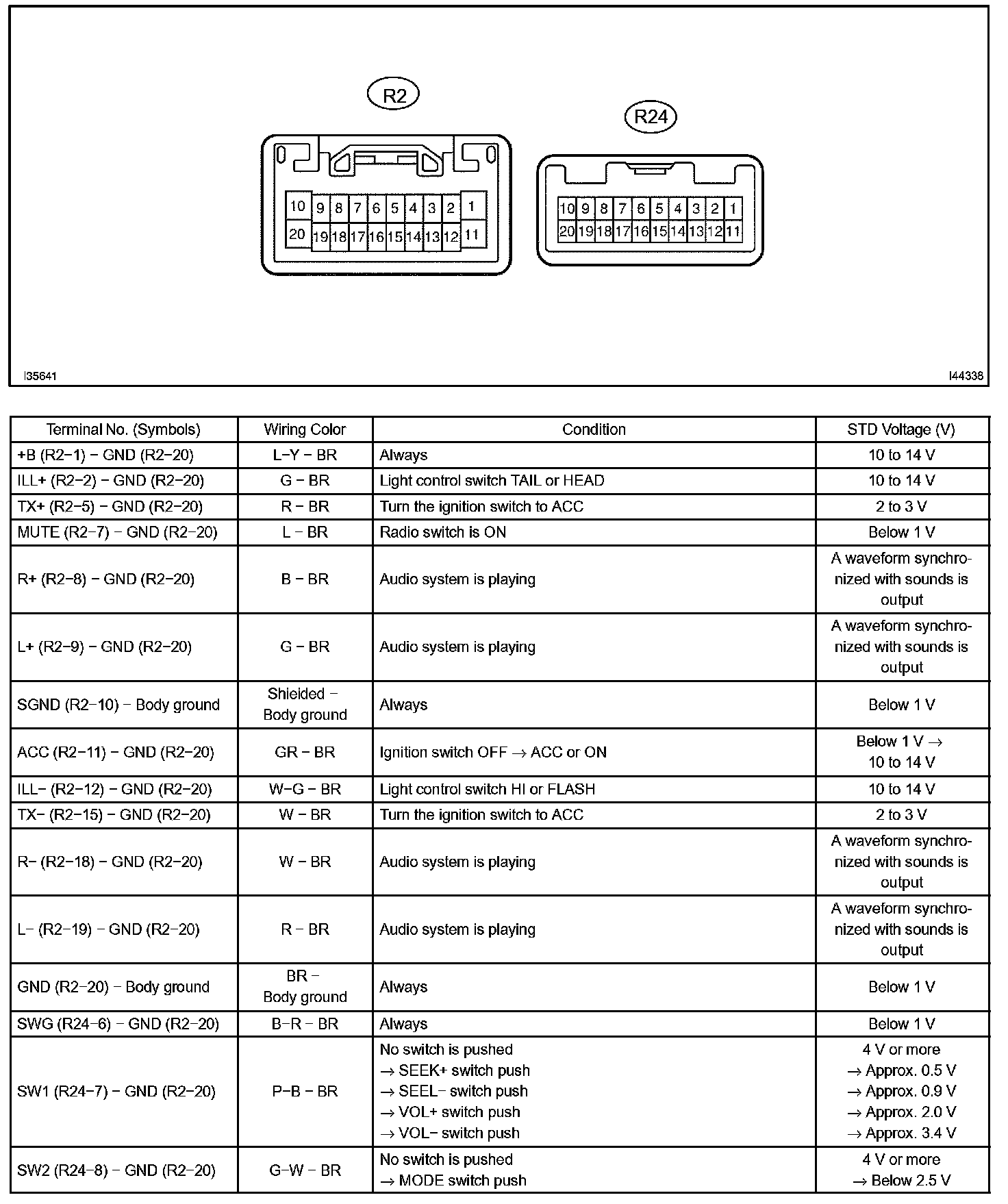

Terminals Of Control Module/Pinouts-Radio Receiver Assy (1CD Type):

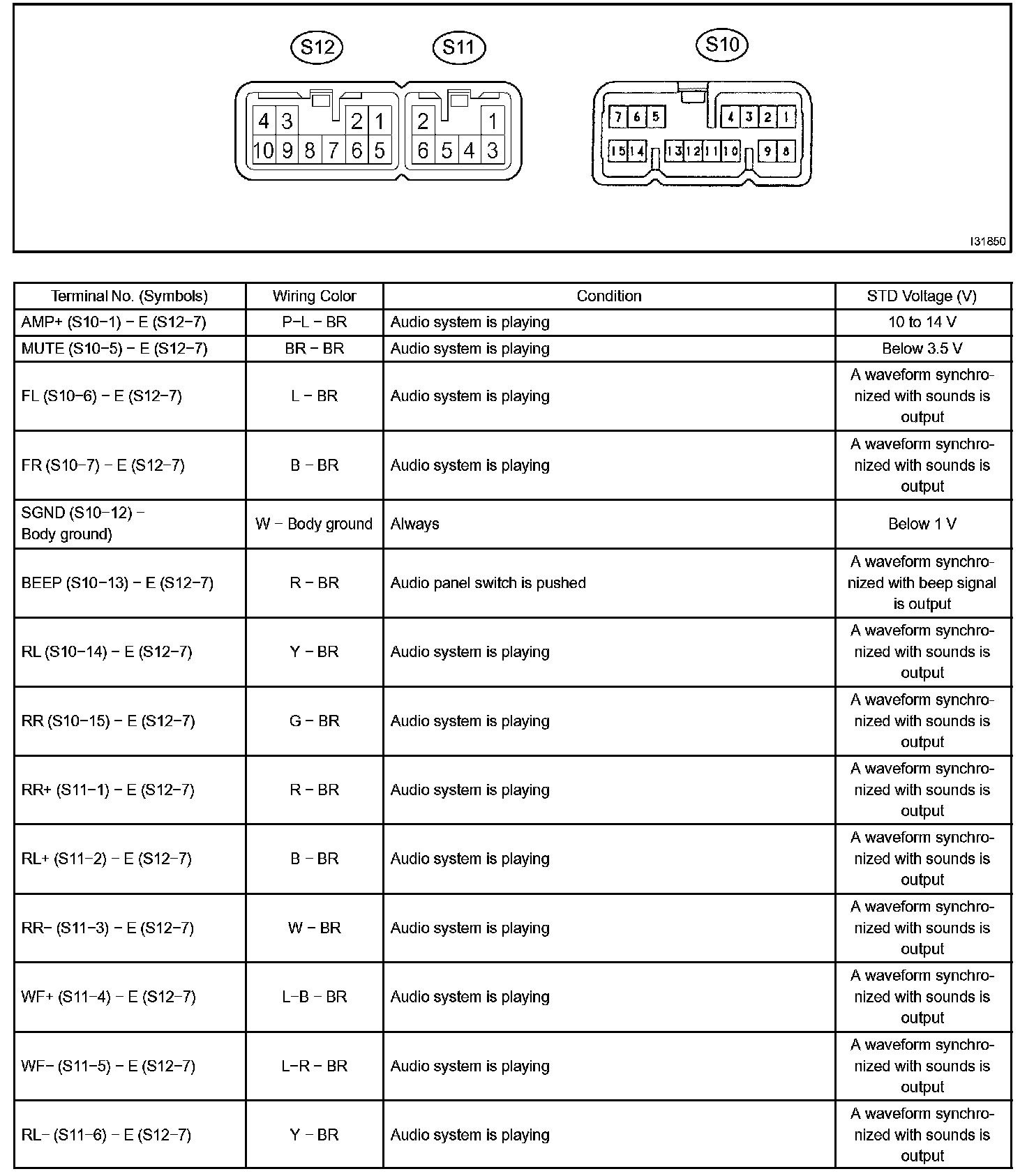

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Mark Levinson Type) (Part 1):

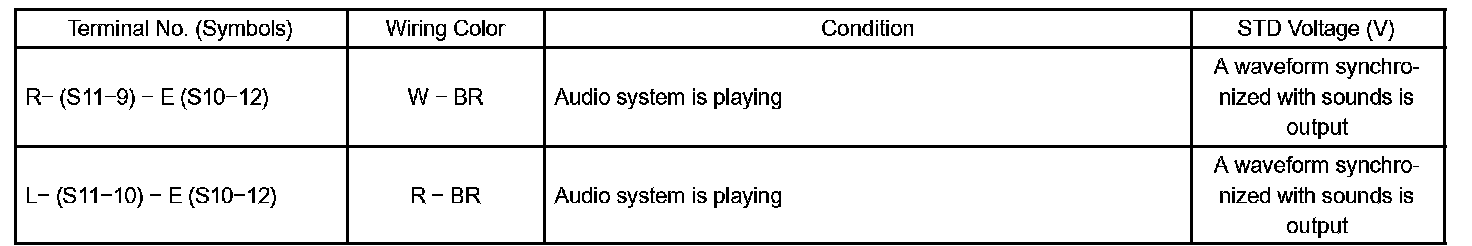

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Mark Levinson Type) (Part 2):

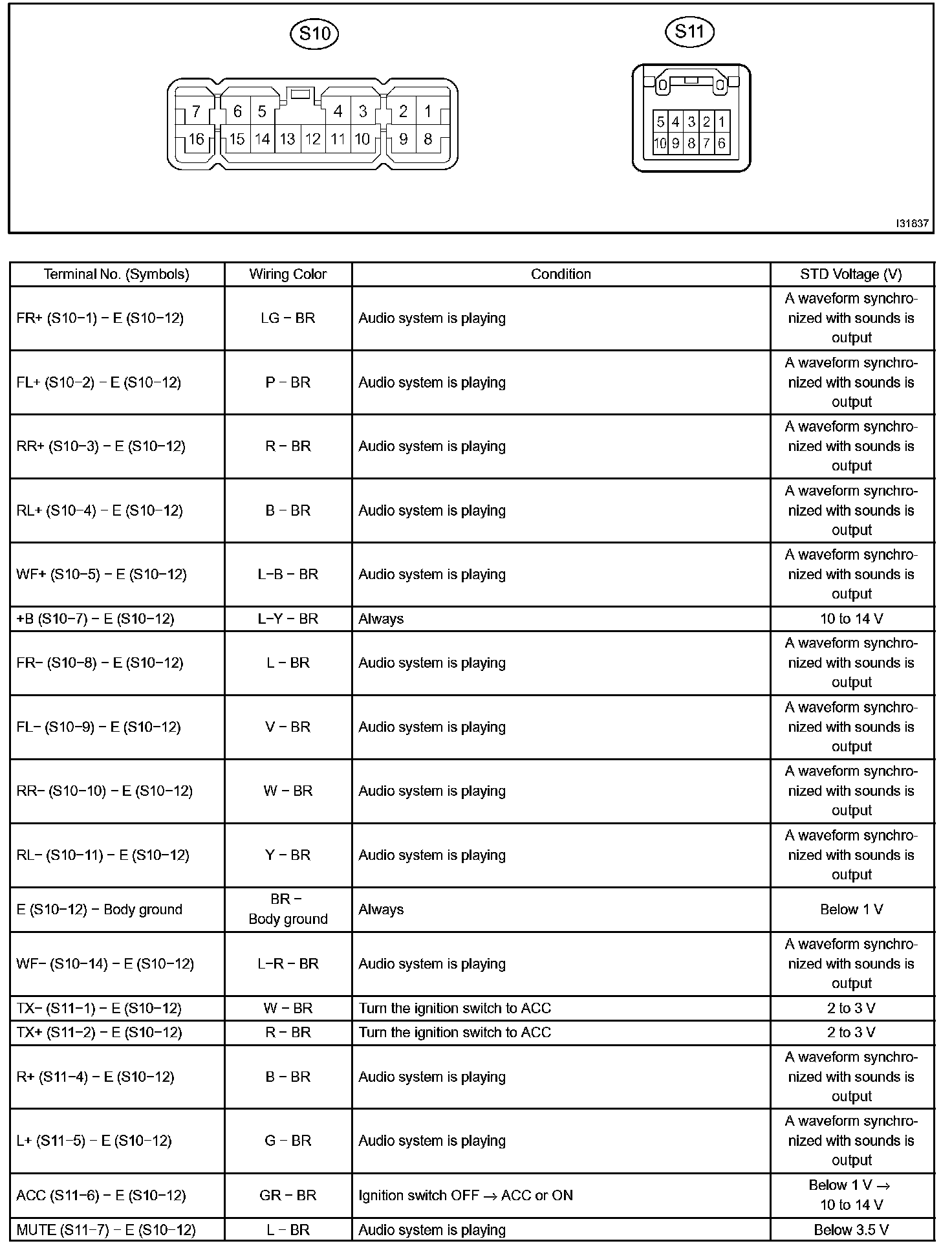

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Except Mark Levinson, 6CD Type) (Part 1):

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Except Mark Levinson, 6CD Type) (Part 2):

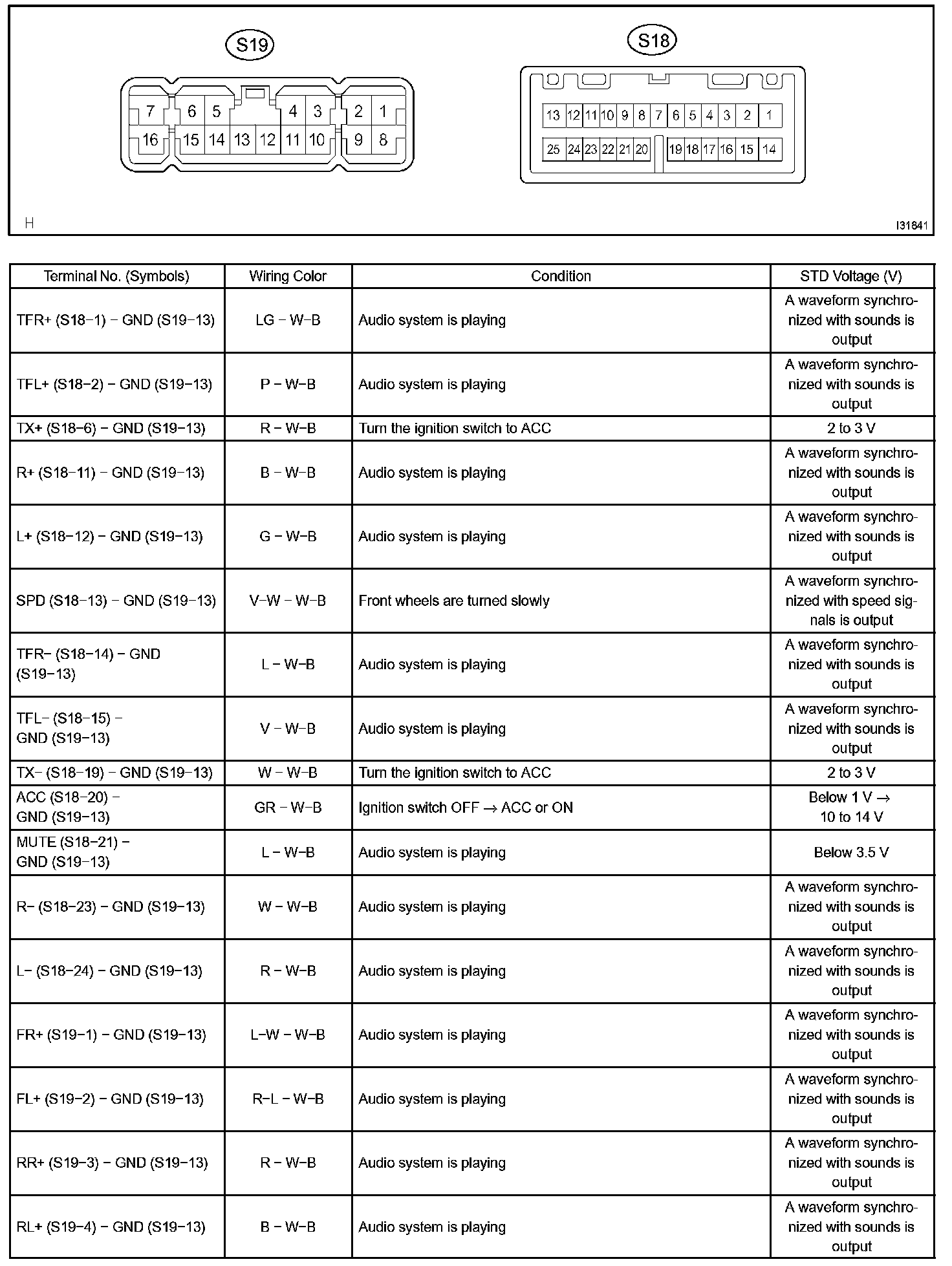

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Except Mark Levinson, 1Cd Type) (Part 1):

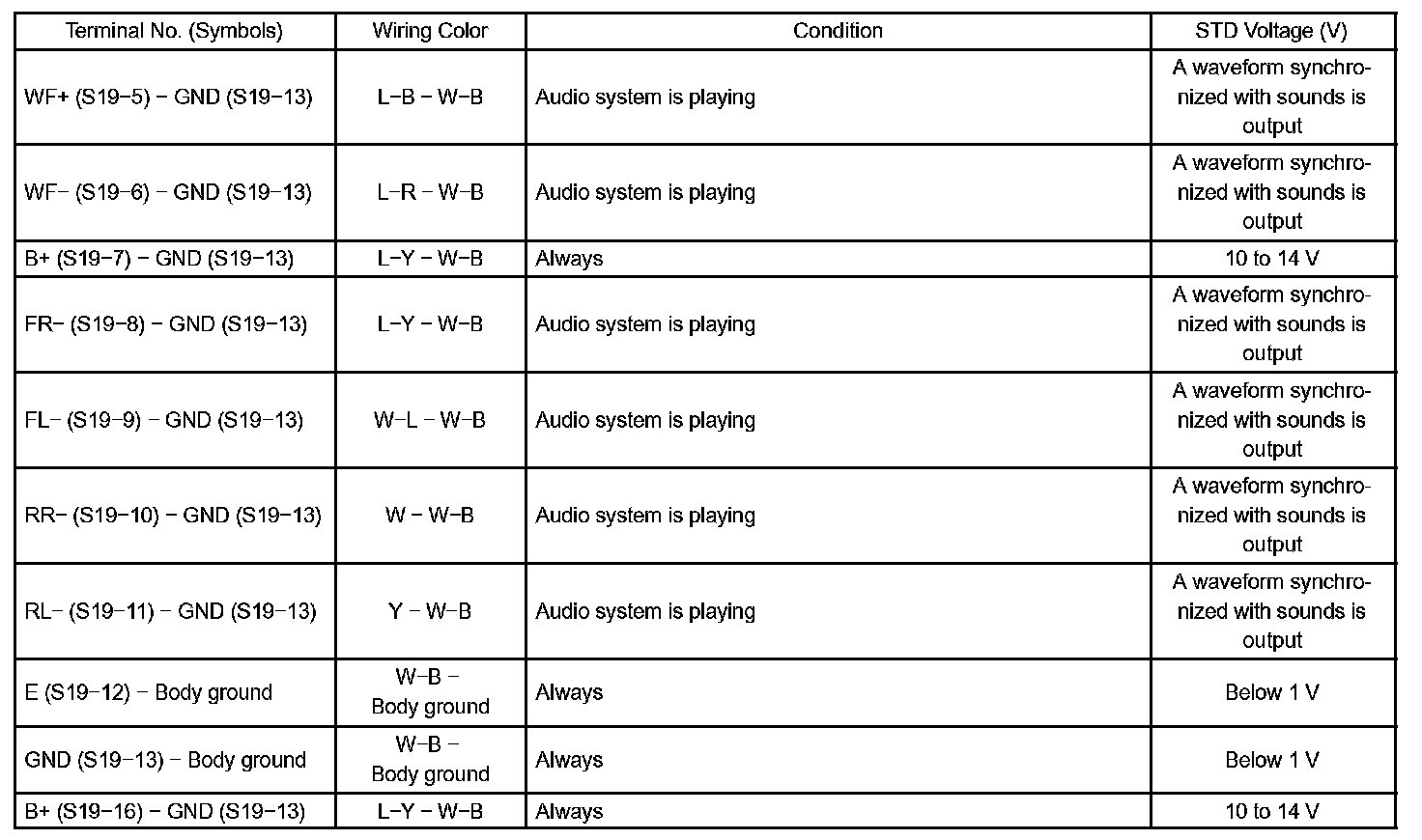

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Except Mark Levinson, 1Cd Type) (Part 2):
