Steering Pad Switch Circuit

STEERING PAD SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit sends an operation signal from the steering pad switch to the radio receiver assy.

If there is an open in the circuit, the audio system cannot be operated by the steering pad switch.

If there is a short in the circuit, the same condition as when the switch is continuously depressed occurs. Therefore, not only the steering pad switch cannot operate the radio receiver assy, but also the radio receiver assy itself does not function.

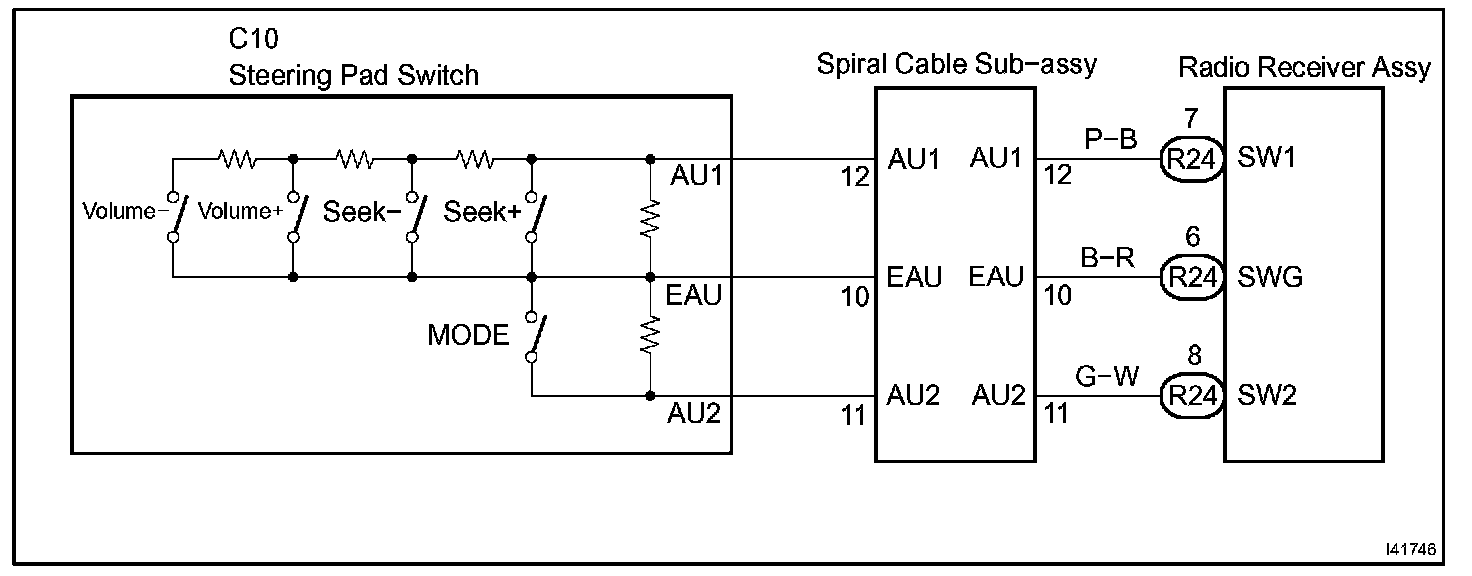

Wiring Diagram:

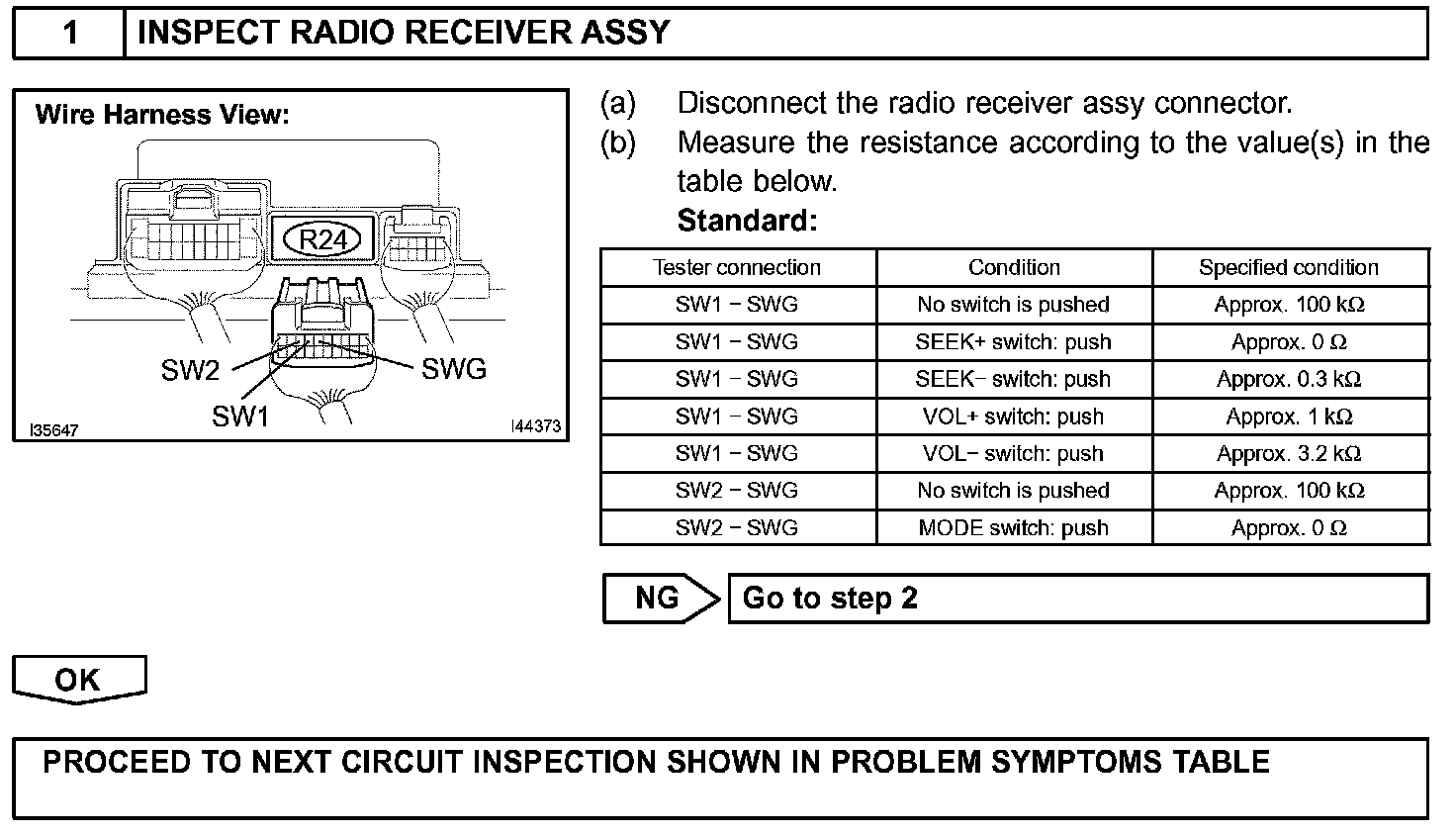

Step 1:

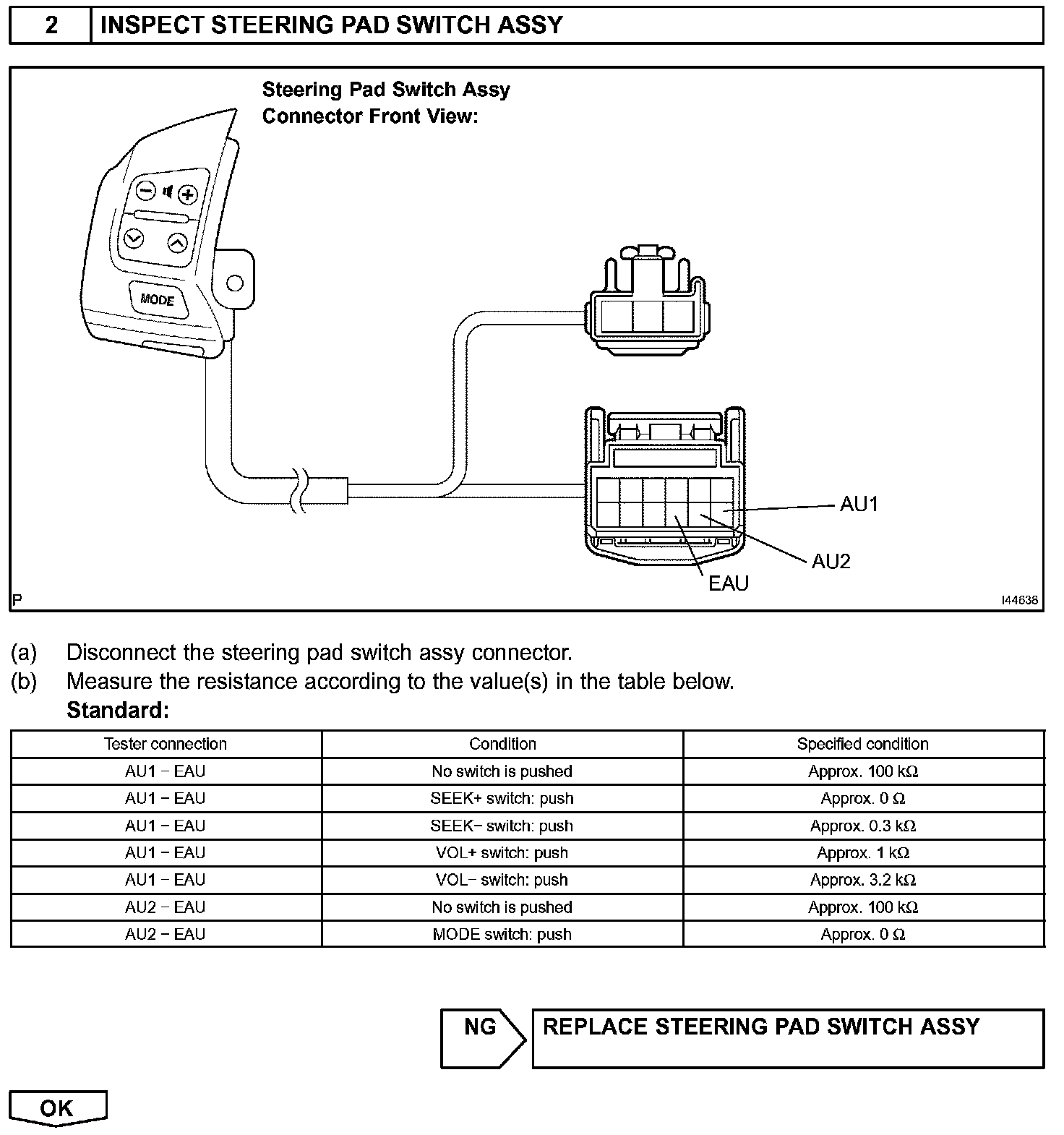

Step 2:

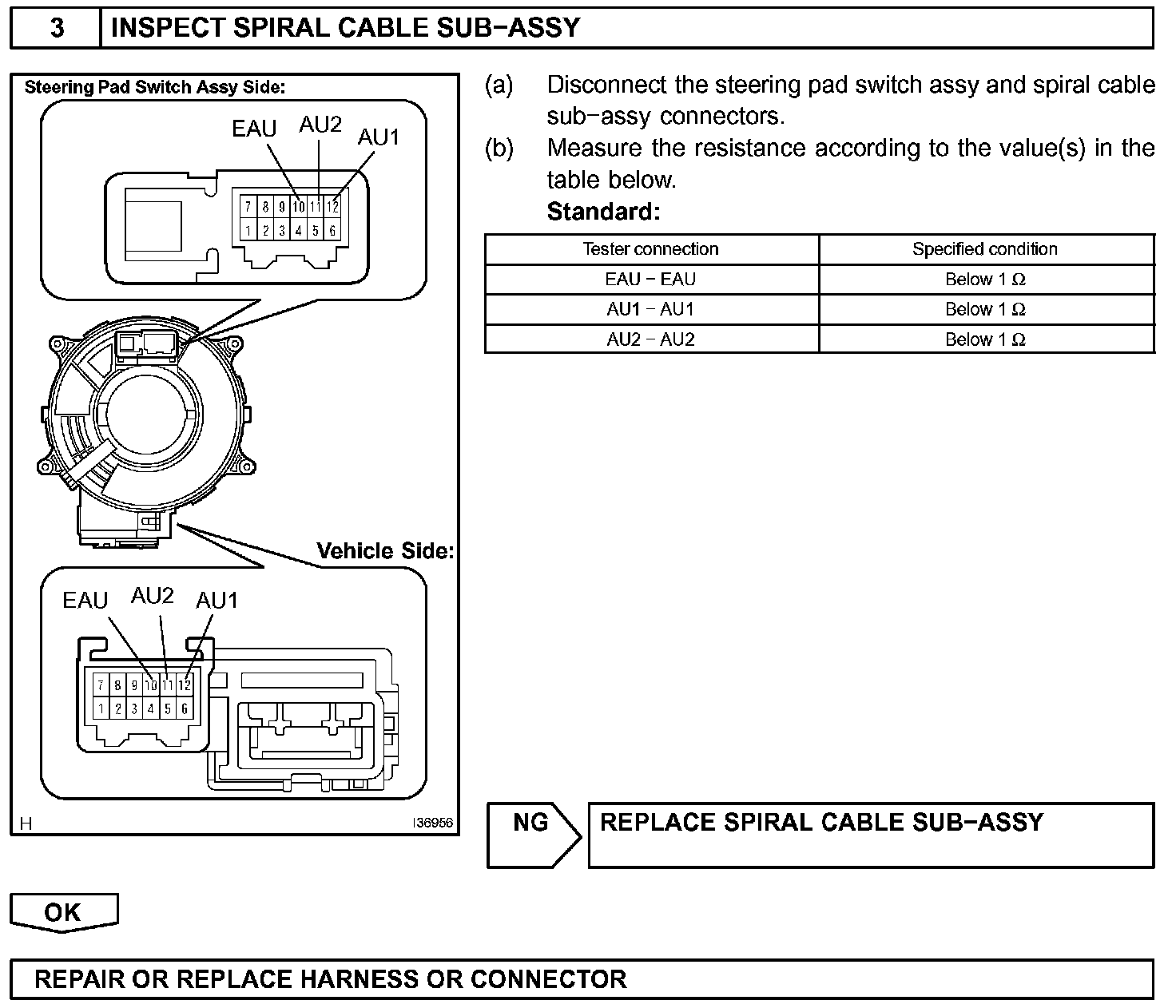

Step 3:

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with SRS (Supplemental Restraint System) such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the supplemental restraint system.
