AVC-LAN Circuit (Radio Receiver Assy - Amp)

AVC-LAN CIRCUIT (RADIO RECEIVER ASSY - AMP)

CIRCUIT DESCRIPTION

Each unit of the audio system connected to AVC-LAN (communication bus) communicates by transferring the signals from each switch.

When +B short and GND short occur in this AVC-LAN, audio system will not function normally as communication is discontinued.

In AVC-LAN, radio receiver assy becomes the communication master, and the radio receiver assy has enough resistance necessary for transmitting the communication.

Wiring Diagram:

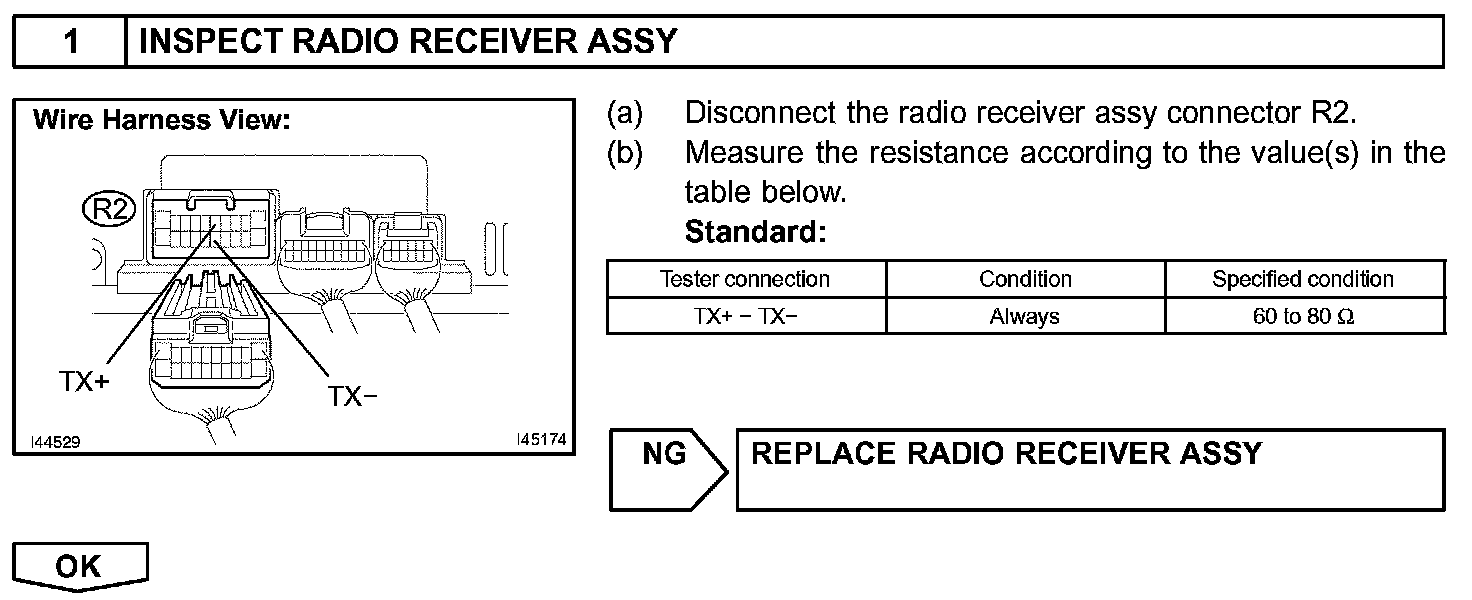

Step 1:

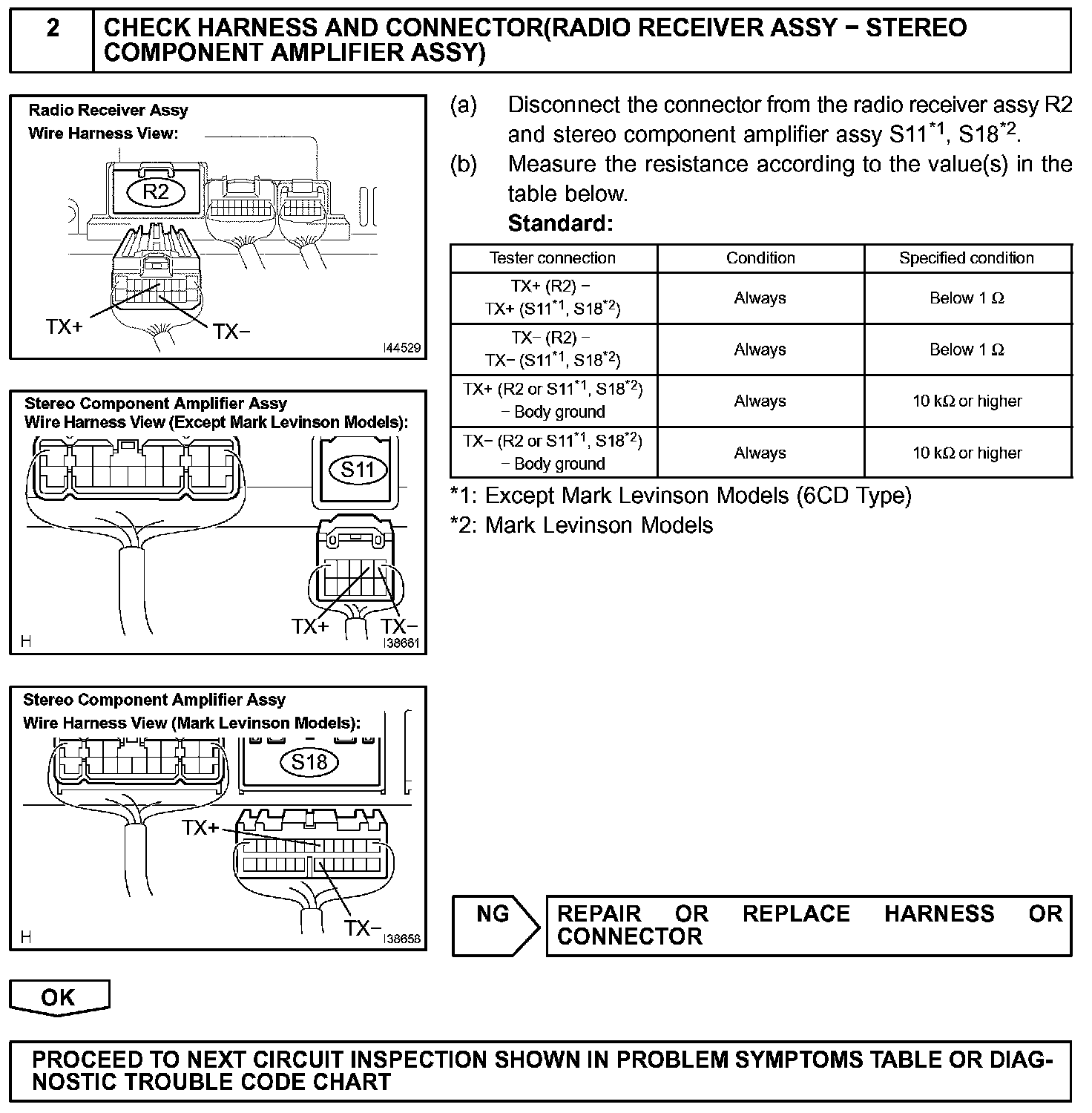

Step 2:

INSPECTION PROCEDURE
