Rear Speaker Assembly No.2

REPLACEMENT

1. REMOVE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEATBACK ASSEMBLY
3. REMOVE ROOF SIDE GARNISH INNER RH
4. REMOVE ROOF SIDE GARNISH INNER LH
5. REMOVE REAR SEAT SHOULDER BELT COVER
6. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
a. Remove the 3 bolts and floor anchor of the seat belt.
b. Pull the package tray trim panel assembly upward to disengage 2 clips.
c. Put the anchor part of the seat belt through the slit part.
d. Disconnect the connector.

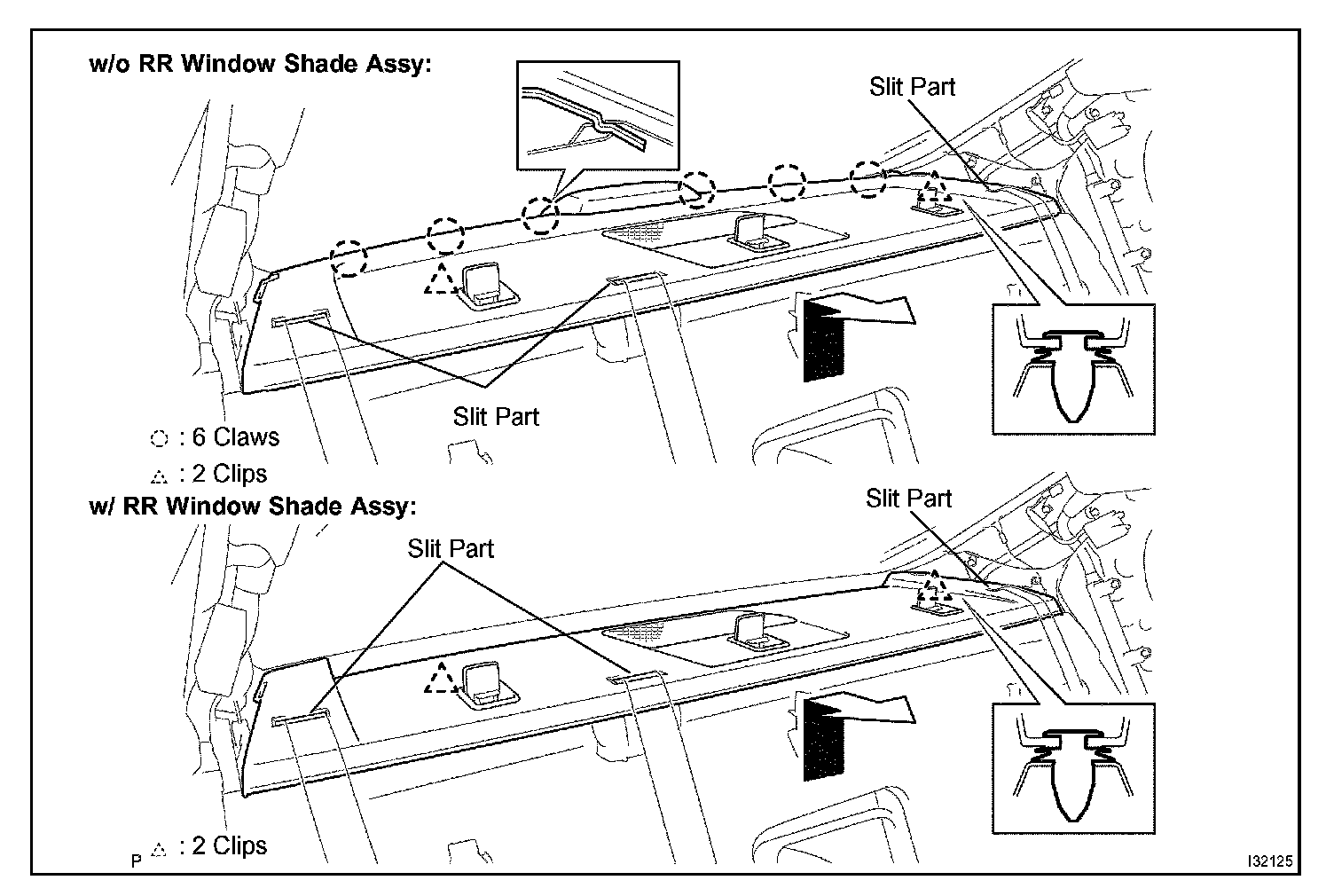

e. w/o RR window shade assembly:
Pull it as shown in the illustration to disengage 6 claws, and remove the package tray trim panel assembly.




f. w/ RR window shade assembly:
Pull it as shown in the illustration and remove the package tray trim panel assembly.

7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY OUTER
8. REMOVE REAR SEAT INNER W/CENTER BELT ASSEMBLY RH
9. REMOVE REAR SEAT INNER W/CENTER BELT ASSEMBLY LH
10. REMOVE ROOM PARTITION PANEL INSULATOR

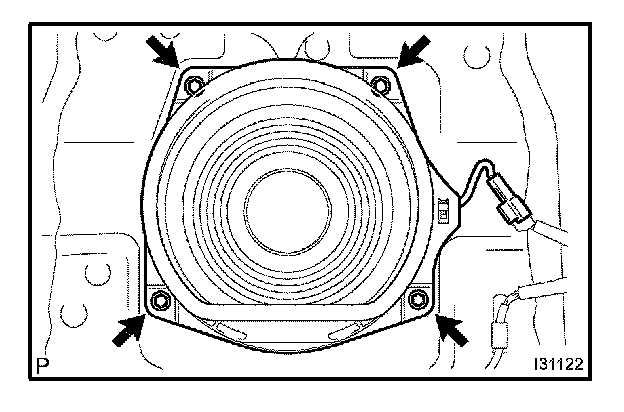

11. REMOVE REAR SPEAKER ASSEMBLY NO.2
a. Disconnect the connector.
b. Remove the 4 screws and rear speaker assembly No.2.

12. INSTALL REAR SEAT INNER W/CENTER BELT ASSEMBLY RH
13. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY OUTER
14. INSTALL REAR SEAT INNER W/CENTER BELT ASSEMBLY LH
15. INSTALL ROOF SIDE GARNISH INNER RH
16. INSTALL ROOF SIDE GARNISH INNER LH
17. INSTALL REAR SEATBACK ASSEMBLY
18. INSTALL REAR SEAT CUSHION ASSEMBLY
