Stereo Component Amplifier Assembly

STEREO COMPONENT AMPLIFIER ASSEMBLY

REPLACEMENT

1. REMOVE FRONT DOOR SCUFF PLATE LH (EXCEPT MARK LEVINSON AMPLIFIER TYPE)
2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1 (EXCEPT MARK LEVINSON AMPLIFIER TYPE)
3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER (EXCEPT MARK LEVINSON AMPLIFIER TYPE)




4. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY(EXCEPT MARK LEVINSON AMPLIFIER TYPE)
a. Disconnect the connectors.

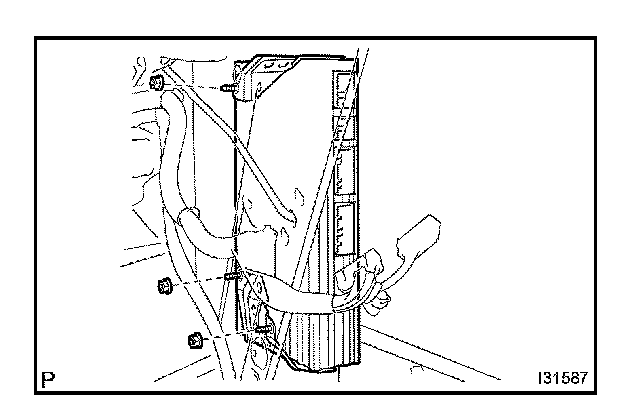

b. Remove the 2 nuts and stereo component amplifier assembly.




5. REMOVE AMPLIFIER BRACKET NO.1 (EXCEPT MARK LEVINSON AMPLIFIER TYPE)

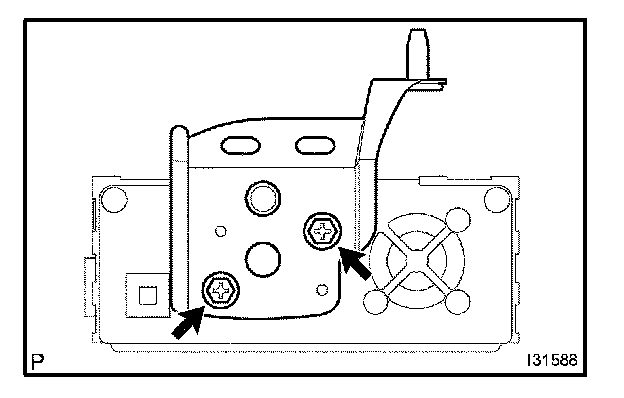

a. Remove the 2 screws and amplifier bracket No.1.




6. REMOVE AMPLIFIER BRACKET NO.2 (EXCEPT MARK LEVINSON AMPLIFIER TYPE)

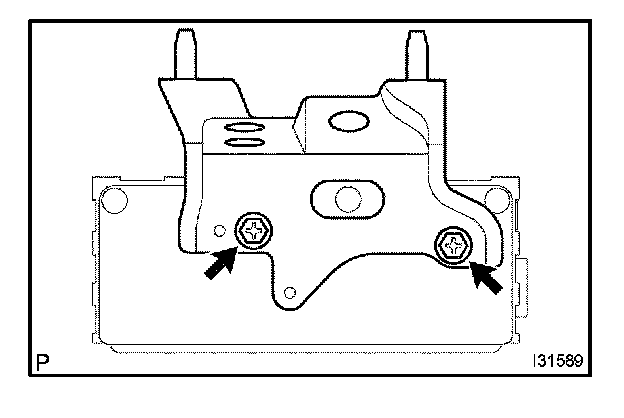

a. Remove the 2 screws and amplifier bracket No.2.

7. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (MARK LEVINSON AMPLIFIER TYPE)
8. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1 (MARK LEVINSON AMPLIFIER TYPE)
9. REMOVE REAR FLOOR FINISH PLATE (MARK LEVINSON AMPLIFIER TYPE)
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH (MARK LEVINSON AMPLIFIER TYPE)




11. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (MARK LEVINSON AMPLIFIER TYPE)
a. Disconnect the connectors.
b. Remove the 3 nuts and stereo component amplifier assembly.




12. REMOVE AMPLIFIER BRACKET NO.1 (MARK LEVINSON AMPLIFIER TYPE)

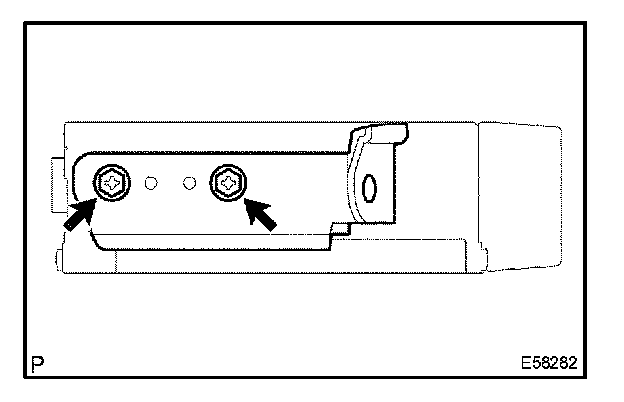

a. Remove the 2 screws and amplifier bracket No.1.




13. REMOVE AMPLIFIER BRACKET NO.2 (MARK LEVINSON AMPLIFIER TYPE)

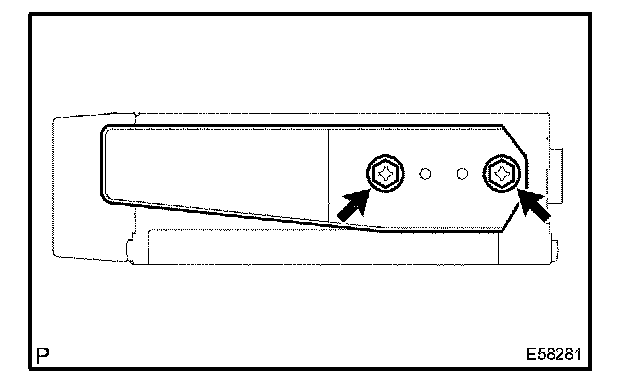

a. Remove the 2 screws and amplifier bracket No.2.
