Power Source Circuit (Navigation Voice Amplifier Assy)

POWER SOURCE CIRCUIT (NAVIGATION VOICE AMPLIFIER ASSY)

CIRCUIT DESCRIPTION

This circuit provides power to the navigation voice amplifier assy.

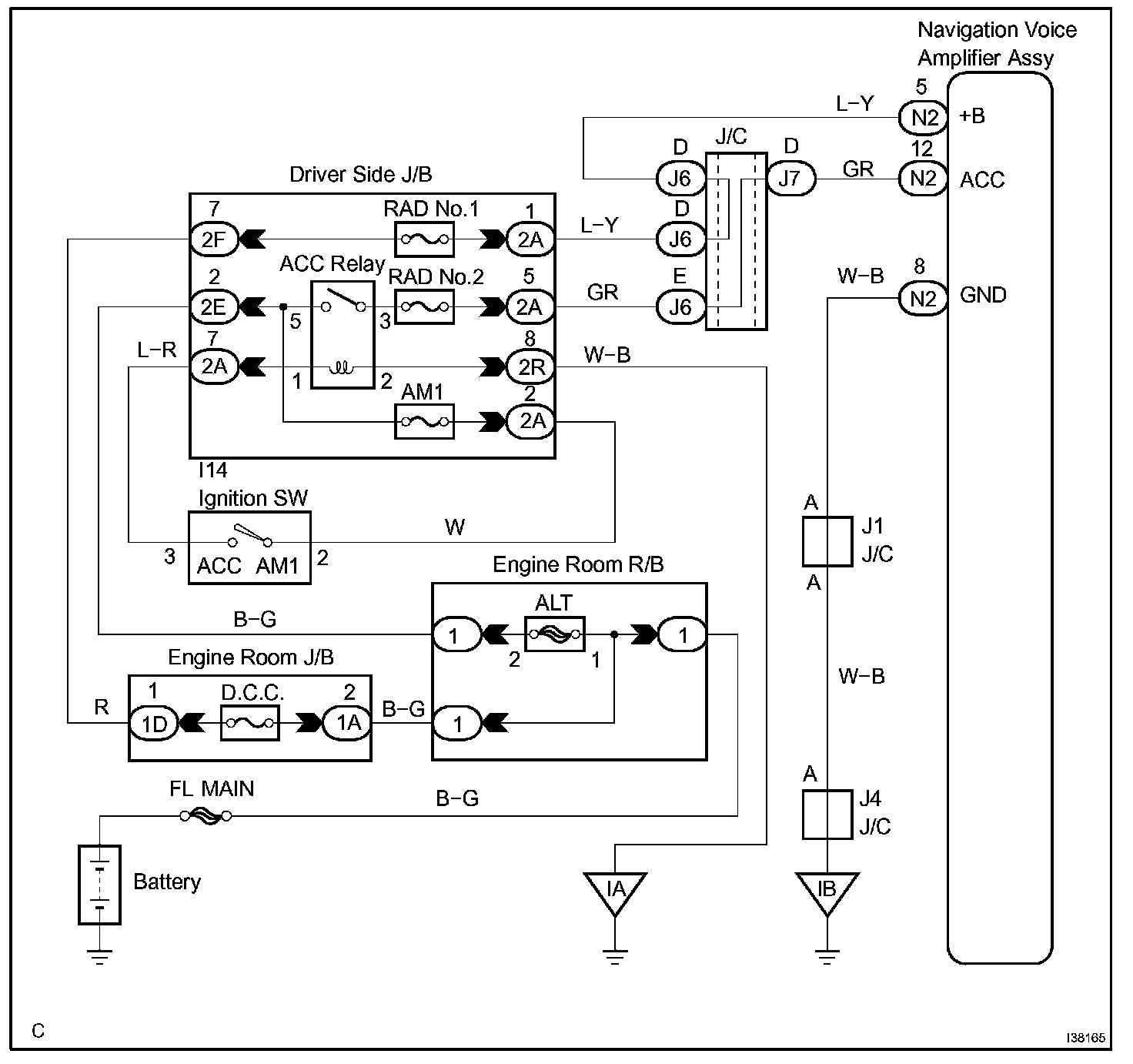

Wiring Diagram:

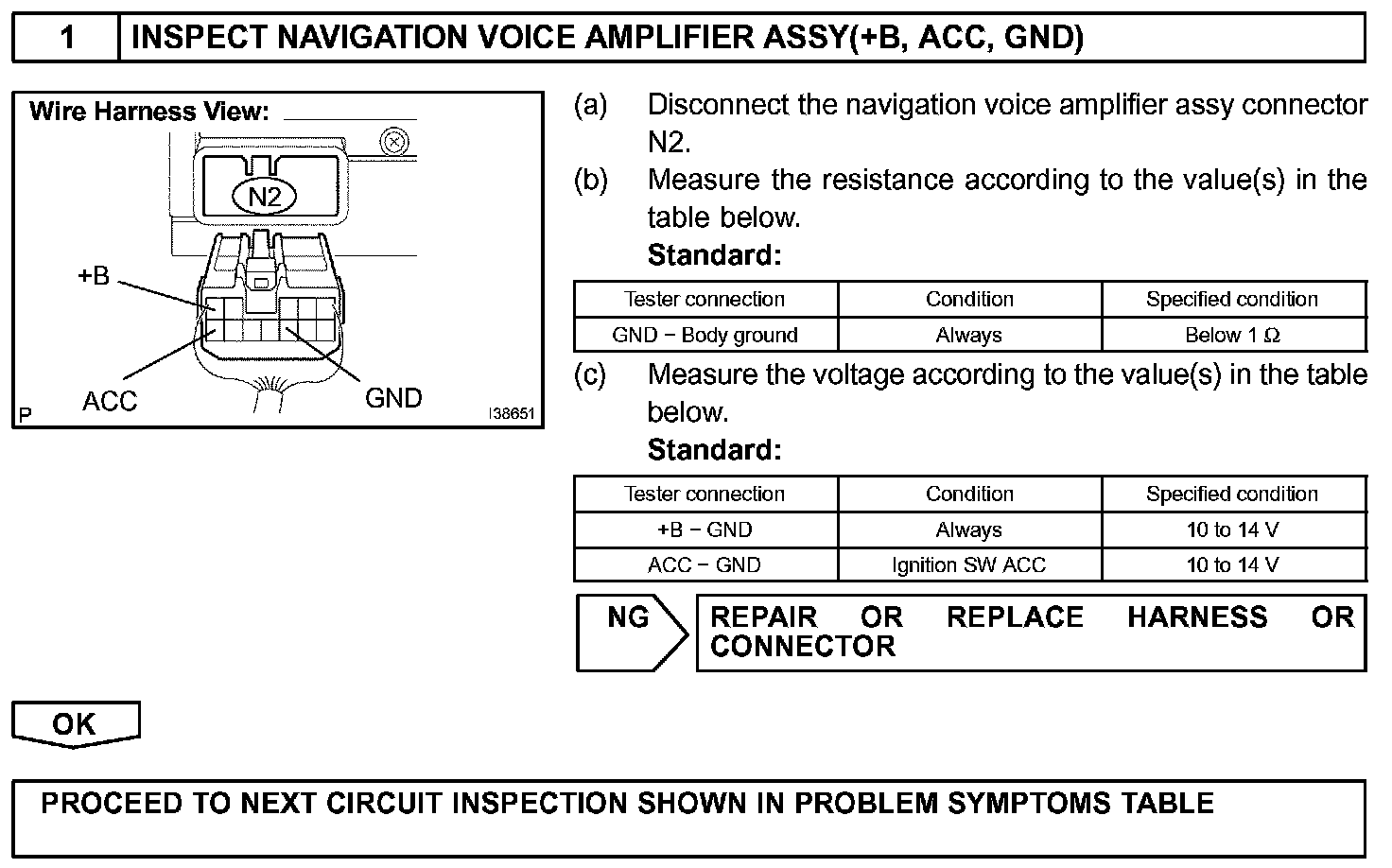

Step 1:




INSPECTION PROCEDURE
