Power Source Circuit (Disc Player Changer)

POWER SOURCE CIRCUIT (DISC PLAYER CHANGER)

CIRCUIT DESCRIPTION

This circuit provides power from the radio and navigation assy to the disc player changer.

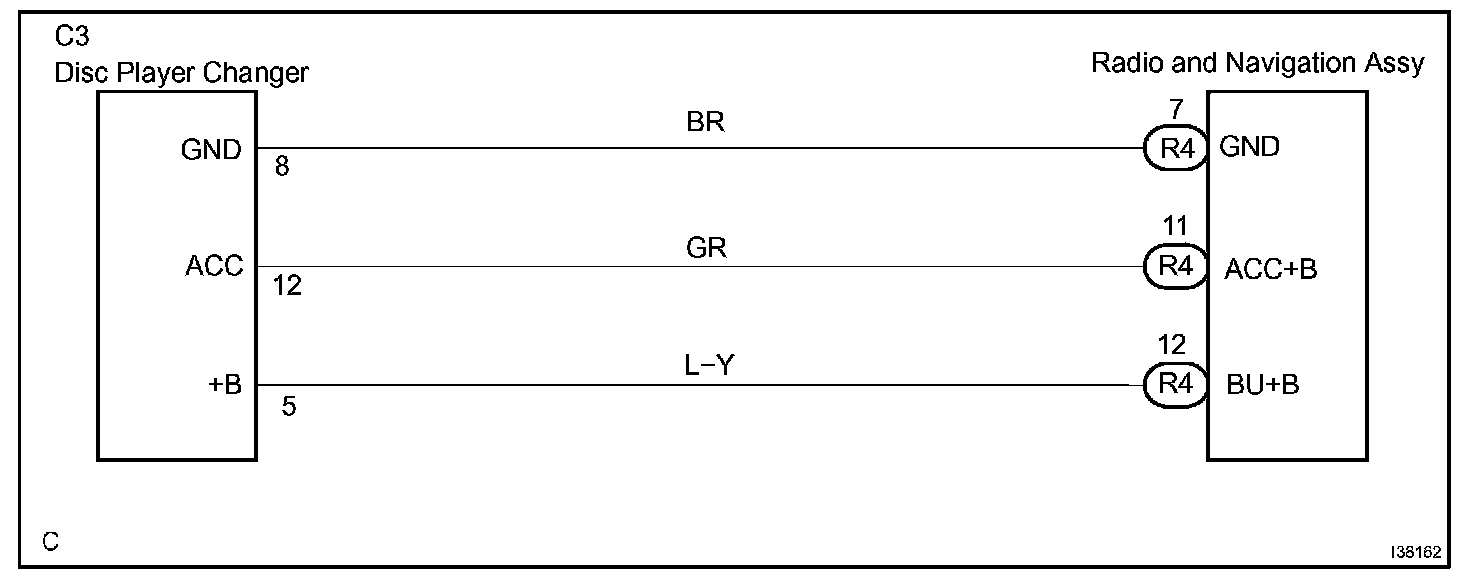

Wiring Diagram:

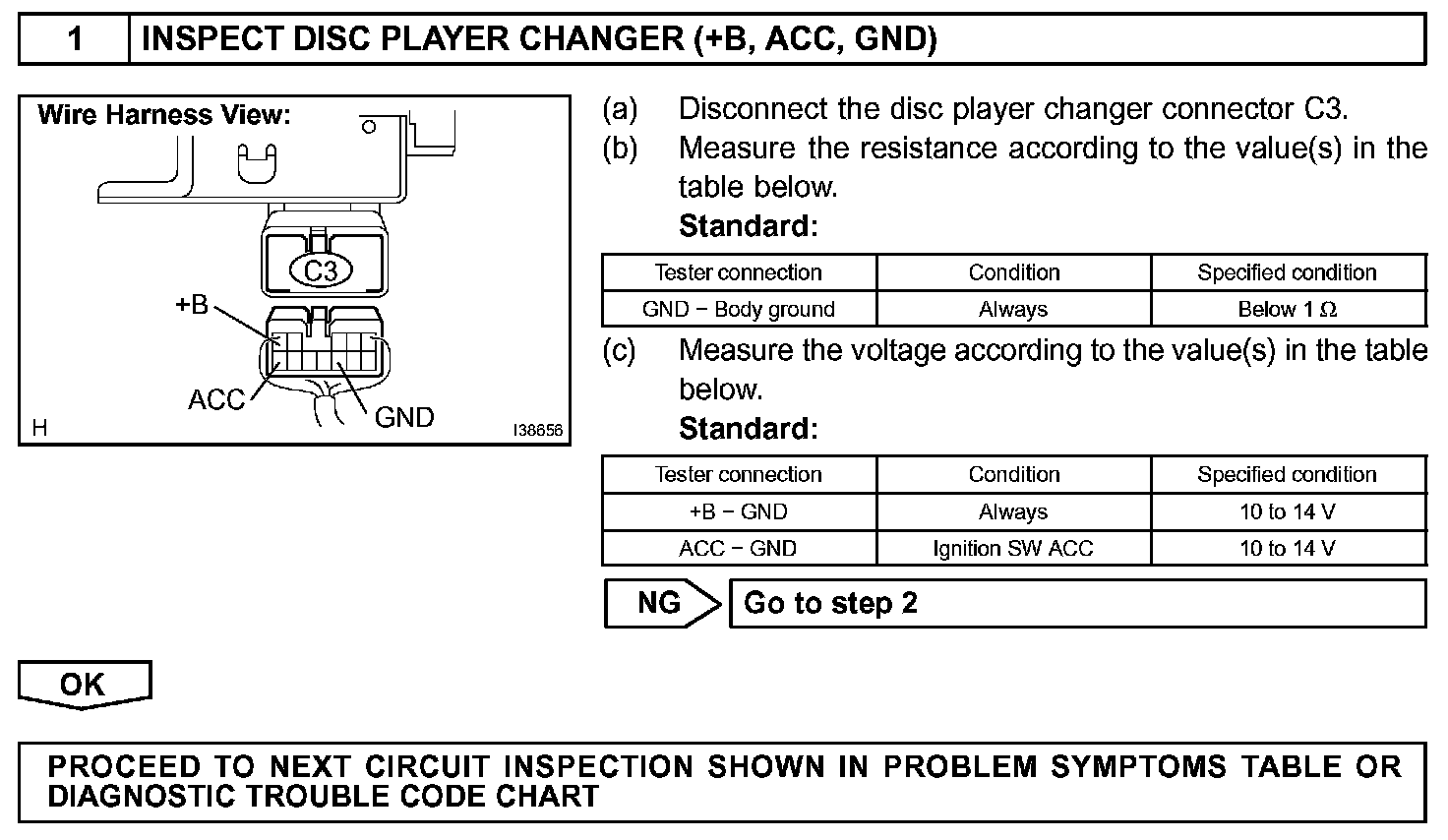

Step 1:

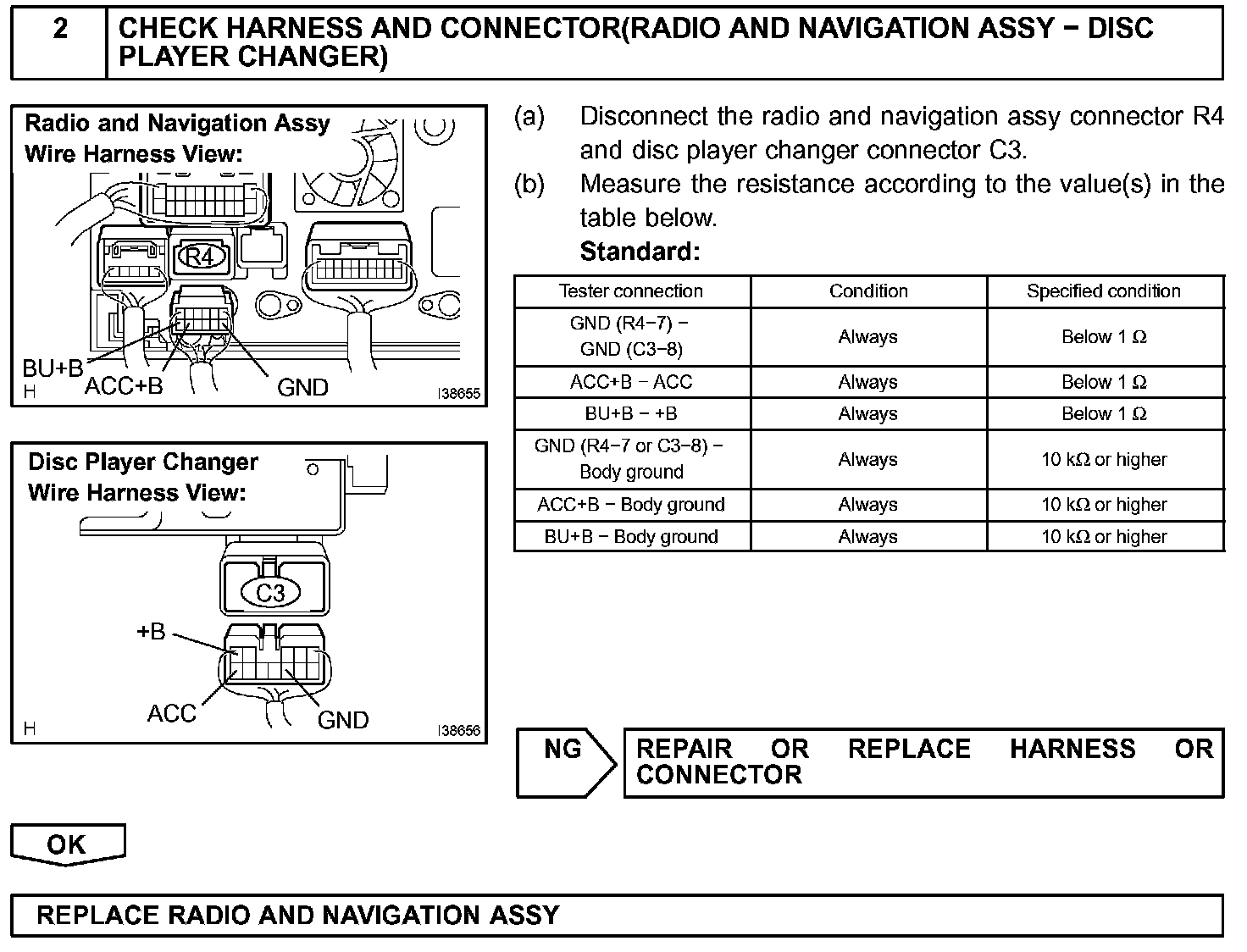

Step 2:

INSPECTION PROCEDURE
