FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2006
>>
ES 330 V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Illumination For Panel Switch Does Not Come on With Tail Switch on
Illumination For Panel Switch Does Not Come on With Tail Switch on
ILLUMINATION FOR PANEL SWITCH DOES NOT COME ON WITH TAIL SWITCH ON

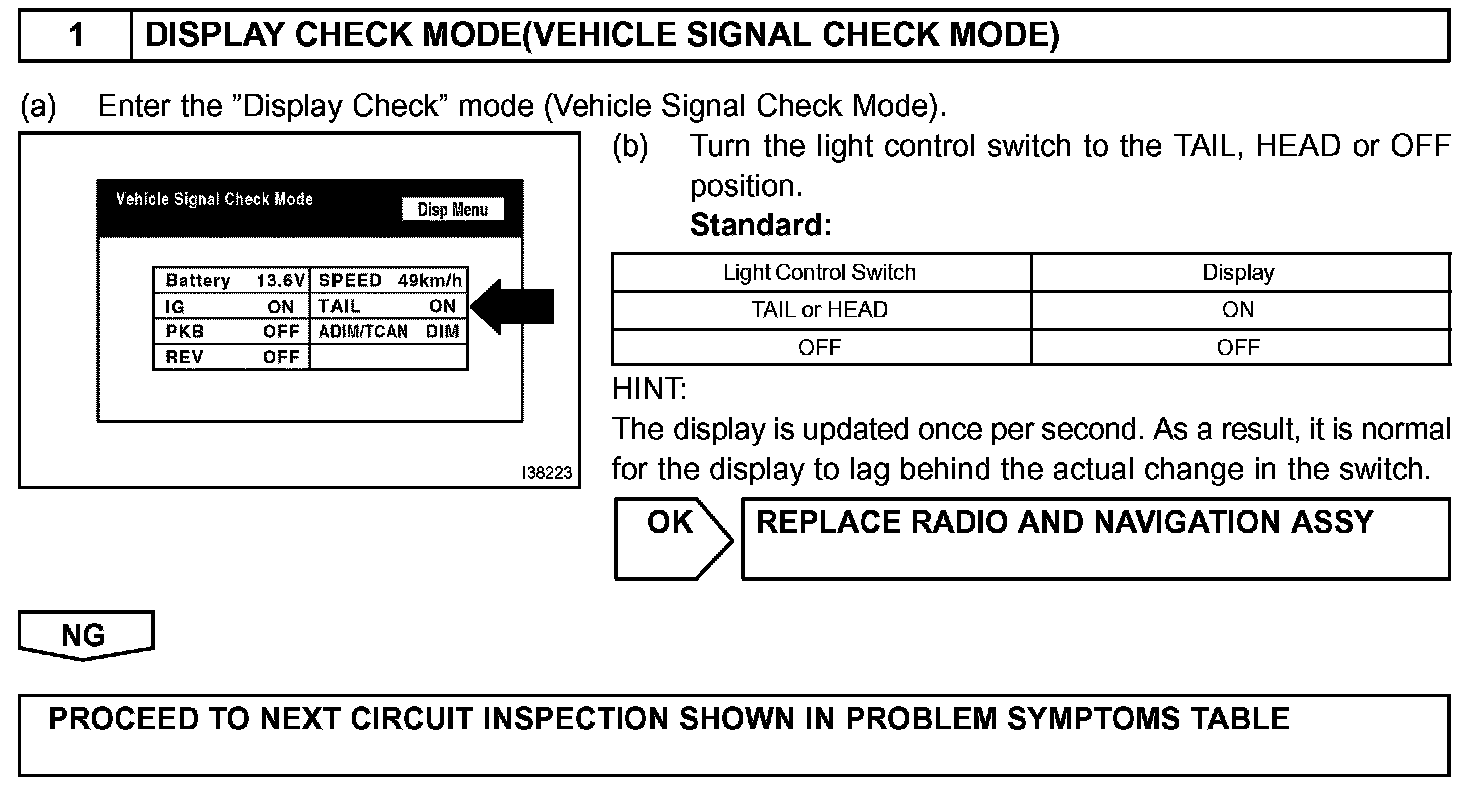

Step 1:
INSPECTION PROCEDURE
