Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> GPS Mark Is Not Displayed

GPS Mark Is Not Displayed

GPS MARK IS NOT DISPLAYED

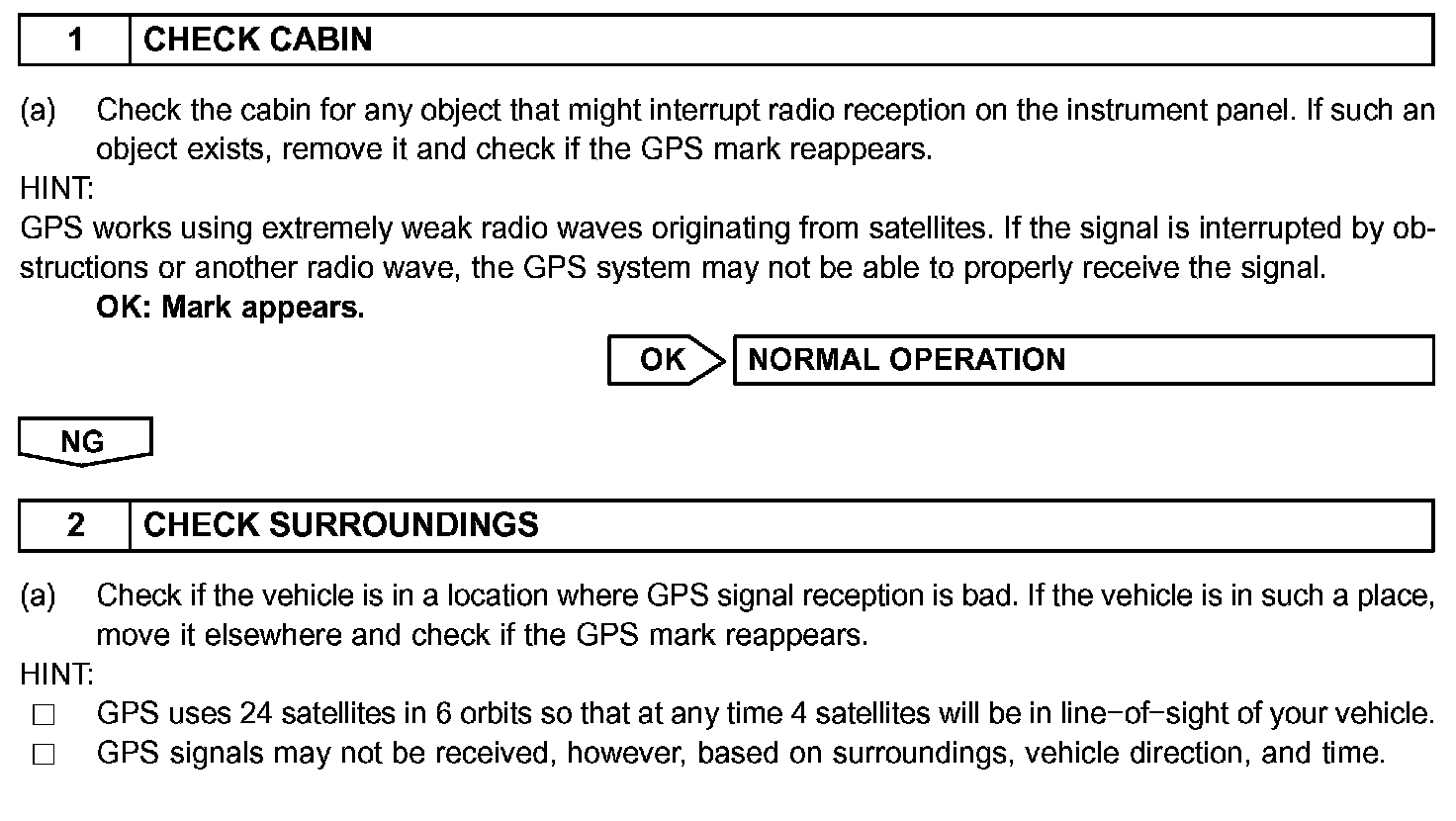

Step 1-2:

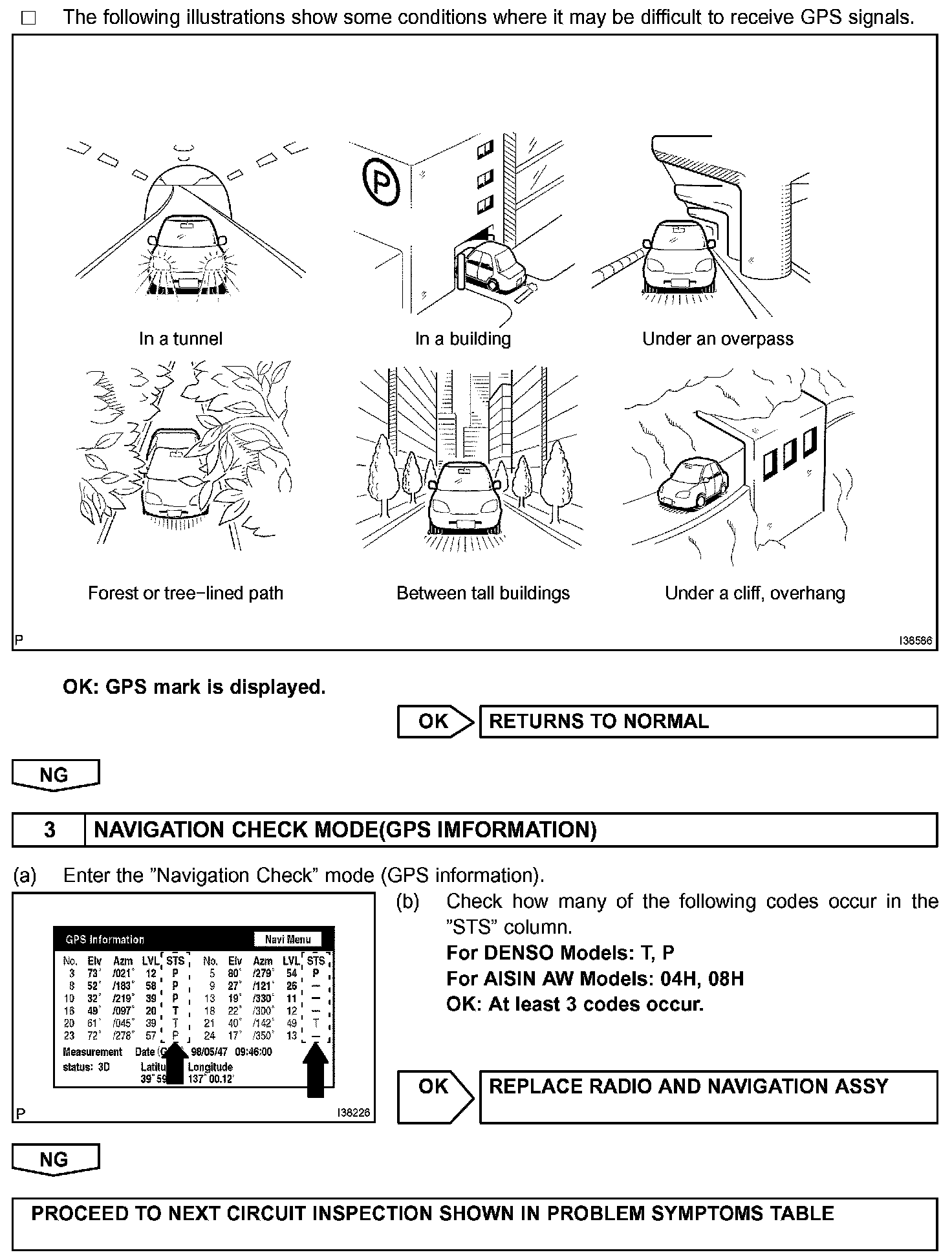

Step 2(continued)-3:




INSPECTION PROCEDURE
