Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

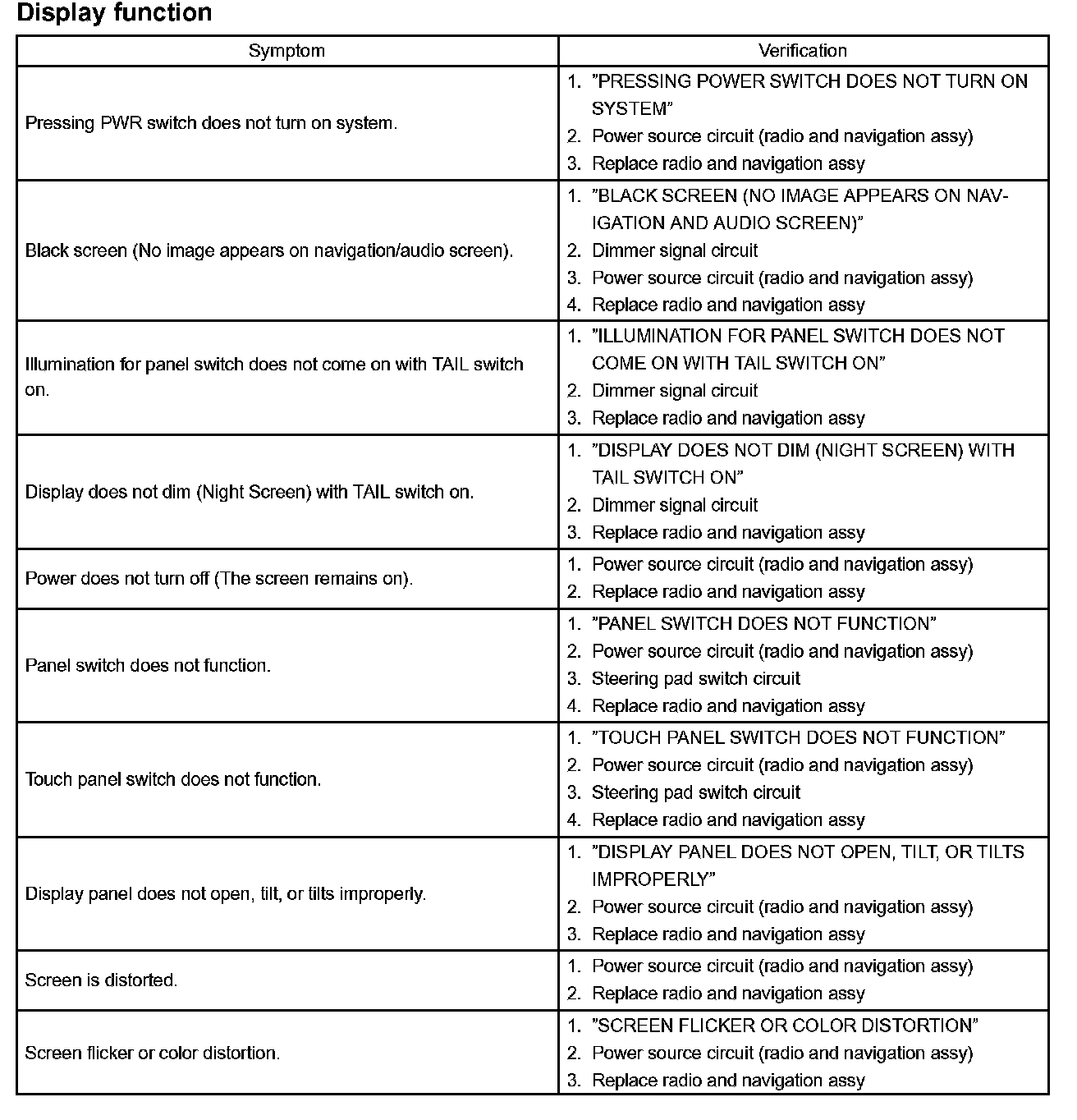

Problem Symptoms Table-Display Function:

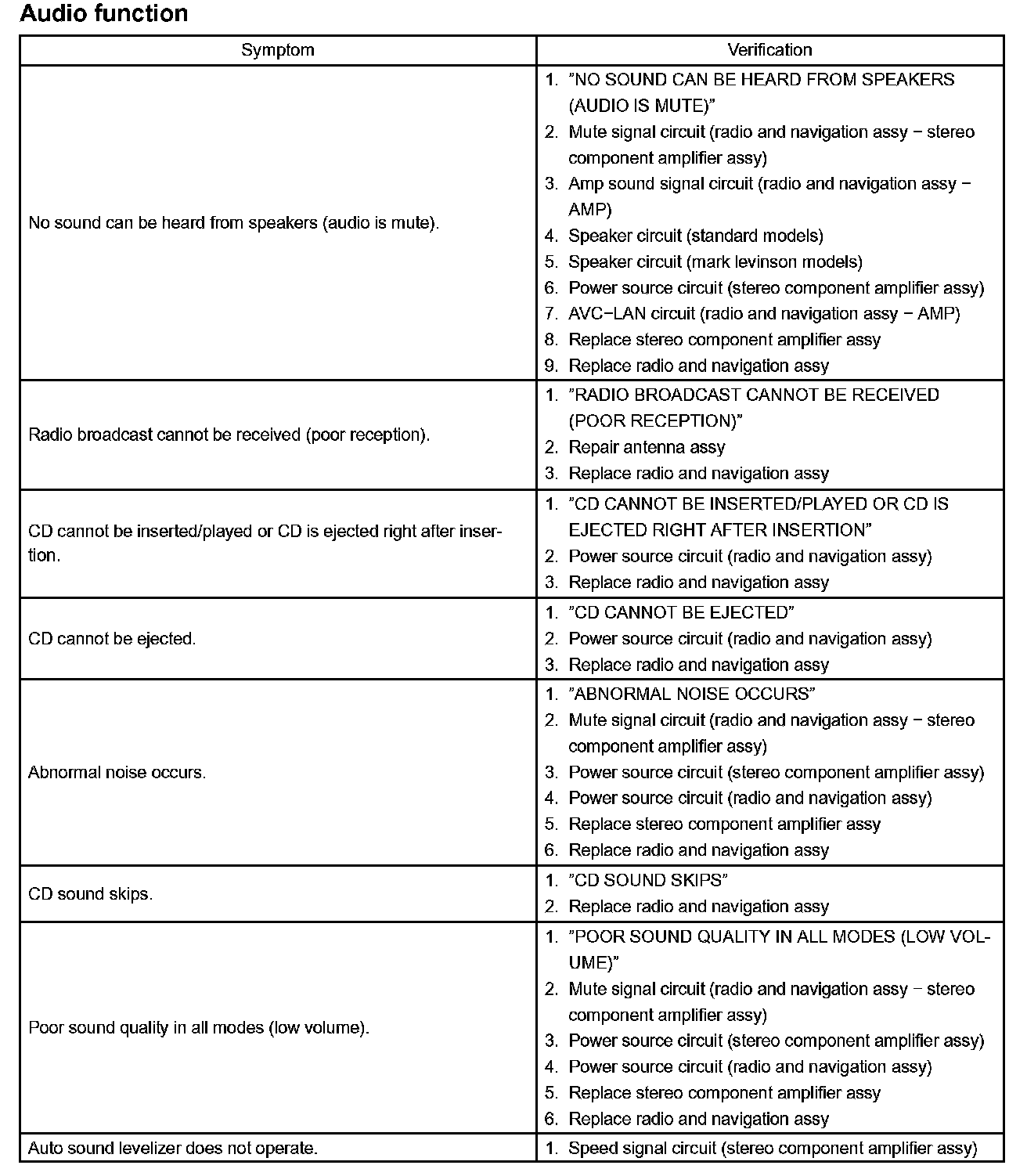

Problem Symptoms Table-Audio Function:

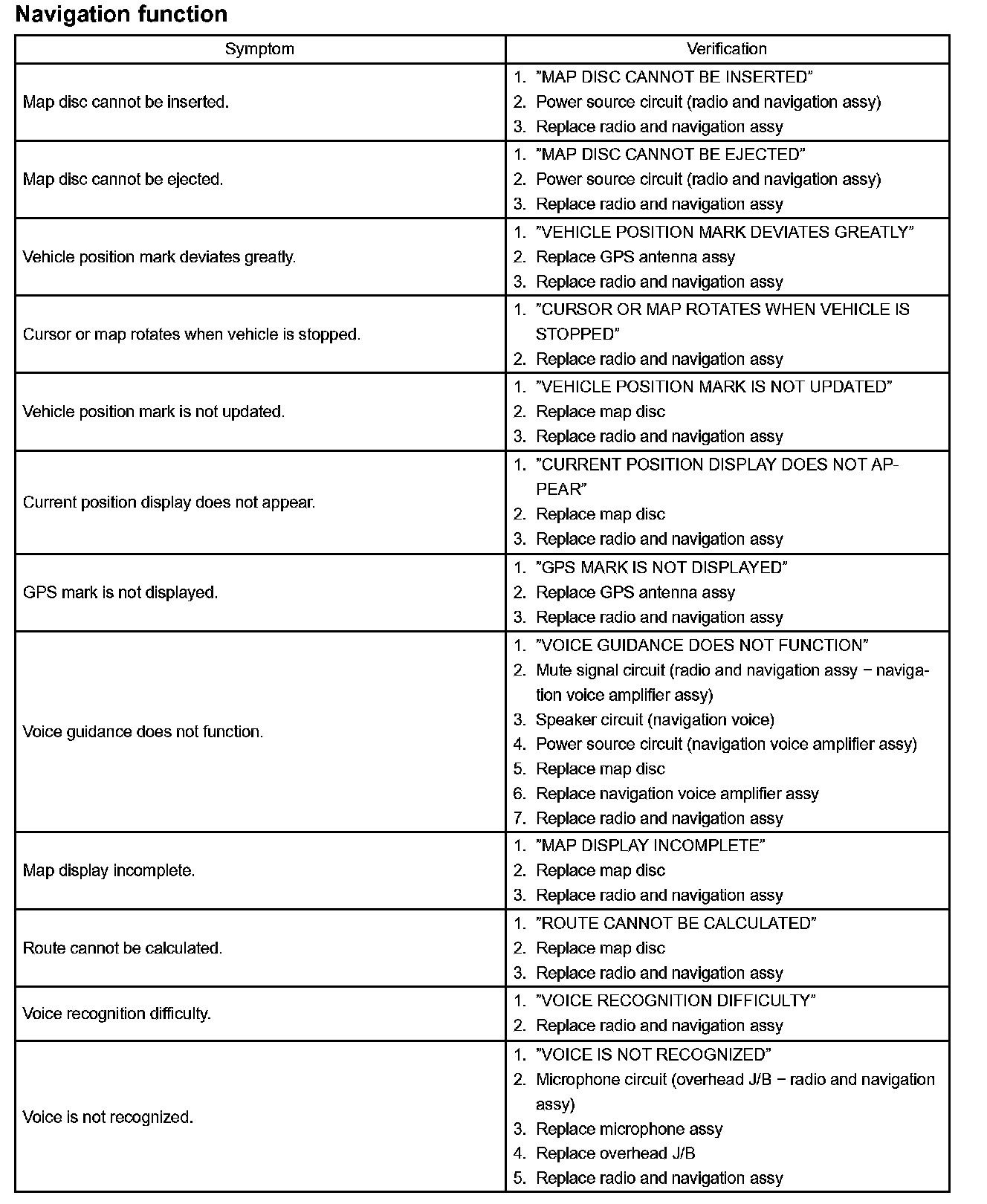

Problem Symptoms Table-Navigation Function:

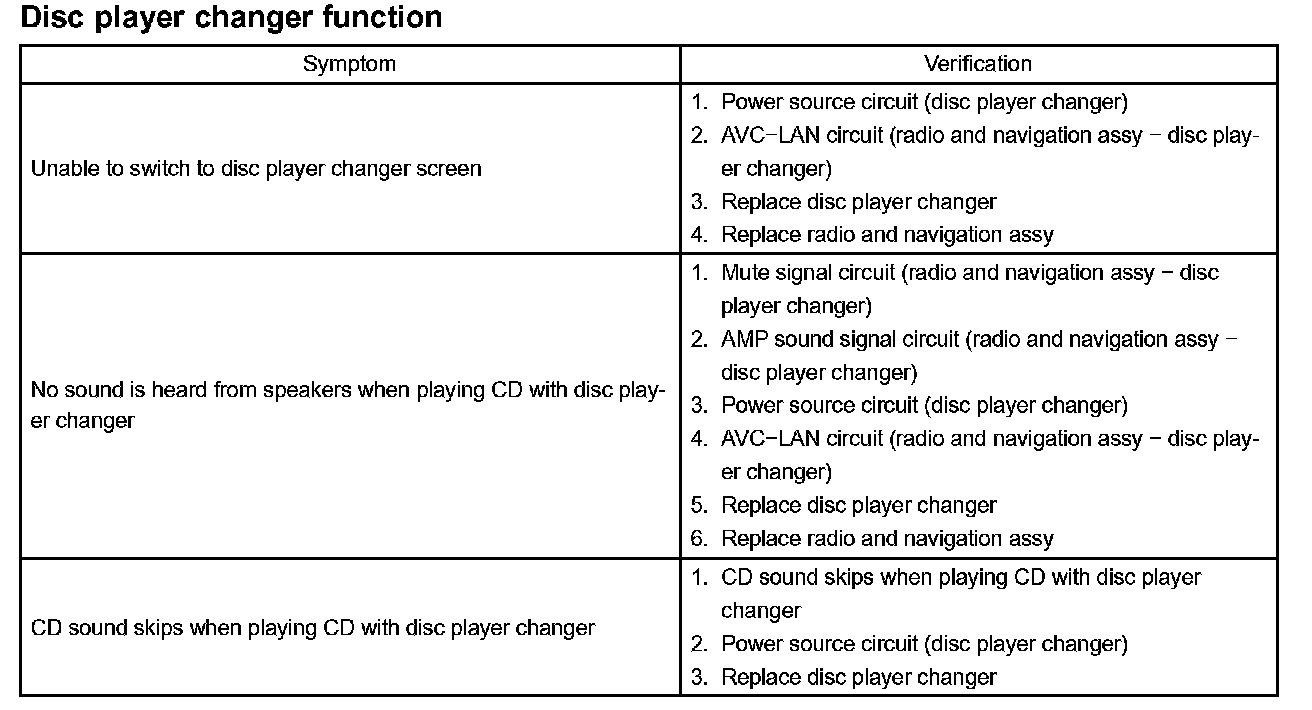

Problem Symptoms Table-Disc Player Changer Function:

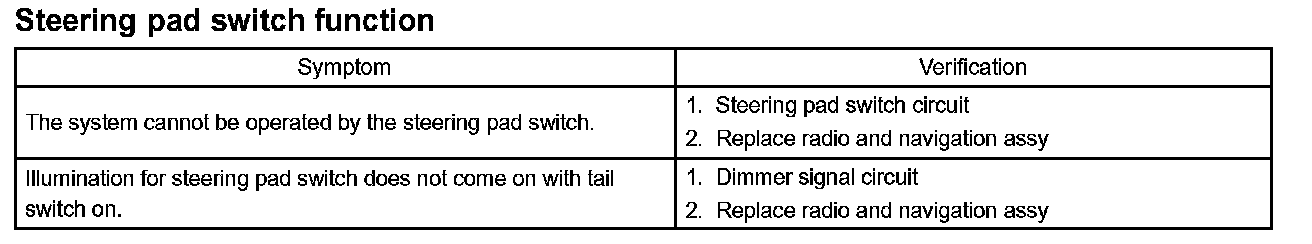

Problem Symptoms Table-Steering Pad Switch Function:

HINT:
- Before performing verification listed in the table, check the fuse and relay.
- Methods used to verify the cause of the problem are listed in order of probability in the verification column.
