Pinout Values and Diagnostic Parameters

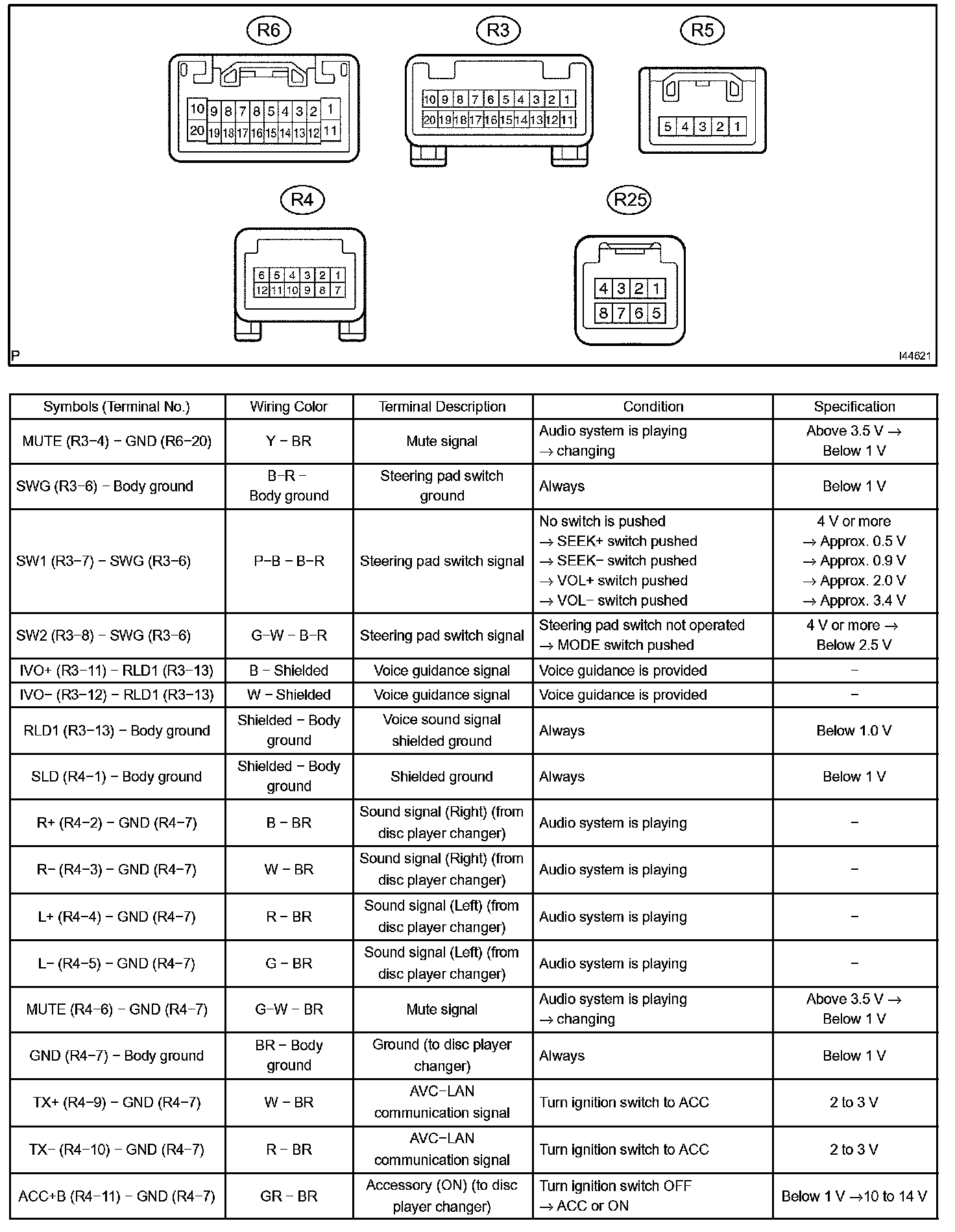

Terminals Of Control Module/Pinouts-Radio And Navigation Assy (Part 1):

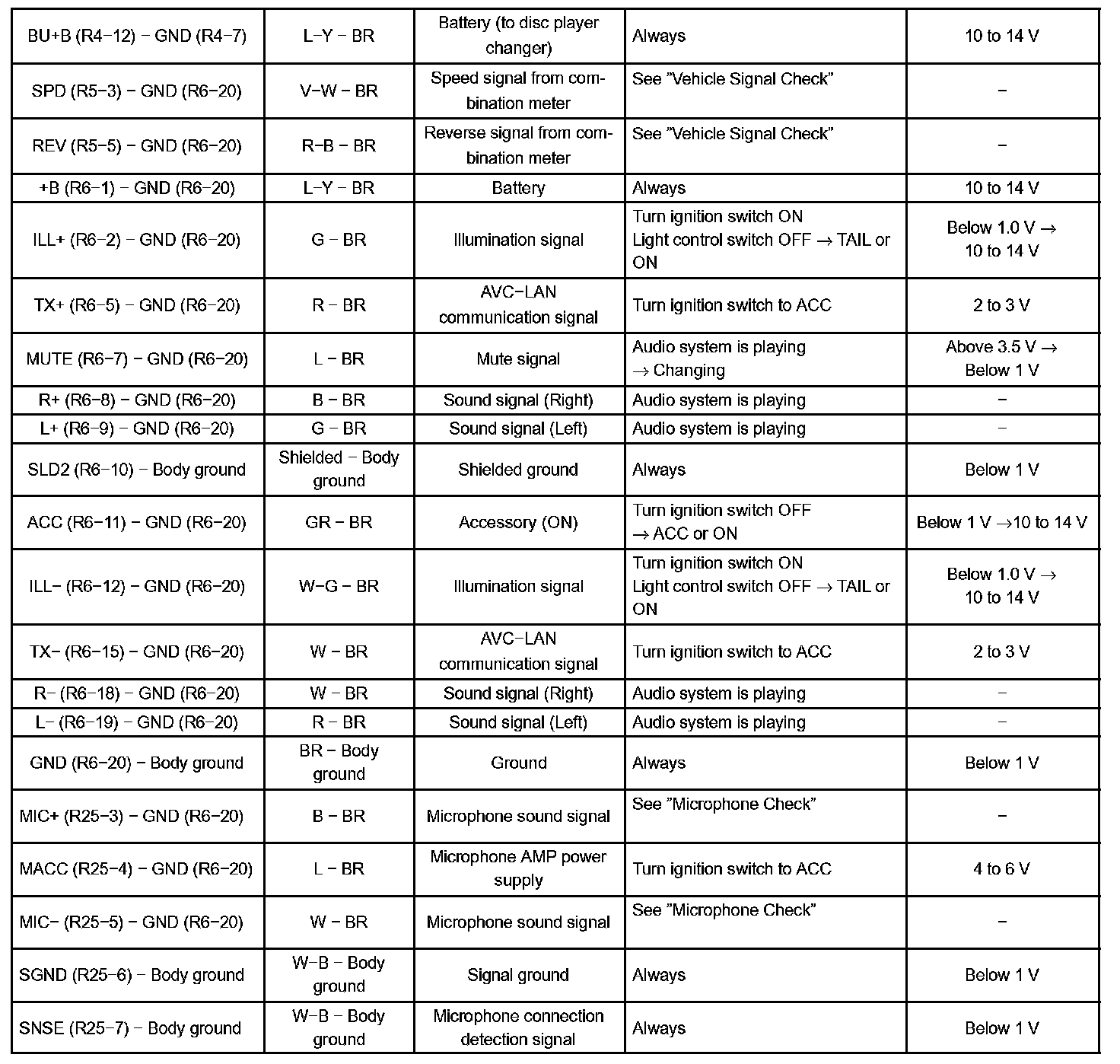

Terminals Of Control Module/Pinouts-Radio And Navigation Assy (Part 2):

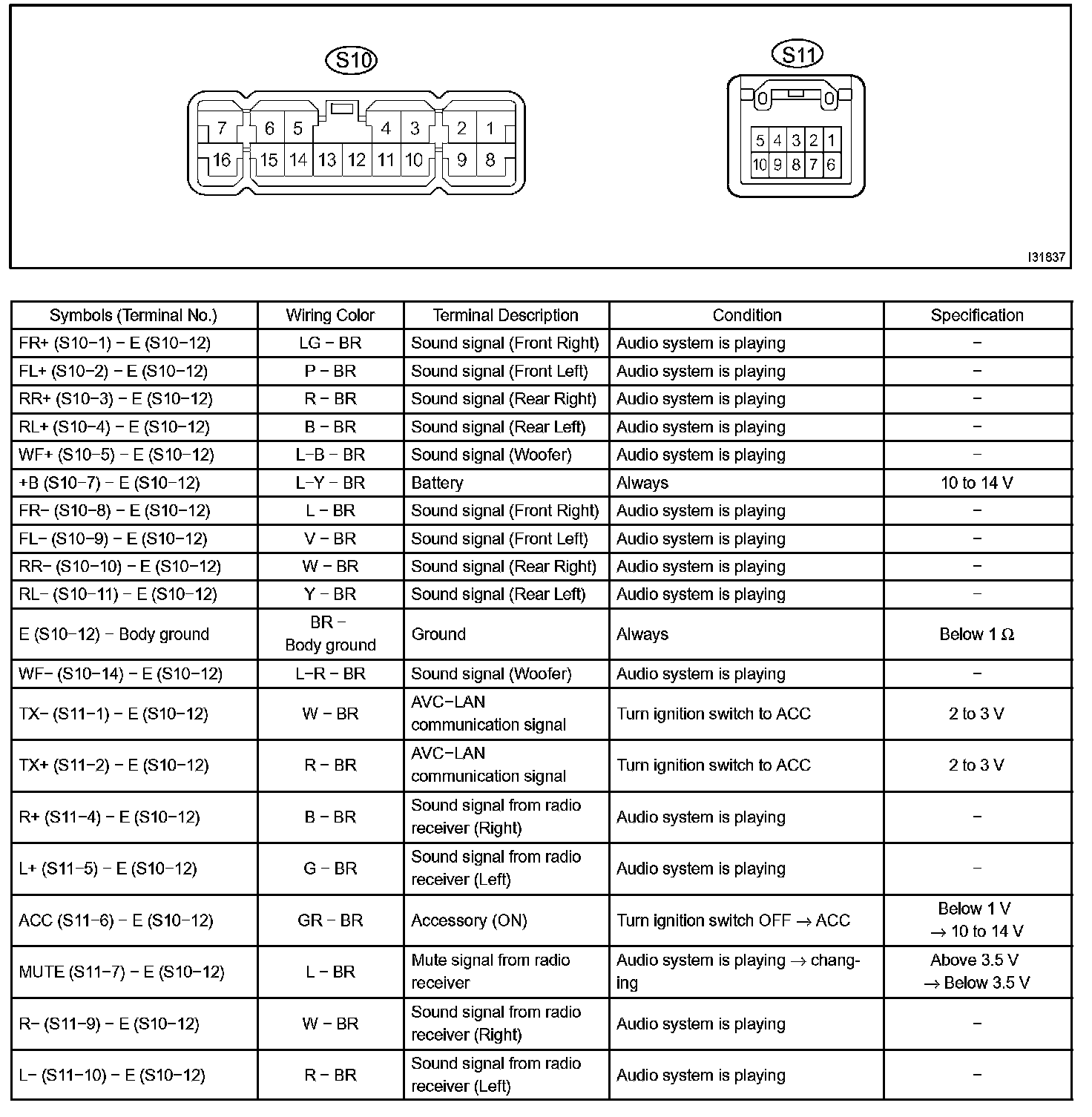

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Mark Levinson Models) (Part 1):

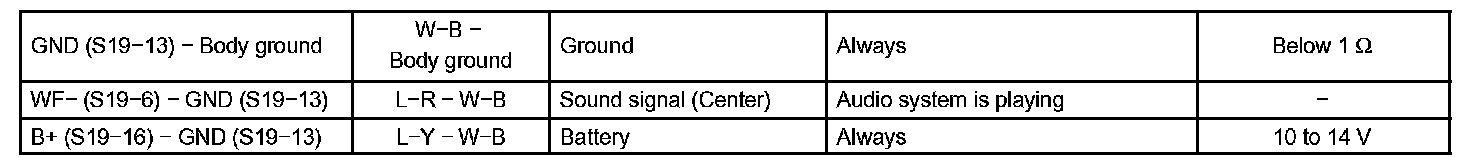

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Mark Levinson Models) (Part 2):

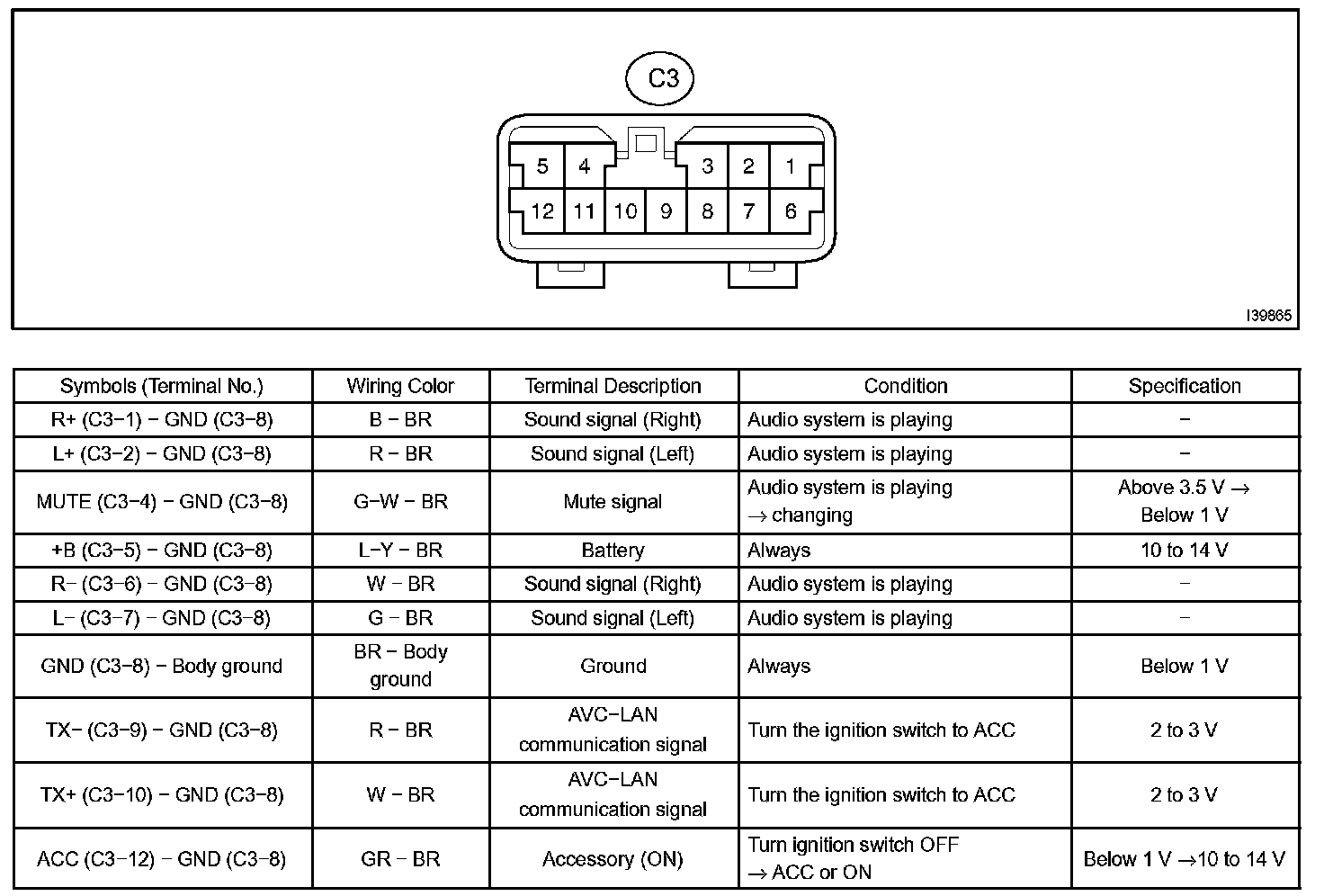

Terminals Of Control Module/Pinouts-Stereo Component Amplifier Assy (Standard Models):

Terminals Of Control Module/Pinouts-Disc Player Changer:

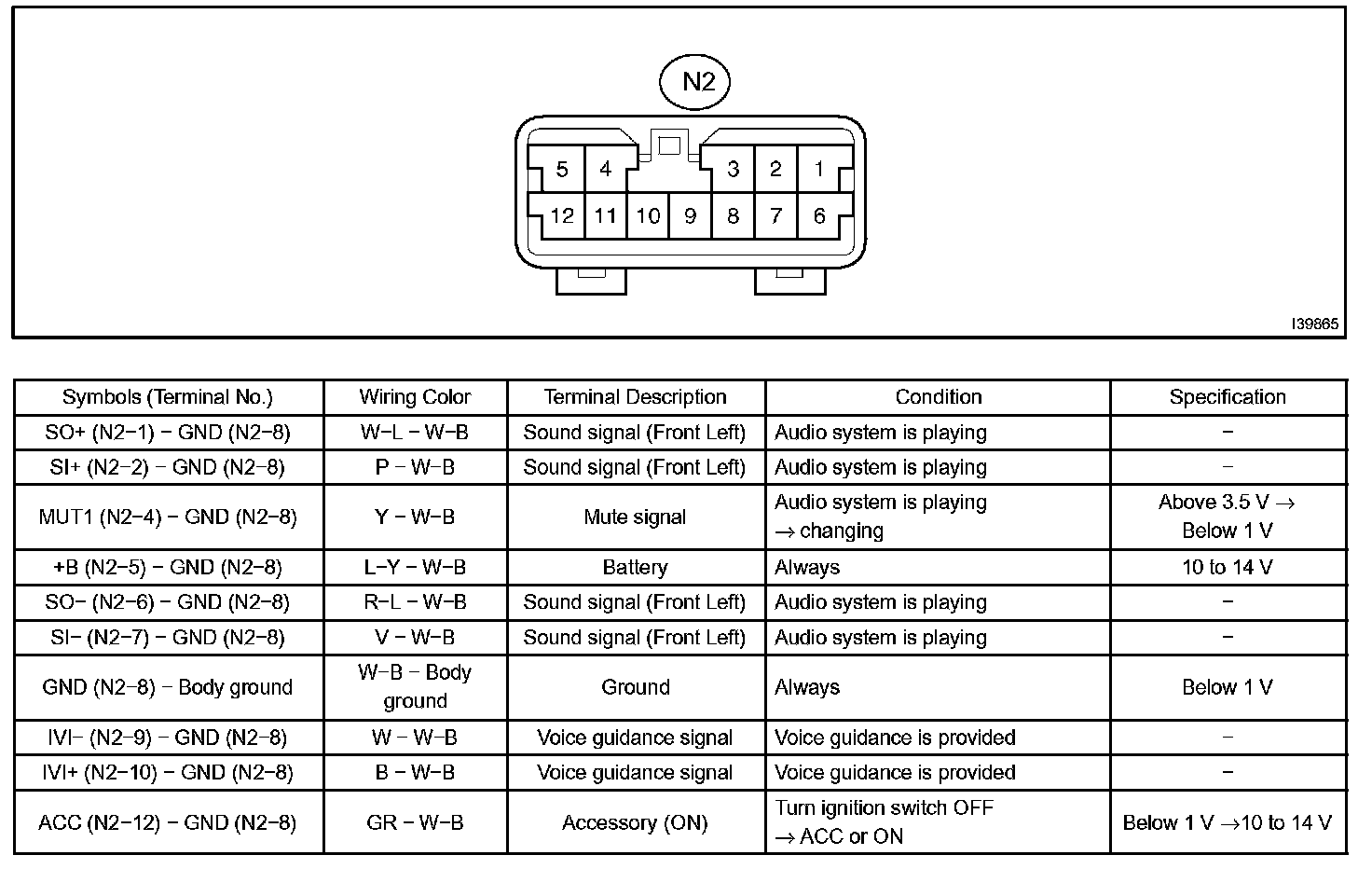

Terminals Of Control Module/Pinouts-Navigation Voice Amplifier Assy:
