Speaker Circuit (Mark Levinson Models)

SPEAKER CIRCUIT (MARK LEVINSON MODELS)

CIRCUIT DESCRIPTION

The sound signal that has been amplified by the stereo component amplifier assy is sent to the speakers from the stereo component amplifier assy through this circuit.

If there is a short in this circuit, the stereo component amplifier assy detects it and stops output to the speakers. Thus sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier assy or speakers.

When a short in the speaker circuit is detected, all sound output is stopped.

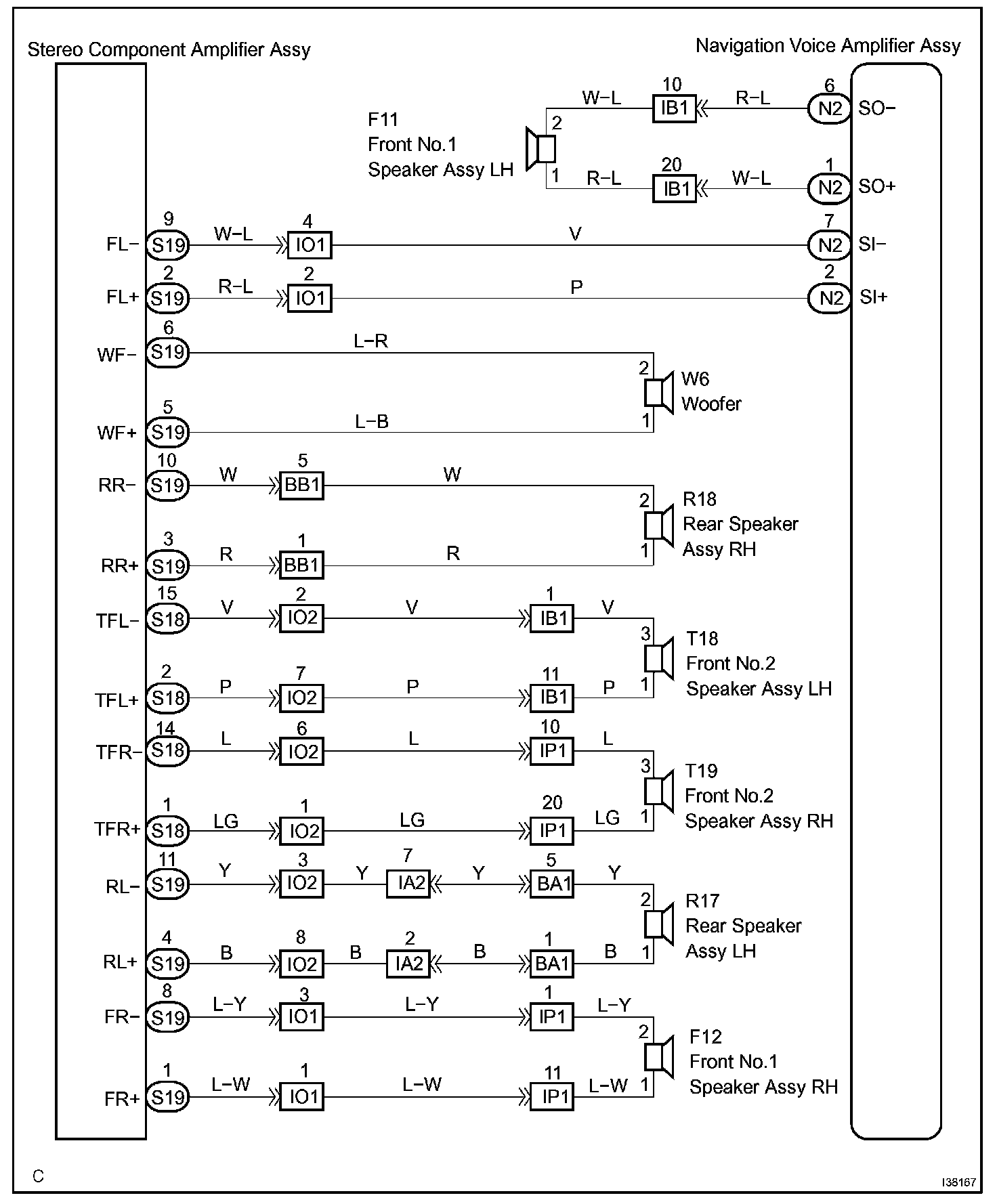

Wiring Diagram:

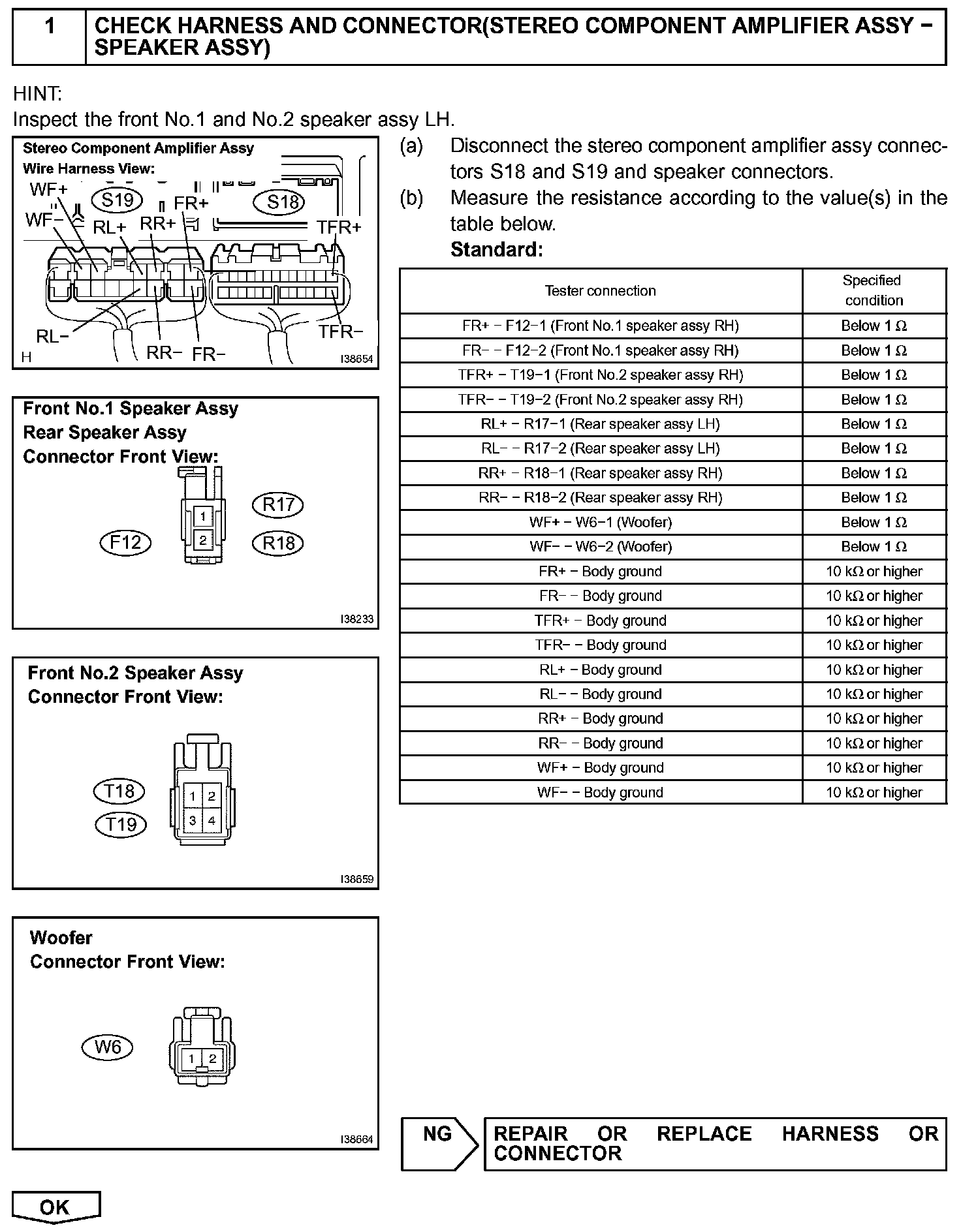

Step 1:

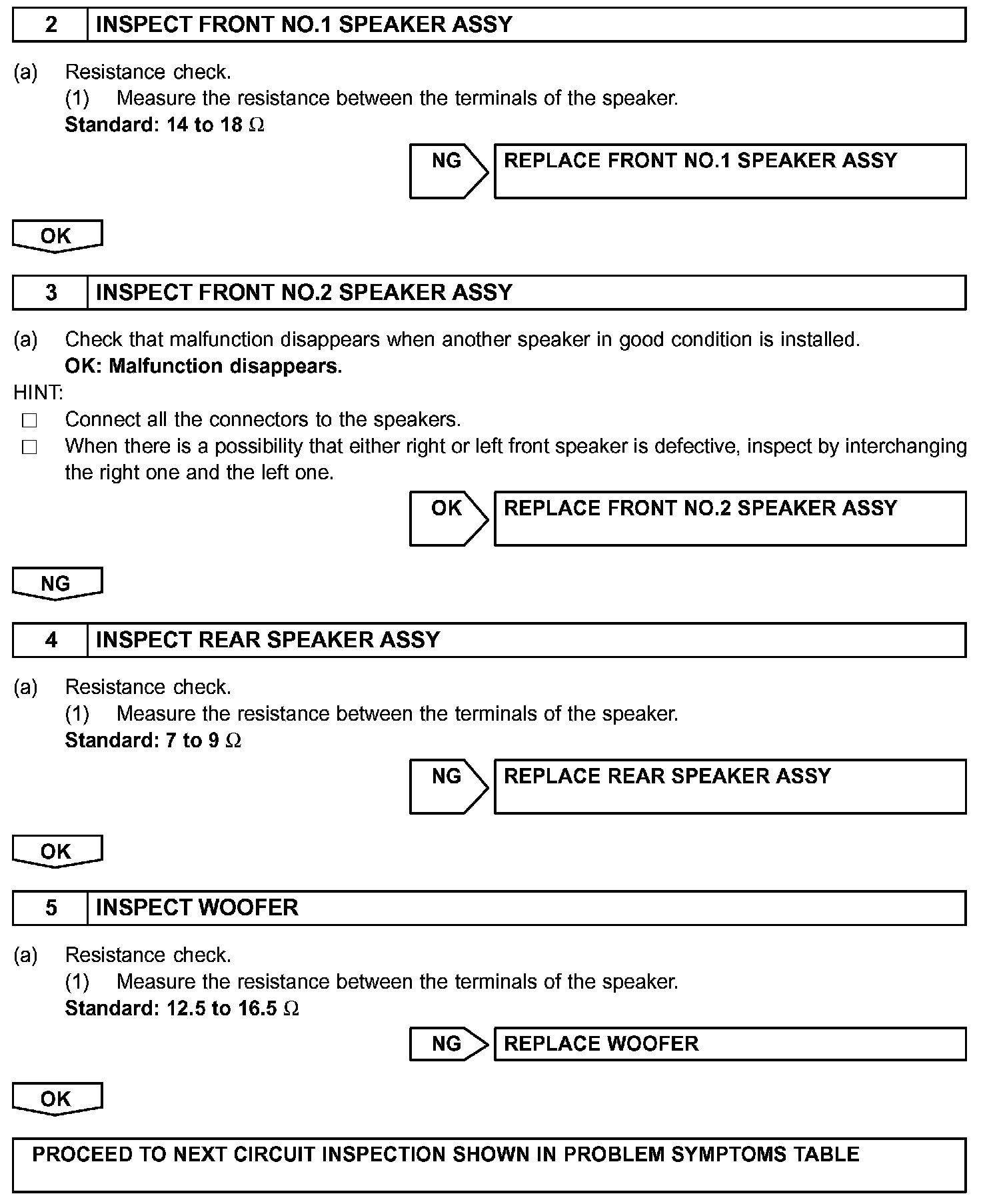

Step 2-5:

INSPECTION PROCEDURE
