Reverse Signal Circuit

REVERSE SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

The radio and navigation assy receives the reverse signal from the park/neutral position switch and information about the GPS antenna, and then adjusts the vehicle position.

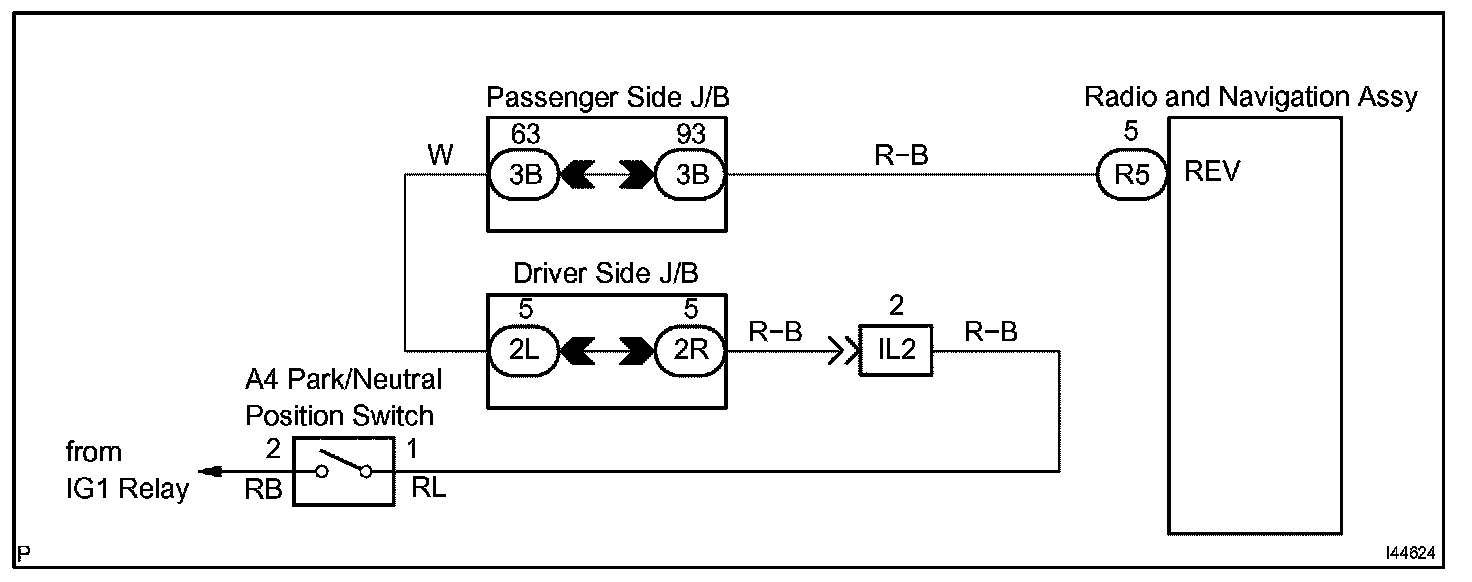

Wiring Diagram:

Step 1-2:

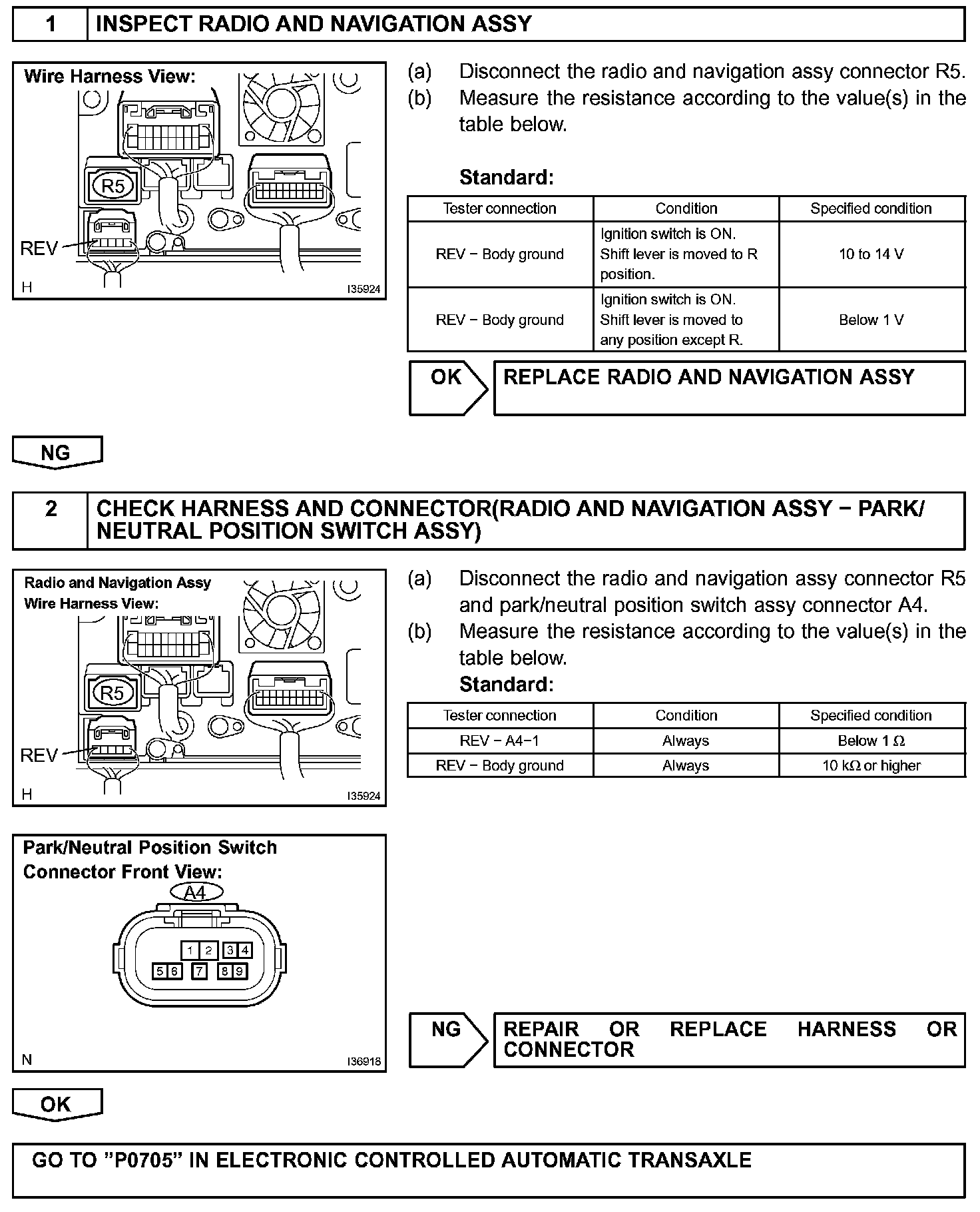

INSPECTION PROCEDURE
