Mute Signal Circuit (Radio and Navigation Assy-Disc Player Changer)

MUTE SIGNAL CIRCUIT (RADIO AND NAVIGATION ASSY - DISC PLAYER CHANGER)

CIRCUIT DESCRIPTION

This circuit sends the signal to each component to mute noise. Because of that, noise produced by changing the sound source ceases.

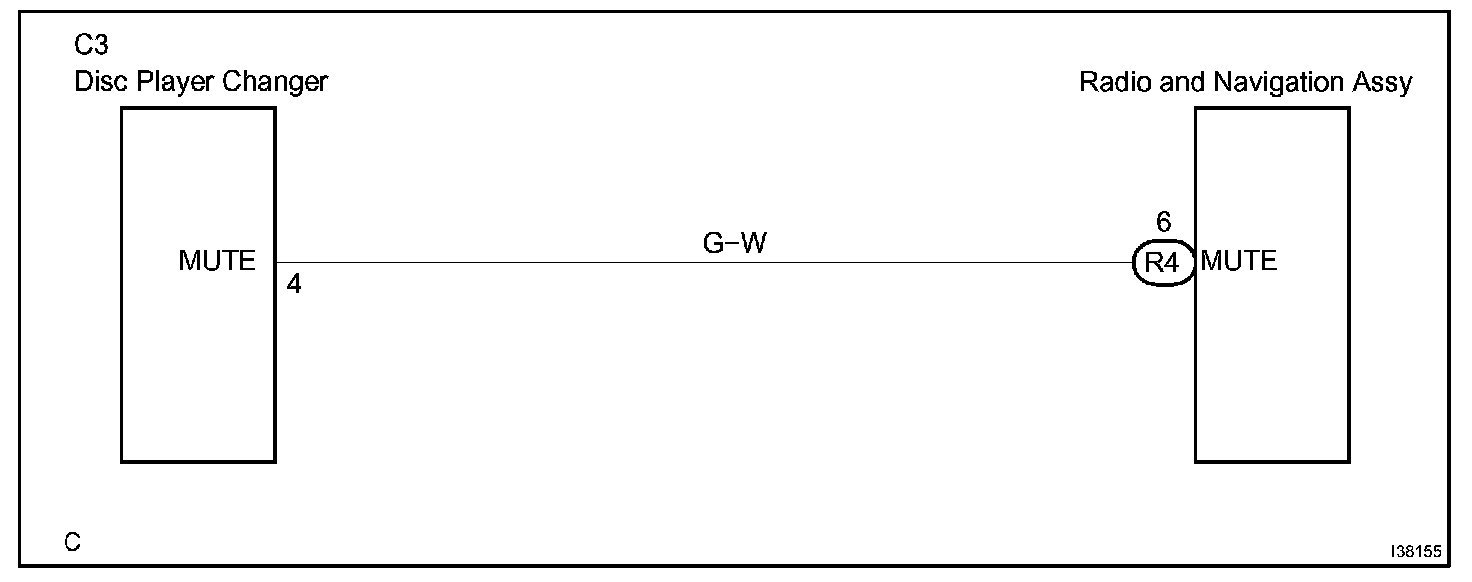

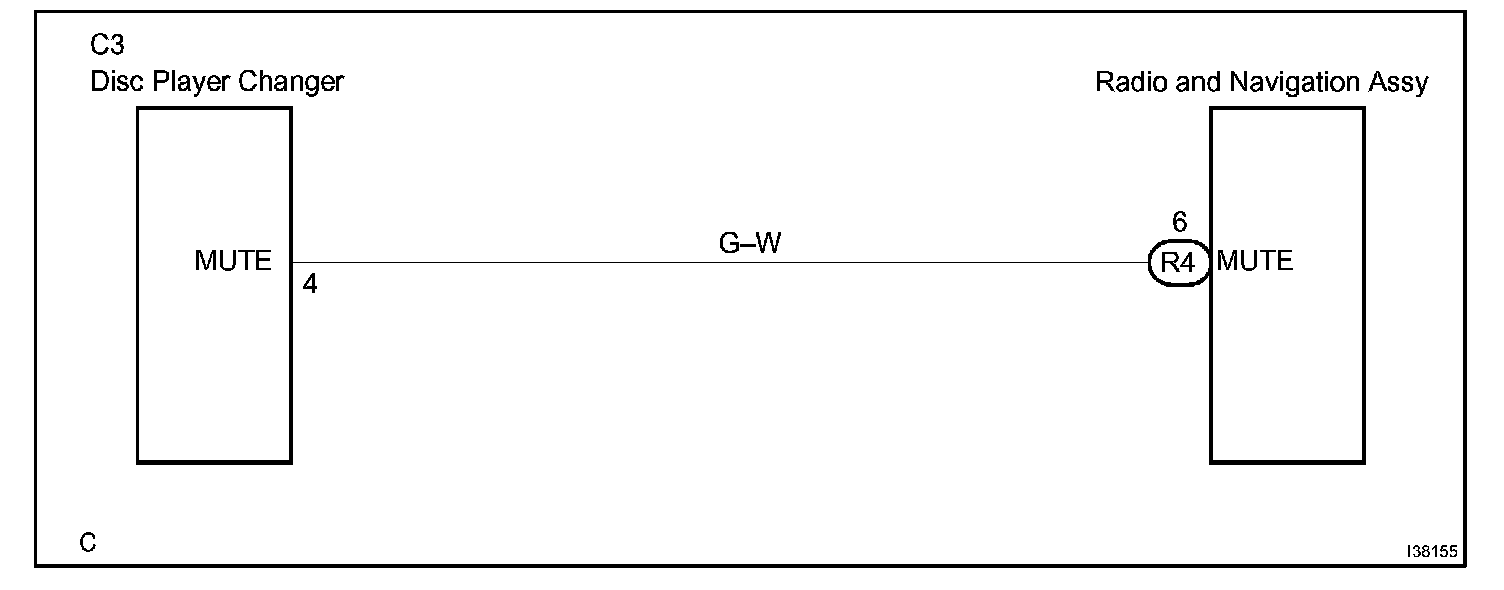

Wiring Diagram:

Step 1-2:

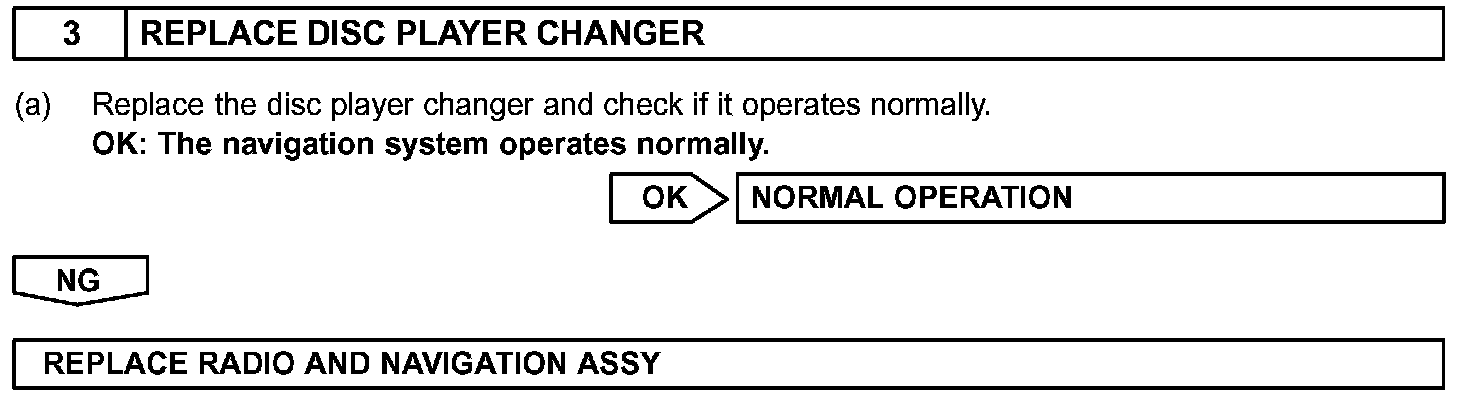

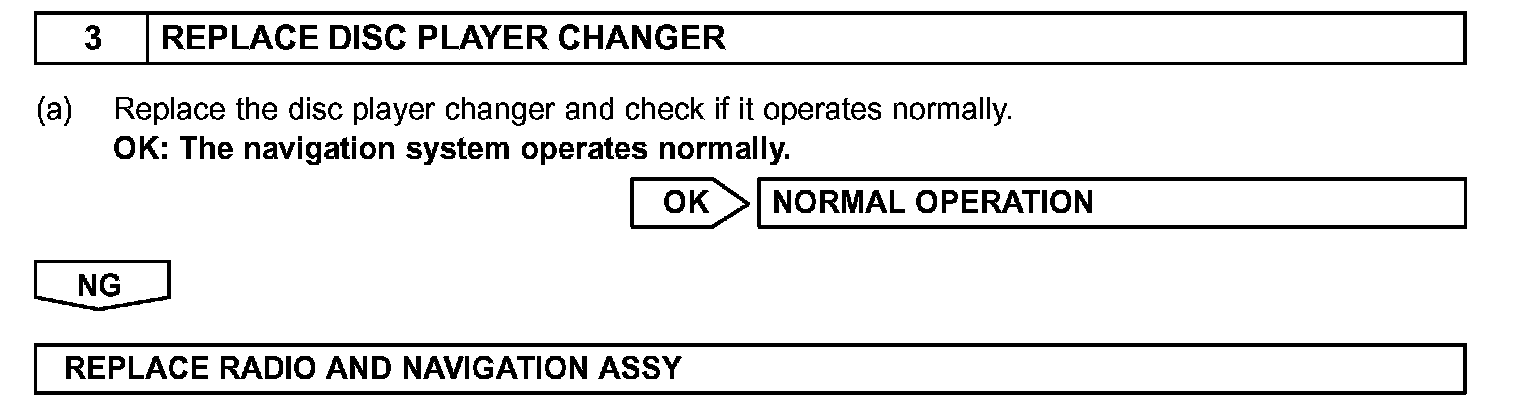

Step 3:

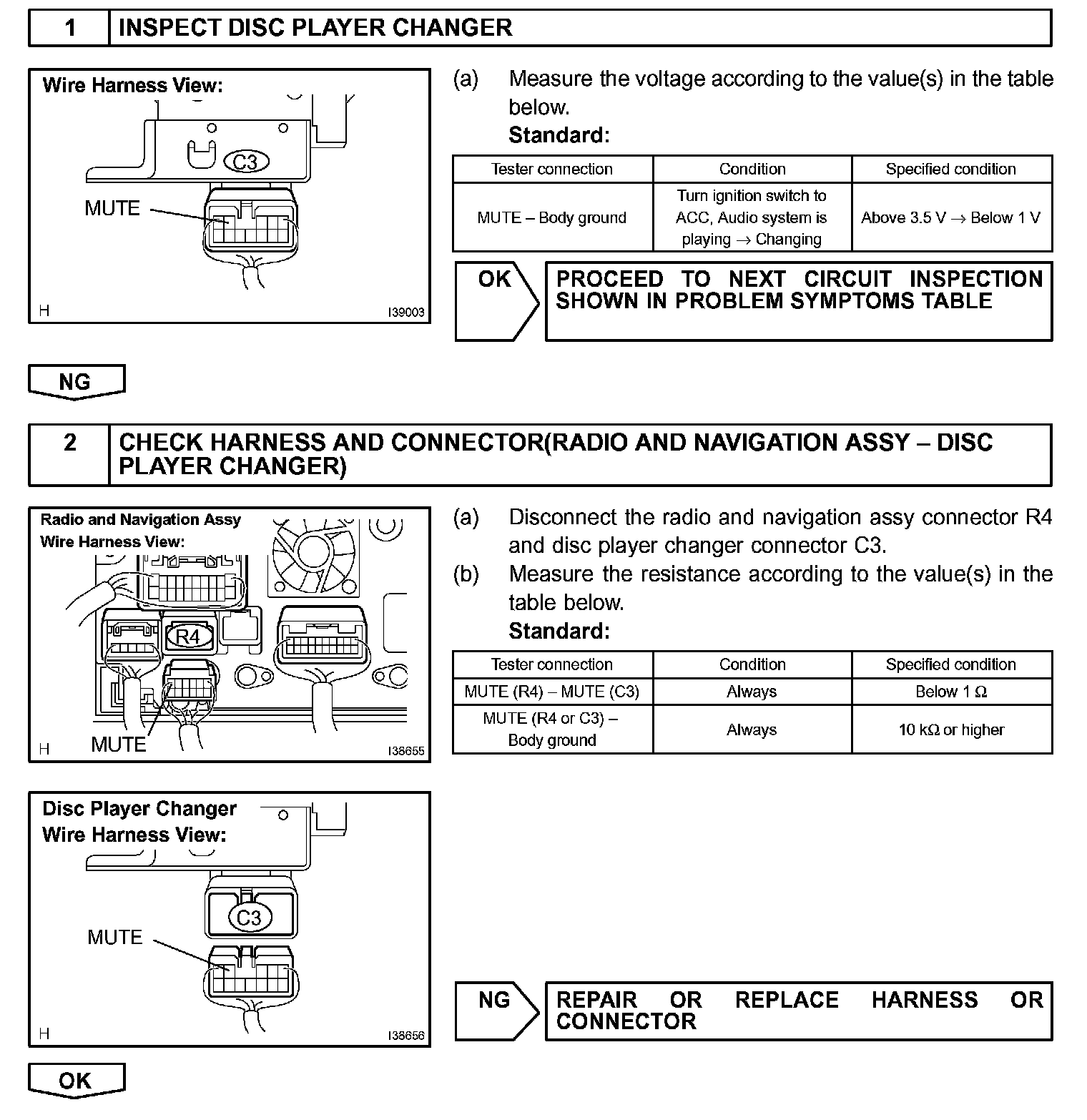

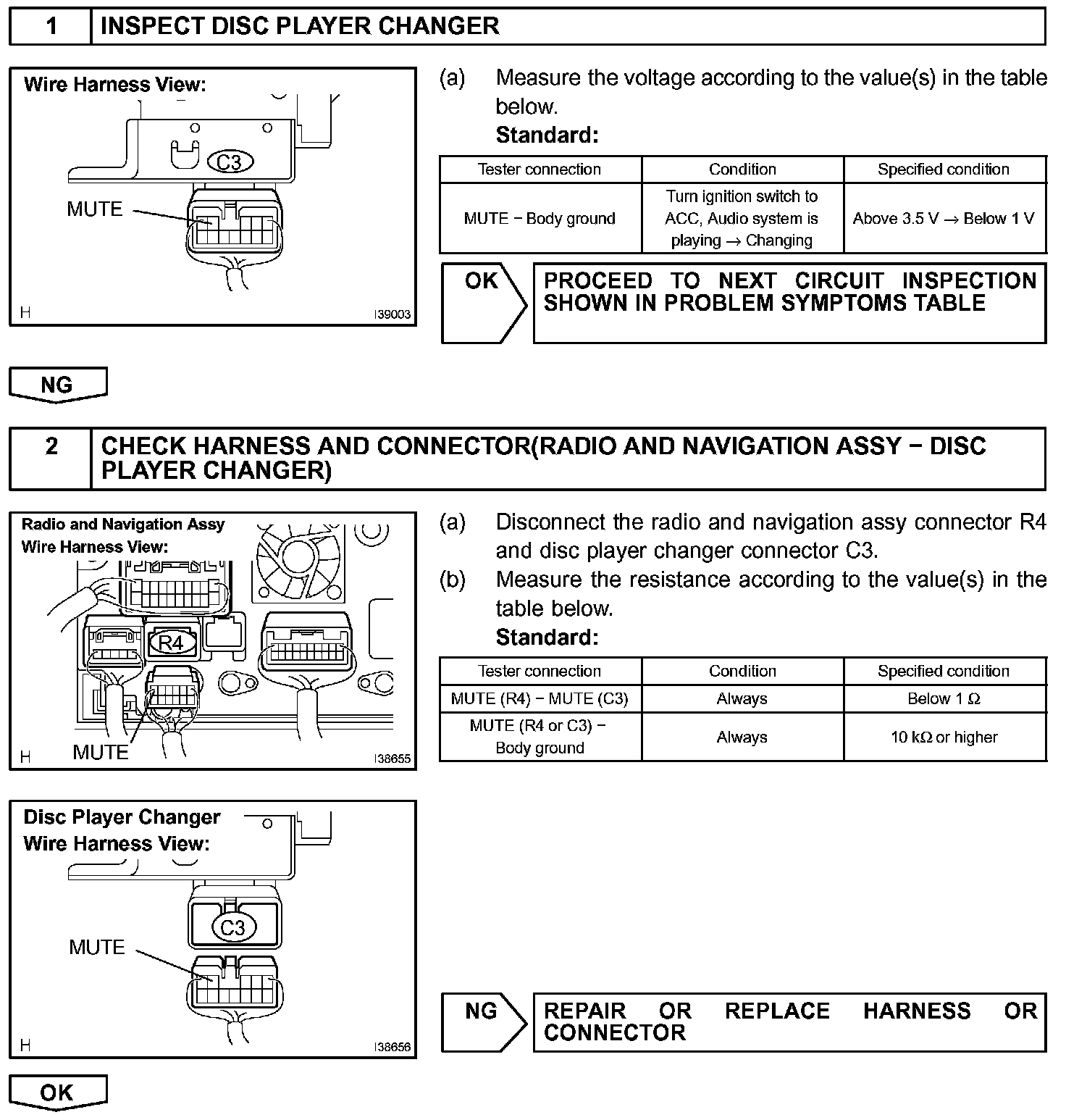

INSPECTION PROCEDURE
