Microphone Circuit (Overhead J/B-Radio and Navigation Assy)

MICROPHONE CIRCUIT (OVERHEAD J/B - RADIO AND NAVIGATION ASSY)

CIRCUIT DESCRIPTION

This circuit sends a microphone signal from the overhead J/B to the radio and navigation assy.

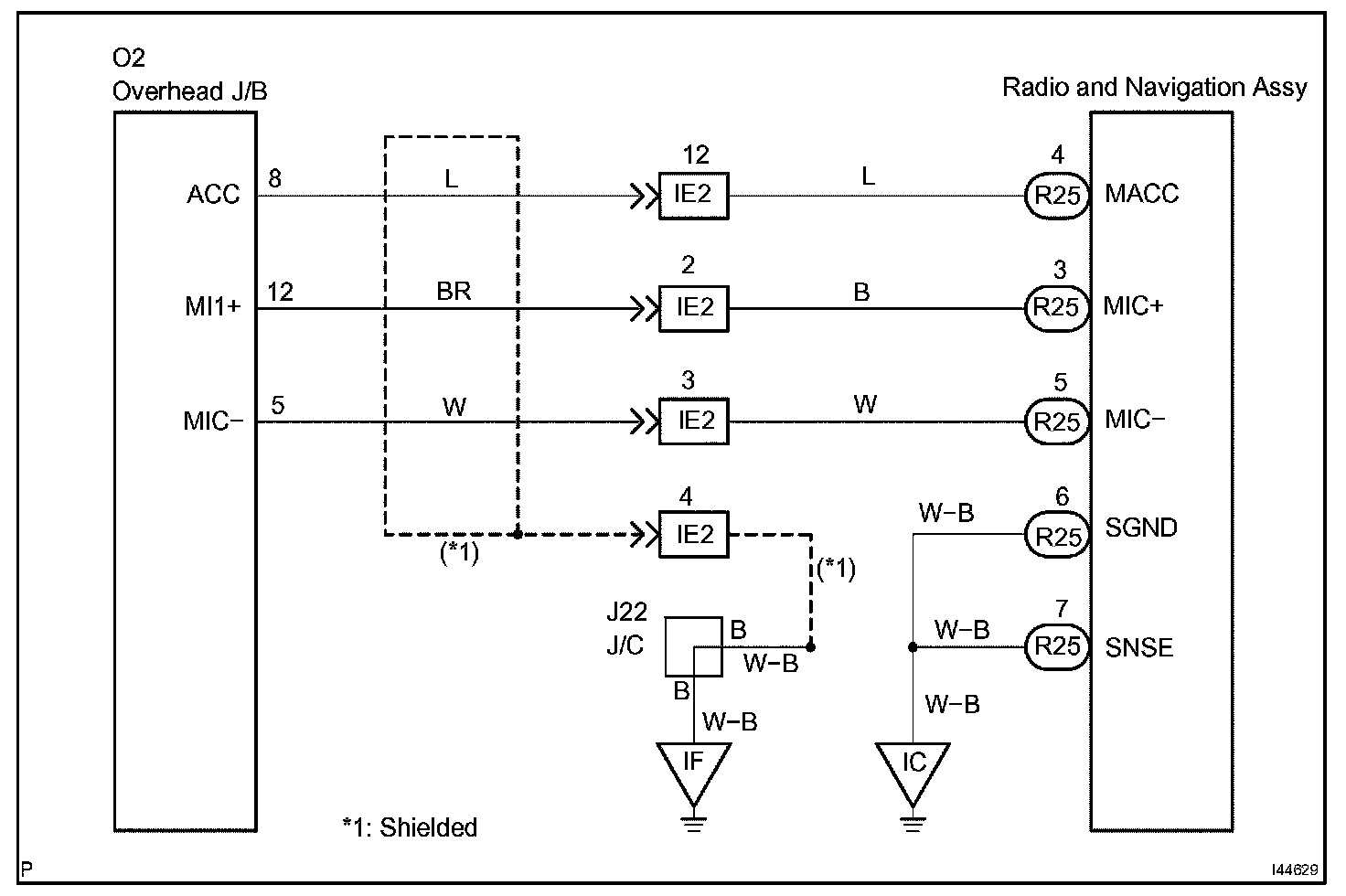

Wiring Diagram:

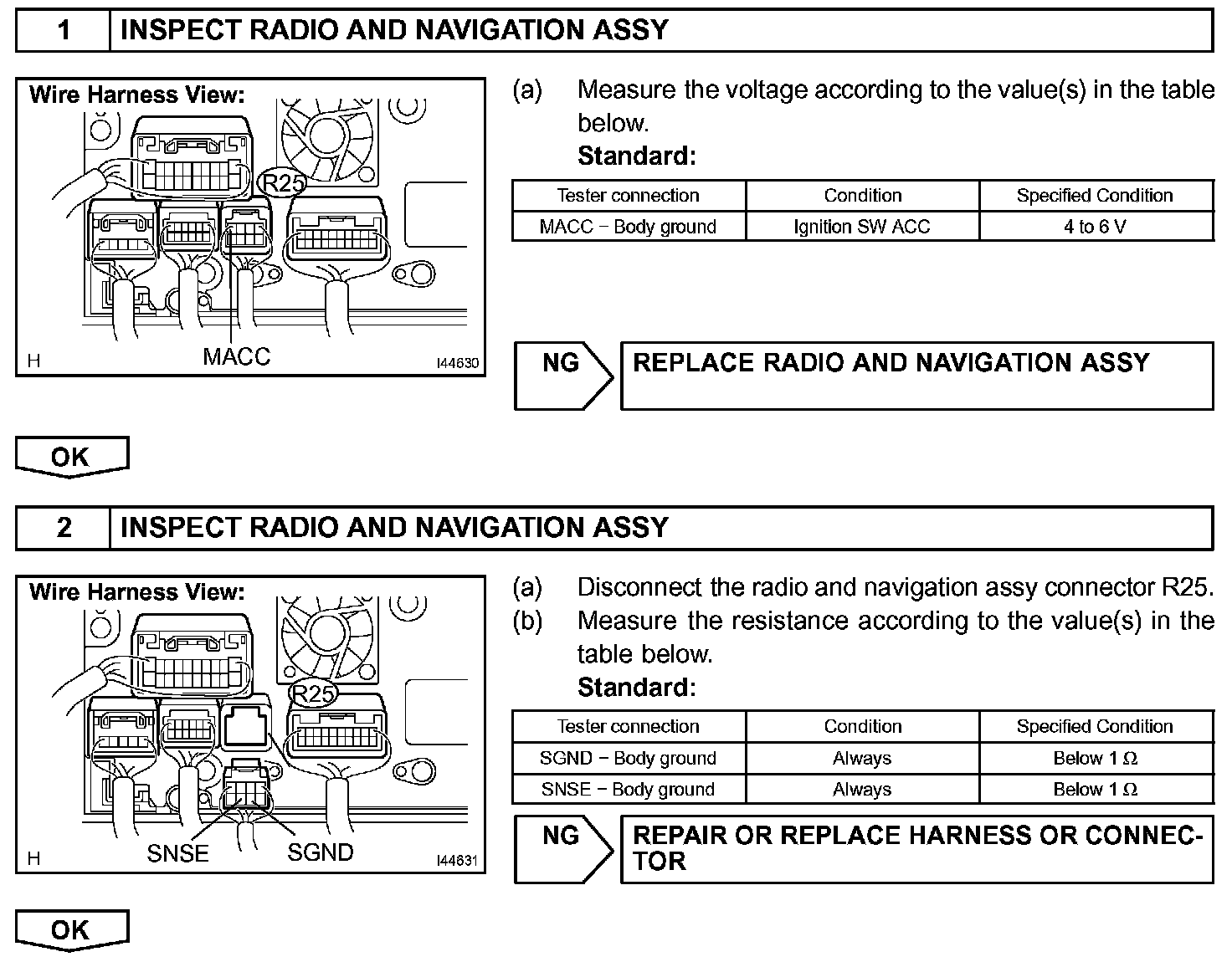

Step 1-2:

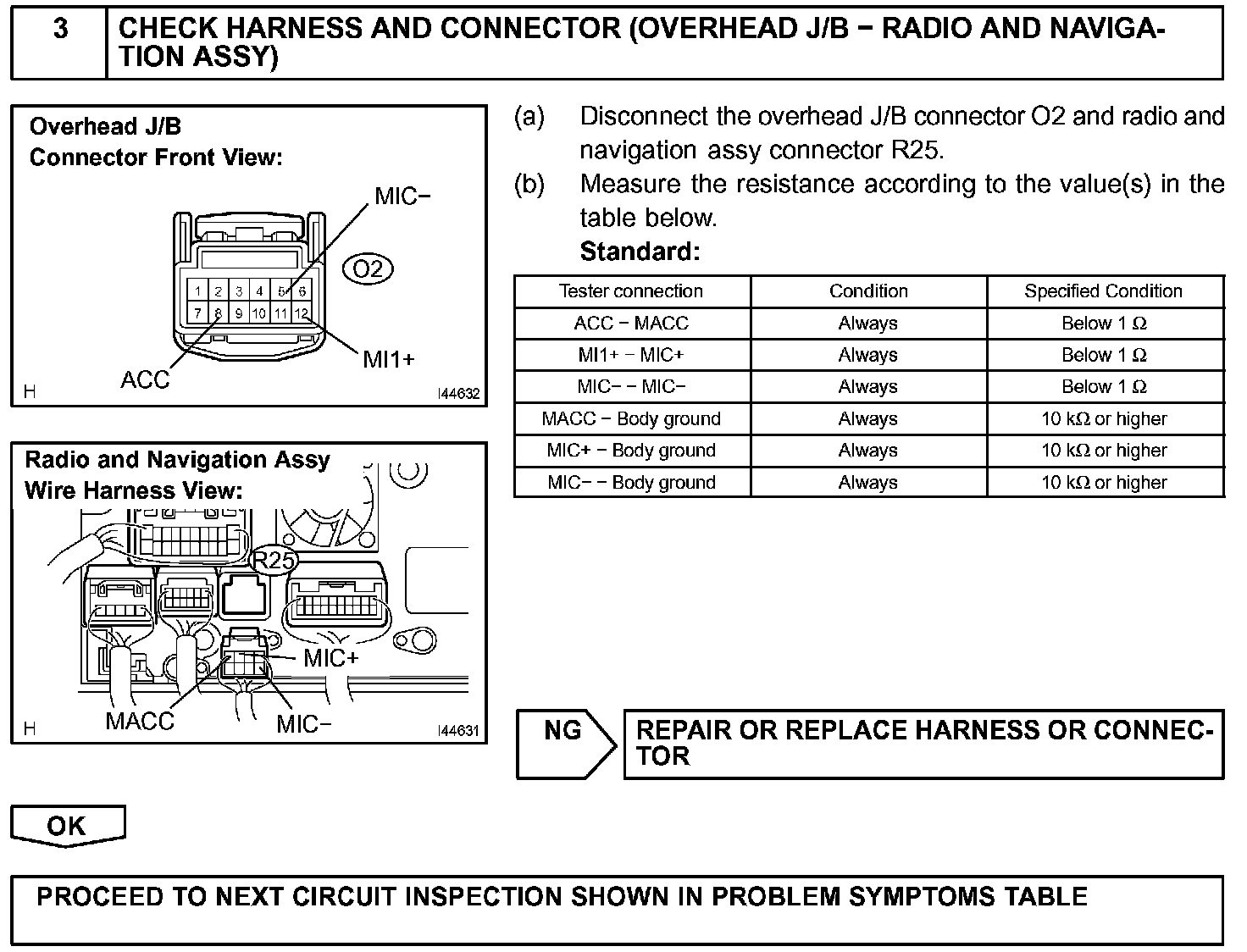

Step 3:

INSPECTION PROCEDURE
