Cellular Phone Microphone: Service and Repair

AMPLIFIER MICROPHONE ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE ROOM LAMP ASSEMBLY NO.1

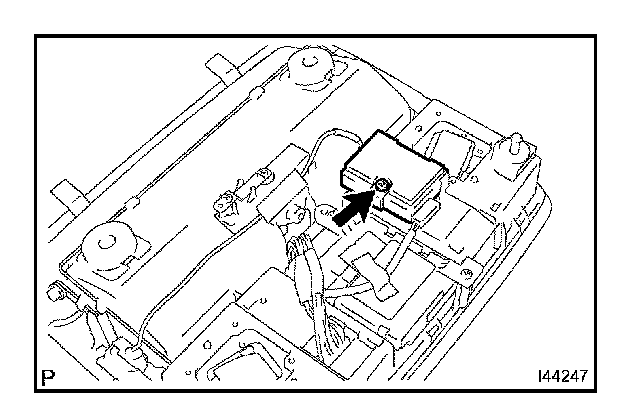

2. REMOVE AMPLIFIER COVER
a. Remove the screw and the amplifier cover.
b. Disconnect the connector.

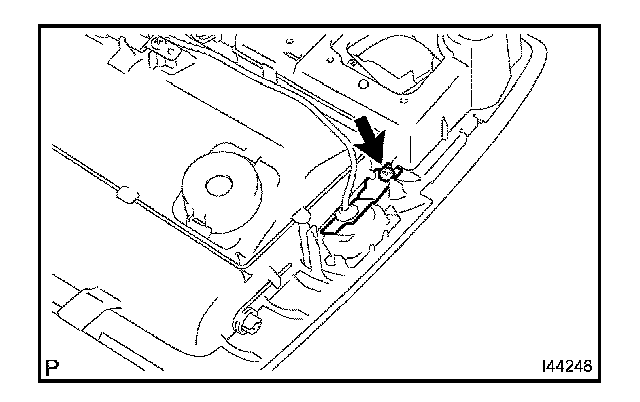

3. REMOVE MICROPHONE BRACKET
a. Remove the screw and microphone bracket.

4. REMOVE AMPLIFIER MICROPHONE ASSEMBLY
