Security Indicator Light Circuit

SECURITY INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

When the transponder key is registered, the transponder key ECU outputs the key registration condition by illuminating, blinking or turning off the security indicator.

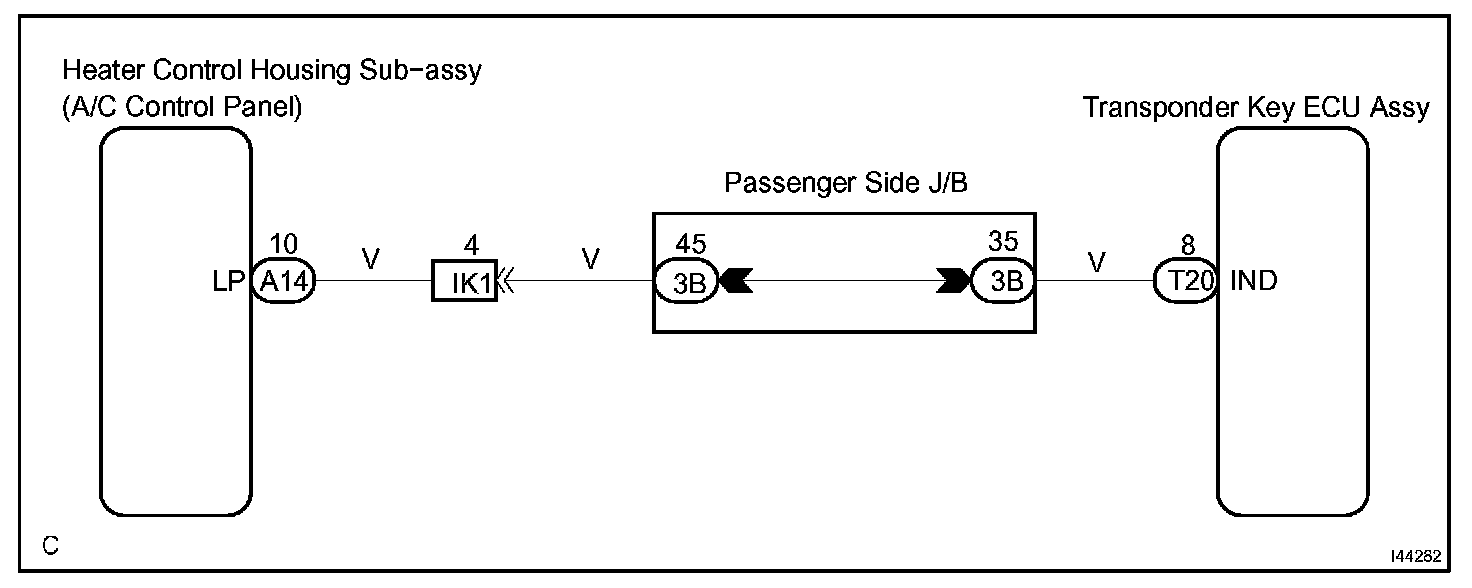

Wiring Diagram:

Step 1-3:

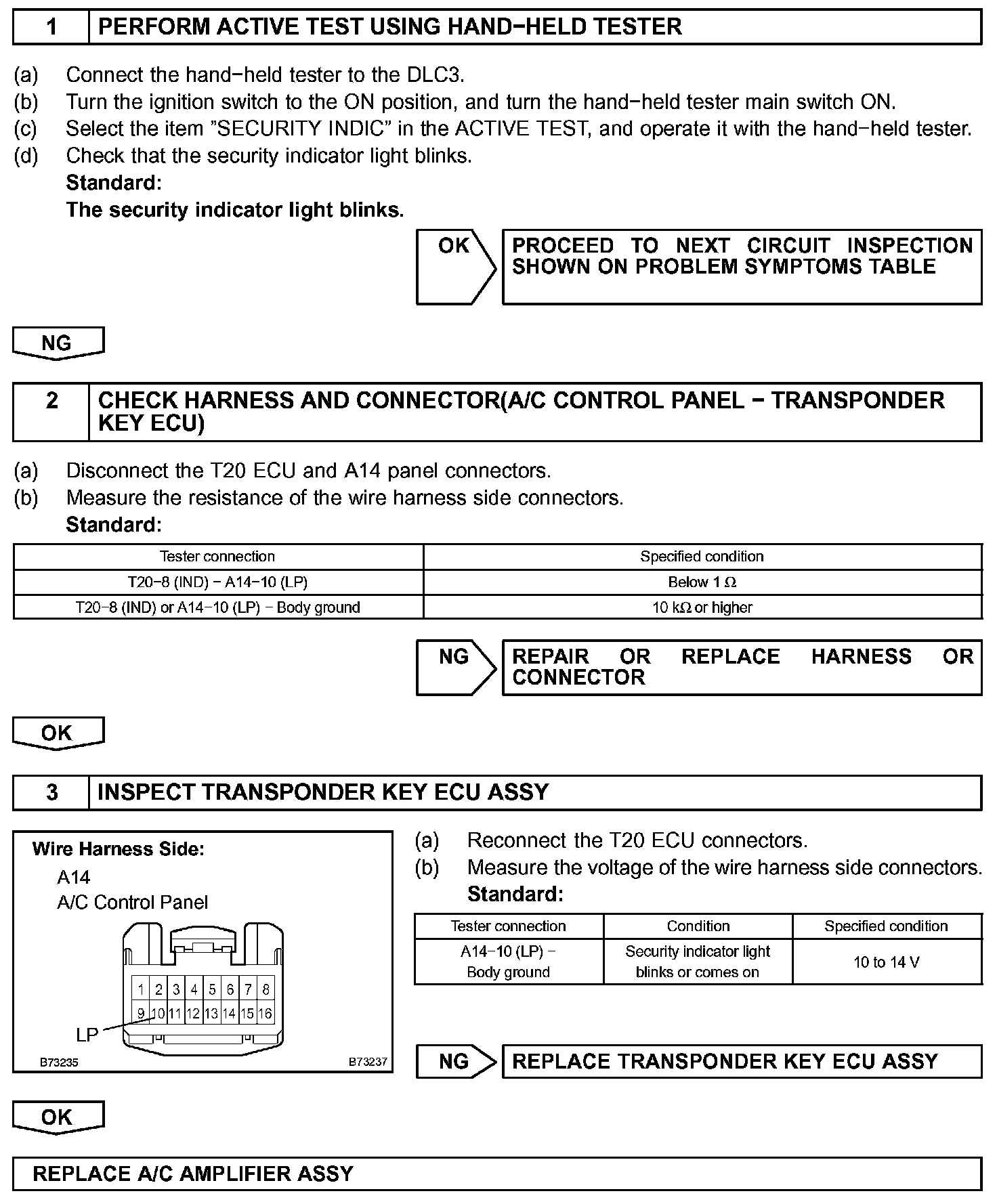

INSPECTION PROCEDURE
