Antenna Cable: Service and Repair

ANTENNA CORD SUB-ASSEMBLY

REPLACEMENT

1. SHIP MODE SETTING (W/ CD CHANGER)
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE FRONT DOOR SCUFF PLATE RH
4. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
5. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1
6. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER
7. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
8. REMOVE CONSOLE PANEL UPPER REAR
9. REMOVE CONSOLE BOX CARPET
10. REMOVE RR CONSOLE BOX
11. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
12. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
13. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER (W/ LEXUS NAVIGATION SYSTEM)
15. REMOVE RADIO RECEIVER PANEL (W/O LEXUS NAVIGATION SYSTEM)
16. SHIP MODE CONFIRMATION (W/ CD CHANGER)
17. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH
18. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH
19. REMOVE FRONT SEAT TRACK COVER RH REAR INNER
20. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
21. REMOVE FRONT SEAT ASSEMBLY RH
22. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH
23. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH
24. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
25. REMOVE FRONT SEAT TRACK COVER LH REAR OUTER
26. REMOVE FRONT SEAT ASSEMBLY LH
27. REMOVE REAR SEAT CUSHION ASSEMBLY
28. REMOVE REAR SEATBACK ASSEMBLY
29. REMOVE ROOF SIDE GARNISH INNER RH
30. REMOVE ROOF SIDE GARNISH INNER LH
31. REMOVE AIR DUCT REAR NO.2

Antenna Cord Sub-assy:

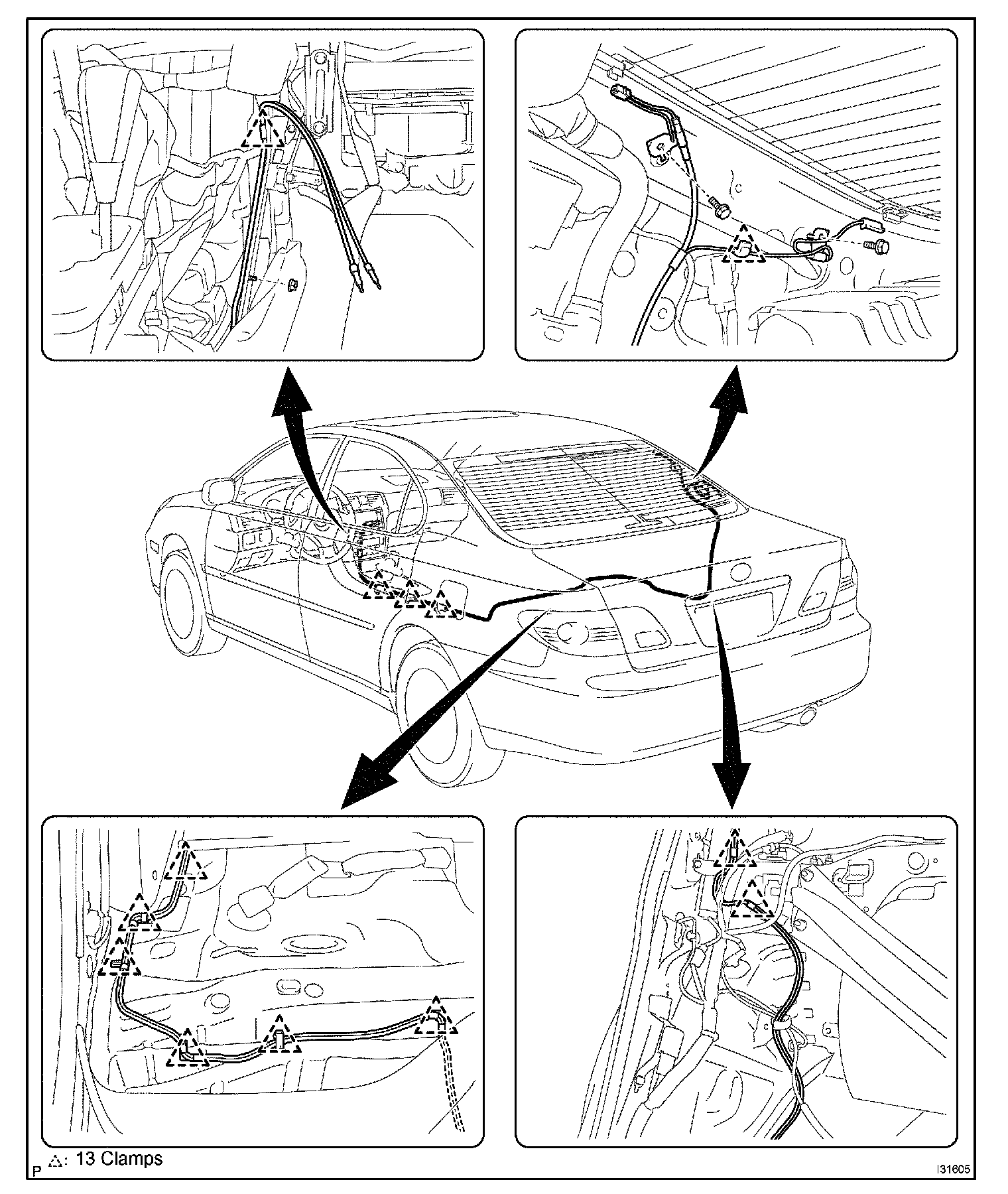

32. REMOVE ANTENNA CORD SUB-ASSEMBLY
a. Remove the nut and 2 bolts.
b. Disconnect the connectors.
c. Remove the 13 clamps and antenna cord sub-assembly.

33. INSTALL ROOF SIDE GARNISH INNER RH
34. INSTALL ROOF SIDE GARNISH INNER LH
35. INSTALL REAR SEATBACK ASSEMBLY
36. INSTALL REAR SEAT CUSHION ASSEMBLY
37. INSTALL FRONT SEAT ASSEMBLY LH
38. INSTALL FRONT SEAT ASSEMBLY RH
