DTC 97

DTC C1797/97 CRANKSHAFT POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

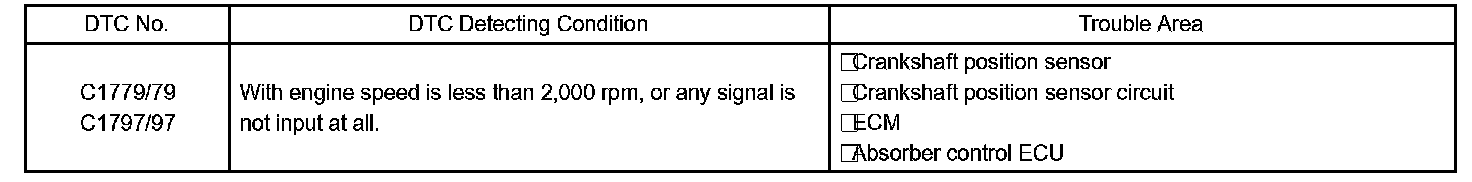

DTC Detecting Condition:

The absorber control ECU receives the engine speed signal from the ECM.

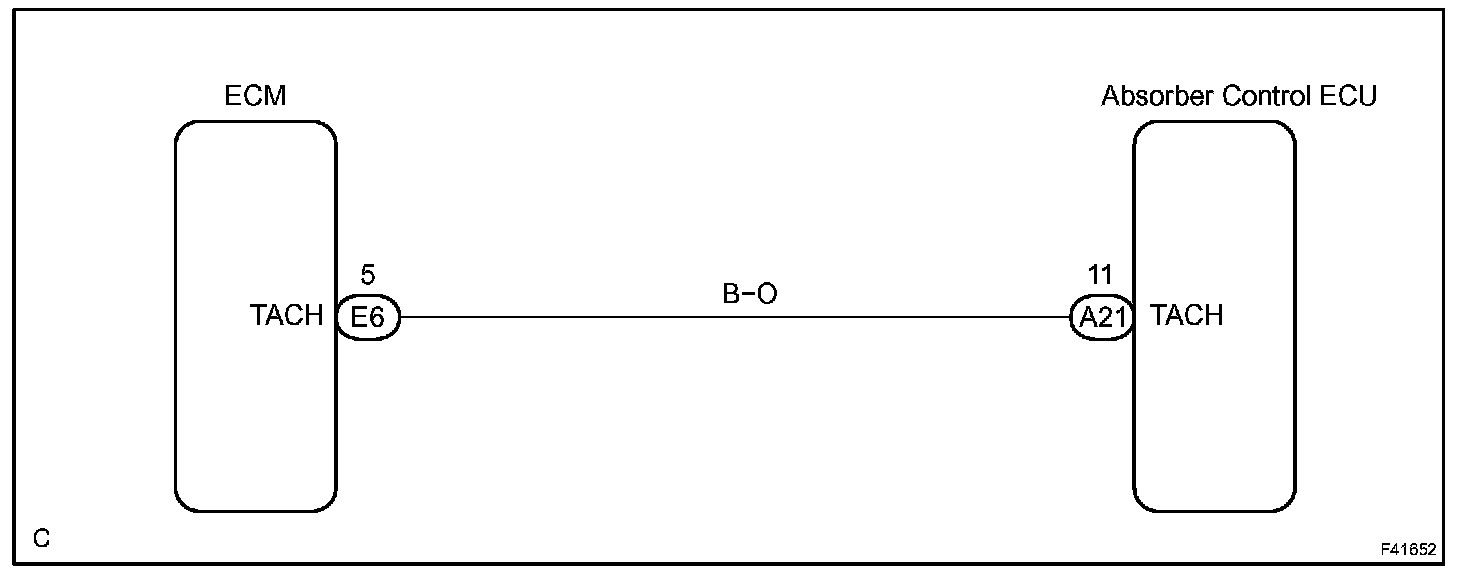

Wiring Diagram:

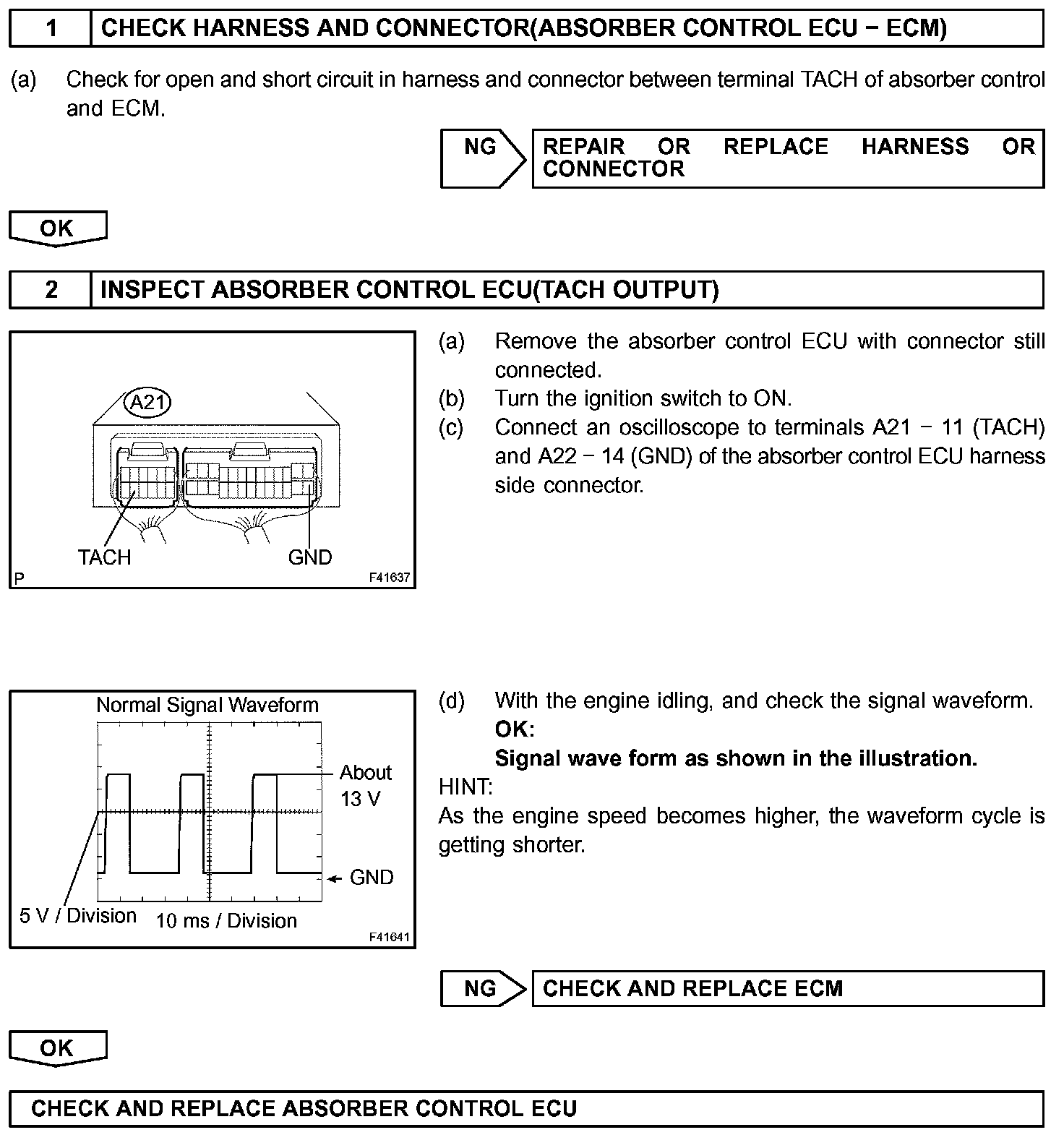

Step 1-2:

INSPECTION PROCEDURE
