DTC 82

DTC C1782/82 STOP LIGHT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

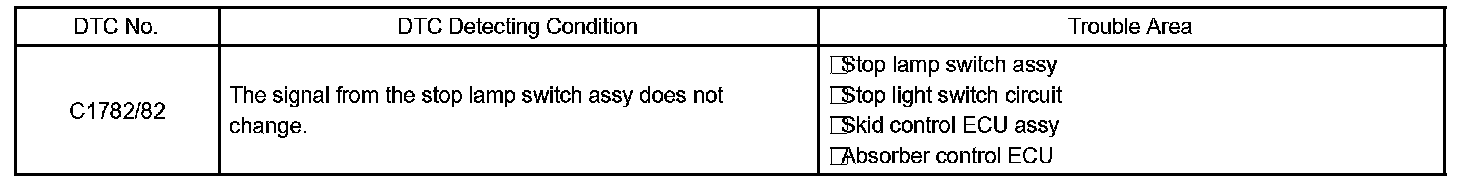

DTC Detecting Condition:

When the brake pedal is depressed, the stop lamp goes on and the signal is input to the STP terminal of absorber control ECU.

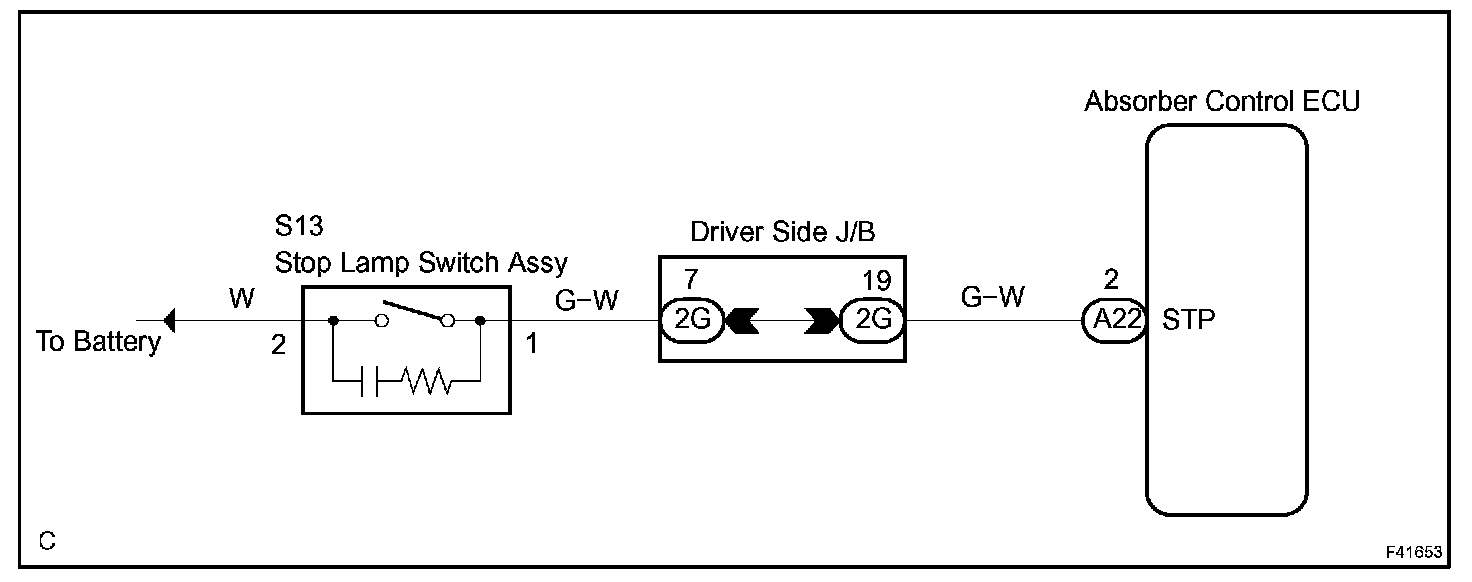

Wiring Diagram:

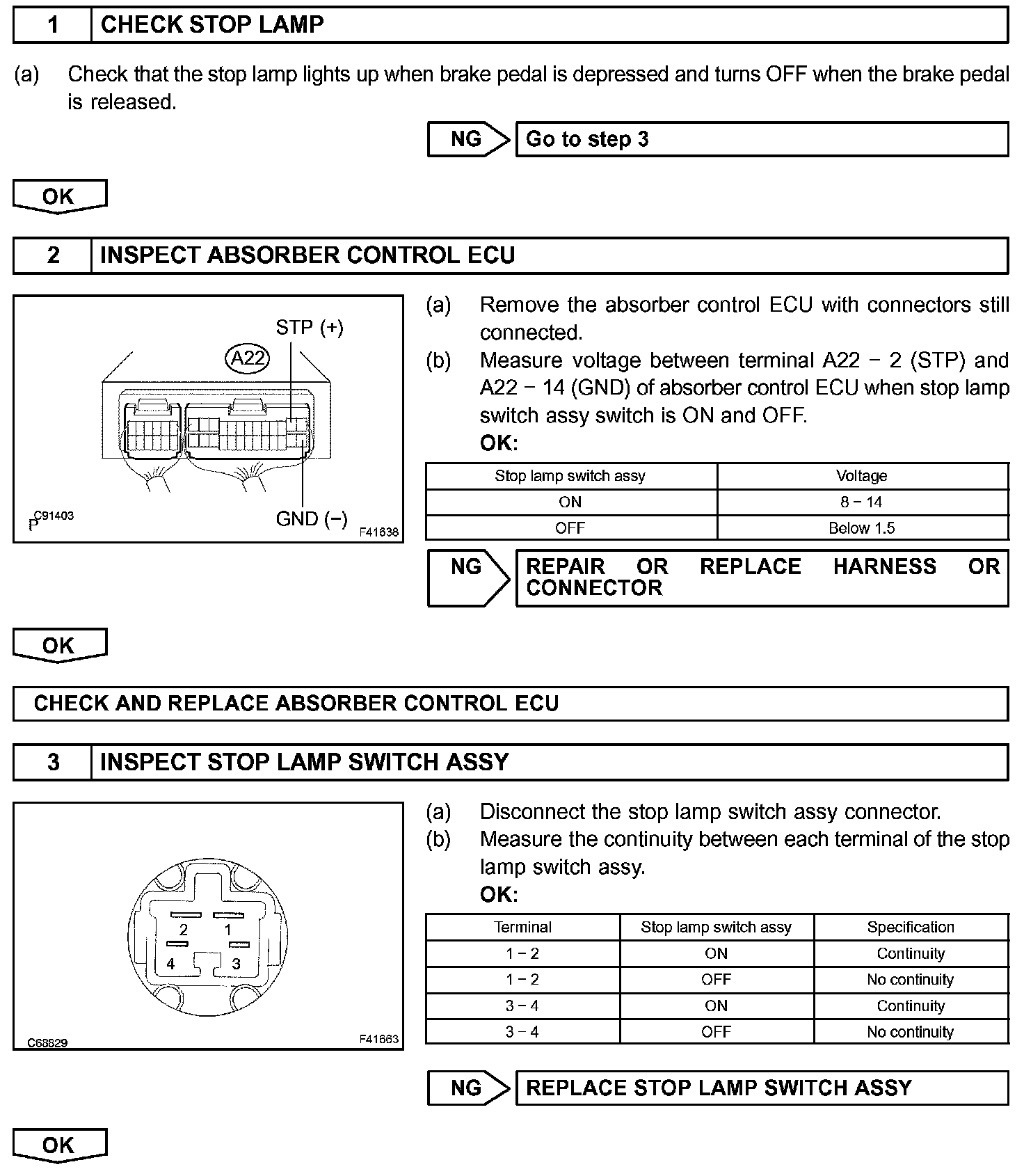

Step 1-3:

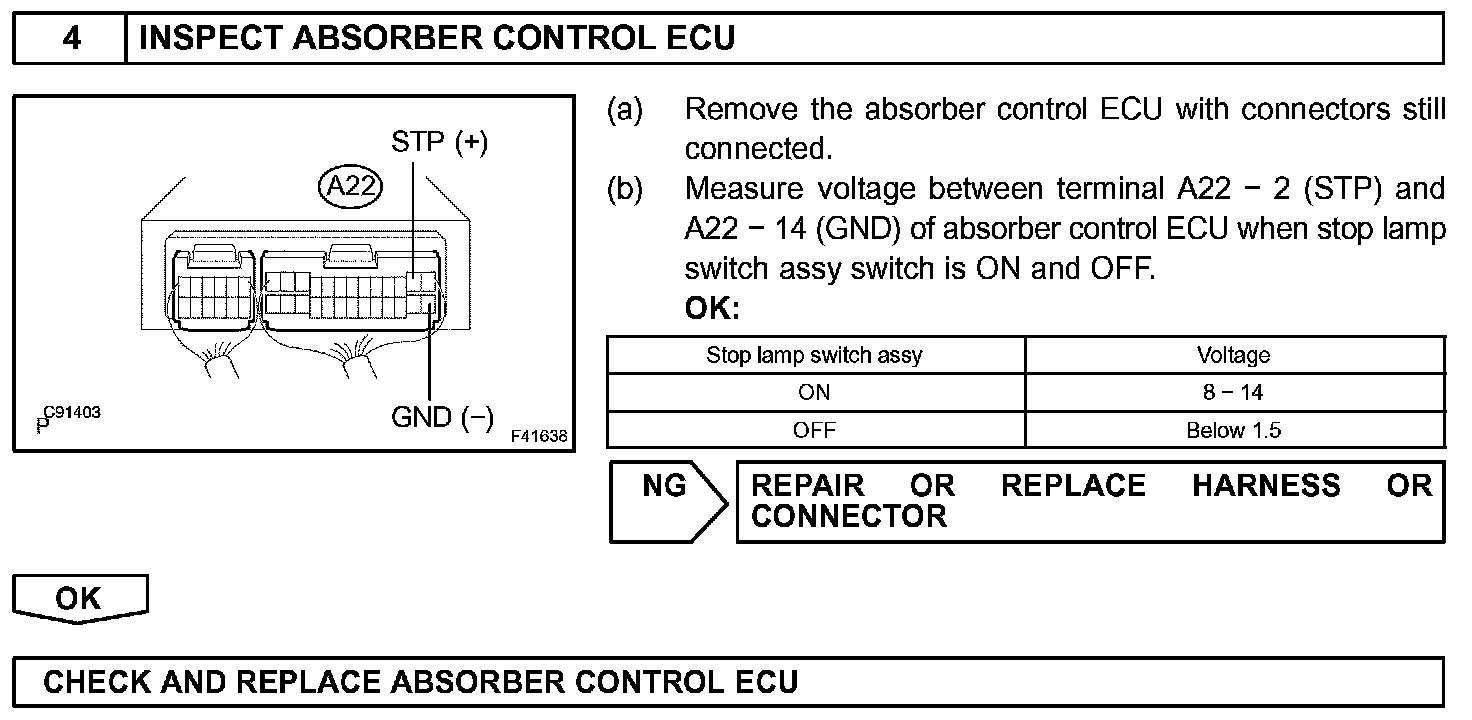

Step 4:

INSPECTION PROCEDURE
