DTC 23

DTC C1727/23 RIGHT REAR ABSORBER CONTROL ACTUATOR CIRCUIT

CIRCUIT DESCRIPTION

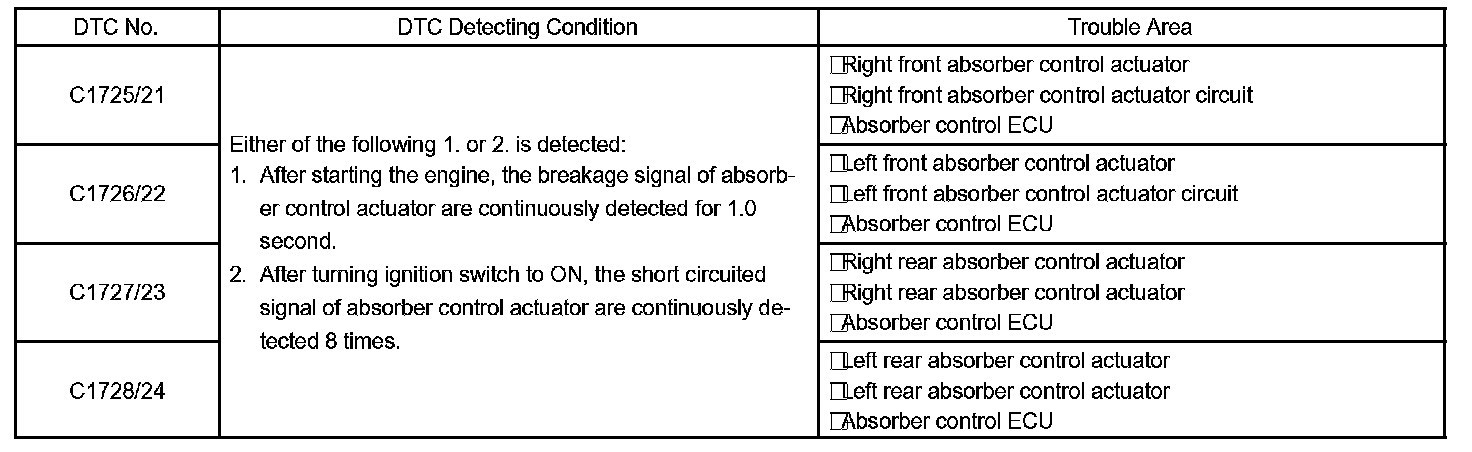

DTC Detecting Condition:

Absorber control actuator switches the damping force depending on the absorber control ECU signals.

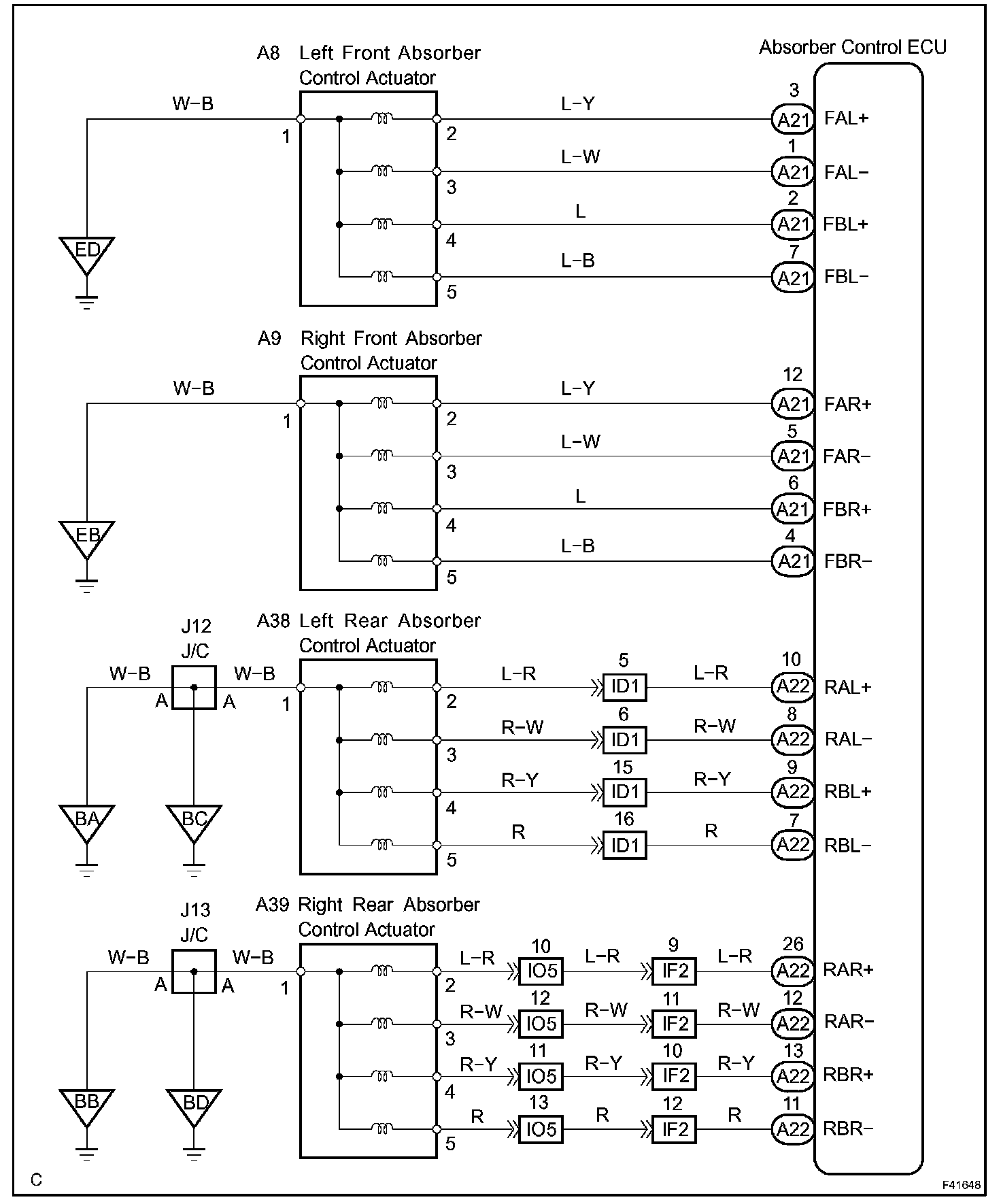

Wiring Diagram:

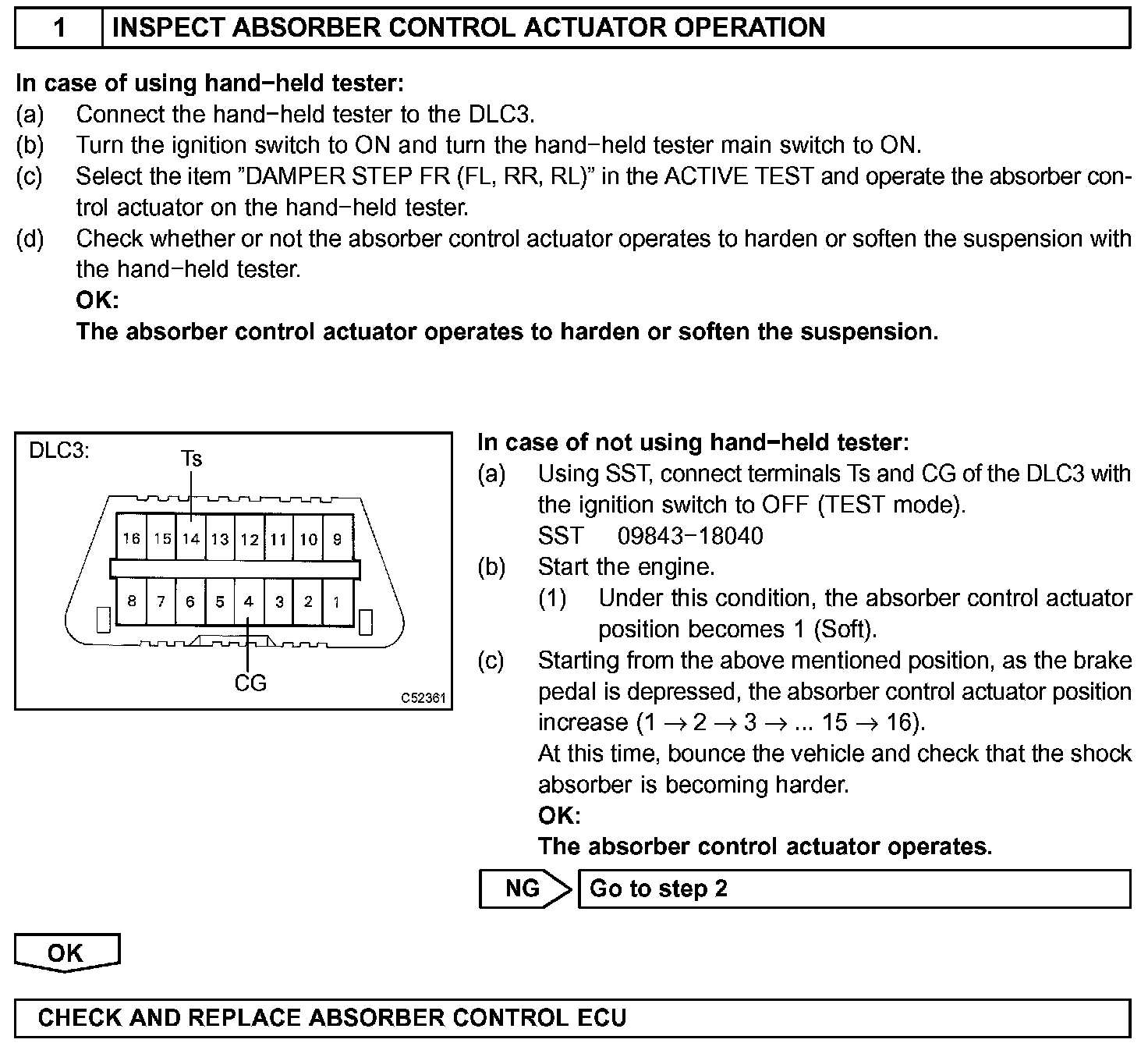

Step 1:

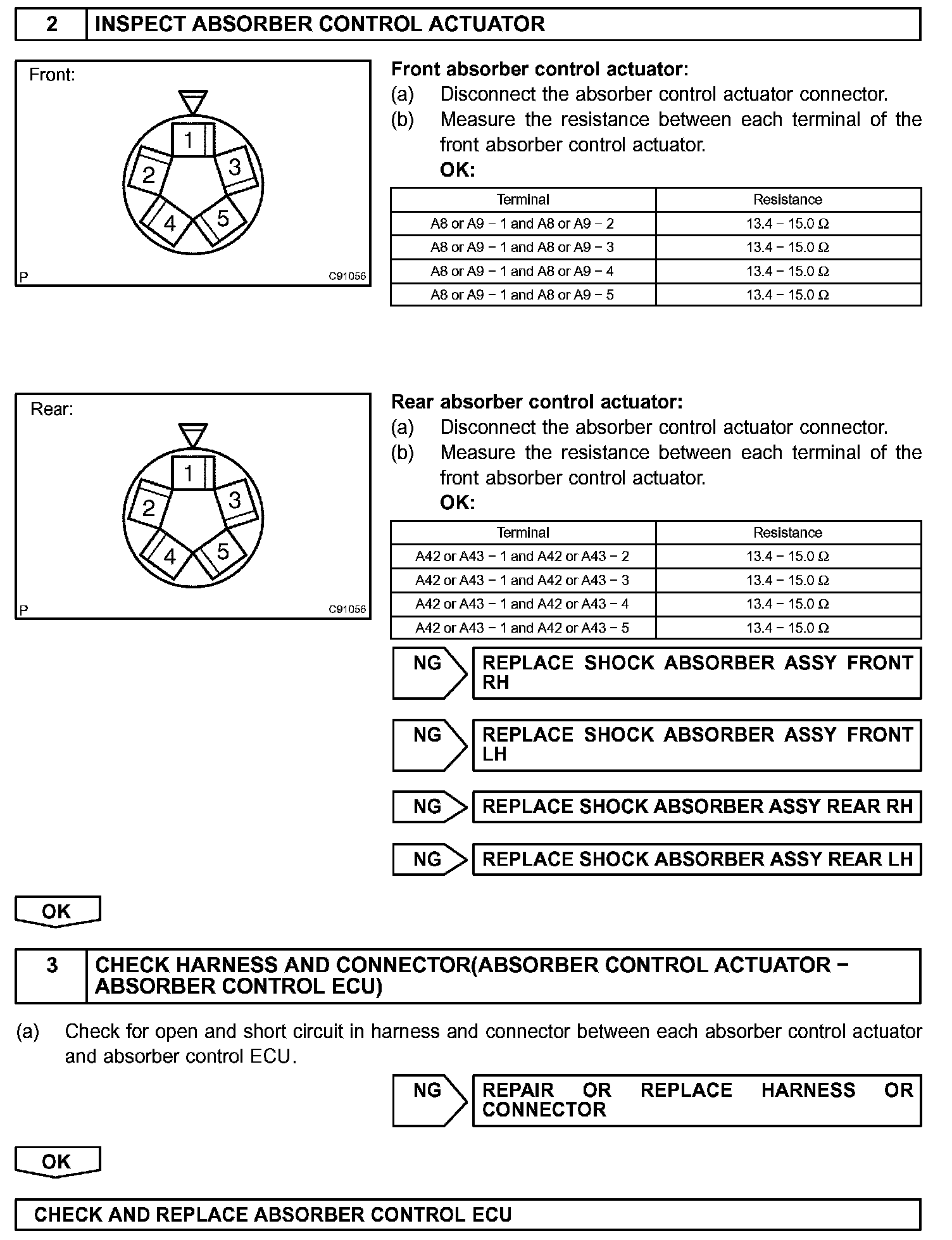

Step 2-3:

INSPECTION PROCEDURE
