DTC 36

DTC 36 AIR MIX DAMPER POSITION SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

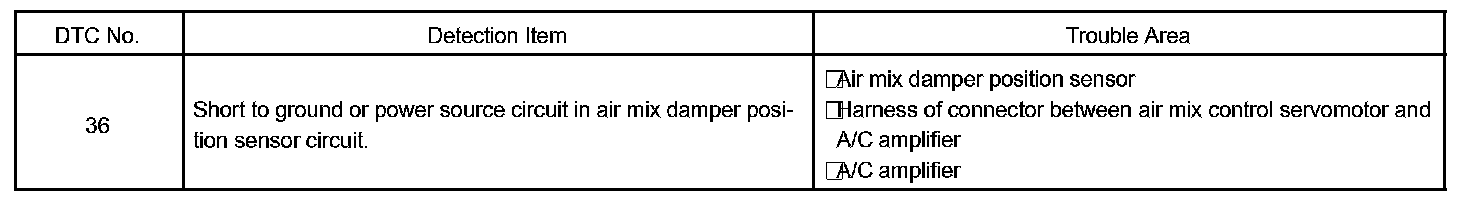

Detection Item:

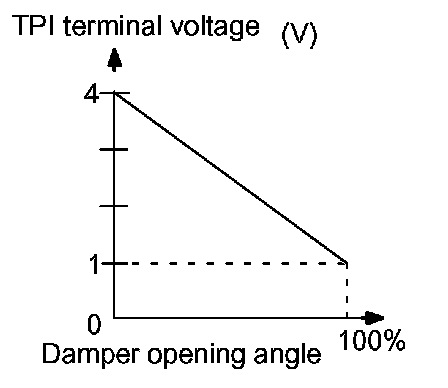

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C amplifier. The position sensor is built into the air mix control servomotor (air mix damper servo sub-assy).

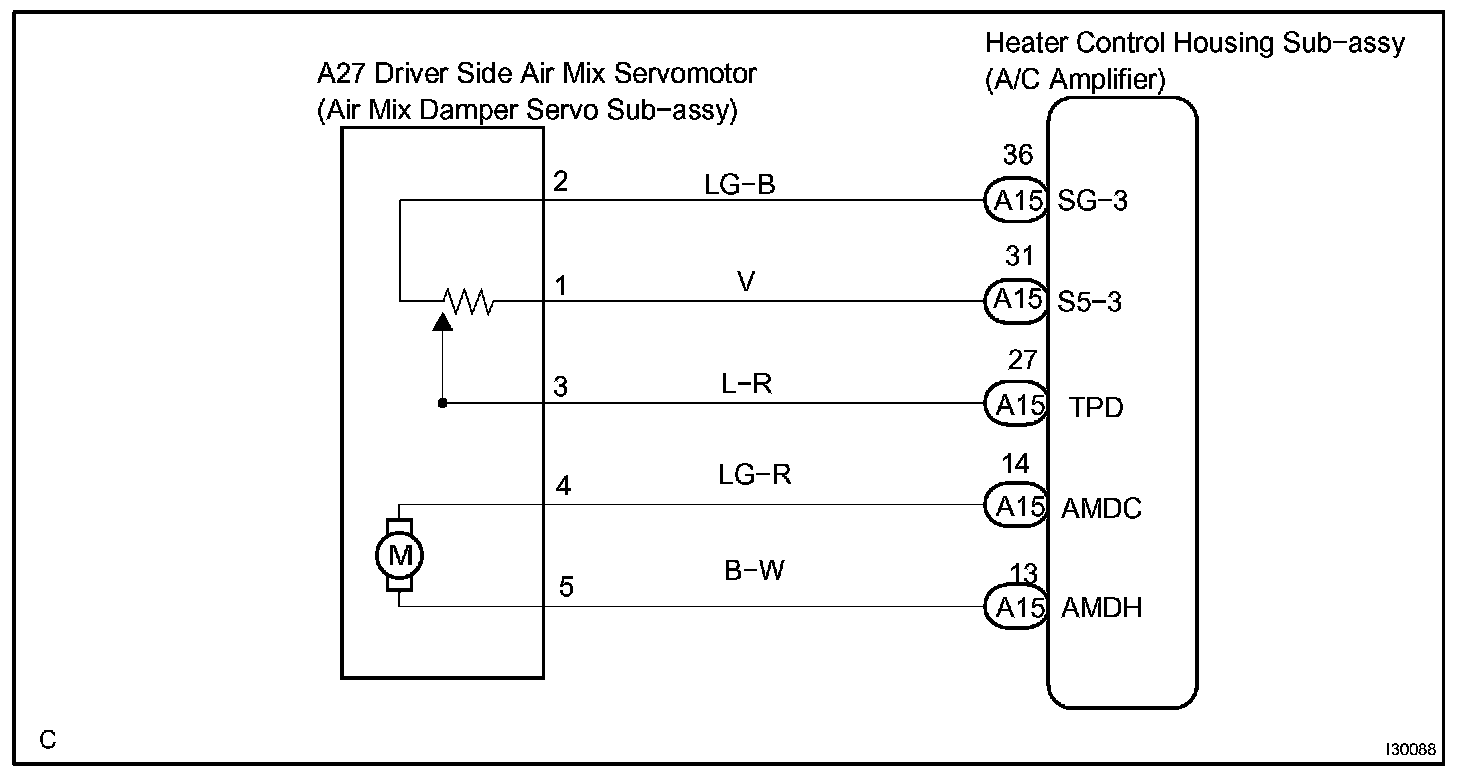

Wiring Diagram:

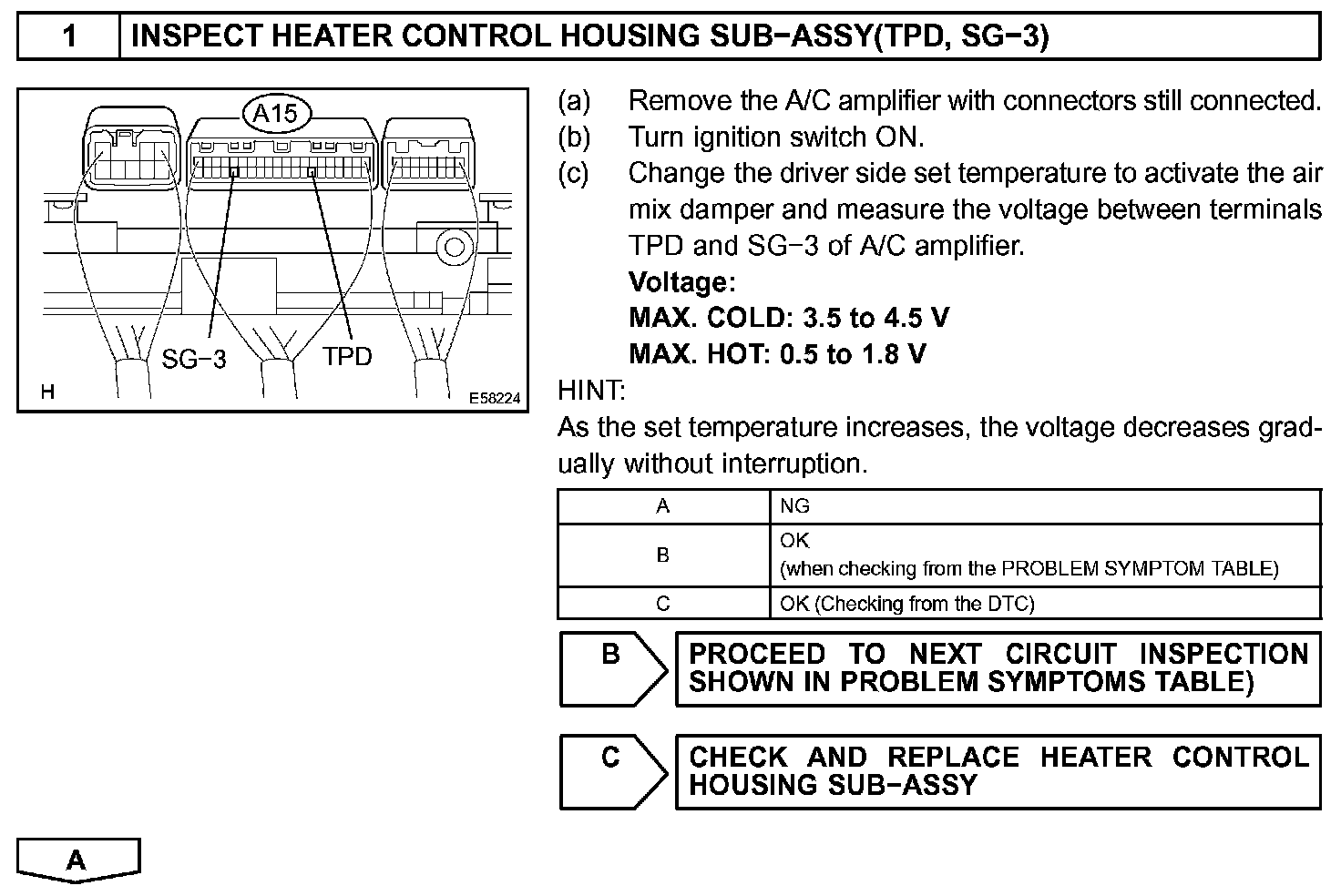

Step 1:

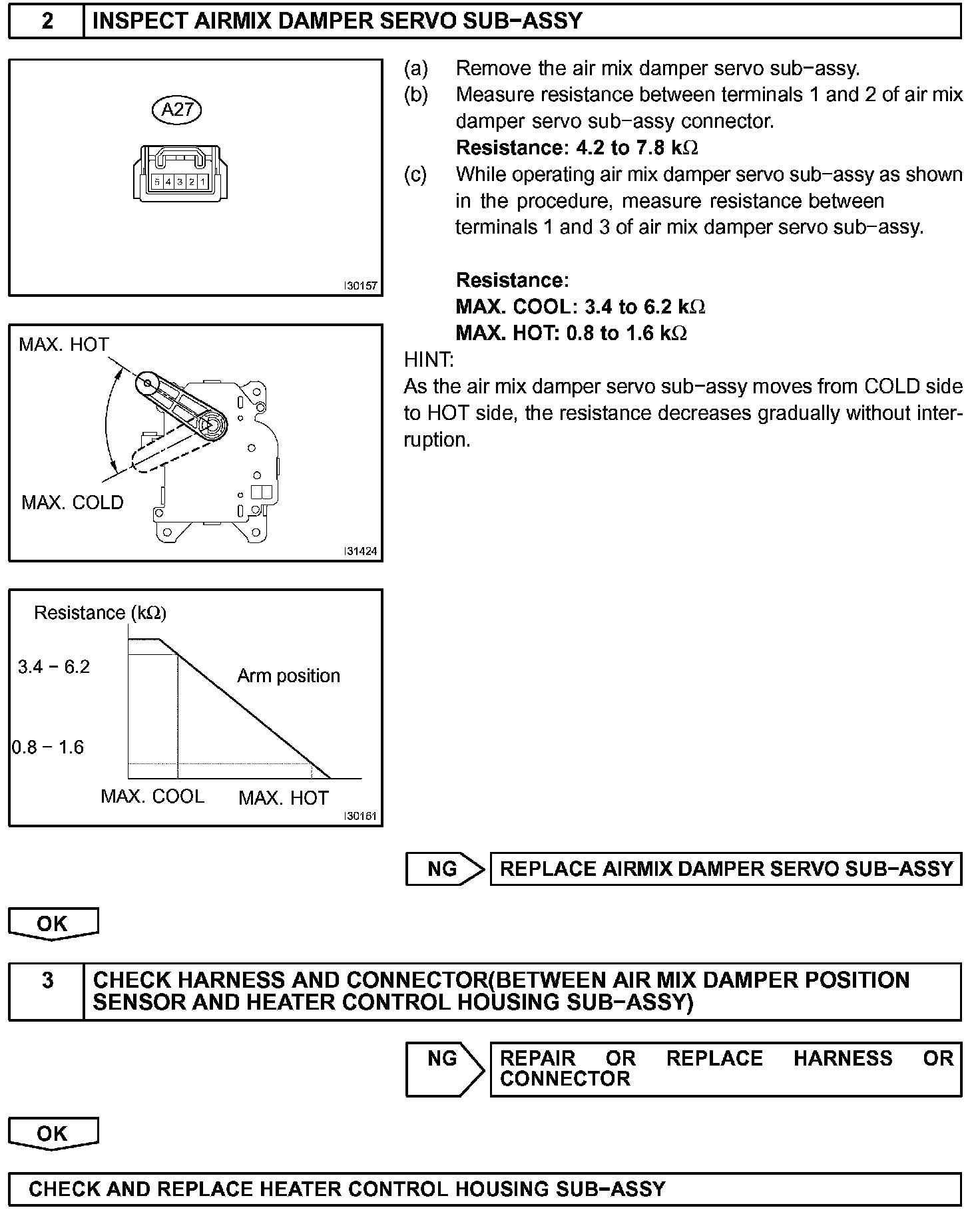

Step 2-3:

INSPECTION PROCEDURE
