DTC 24

DTC 24 SOLAR SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

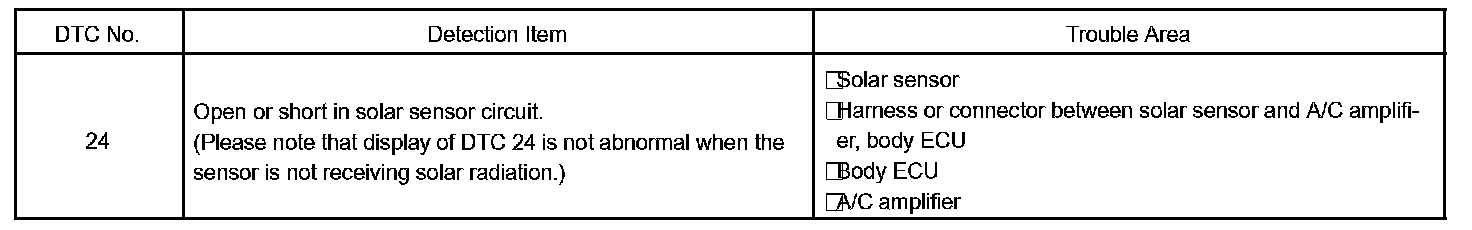

Detection Item:

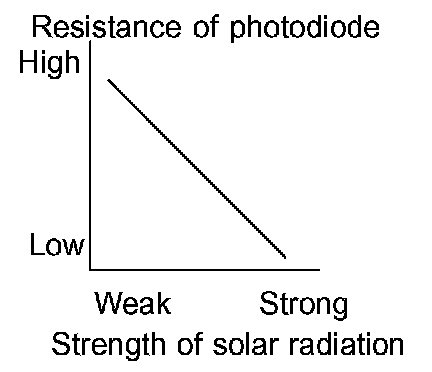

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C amplifier.

The driver side and passenger side is contained in one sensor.

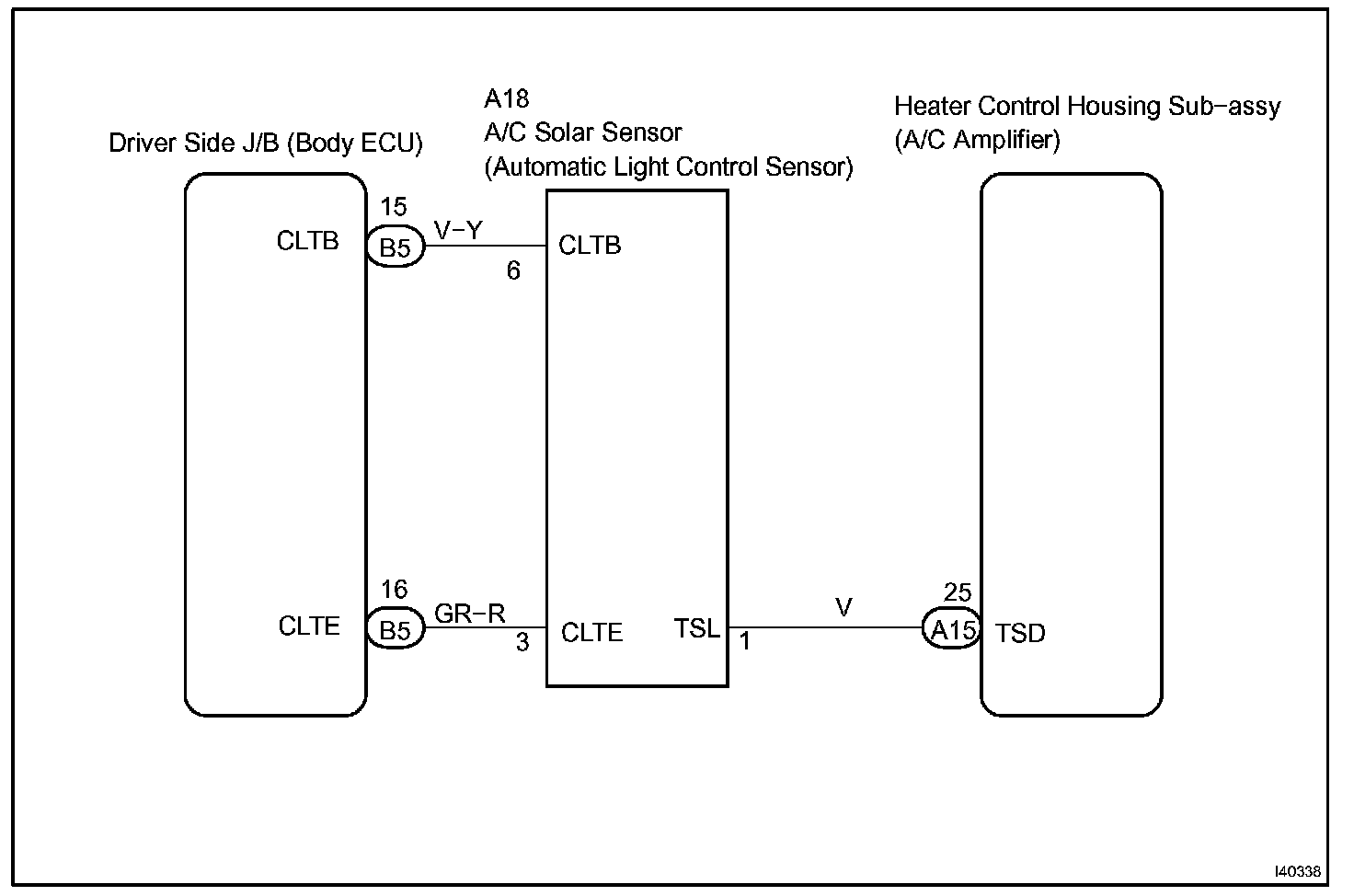

Wiring Diagram:

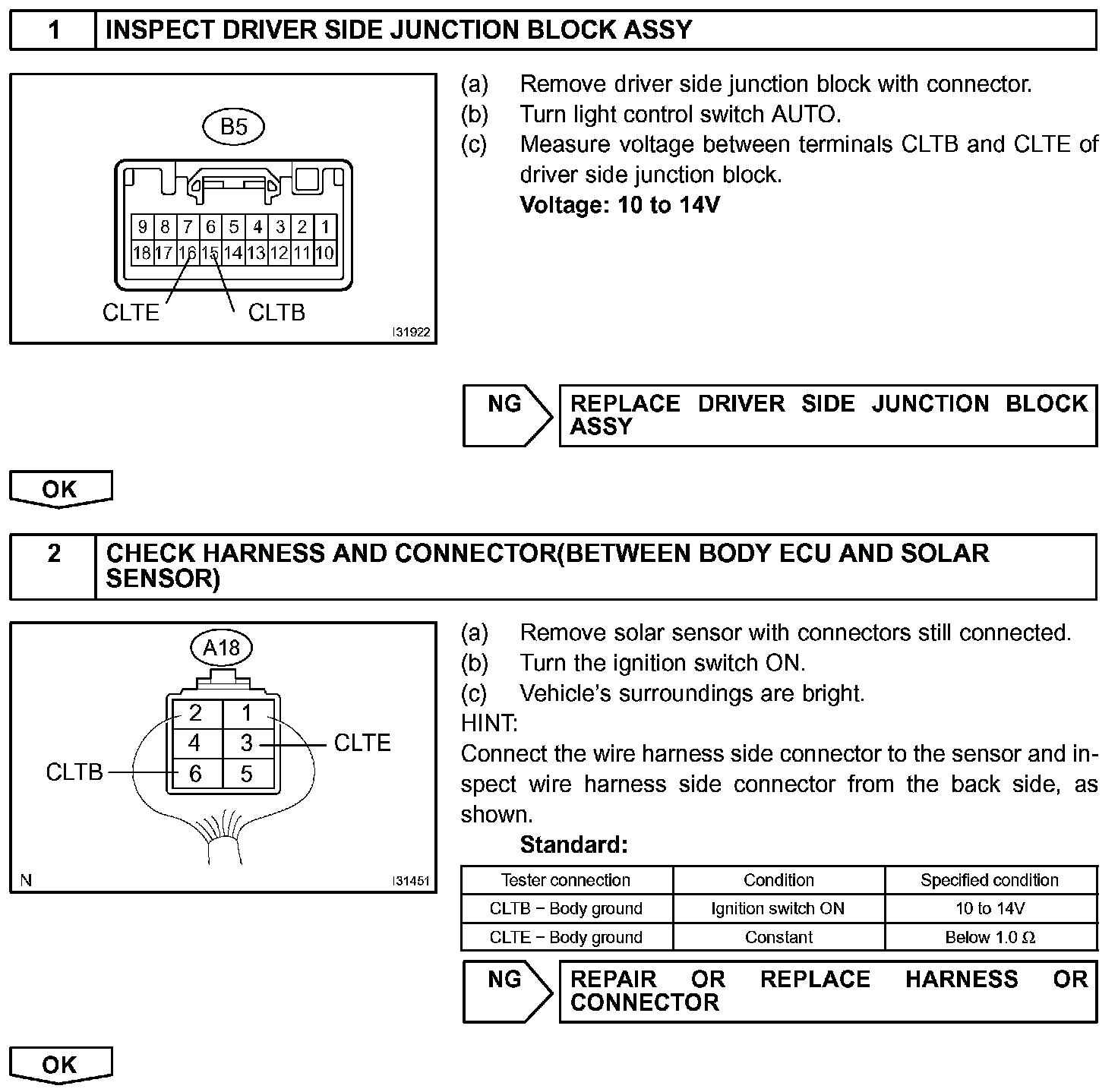

Step 1-2:

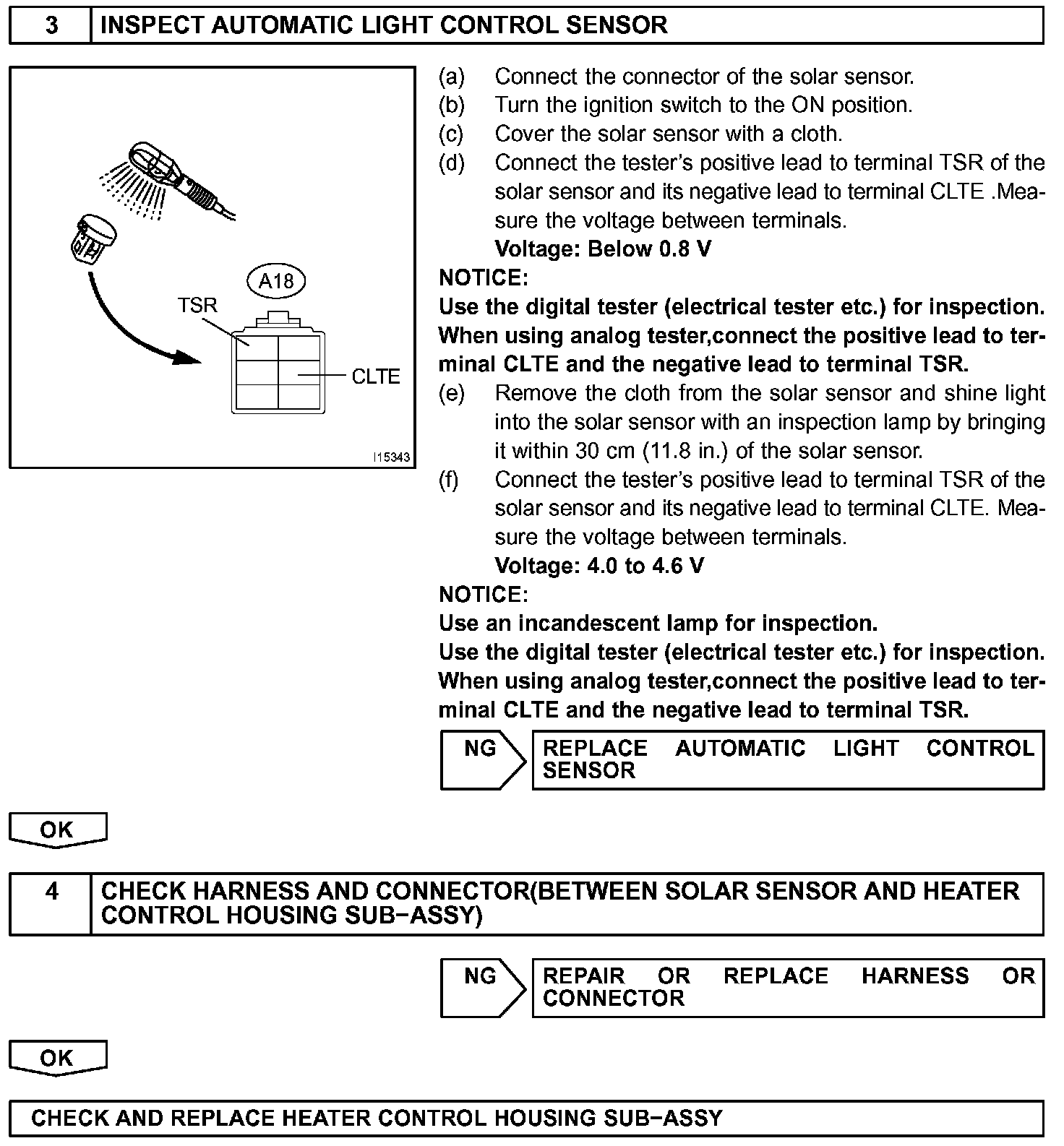

Step 3-4:

INSPECTION PROCEDURE
