SFI System

DIAGNOSTIC TROUBLE CODE CHART

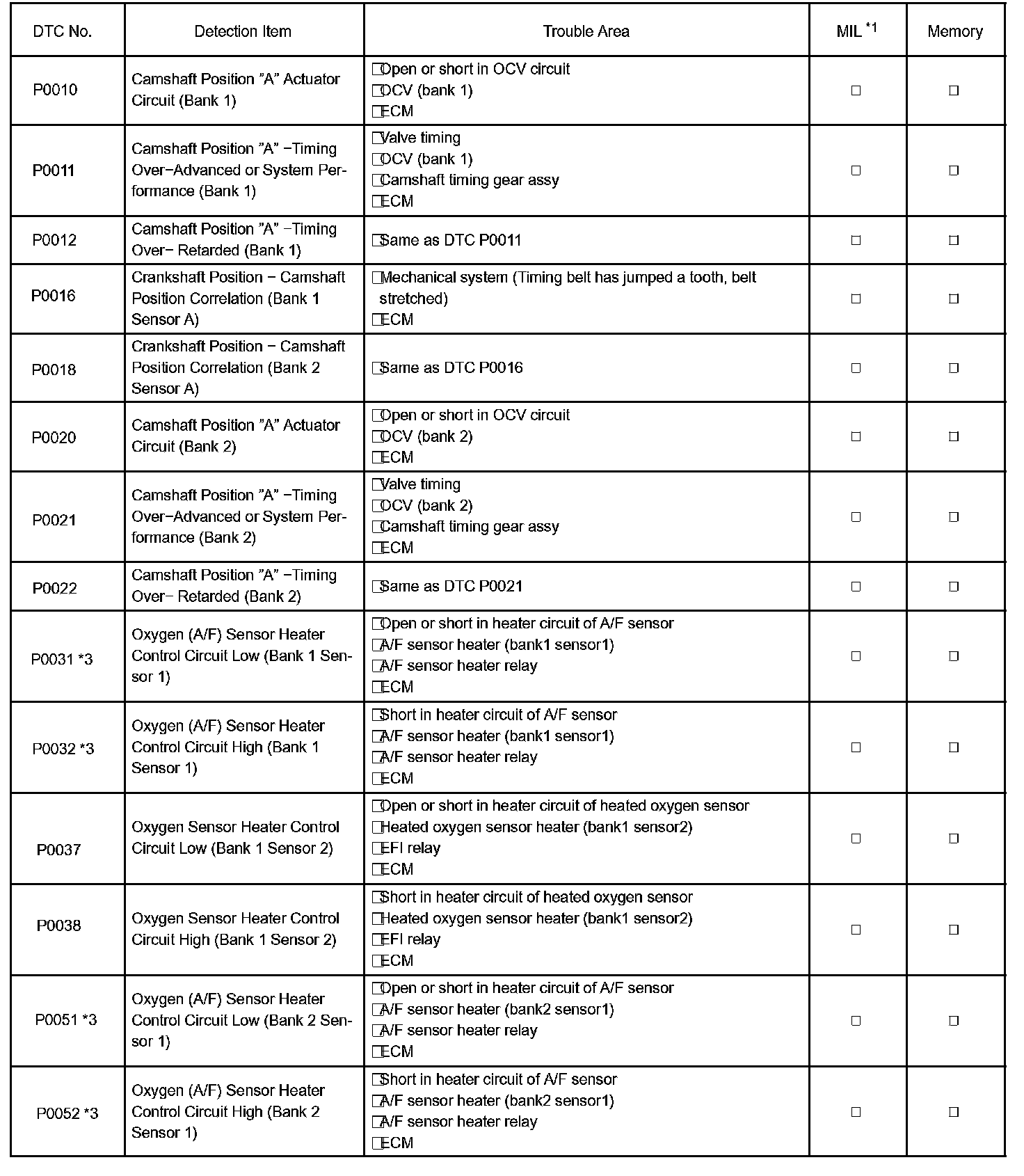

P0010-P0052:

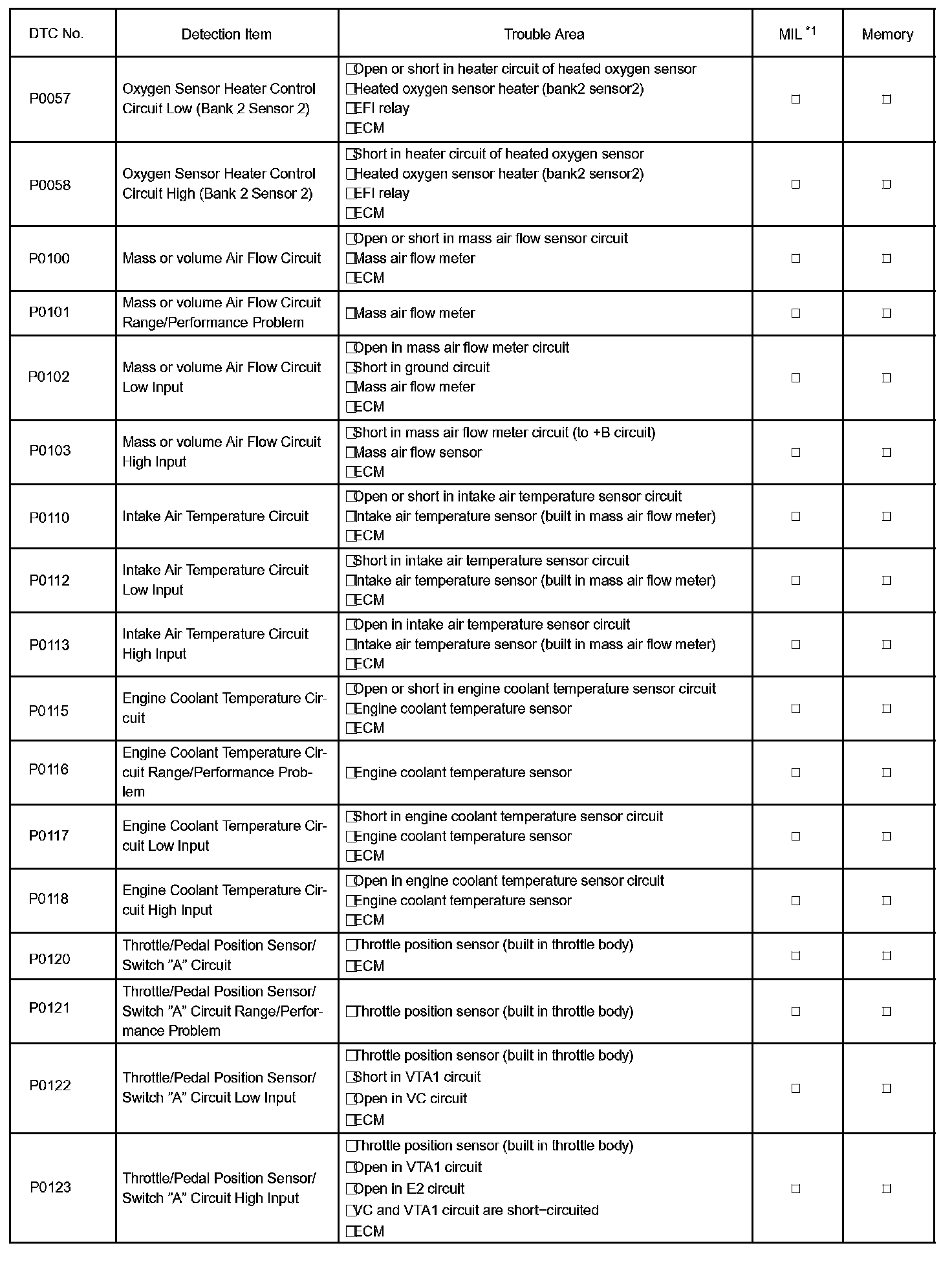

P0057-P0123:

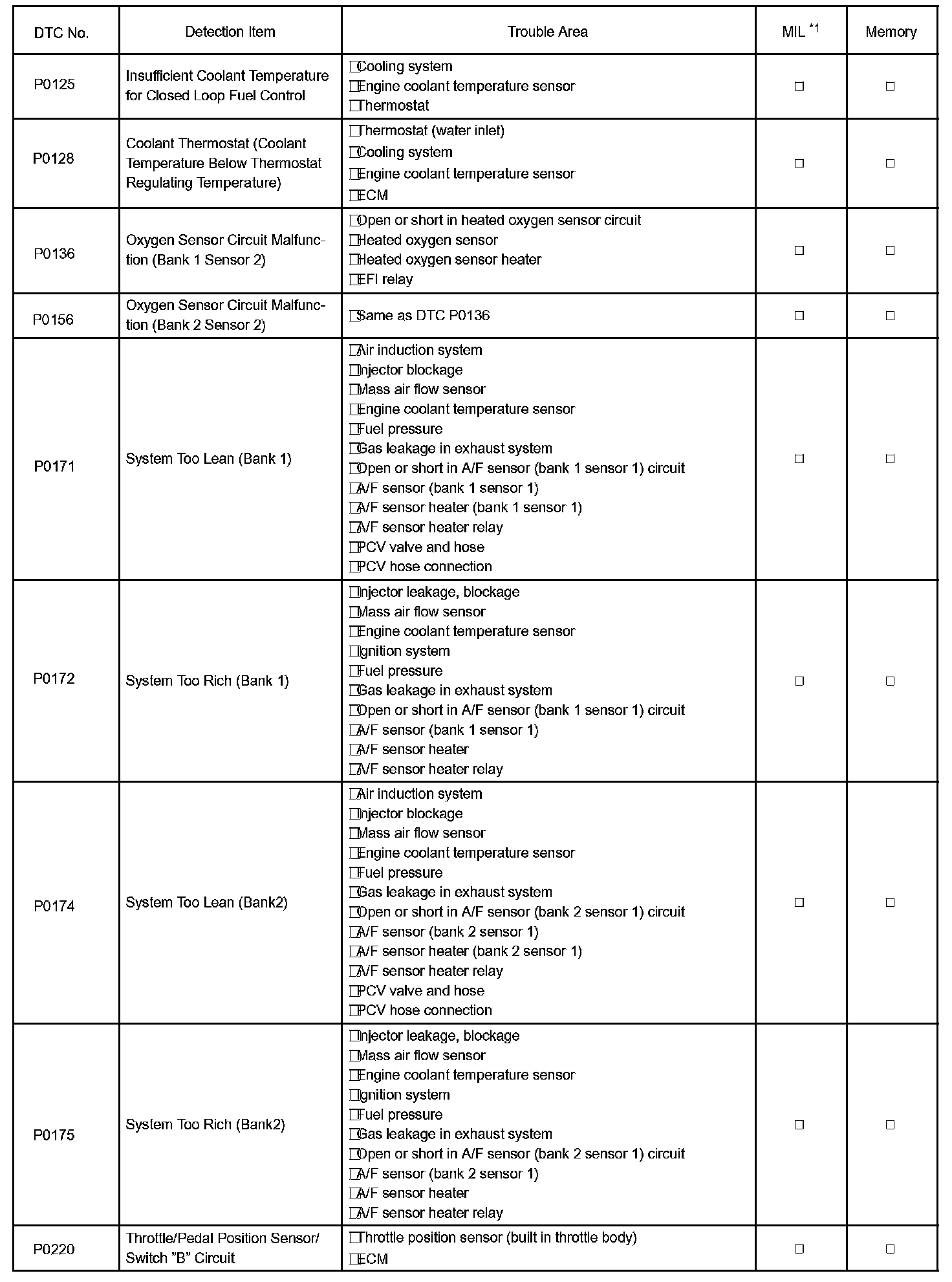

P0125-P0220:

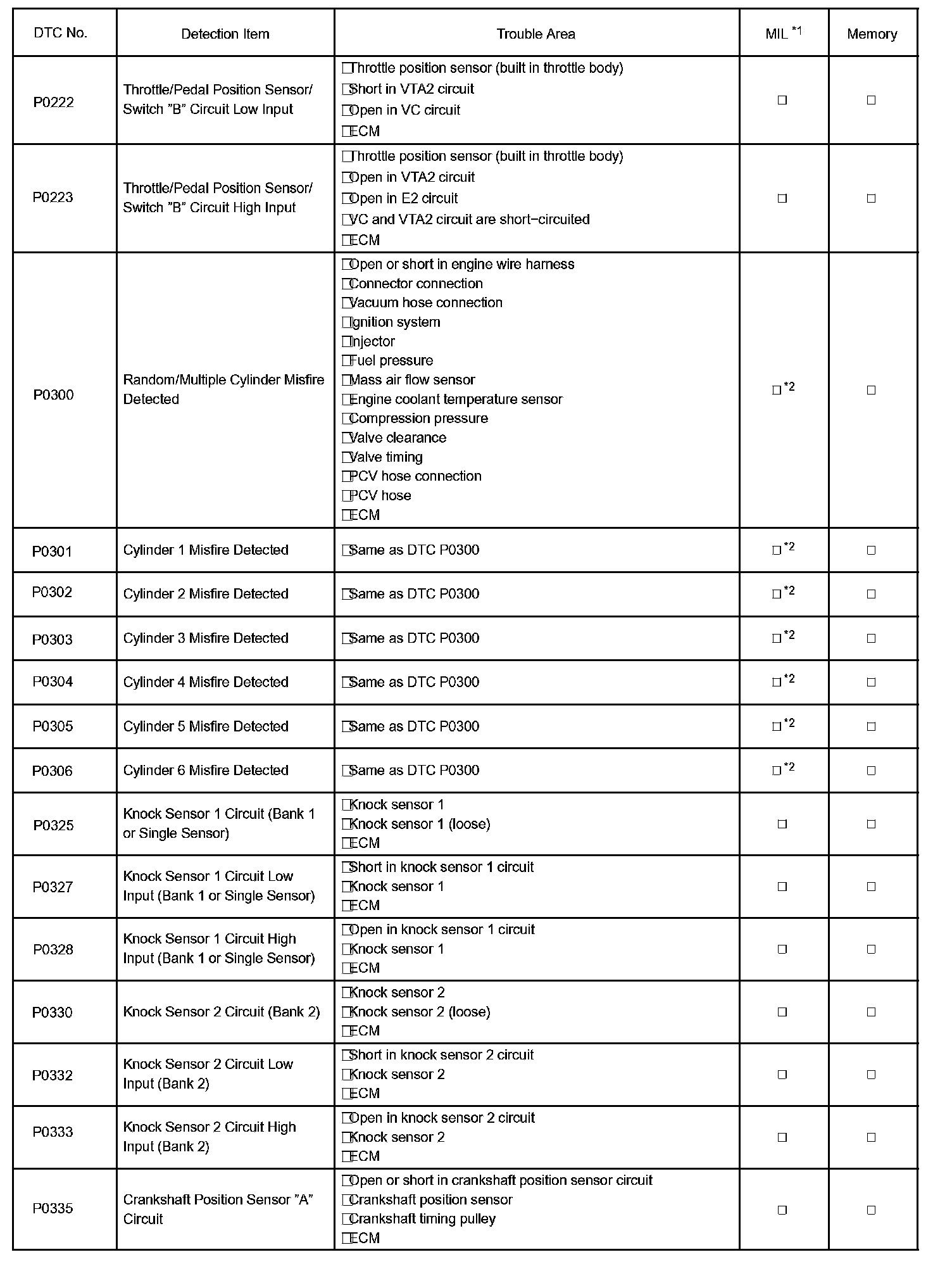

P0222-P0335:

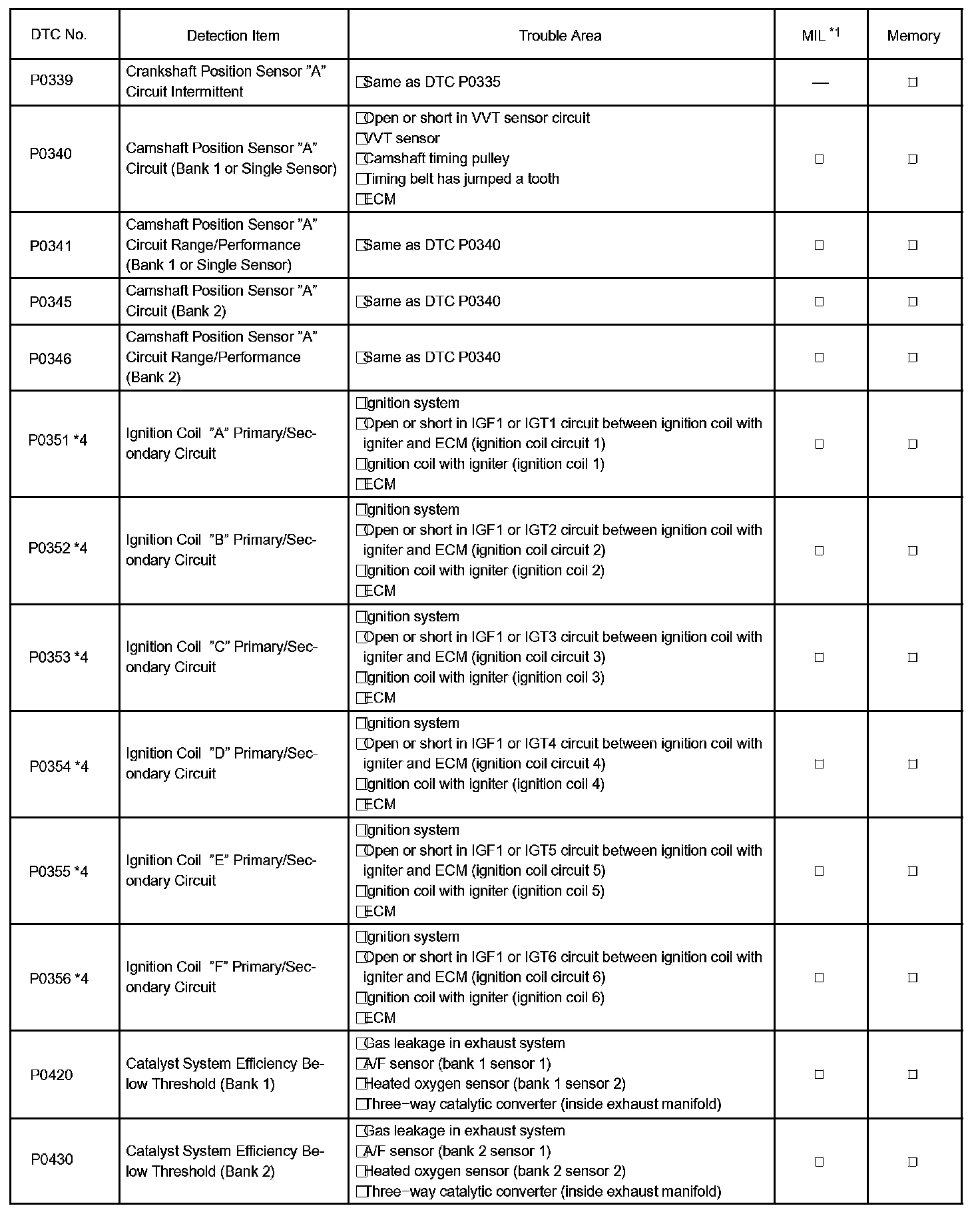

P0339-P0430:

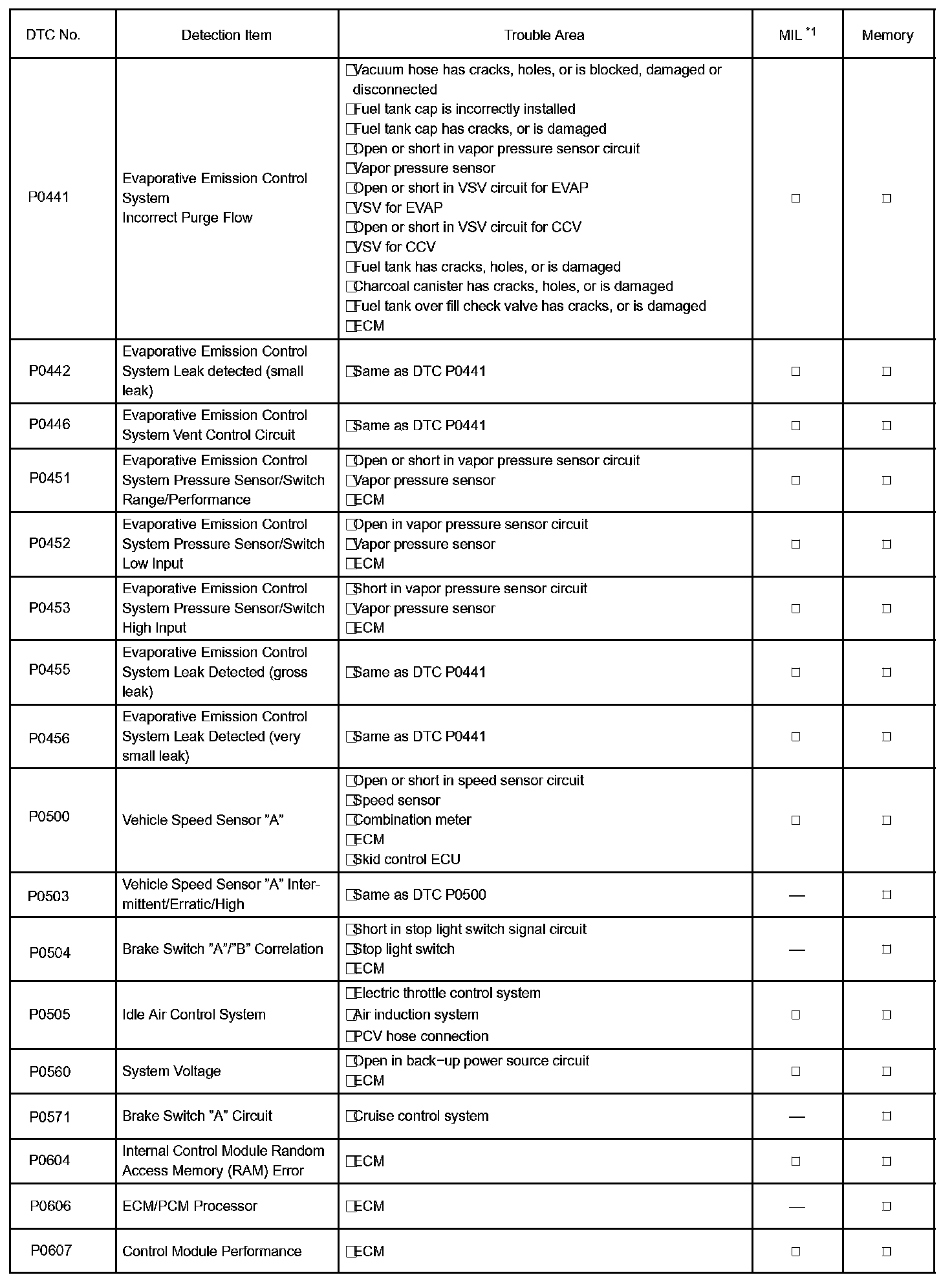

P0441-P0607:

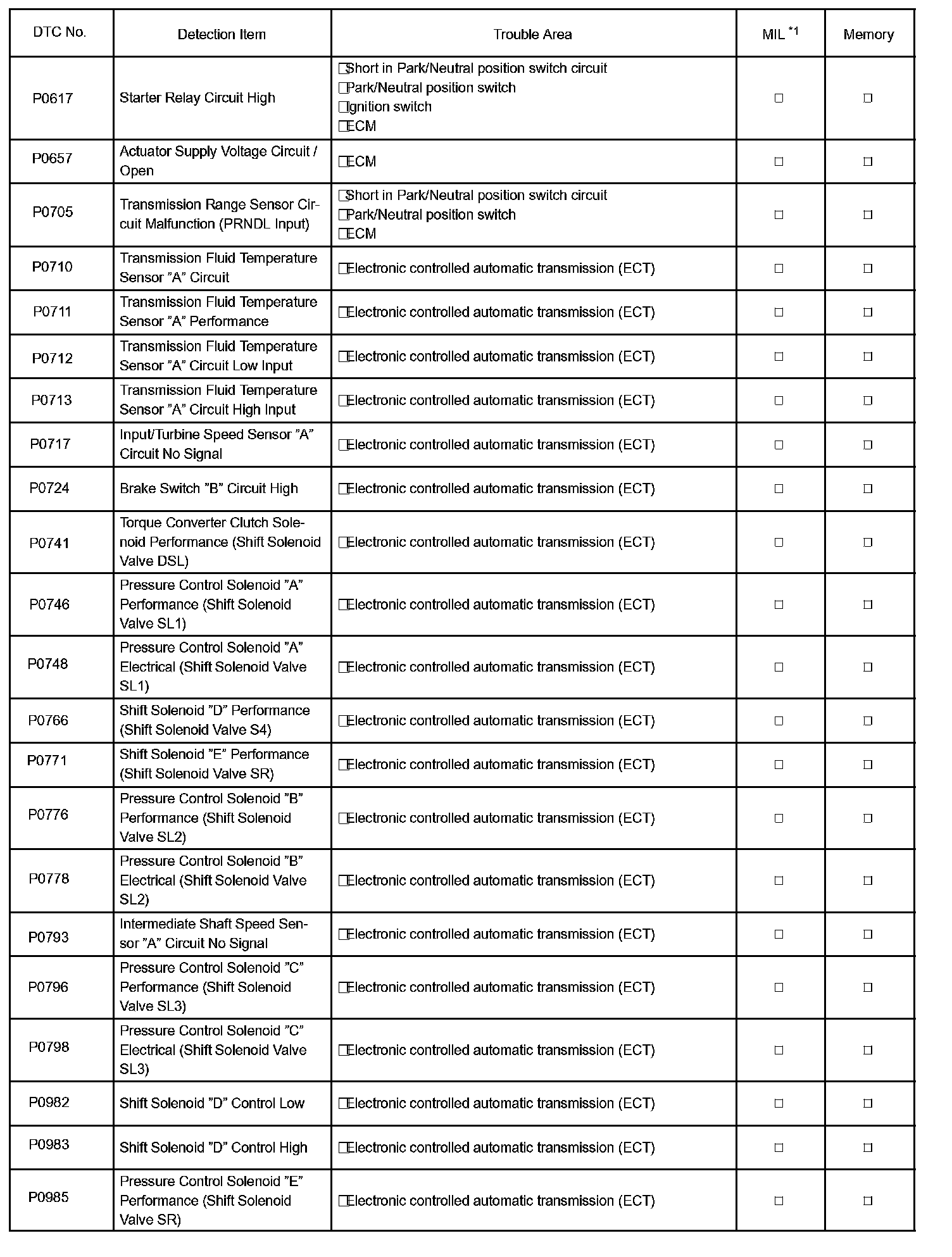

P0617-P0985:

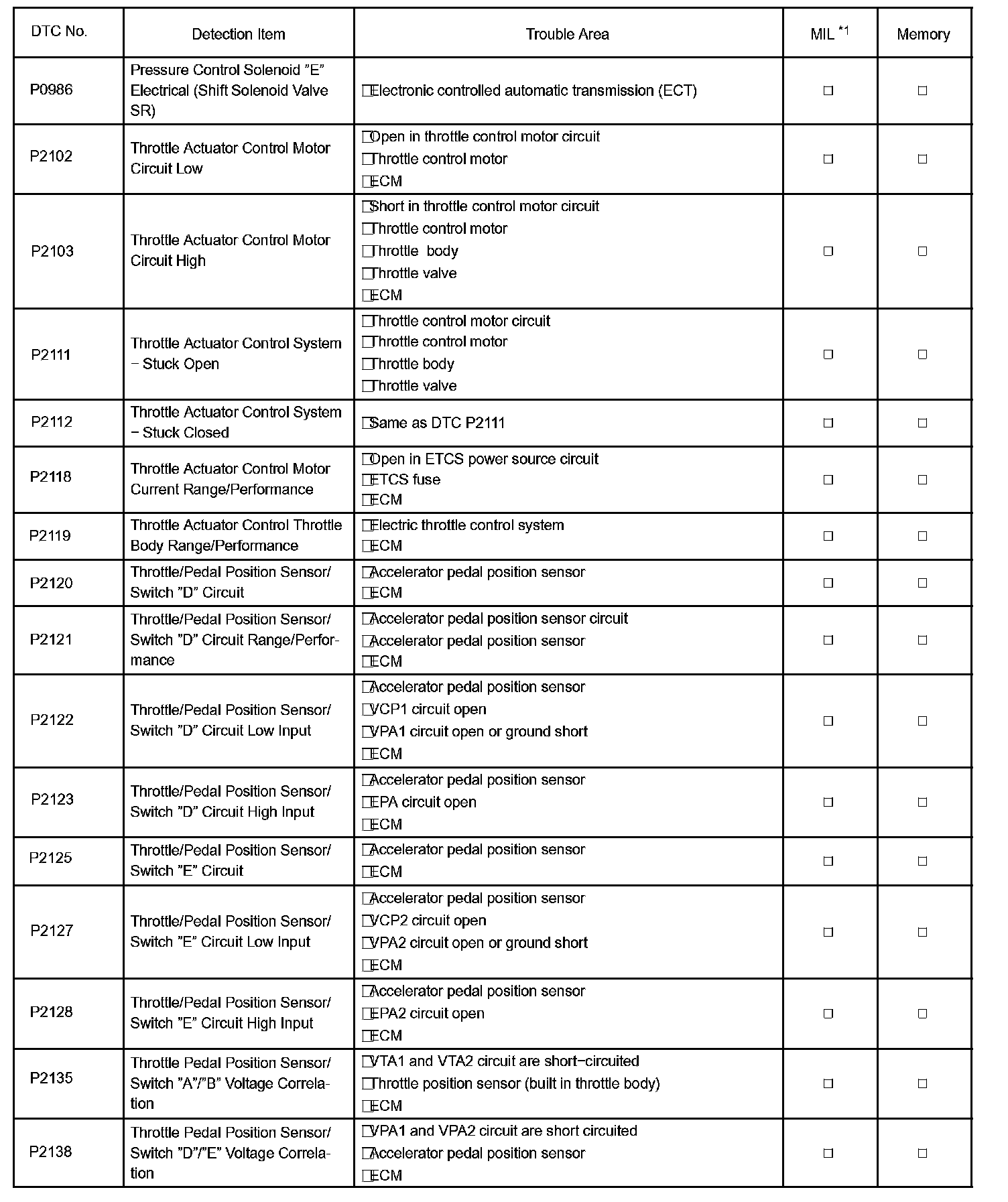

P0986-P2138:

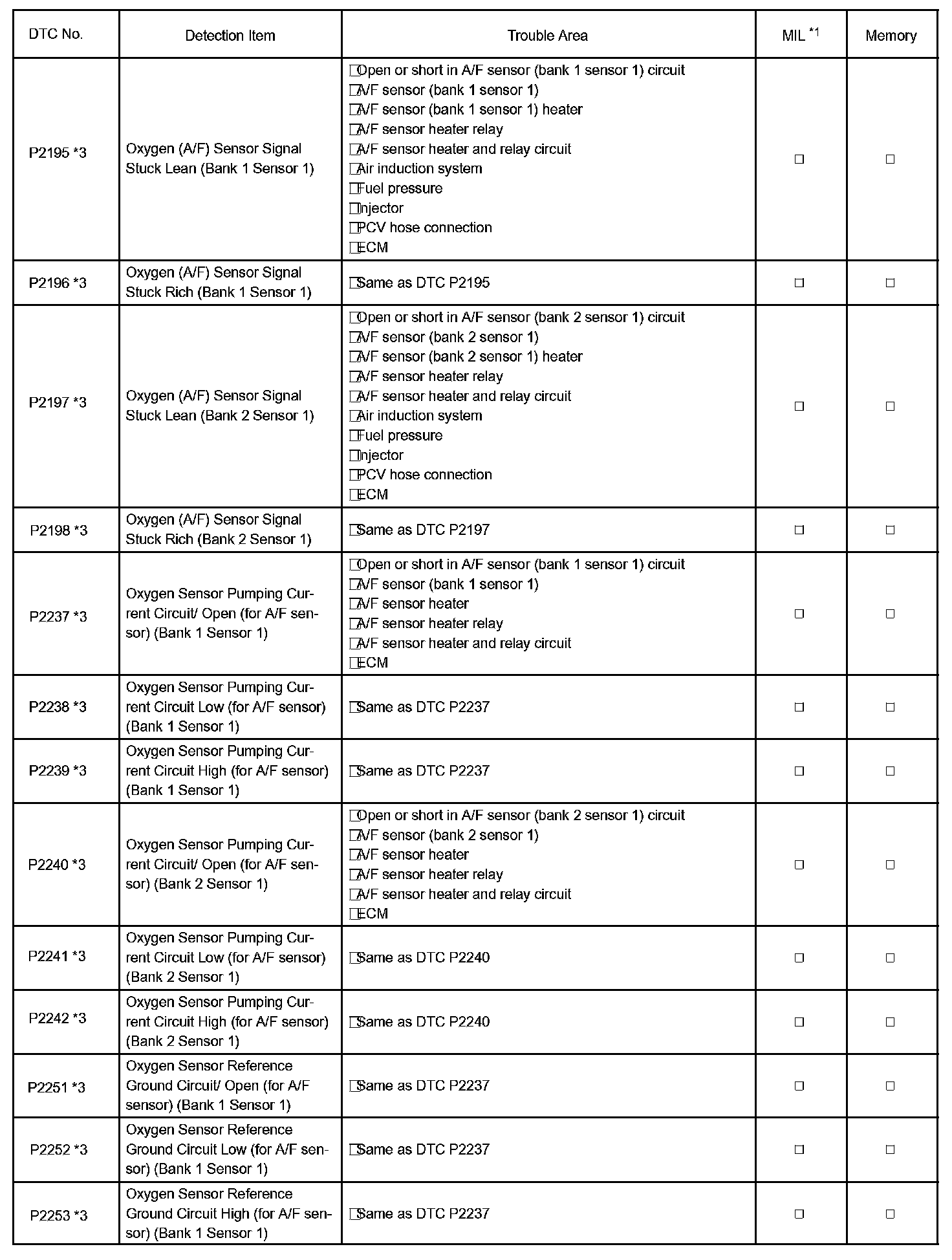

P2195-P2253:

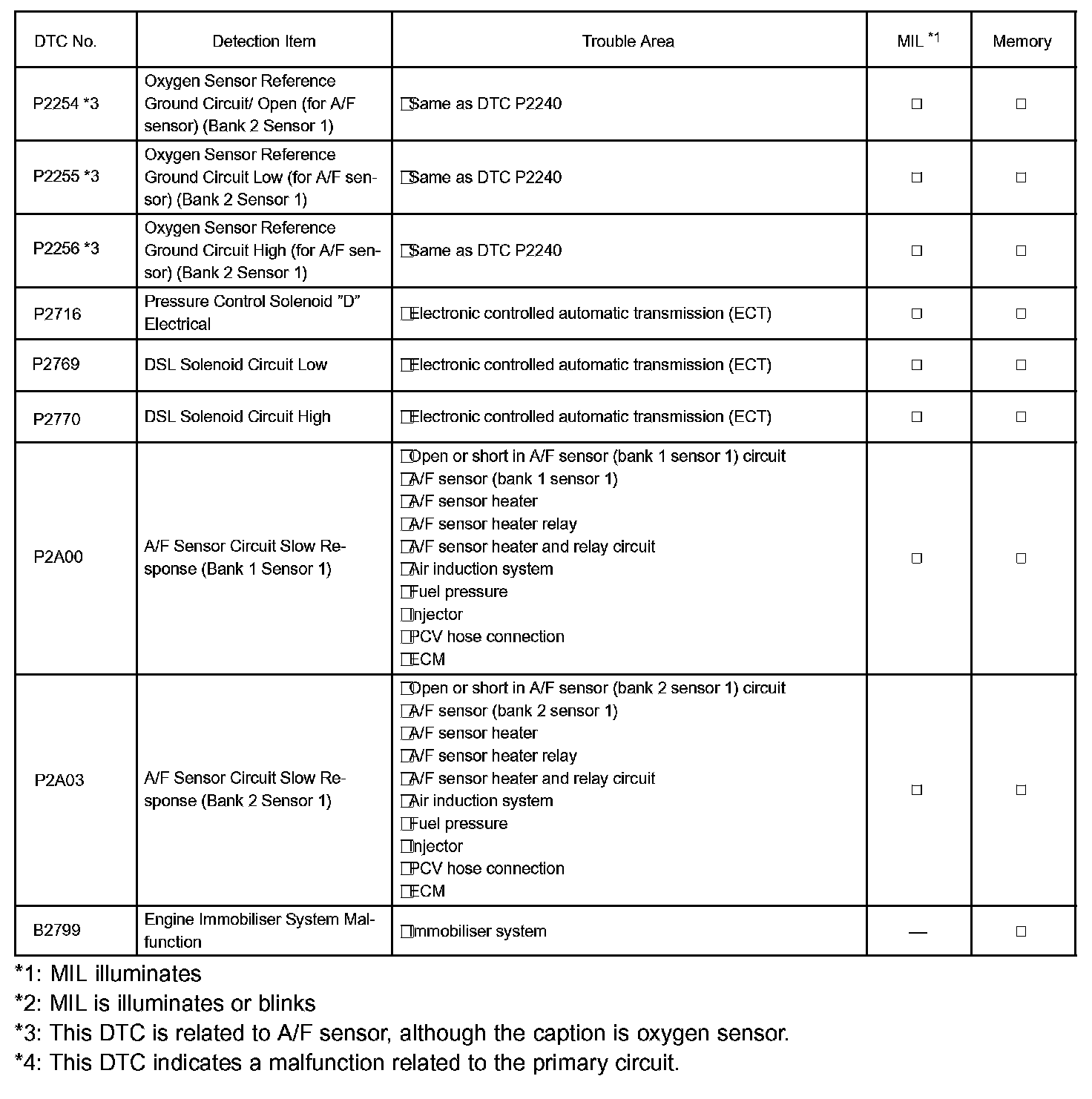

P2254-B2799:

HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument used and other factors.

During the DTC check, refer to the given table if a malfunction code is displayed. For details about each code, refer to the DTC Chart's.
