Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART

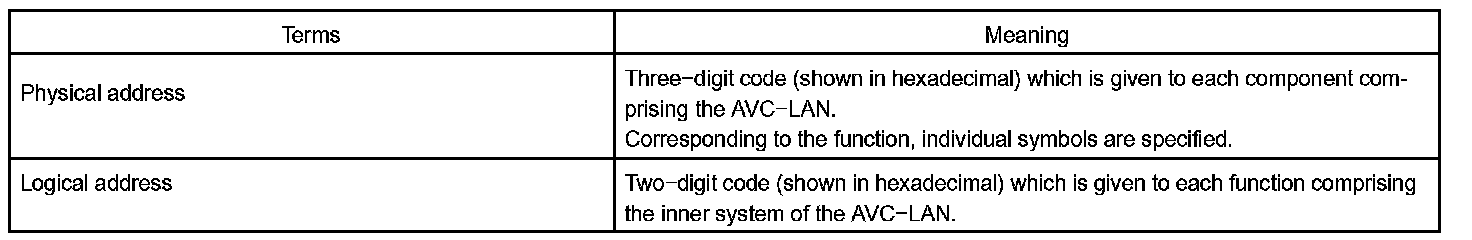

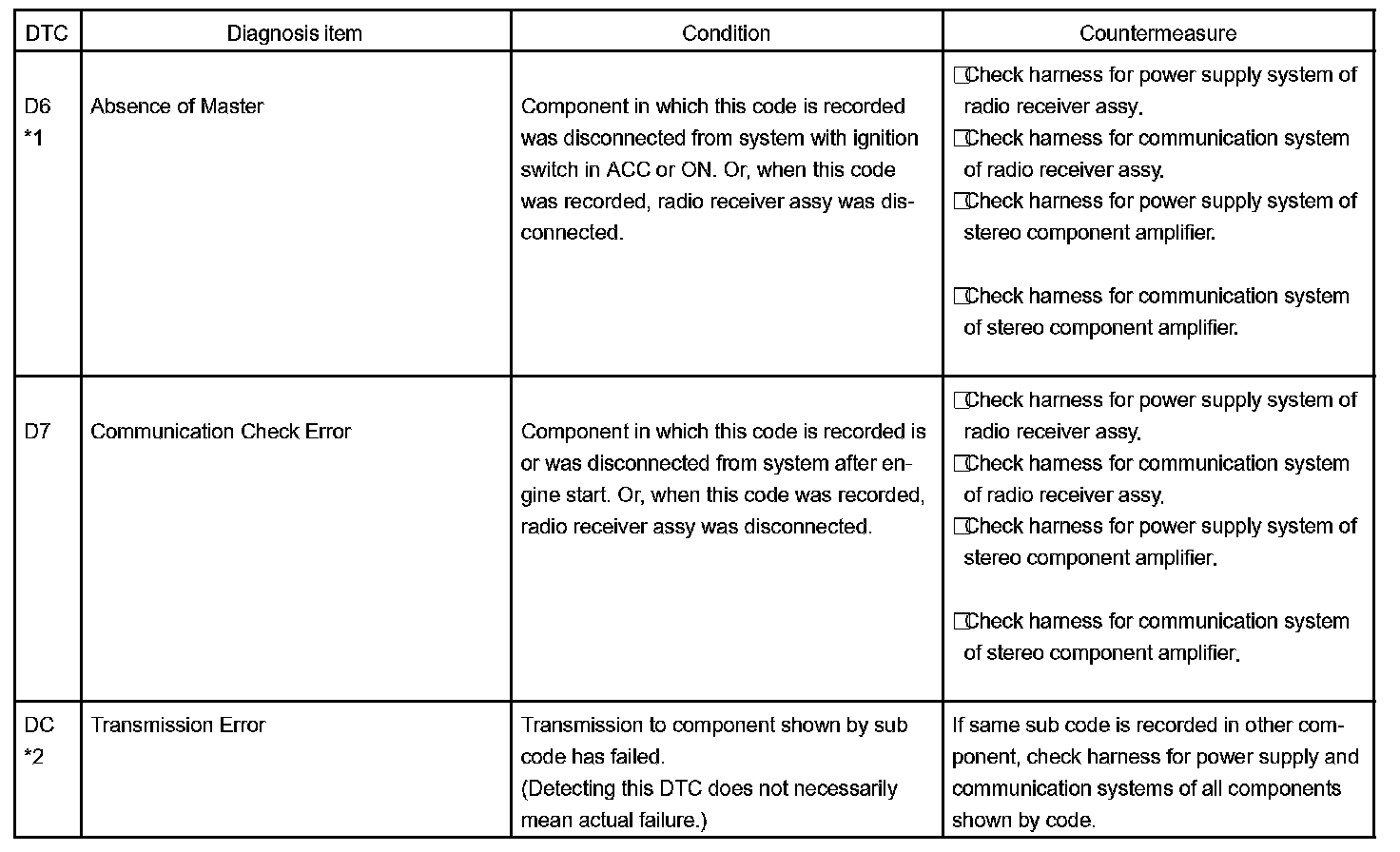

1. RADIO RECEIVER ASSY (Physical address: 190)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting the engine.
- *2: It is stored when 180 sec. have passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

D6-DC:

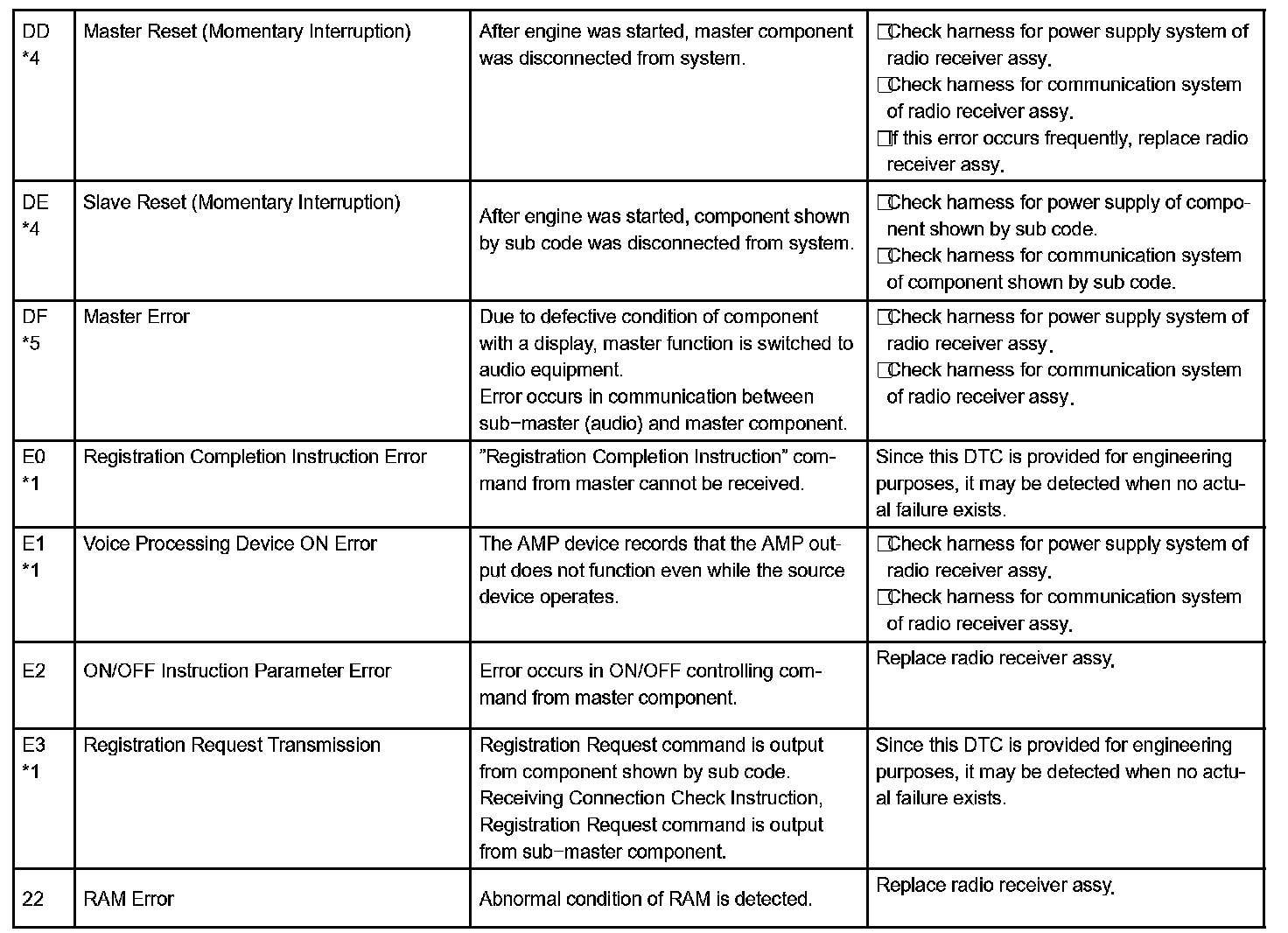

DD-22:

a. Logical address: 01 (Communication control)

40:

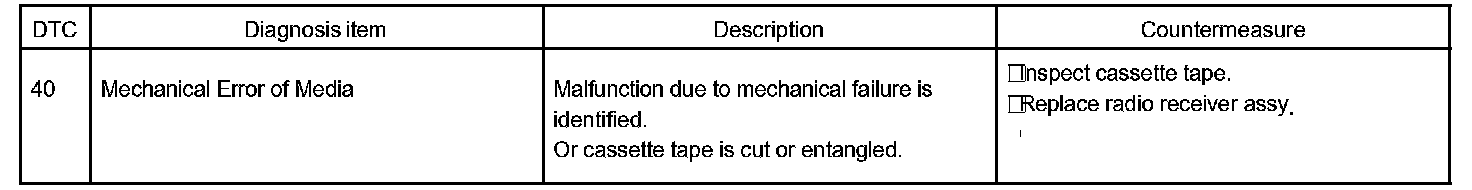

b. Logical address: 61 (Cassette switch)

42-48:

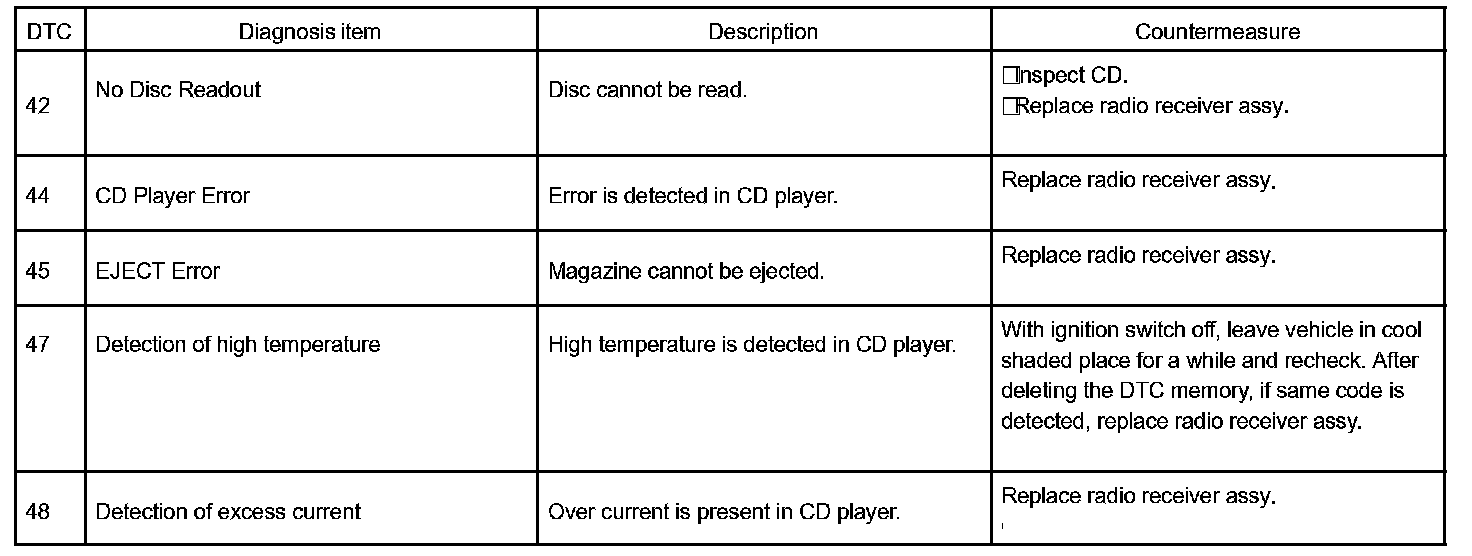

c. Logical address: 62 (CD player)

42-48:

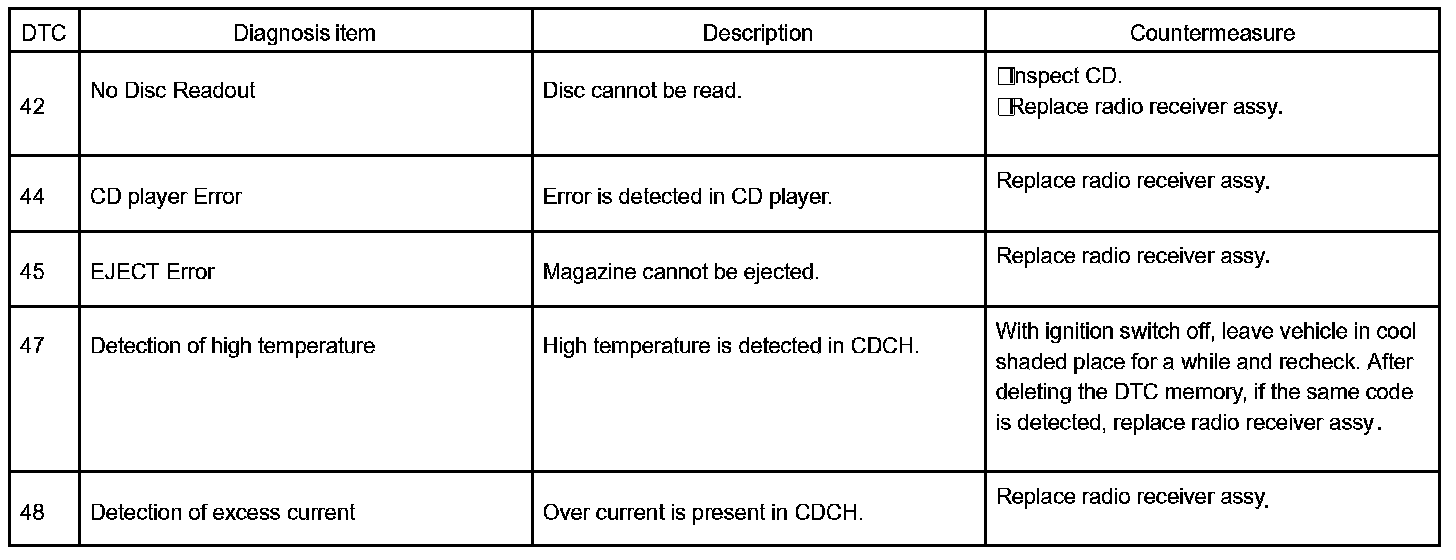

d. Logical address: 63 (In-dash CD changer)

2. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the engine key is turned again 1 min. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

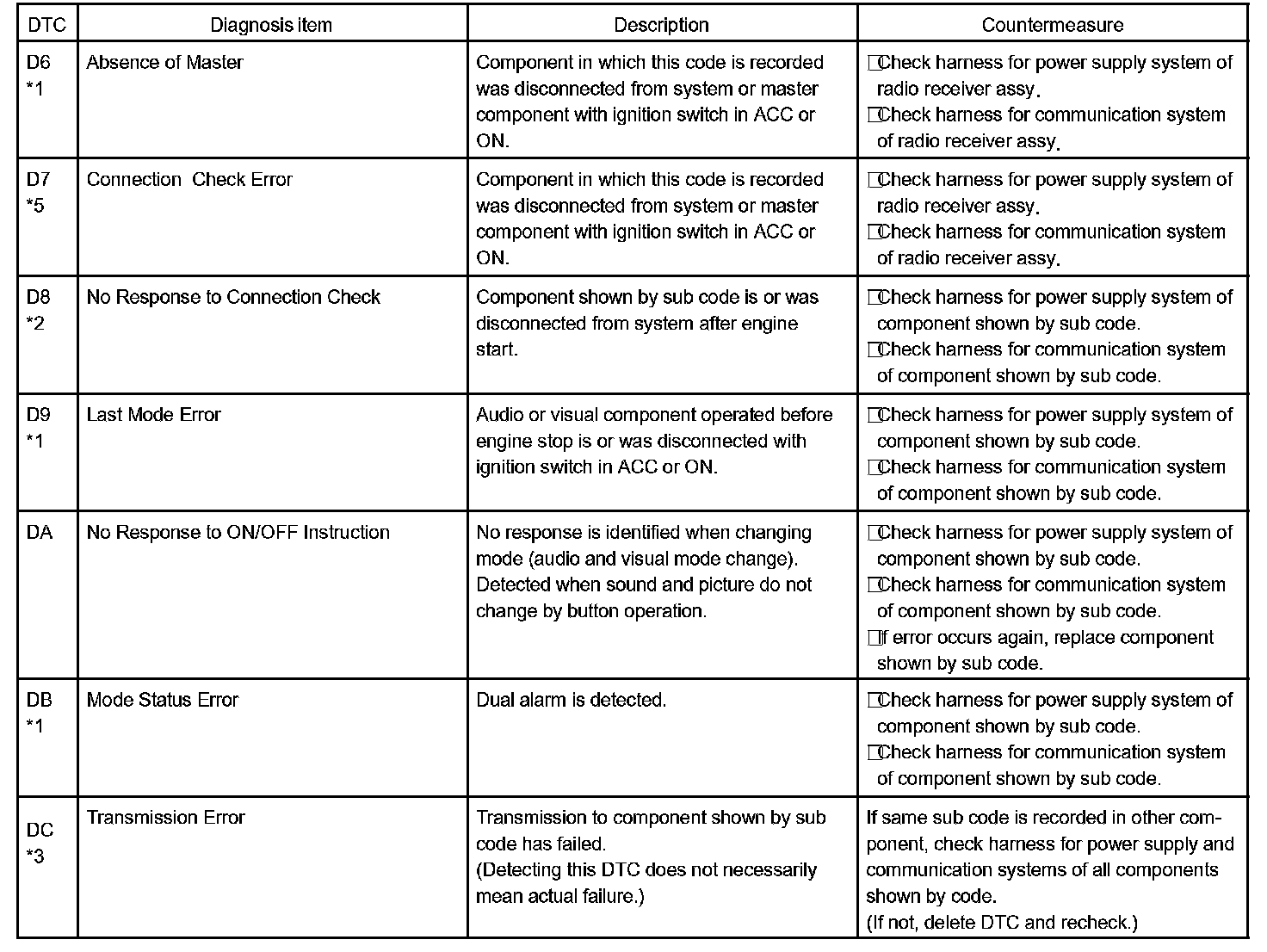

D6-DC:

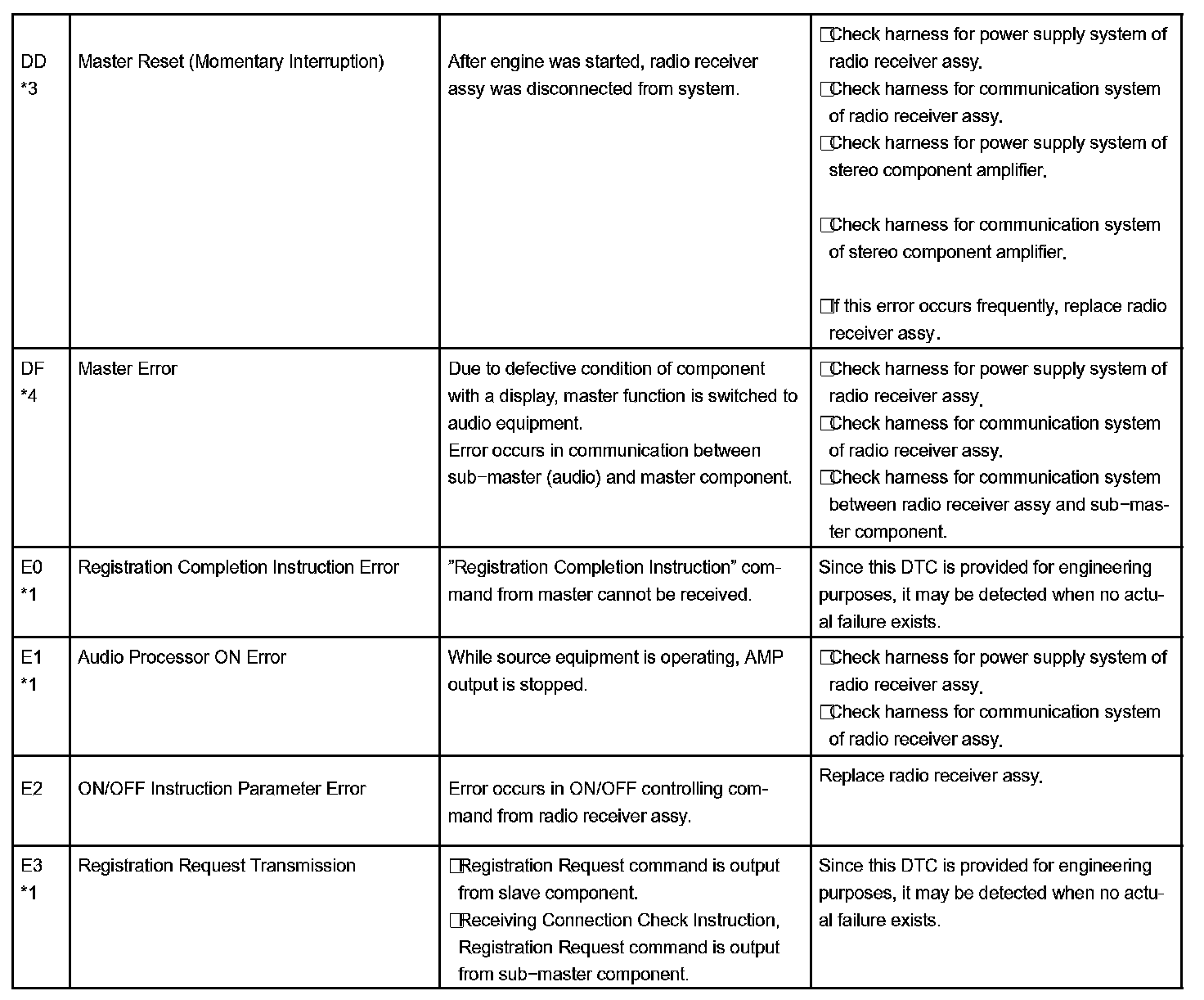

DD-E3:

Logical address: 01 (Communication control)
