Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

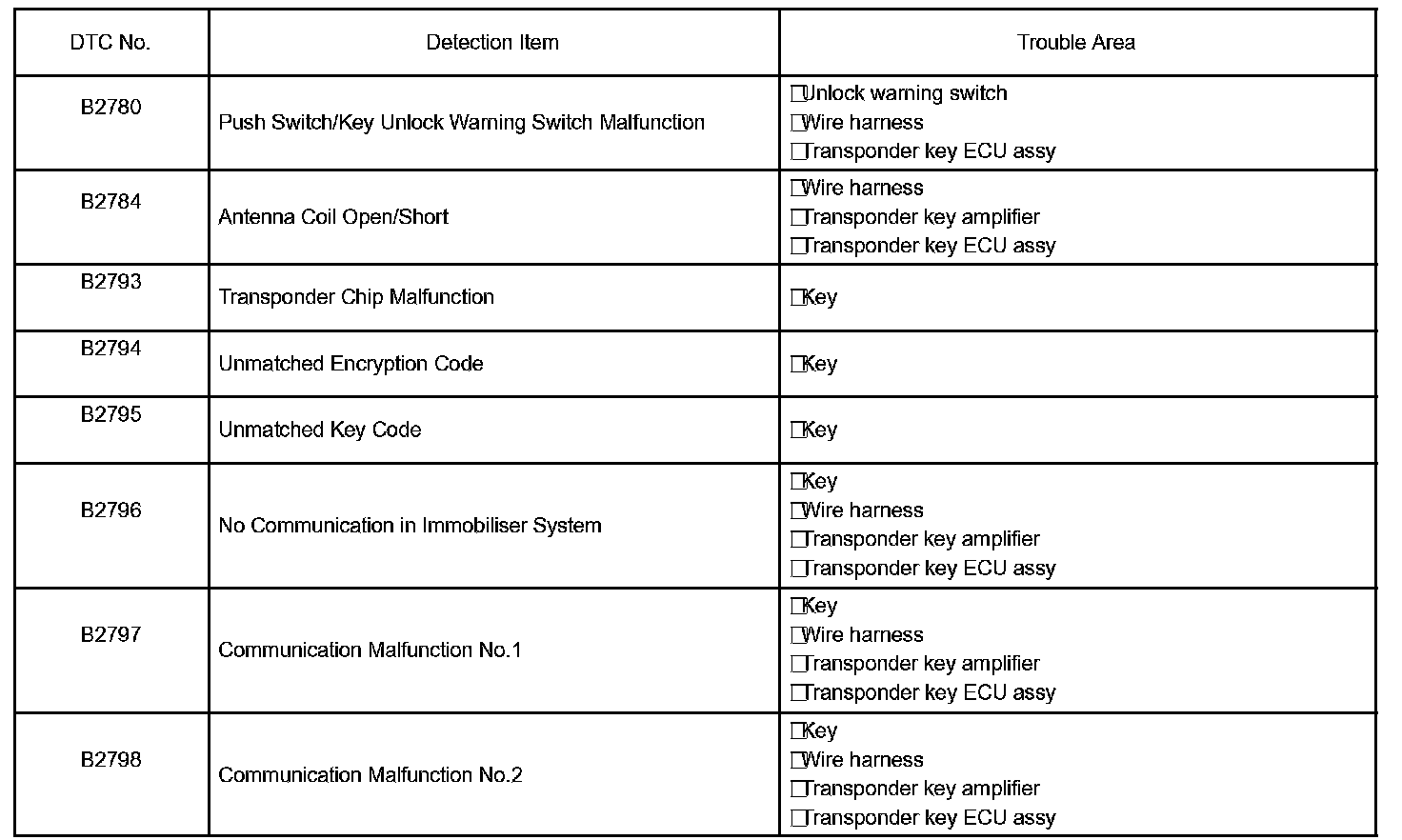

B2780-B2798:




1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART

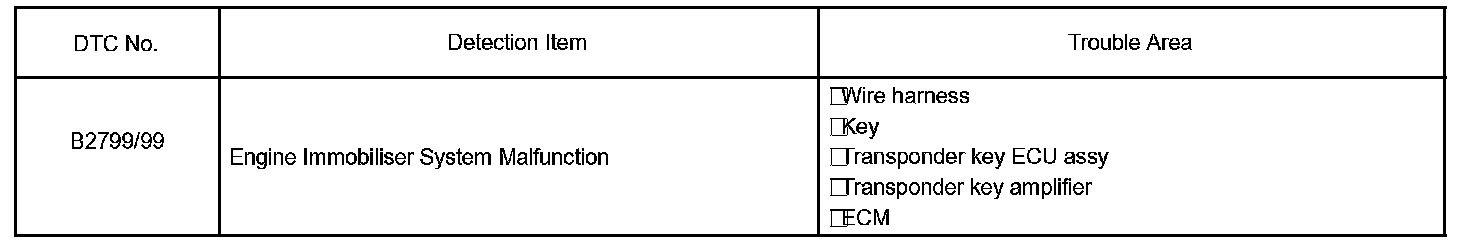

B2799/99:




2. ECM DIAGNOSTIC TROUBLE CODE CHART

NOTE: The DTCs for the immobilizer system are specified above. If the other codes are output, check the DTC chart for the engine control system.
