Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Cruise Control System

Cruise Control System

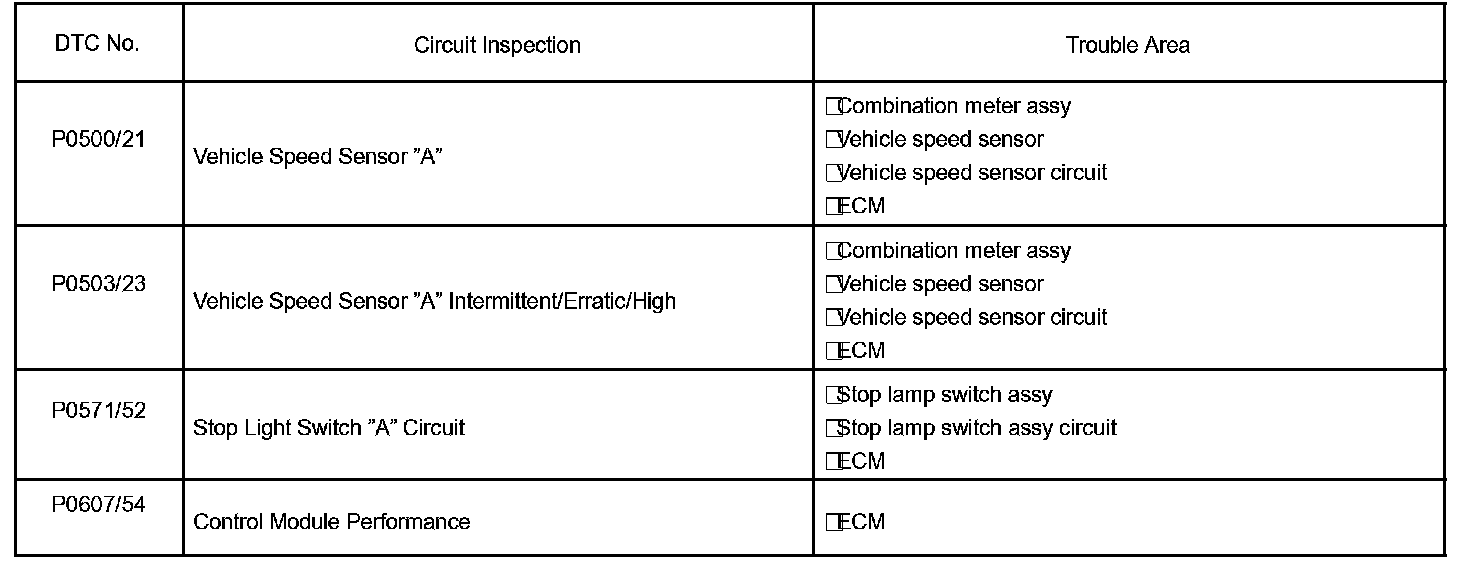

DIAGNOSTIC TROUBLE CODE CHART

P0500/21-P0607/54:




If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table and proceed to an appropriate troubleshooting.
