Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

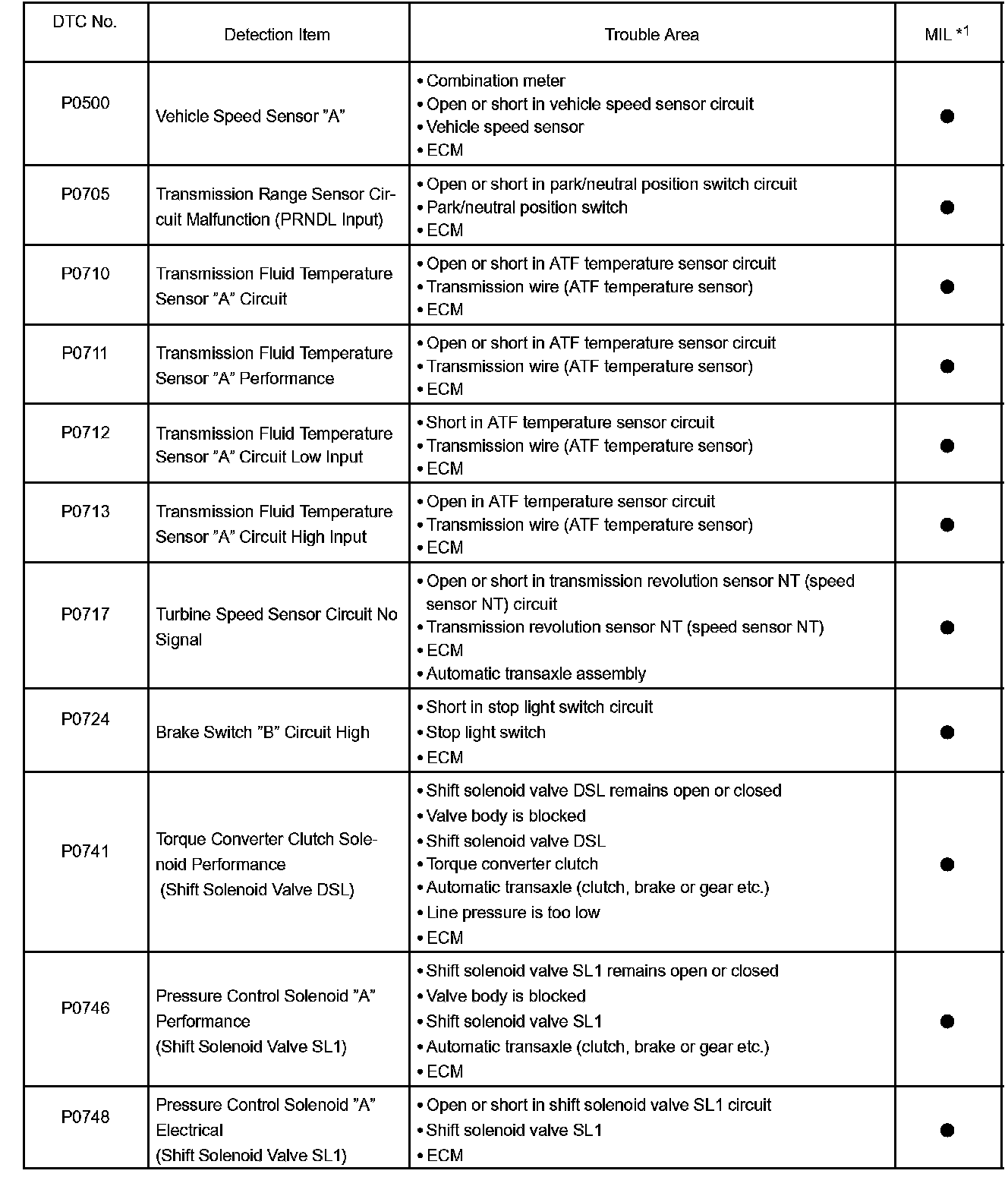

P0500-P0748:

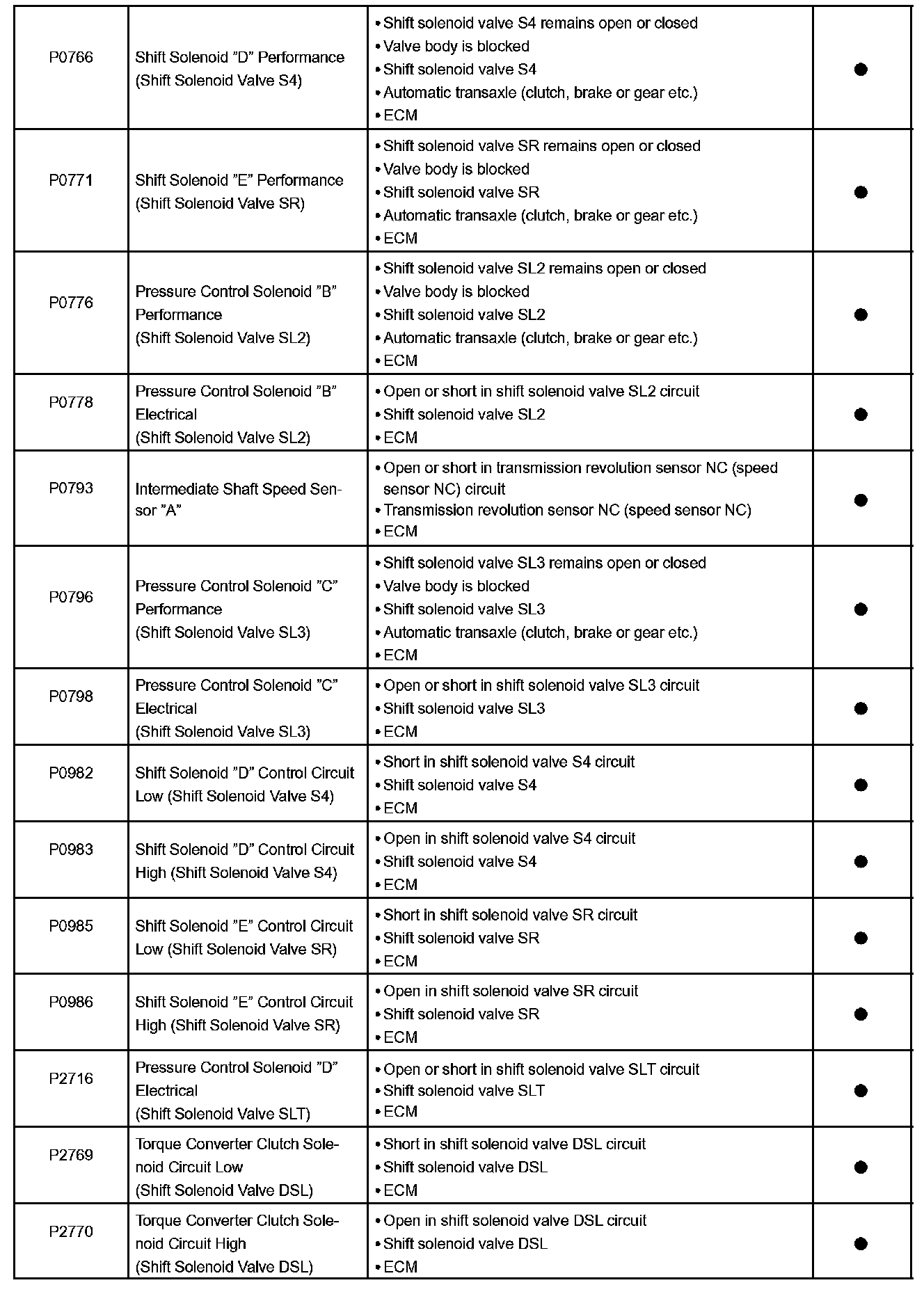

P0766-P2770:

If a DTC is displayed during the DTC check, check the parts listed in the table and proceed.

HINT:
- *1 : ... The MIL (Malfunction Indicator Lamp) lights up
- *2 : ... The ECM memorizes the trouble code if the ECM detects the DTC detection condition.
- These DTCs may be output when the clutch, brake and gear components etc. inside the automatic transaxle are damaged.
