C1774

DTC C1774/74 POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

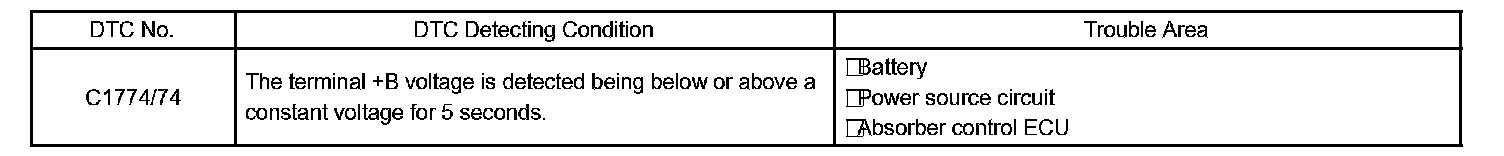

DTC Detecting Condition:

When turning the ignition switch to ON, the battery positive voltage is input to +B terminal to absorber control ECU. When turning the ignition switch to OFF, the battery positive voltage supply to +B terminal stops and the power switched OFF.

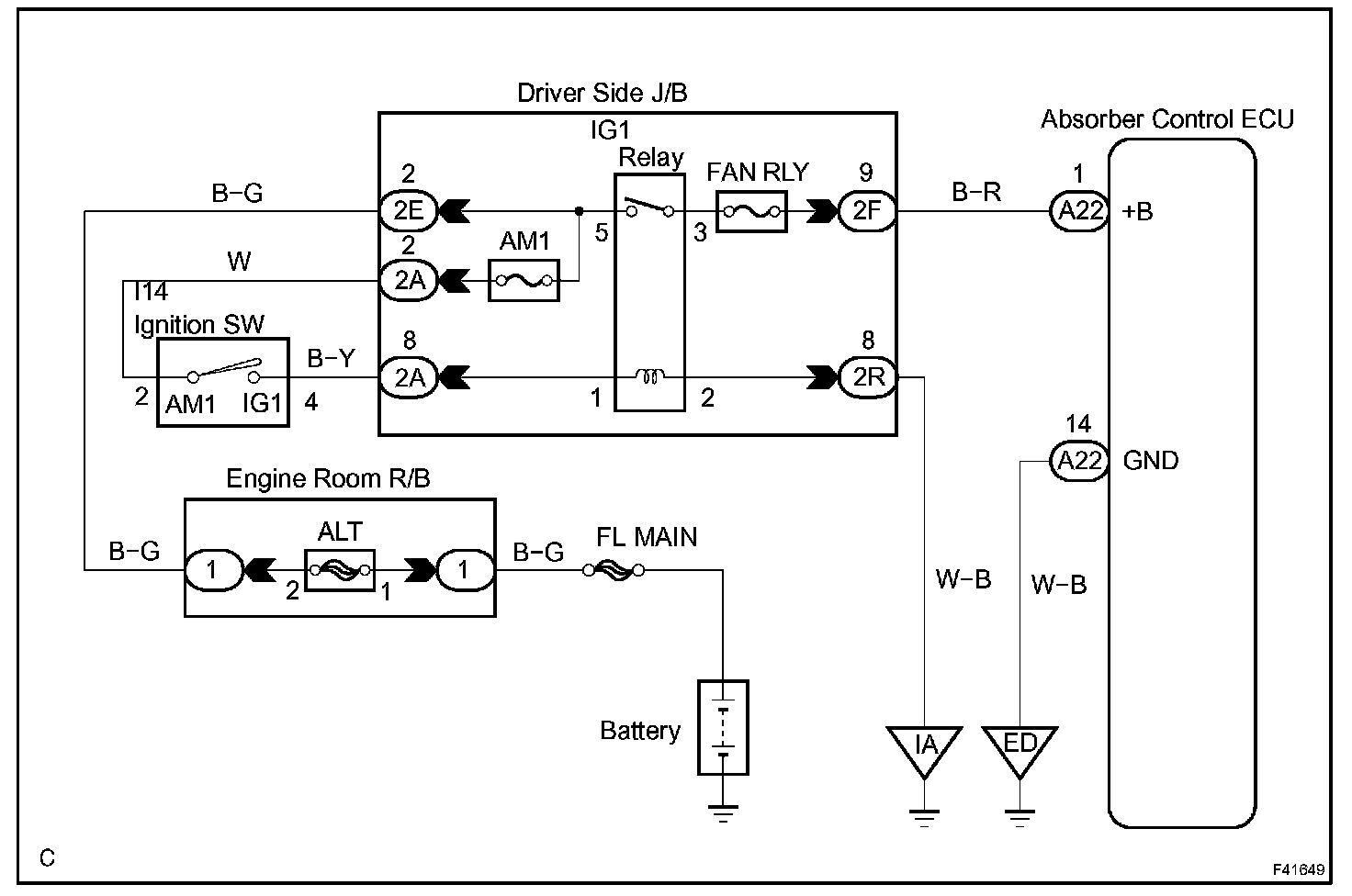

Wiring Diagram:

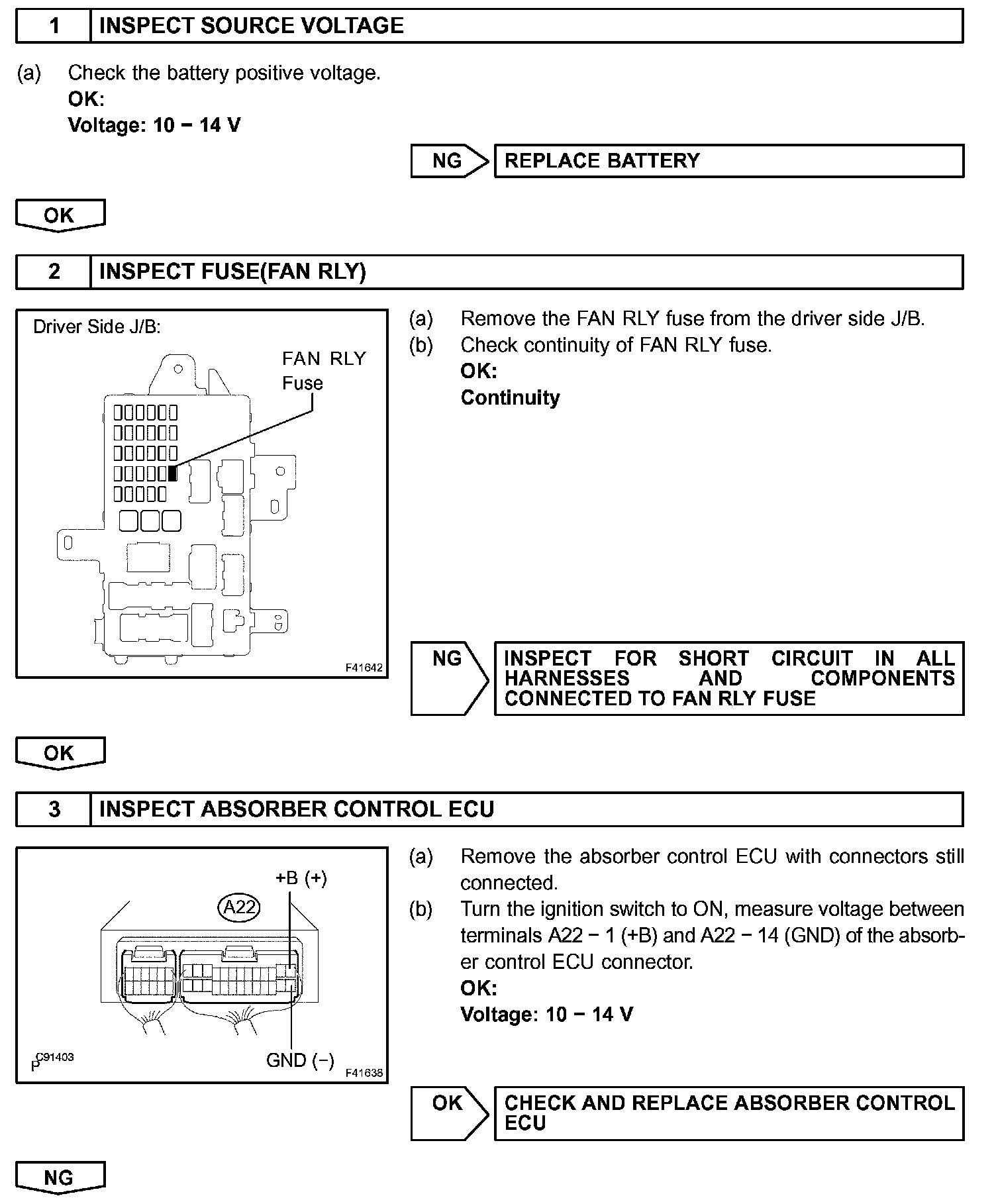

Step 1-3:

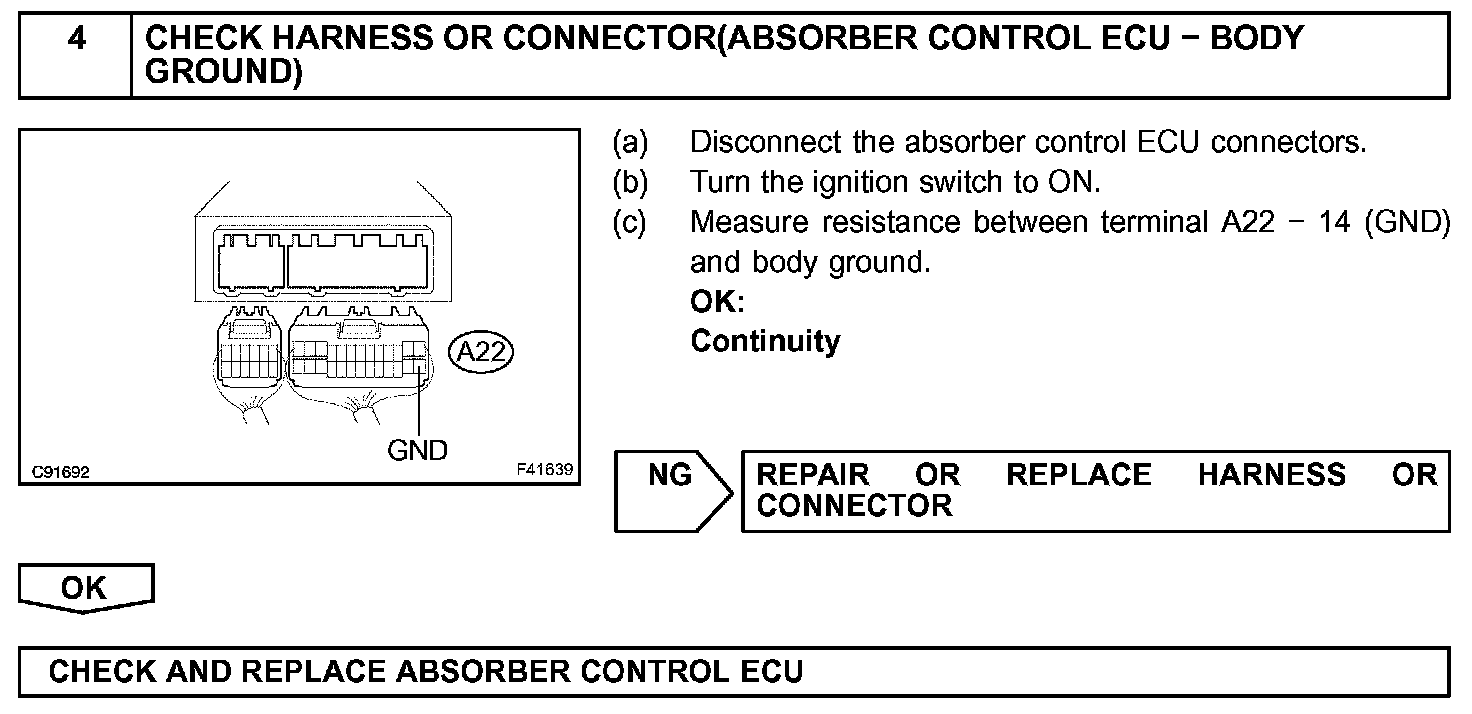

Step 4:

INSPECTION PROCEDURE
