C1251
>>
ABS W/EBD System
ABS W/EBD System
DTC C1251/51 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND
CIRCUIT DESCRIPTION

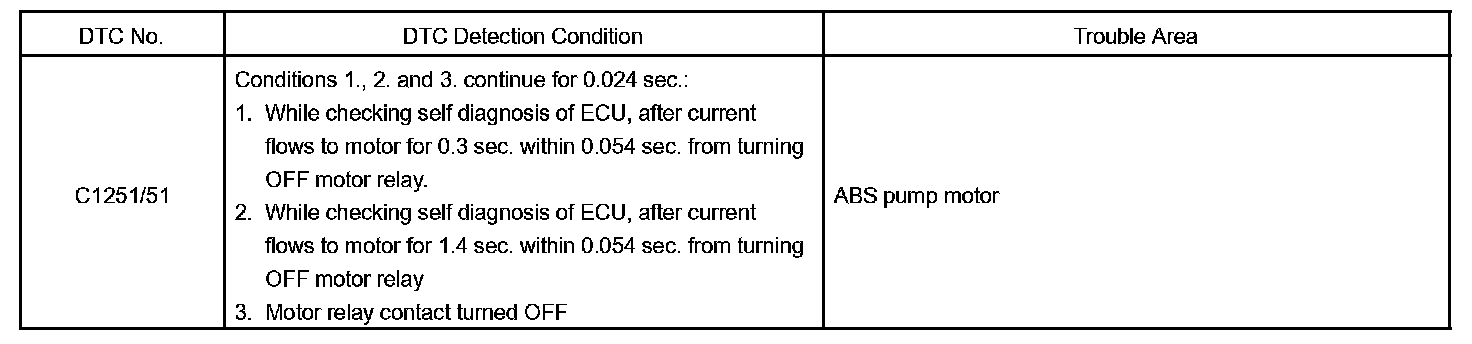

DTC Detection Condition:

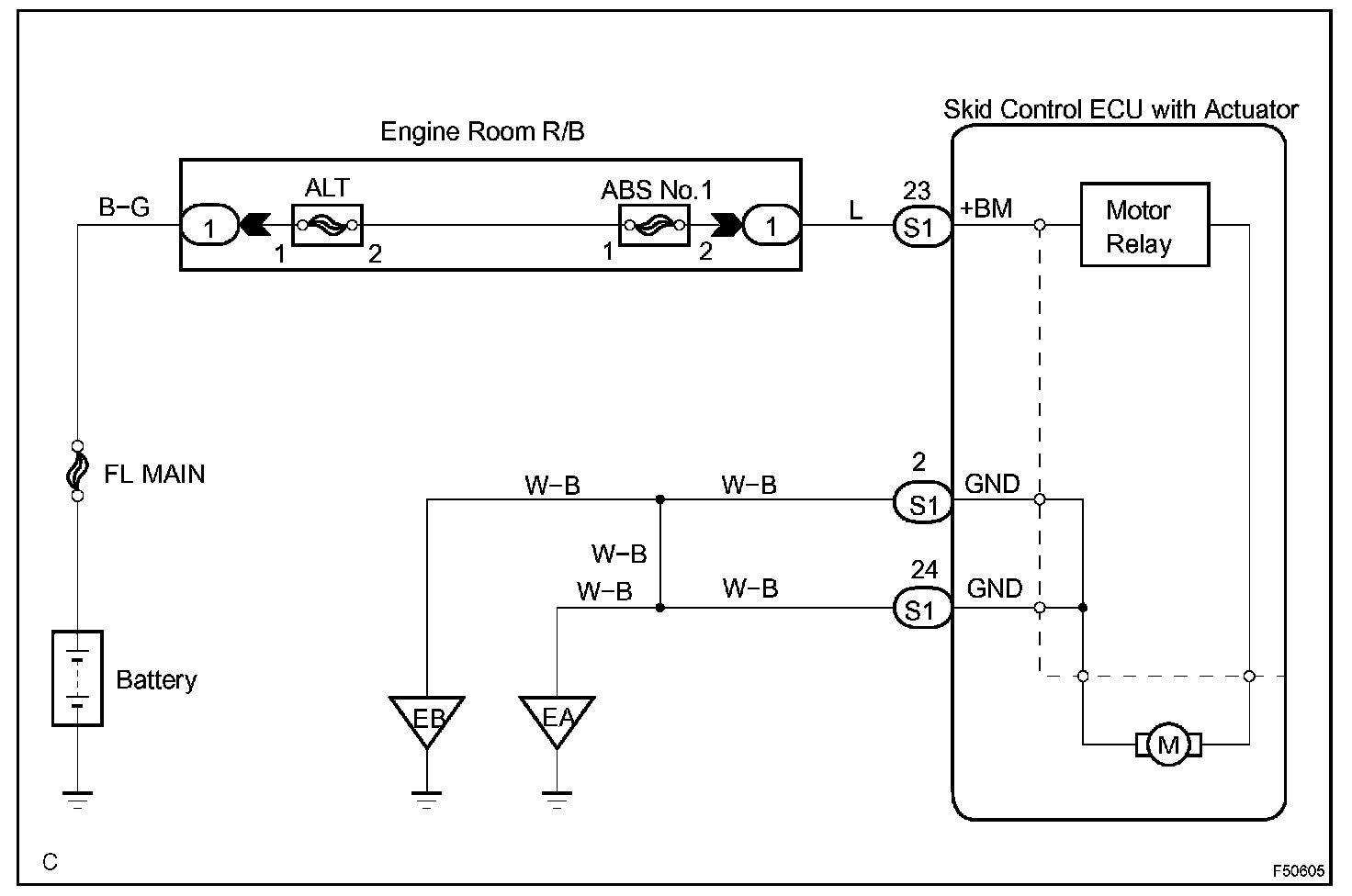

Wiring Diagram:

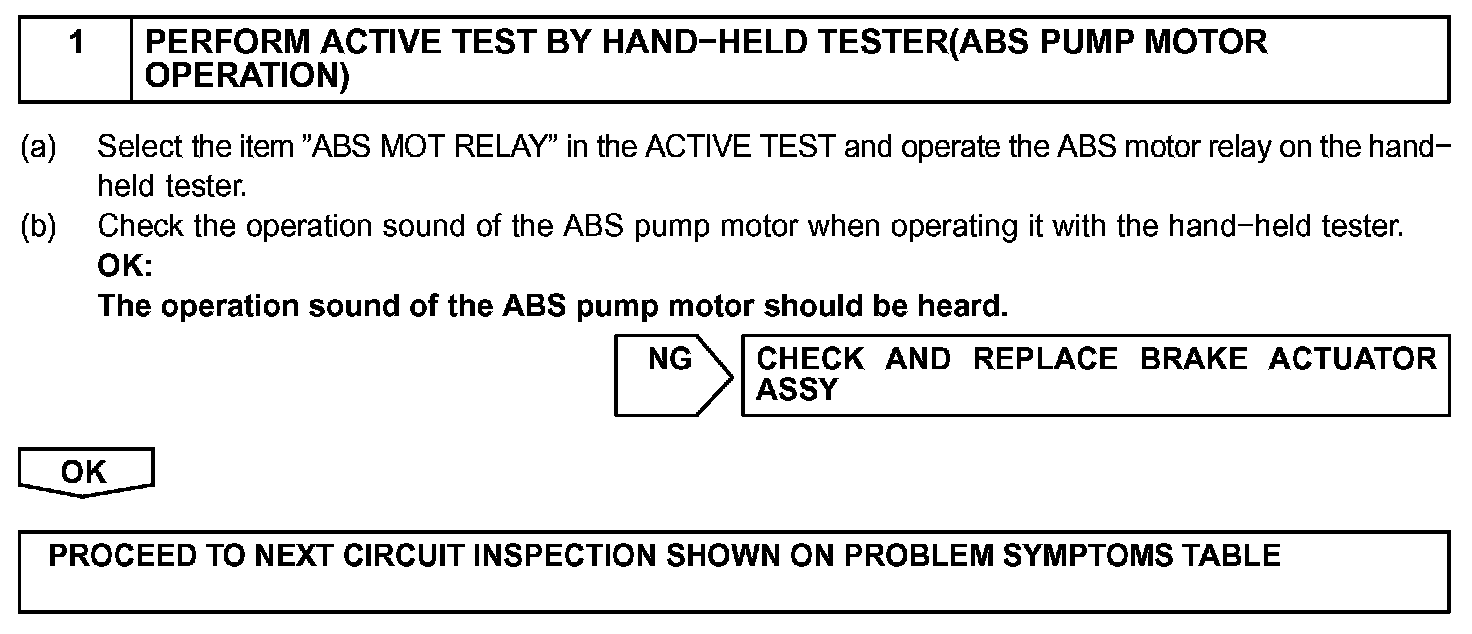

Step 1:
INSPECTION PROCEDURE
