DTC C1249/49 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT
CIRCUIT DESCRIPTION

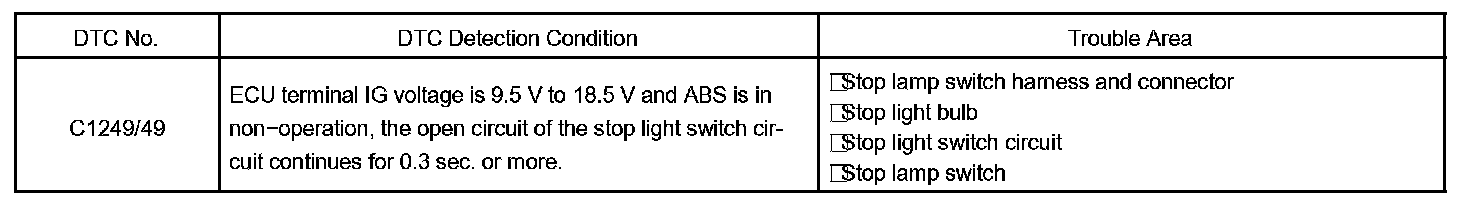

DTC Detection Condition:

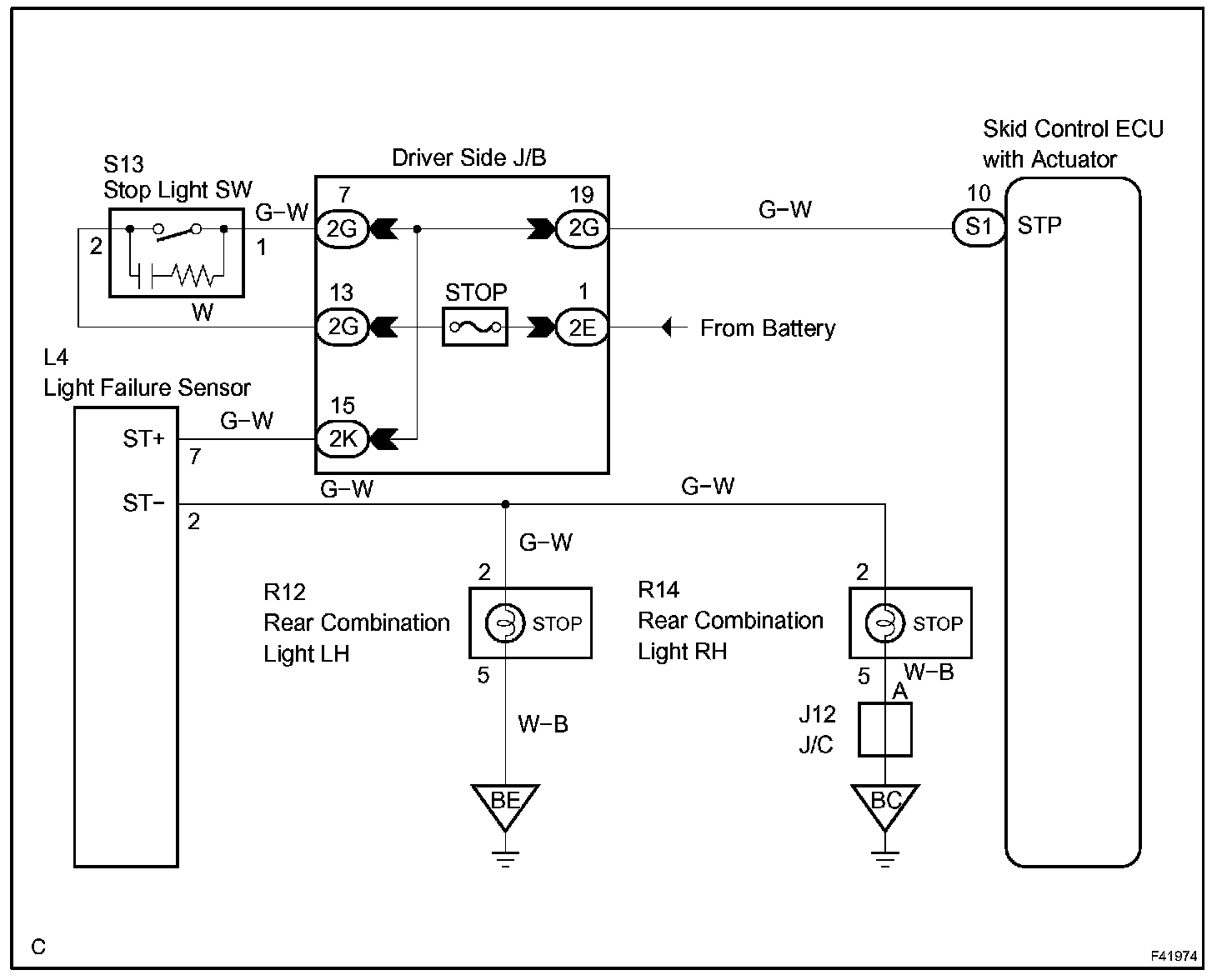

Wiring Diagram:

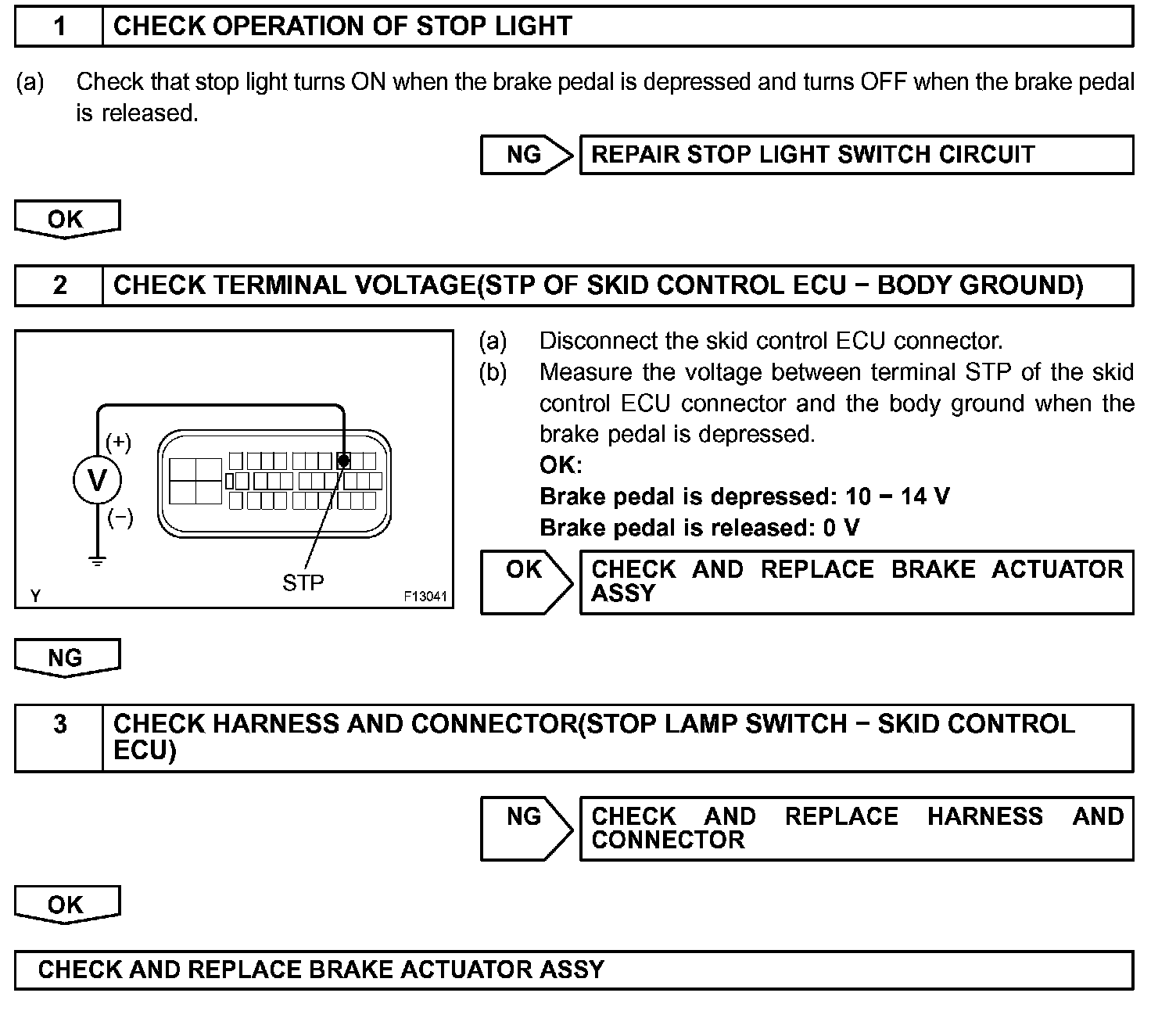

Step 1-3:
INSPECTION PROCEDURE
