C1246

DTC C1246/46 MALFUNCTION IN MASTER CYLINDER PRESSURE SENSOR

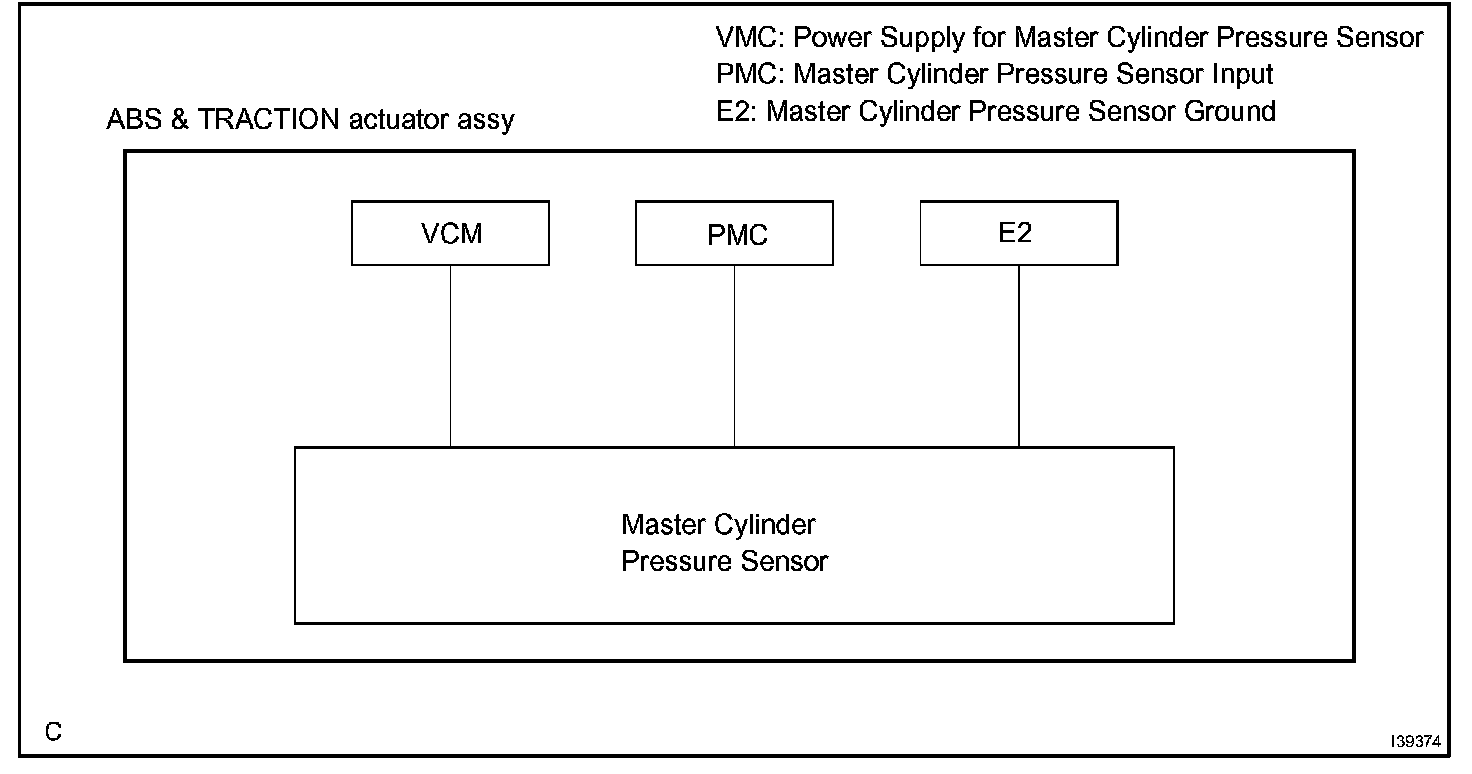

CIRCUIT DESCRIPTION

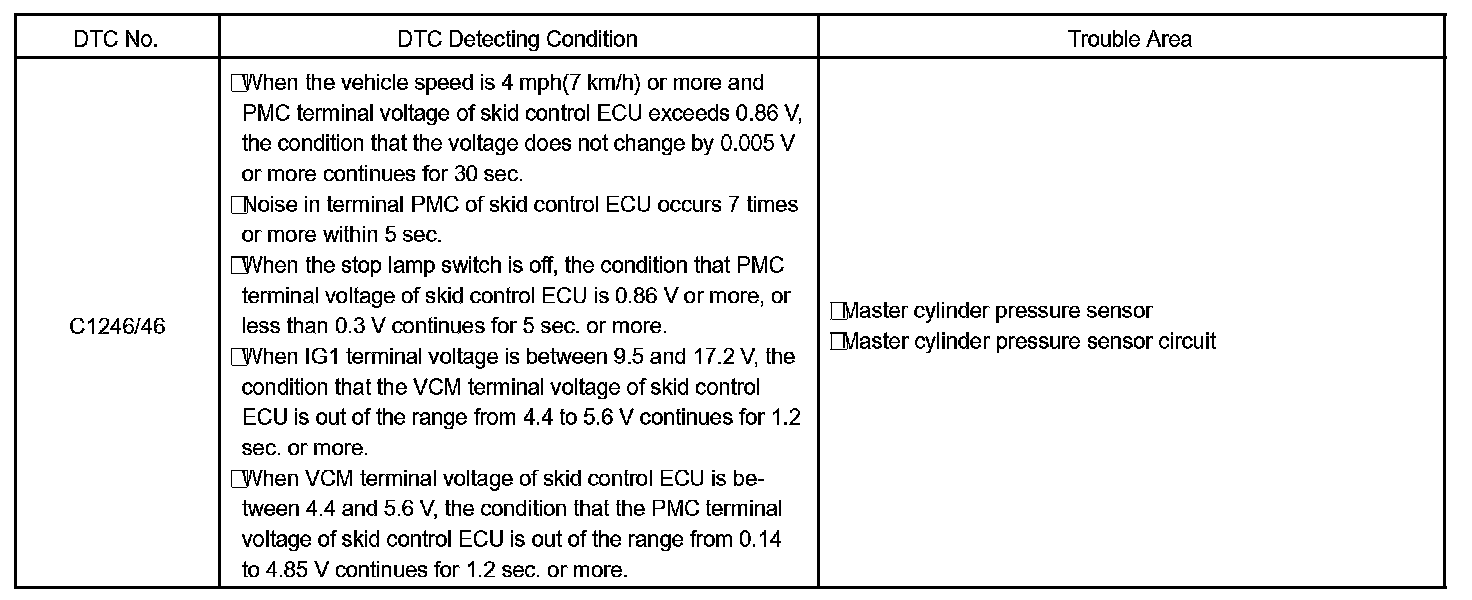

DTC Detecting Condition:

Master cylinder pressure sensor is connected to the skid control ECU in the actuator.

Step 1-2:

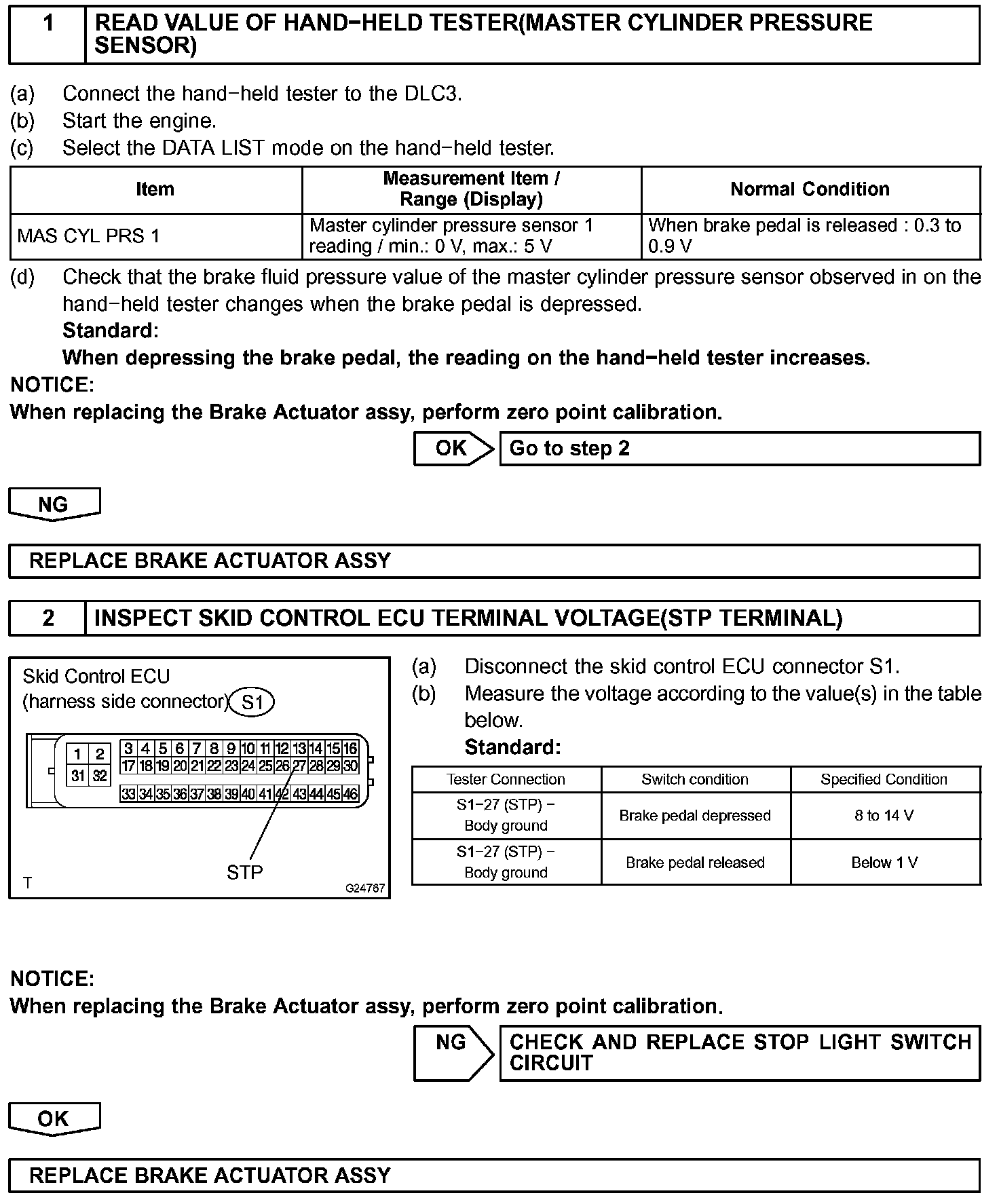

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
