B1790

DTC B1790 AIRBAG SENSOR ASSY CENTER COMMUNICATION CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

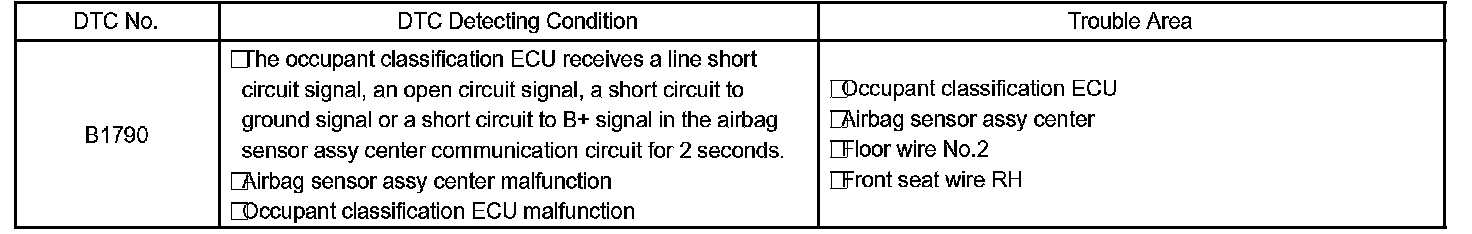

DTC Detecting Condition:

The airbag sensor assy center communication circuit consists of the occupant classification ECU and the airbag sensor assy center.

DTC B1790 is recorded when a malfunction is detected in the airbag sensor assy center communication circuit.

HINT:
- When DTC B1630/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1790 of the occupant classification system.
- Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.

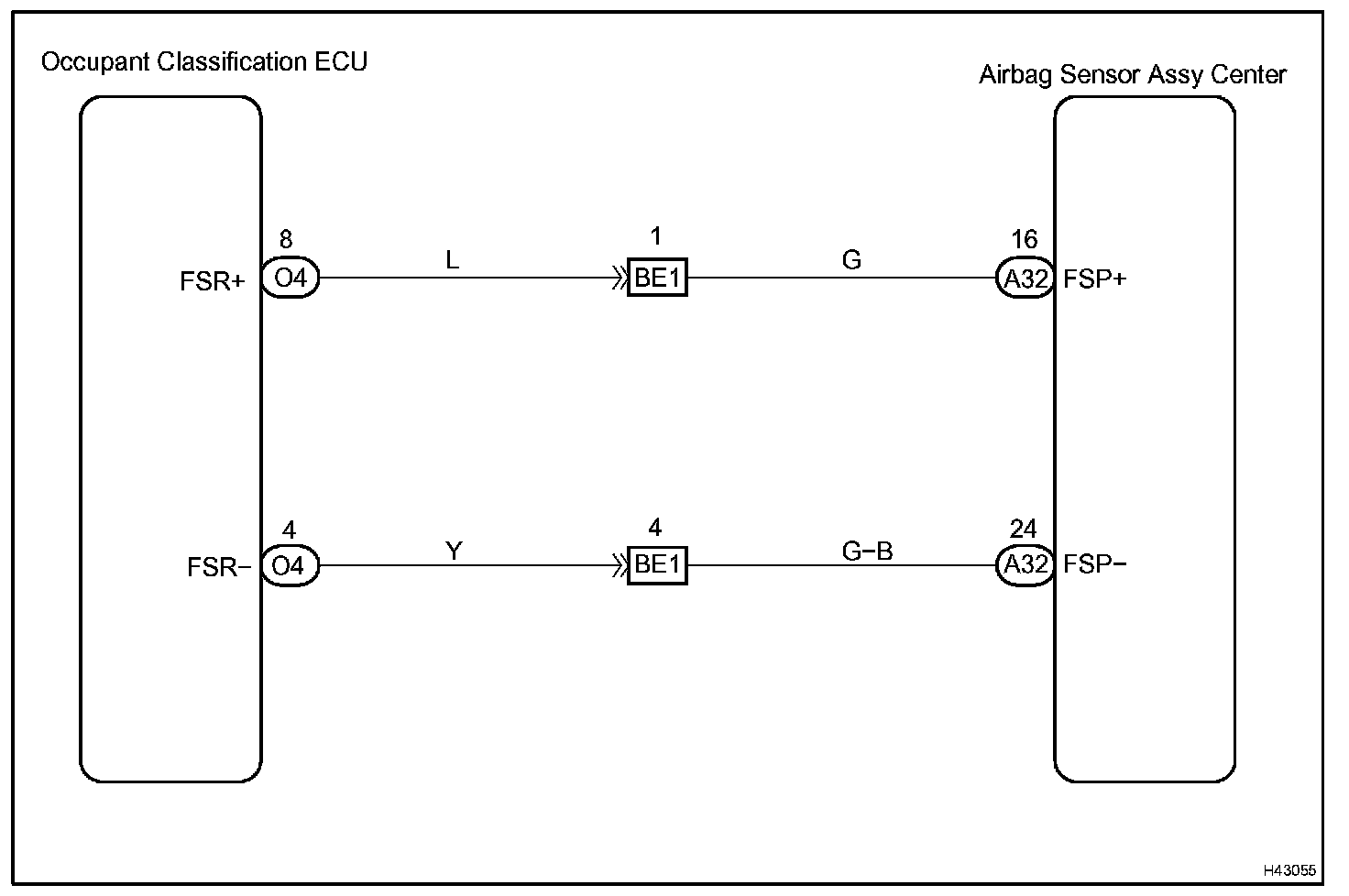

Wiring Diagram:

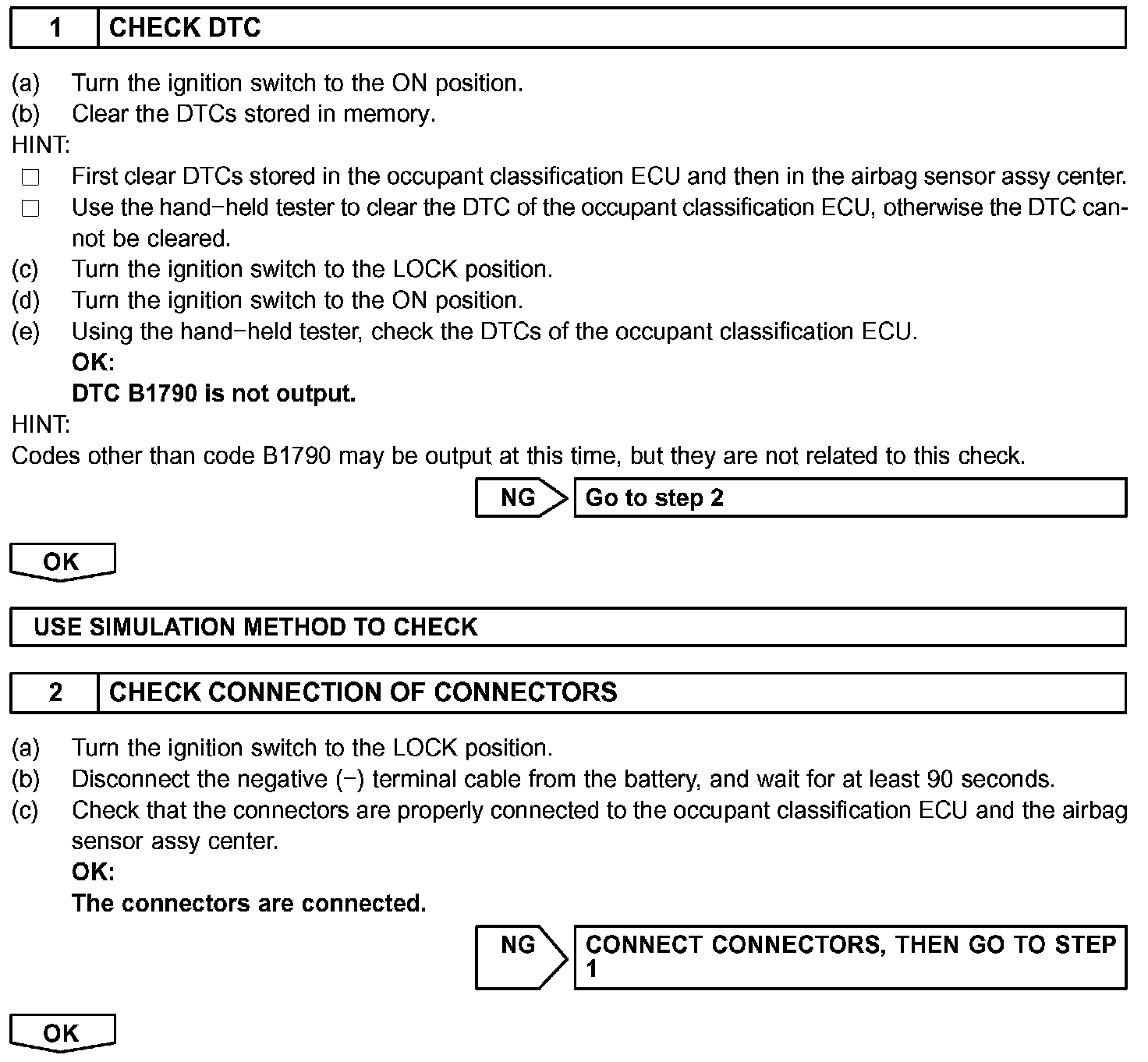

Step 1-2:

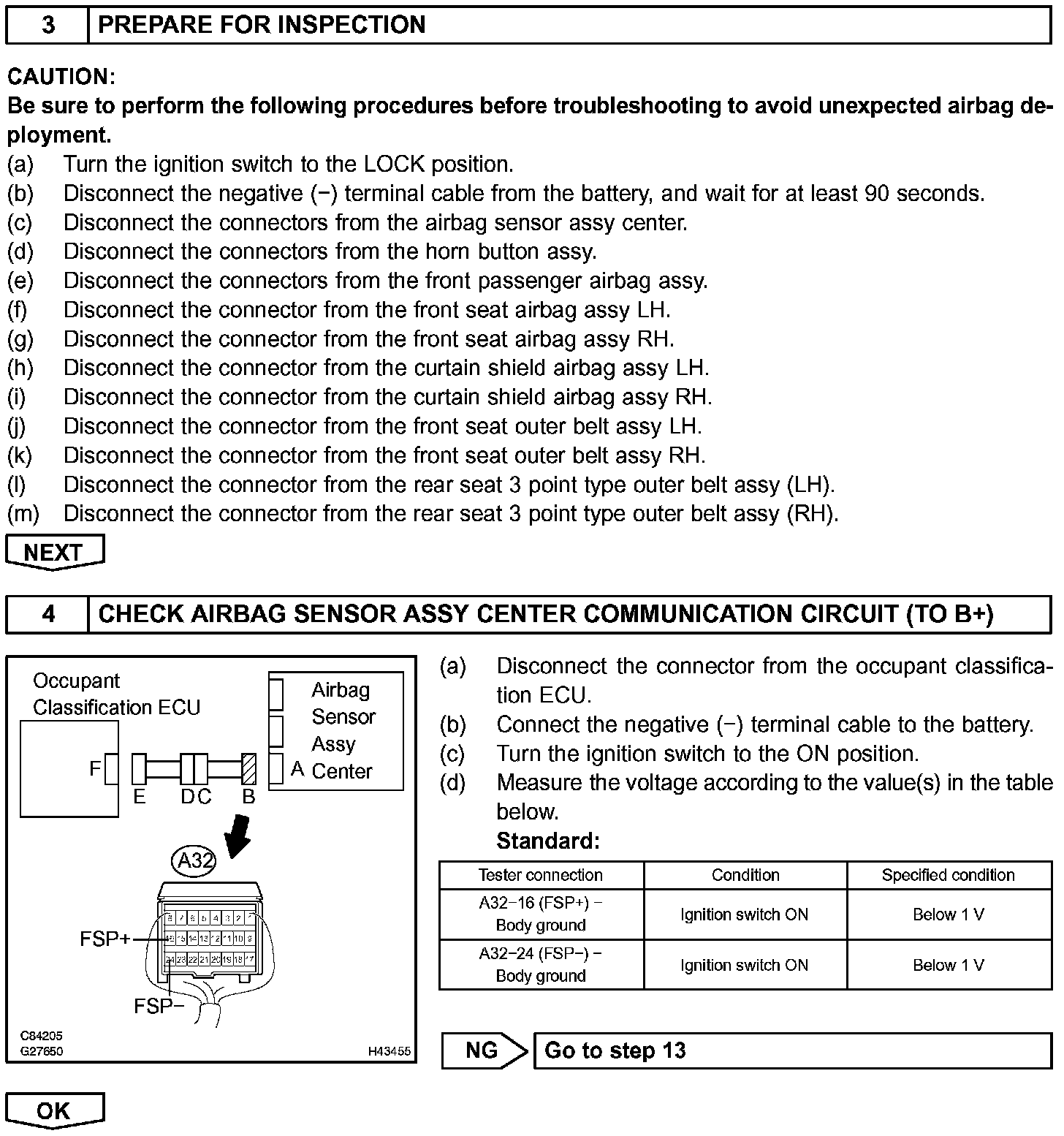

Step 3-4:

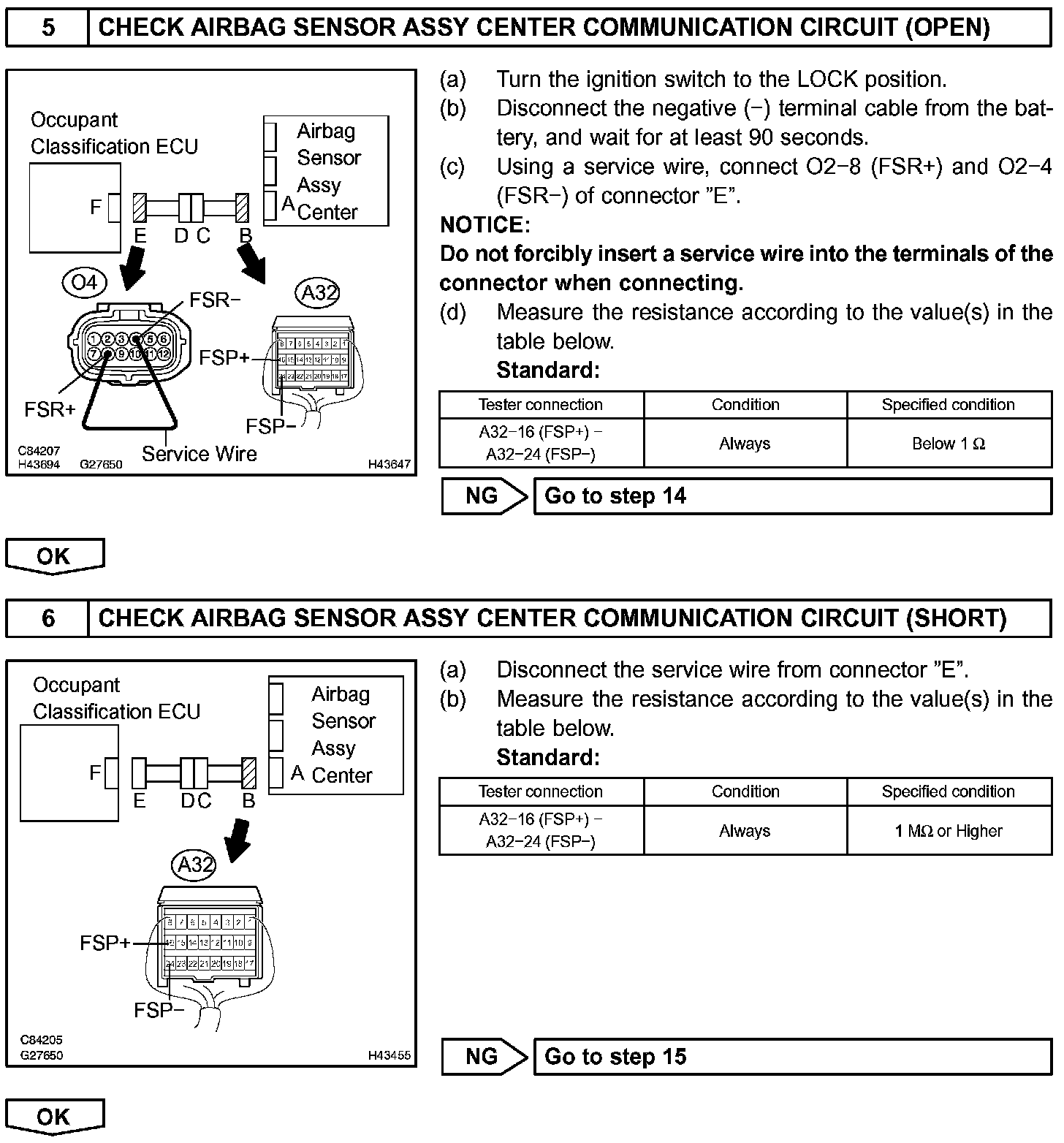

Step 5-6:

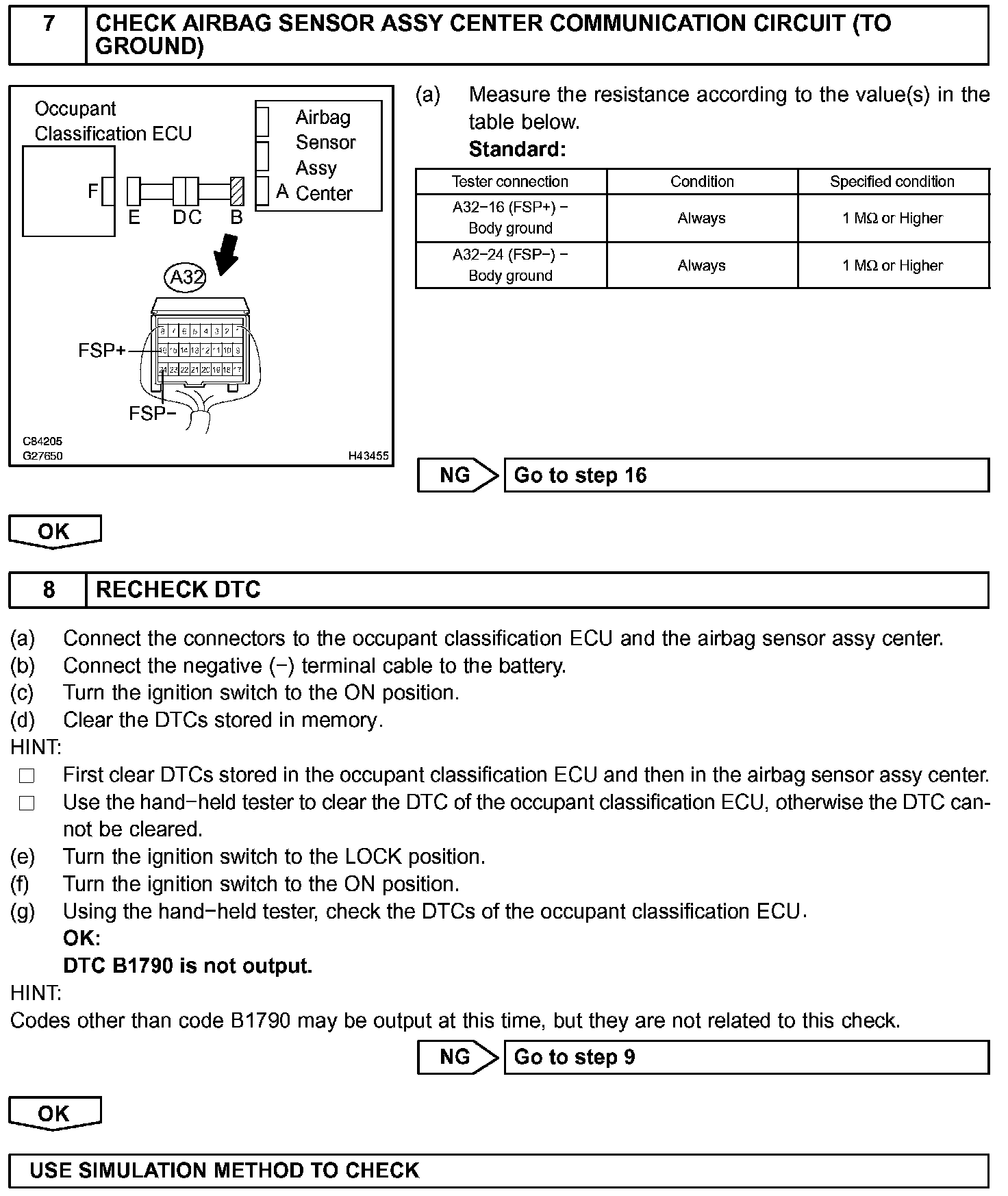

Step 7-8:

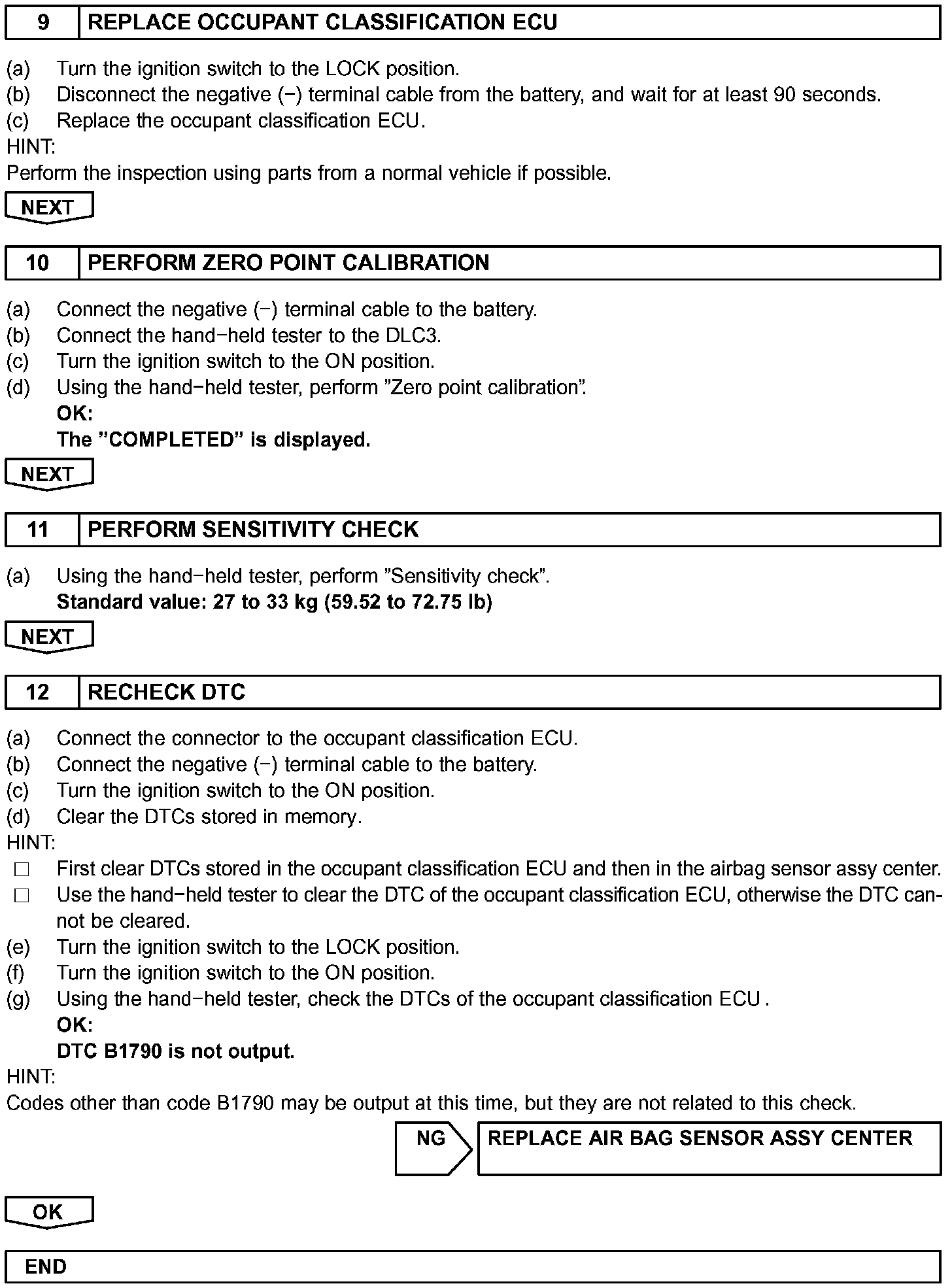

Step 9-12:

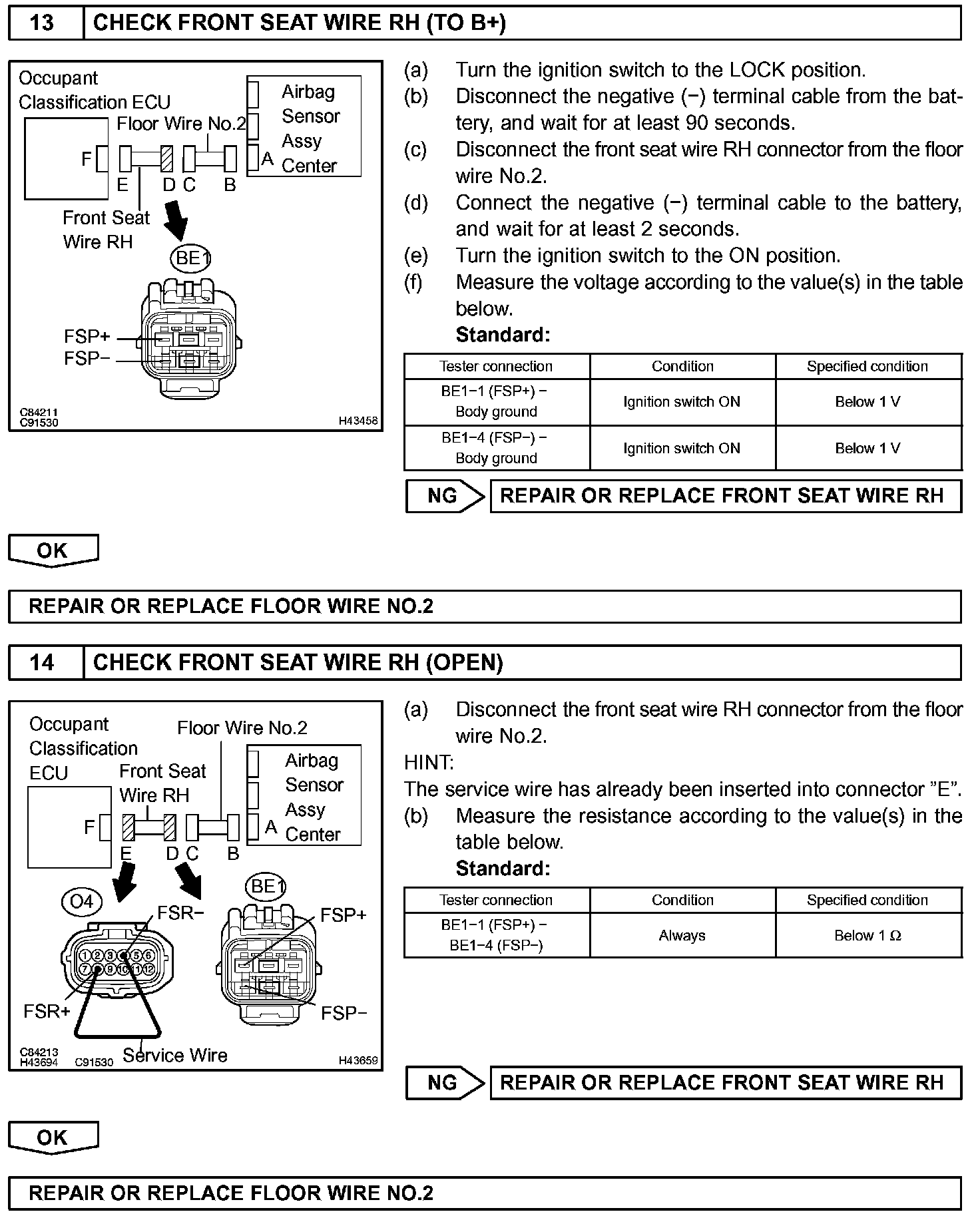

Step 13-14:

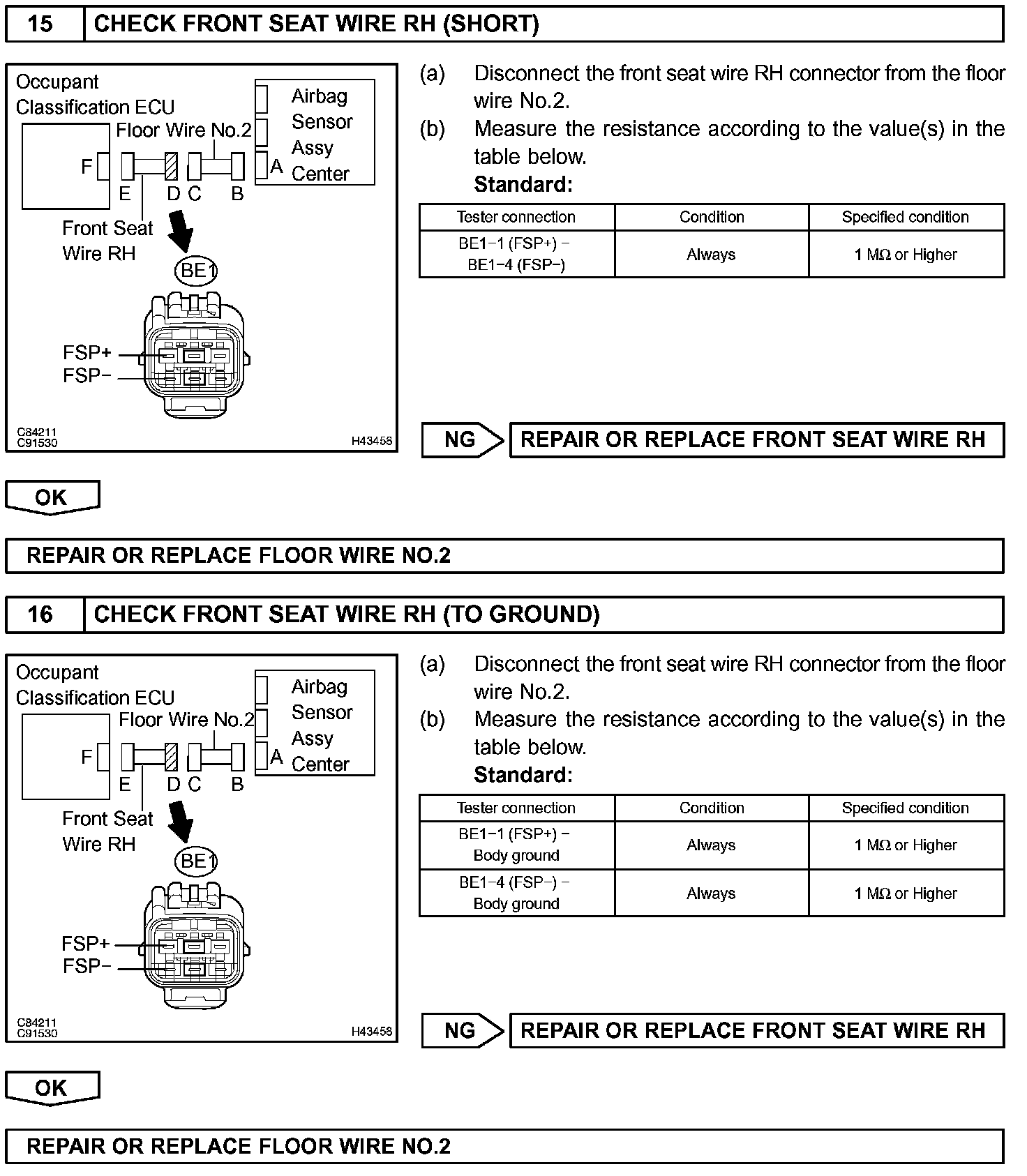

Step 15-16:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front RH seat assy installation bolts to see the under surface of seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.
