B1782

DTC B1782 OCCUPANT CLASSIFICATION SENSOR REAR LH CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

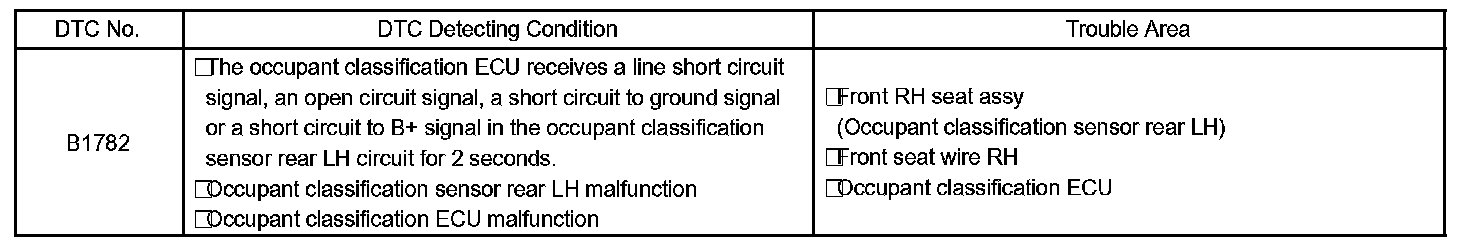

DTC Detecting Condition:

The occupant classification sensor rear LH circuit consists of the occupant classification ECU and the occupant classification sensor rear LH.

DTC B1782 is recorded when a malfunction is detected in the occupant classification sensor rear LH circuit.

HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1782 of the occupant classification system.
- Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.

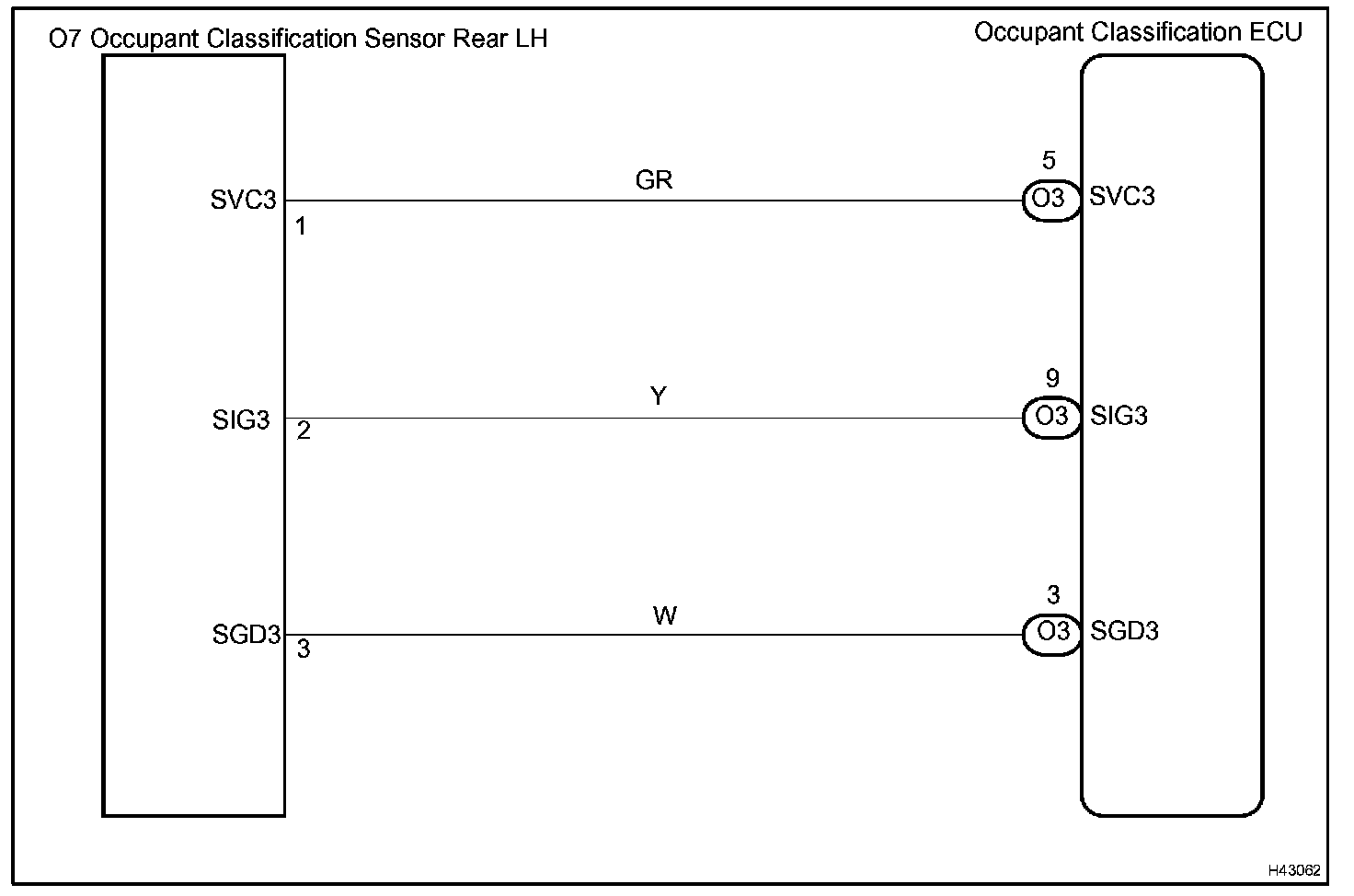

Wiring Diagram:

Step 1-2:

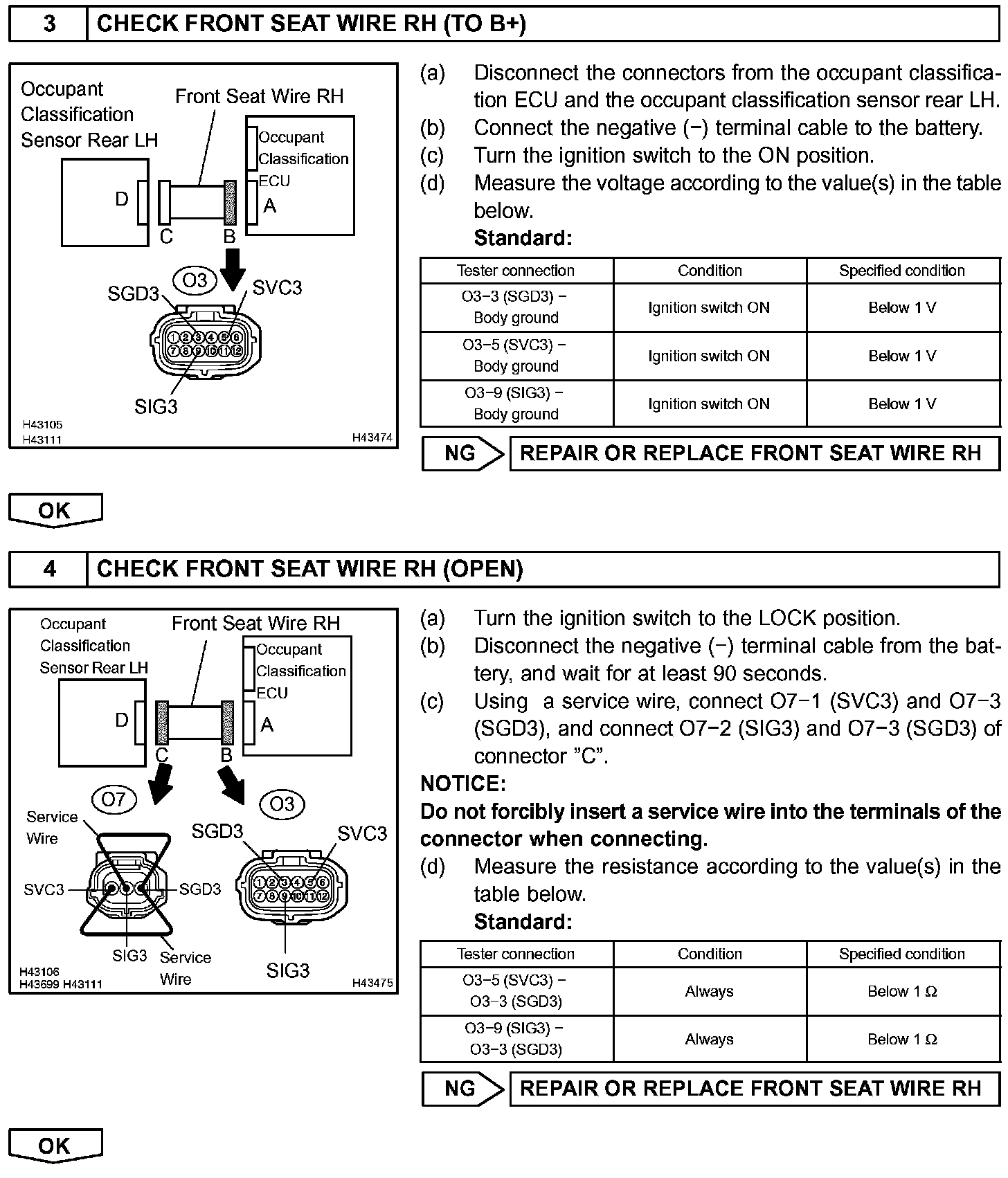

Step 3-4:

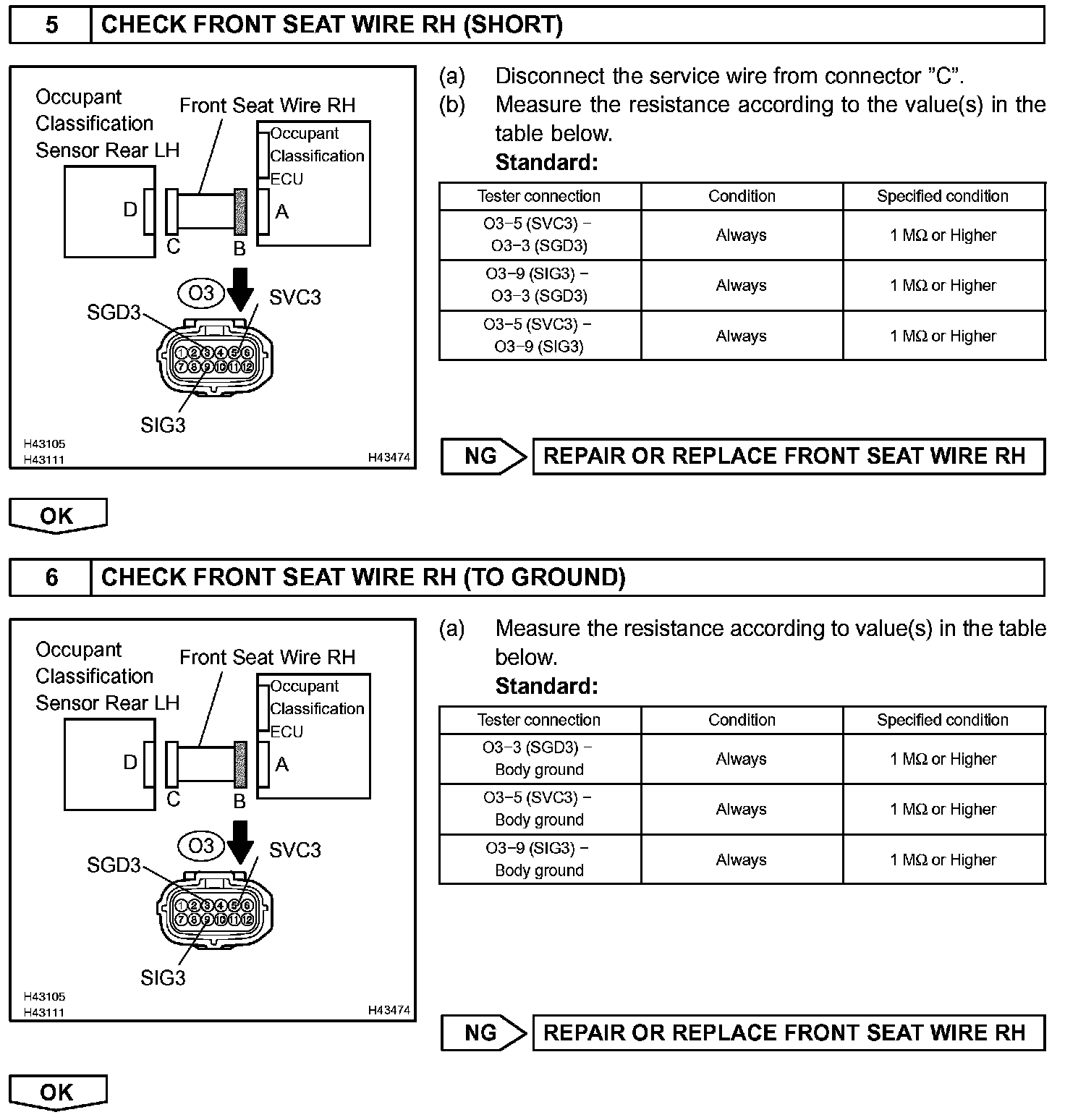

Step 5-6:

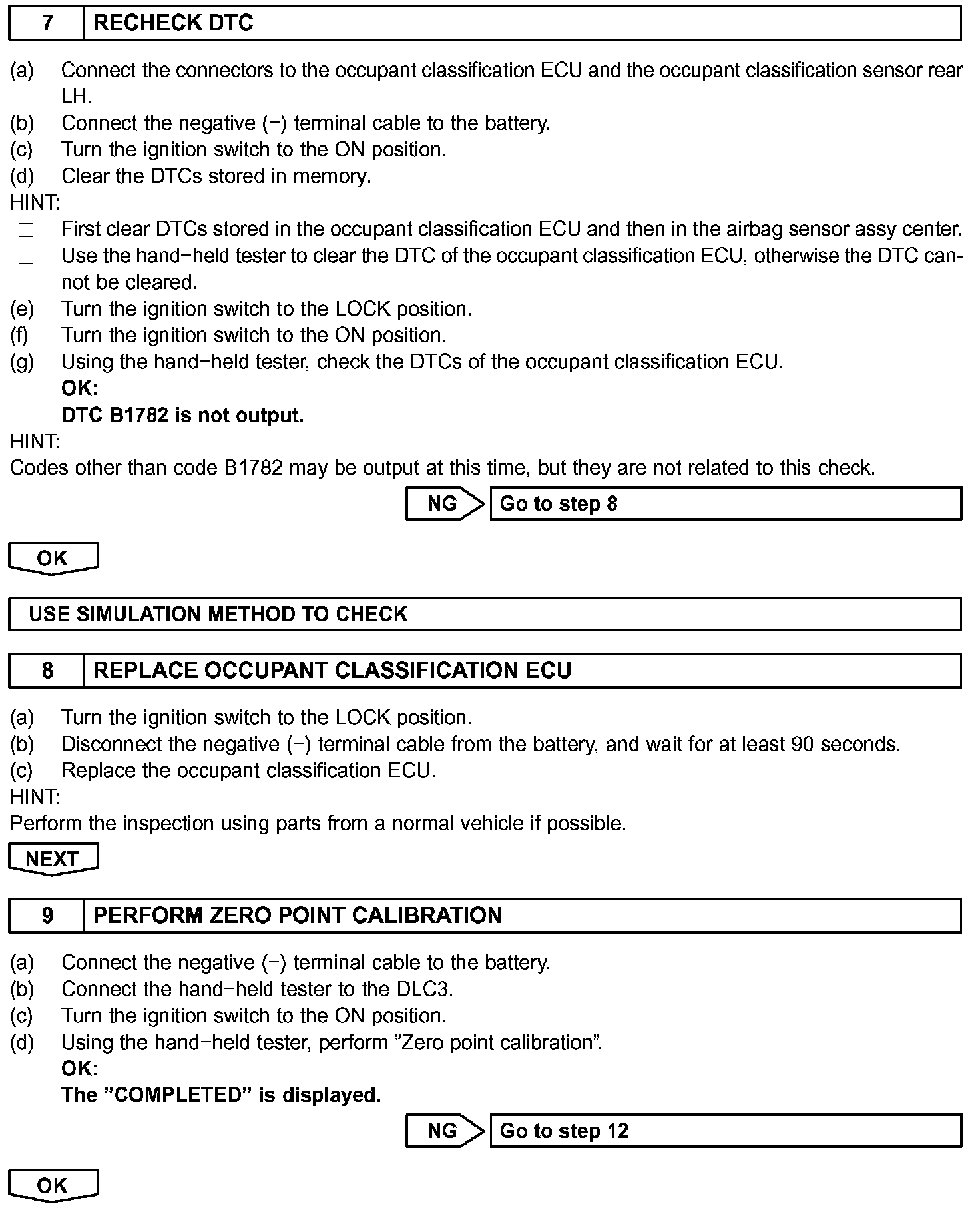

Step 7-9:

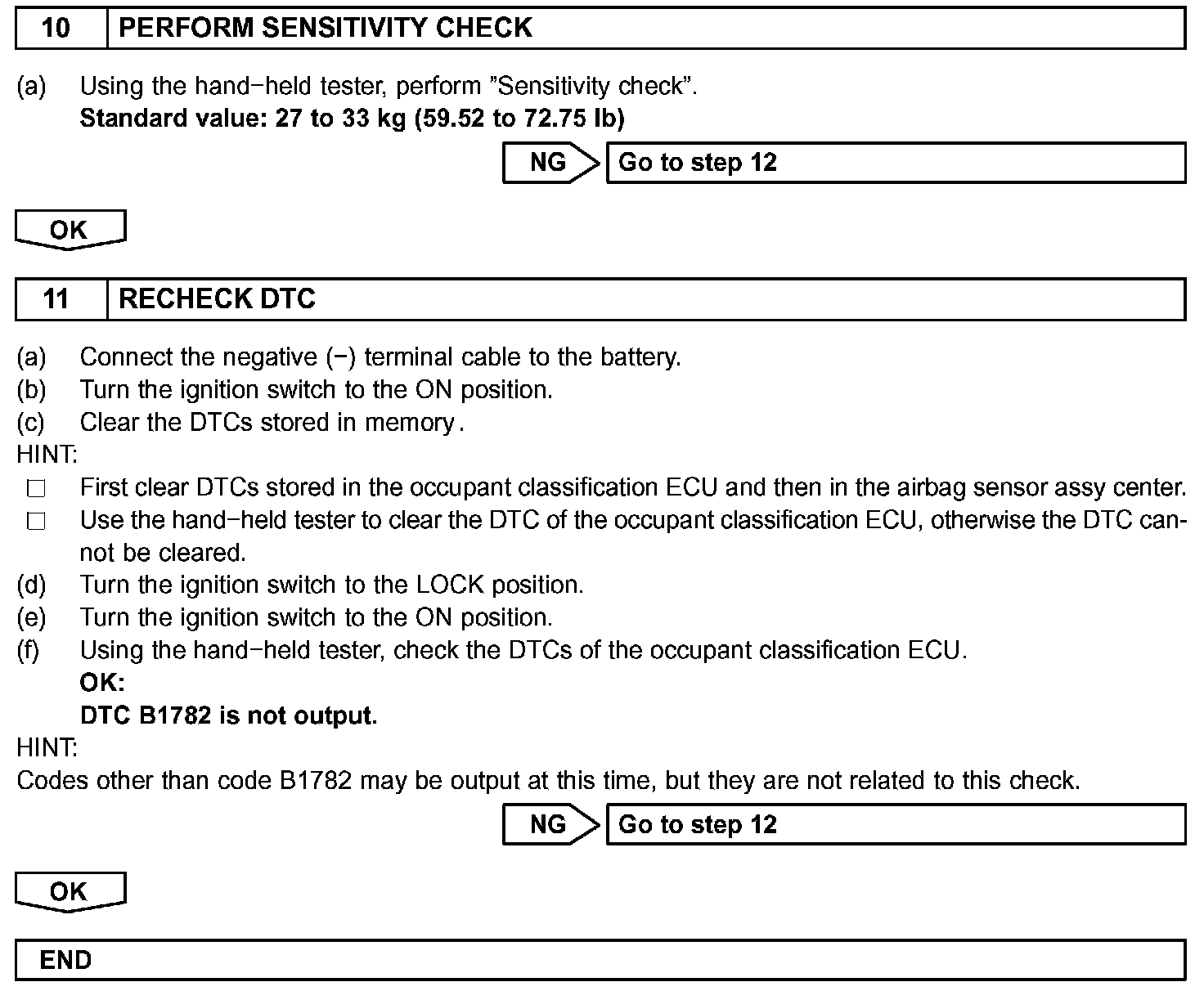

Step 10-11:

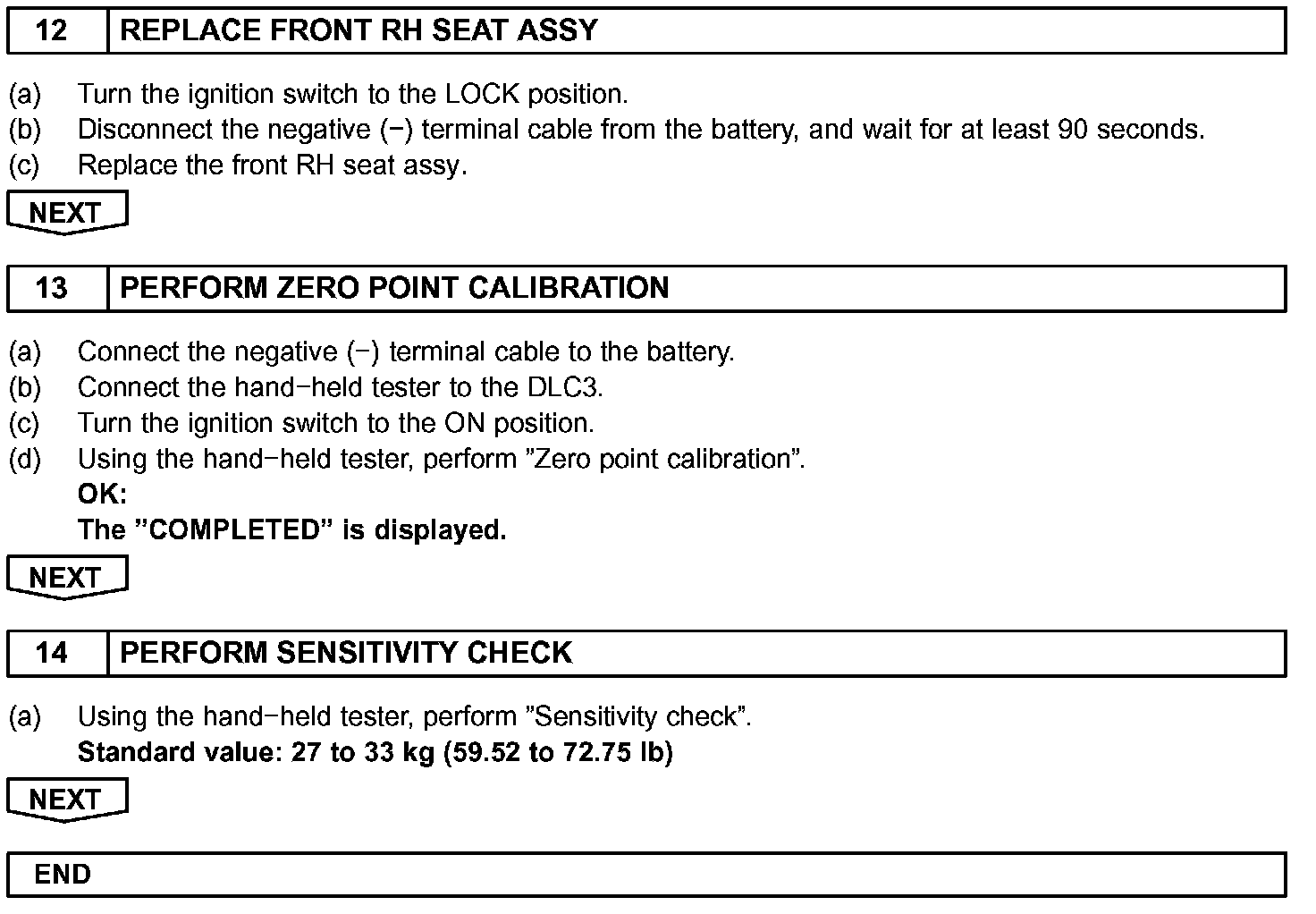

Step 12-14:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front RH seat assy installation bolts to see the under surface of seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.
