B1660

DTC B1660/43 PASSENGER AIRBAG ON/OFF INDICATOR LIGHT CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

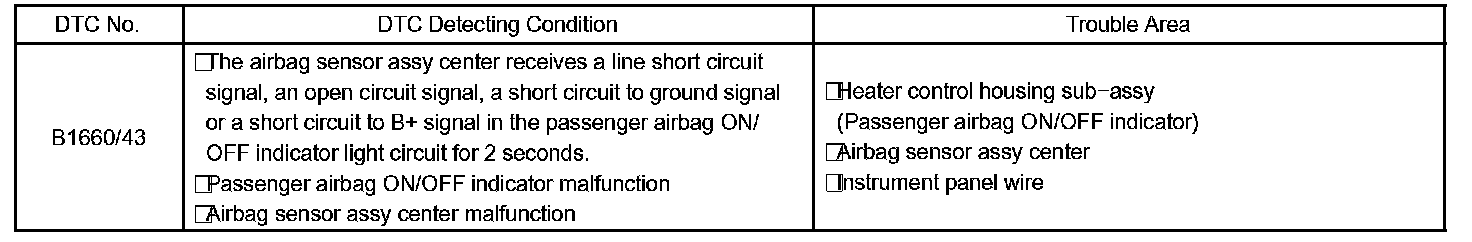

DTC Detecting Condition:

The passenger airbag ON/OFF indicator light circuit consists of the airbag sensor assy center and the heater control housing sub-assy.

This circuit indicates the operation condition of the front passenger airbag assy and the front seat airbag assy RH and passenger side seat belt pretensioner.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator light circuit.

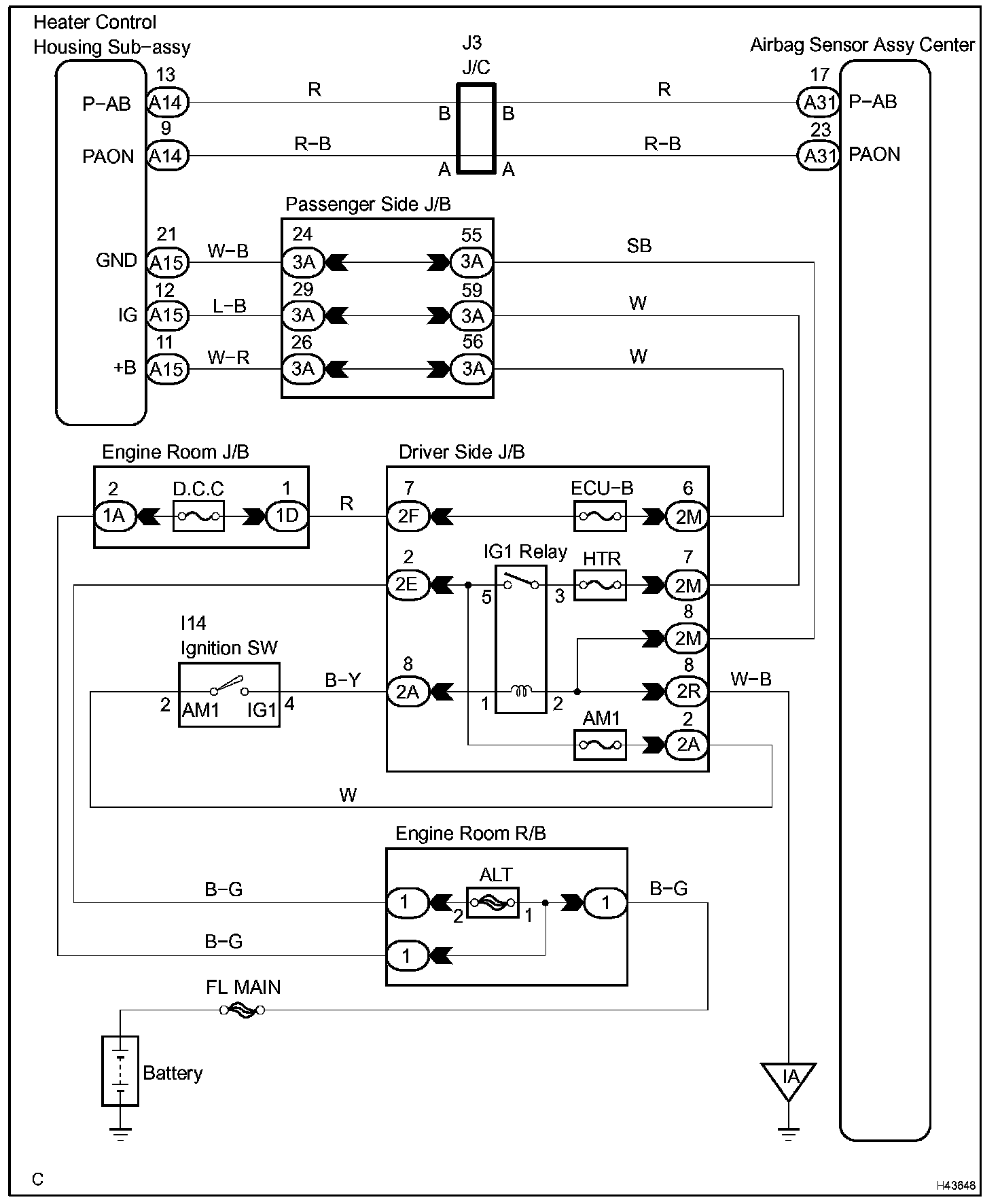

Wiring Diagram:

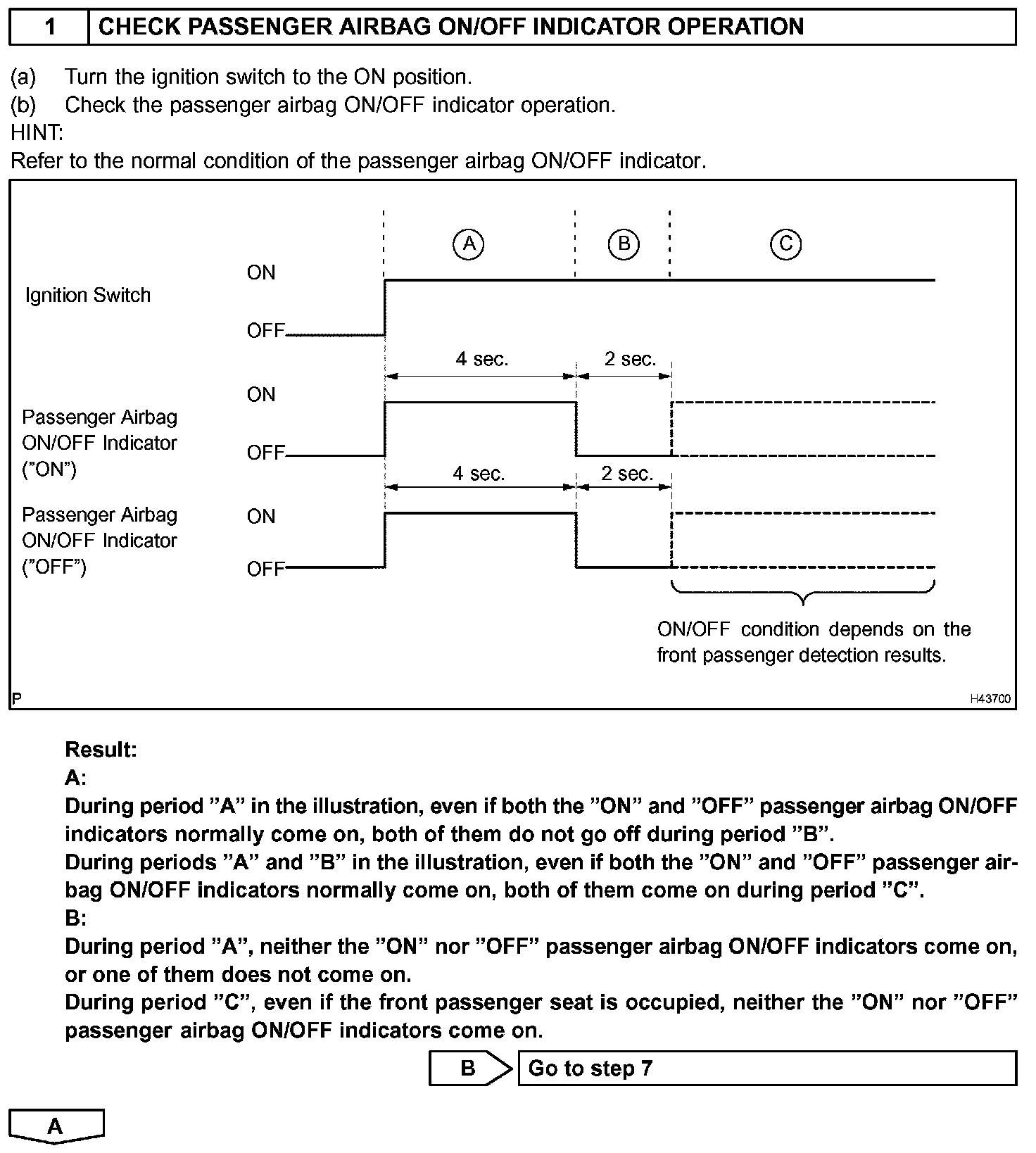

Step 1:

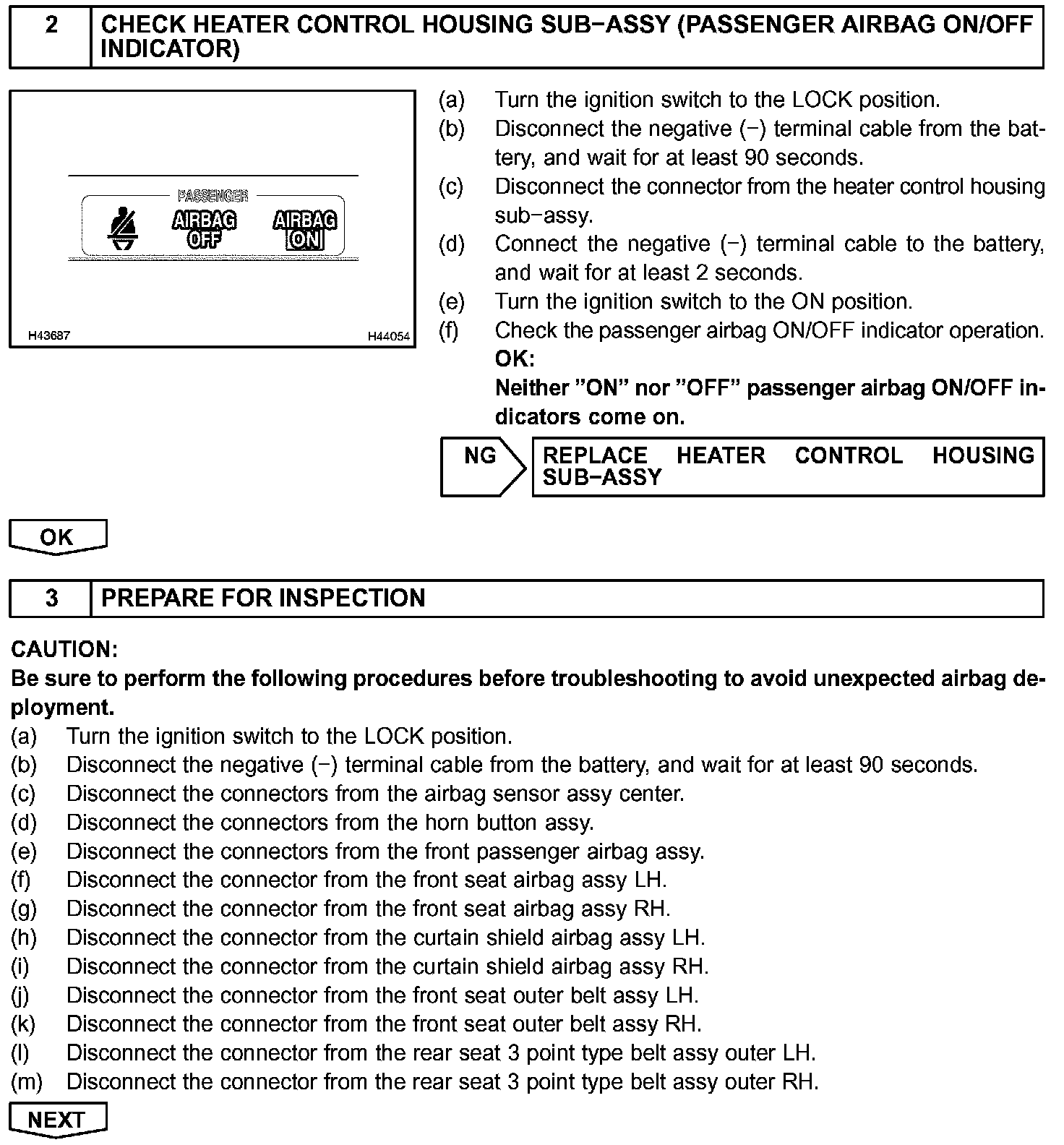

Step 2-3:

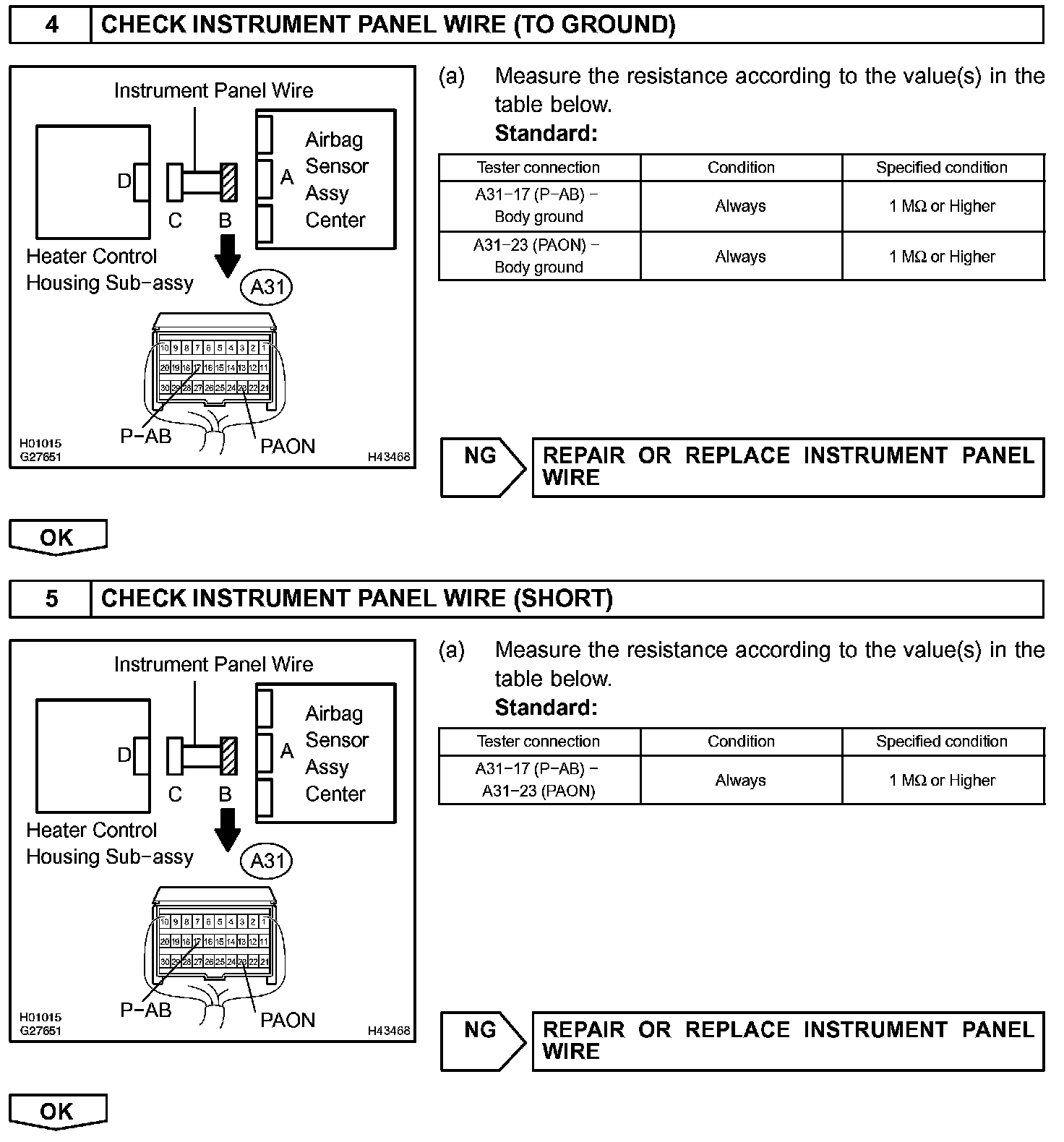

Step 4-5:

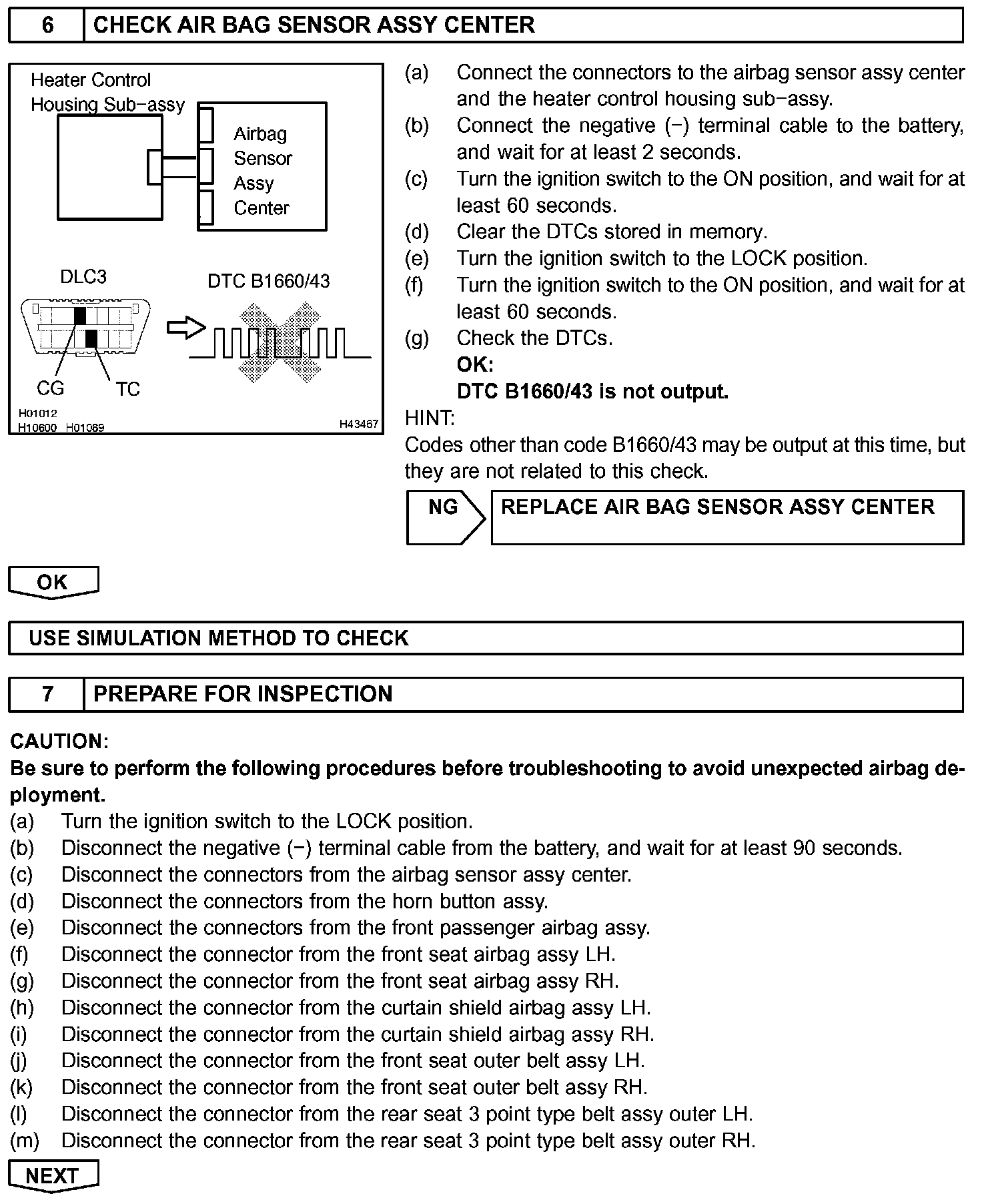

Step 6-7:

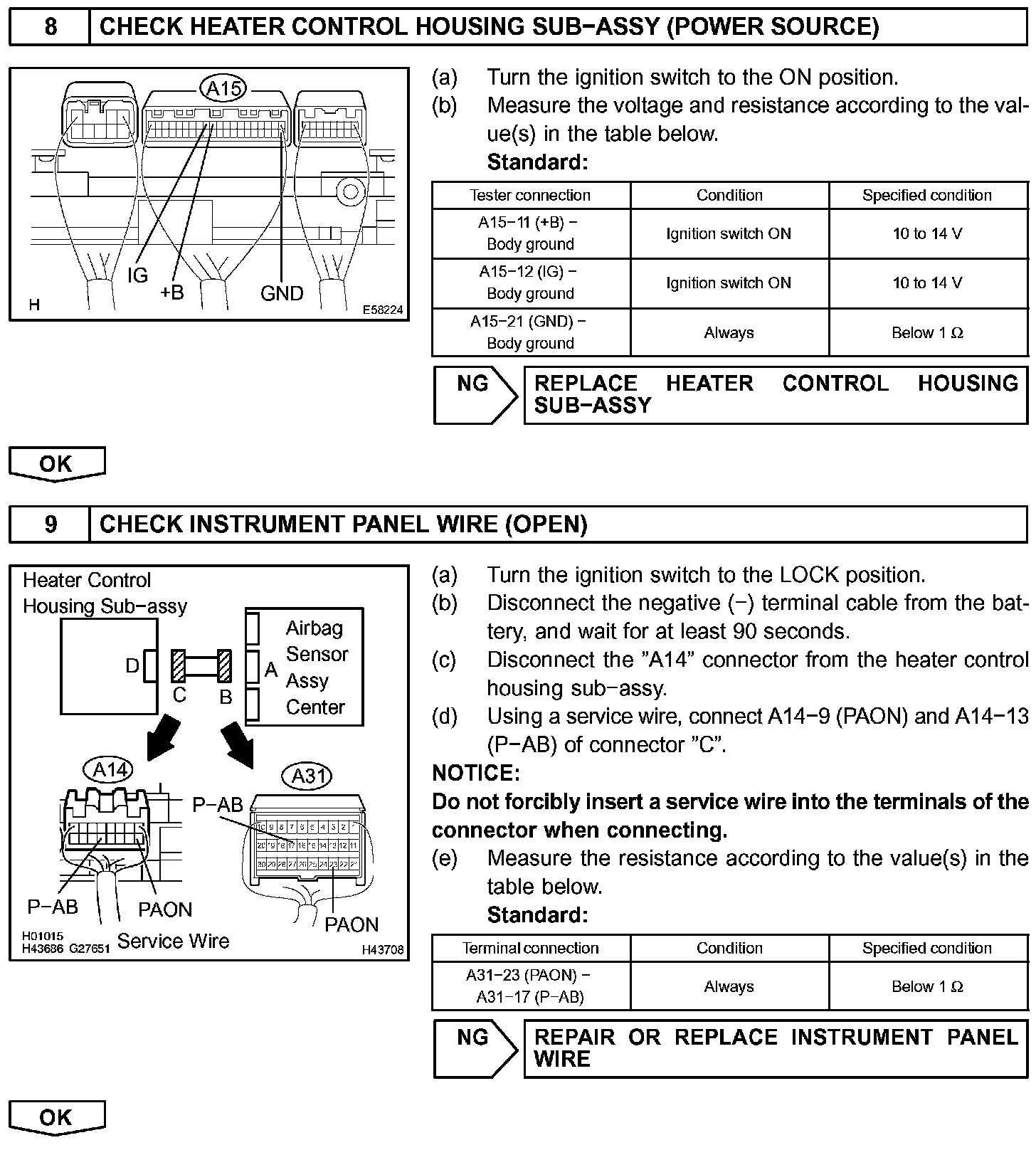

Step 8-9:

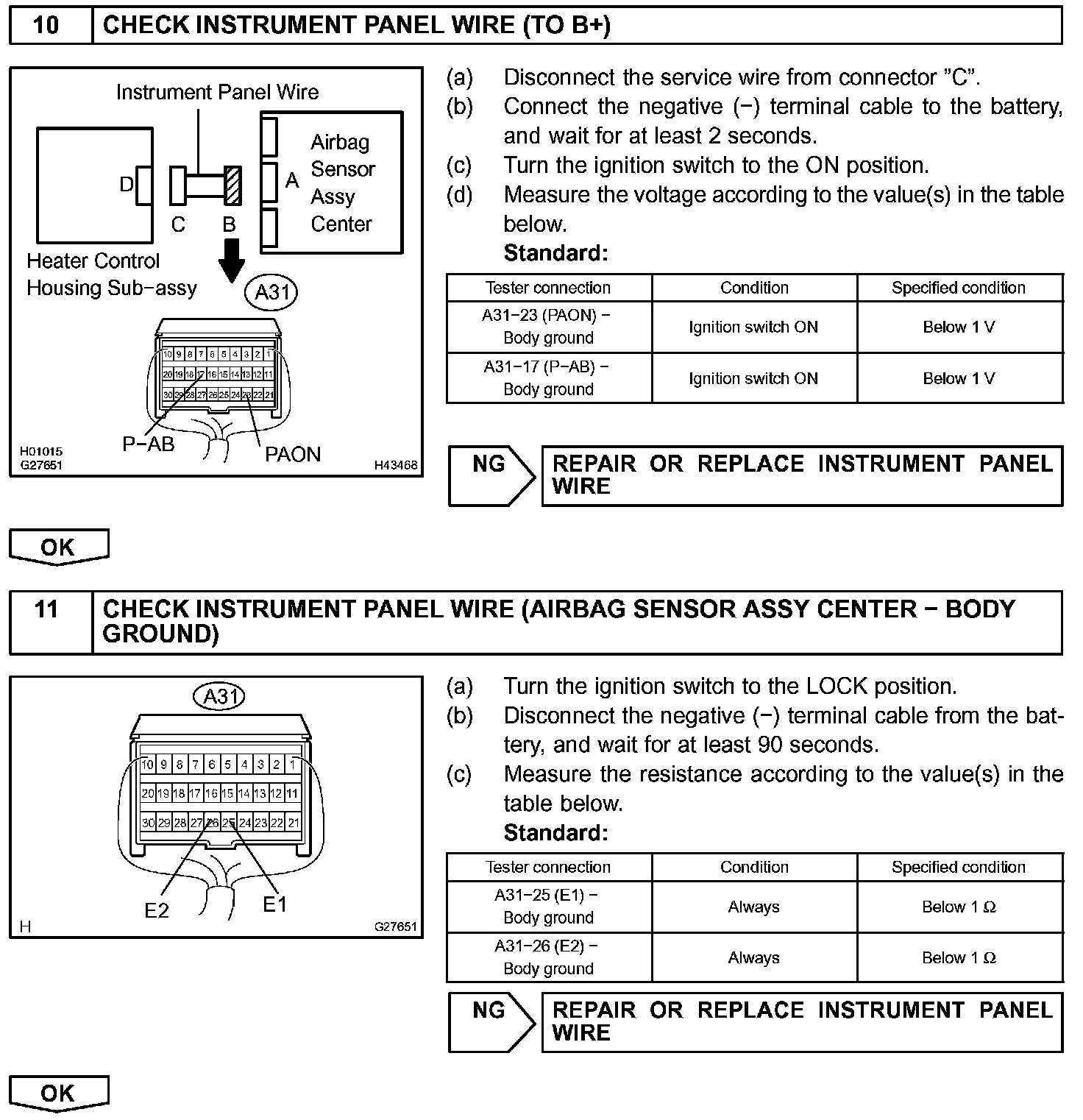

Step 10-11:

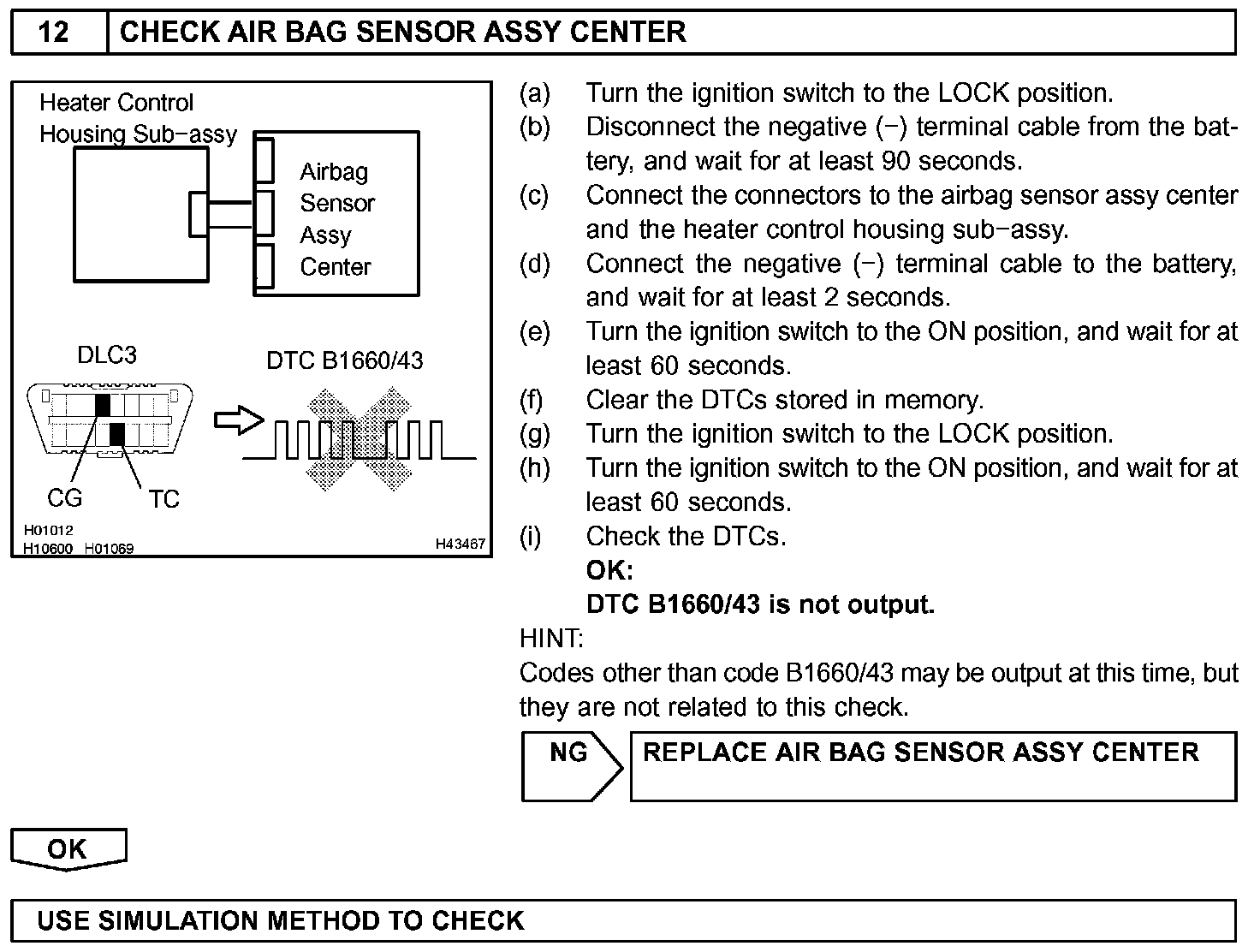

Step 12:

INSPECTION PROCEDURE
